Summary

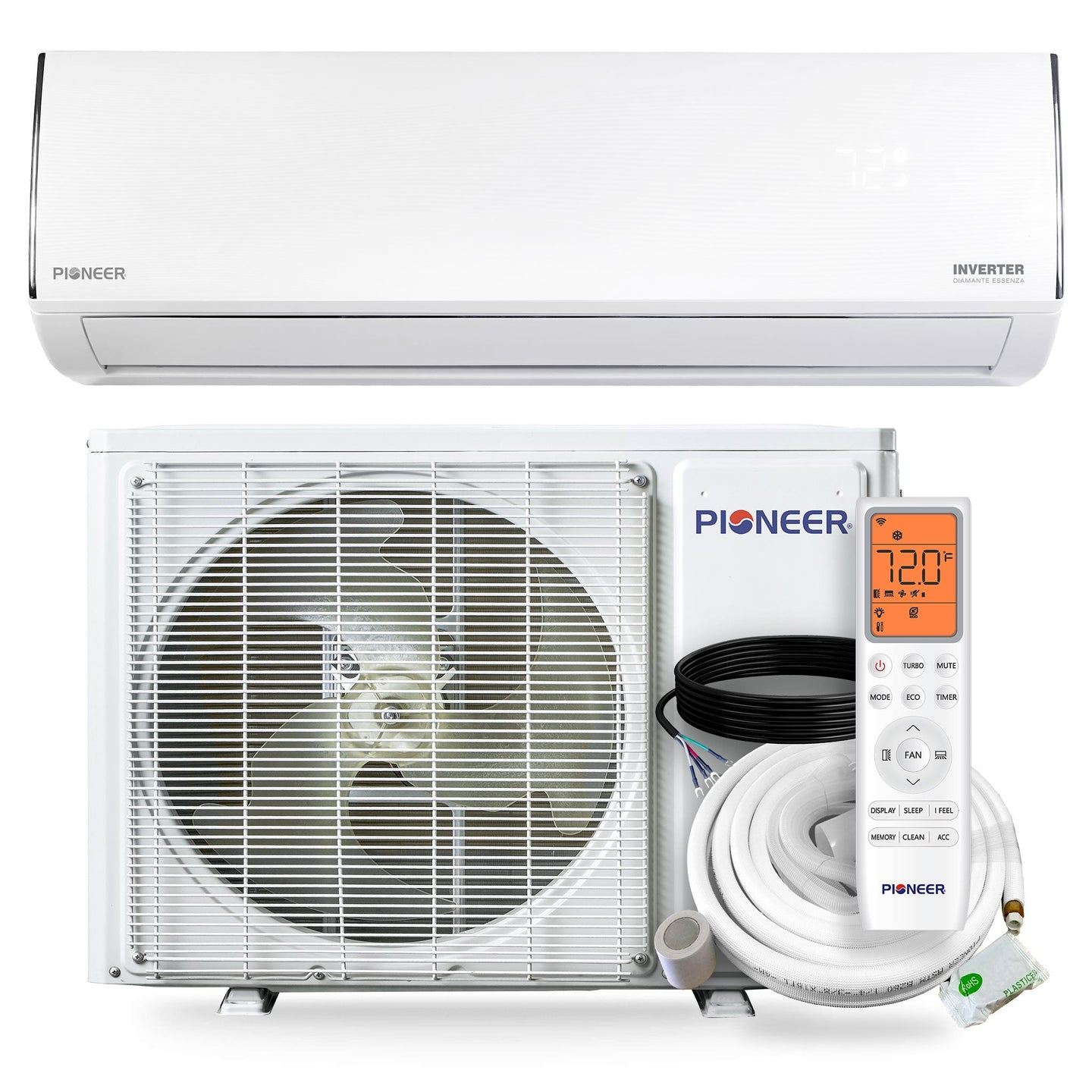

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance

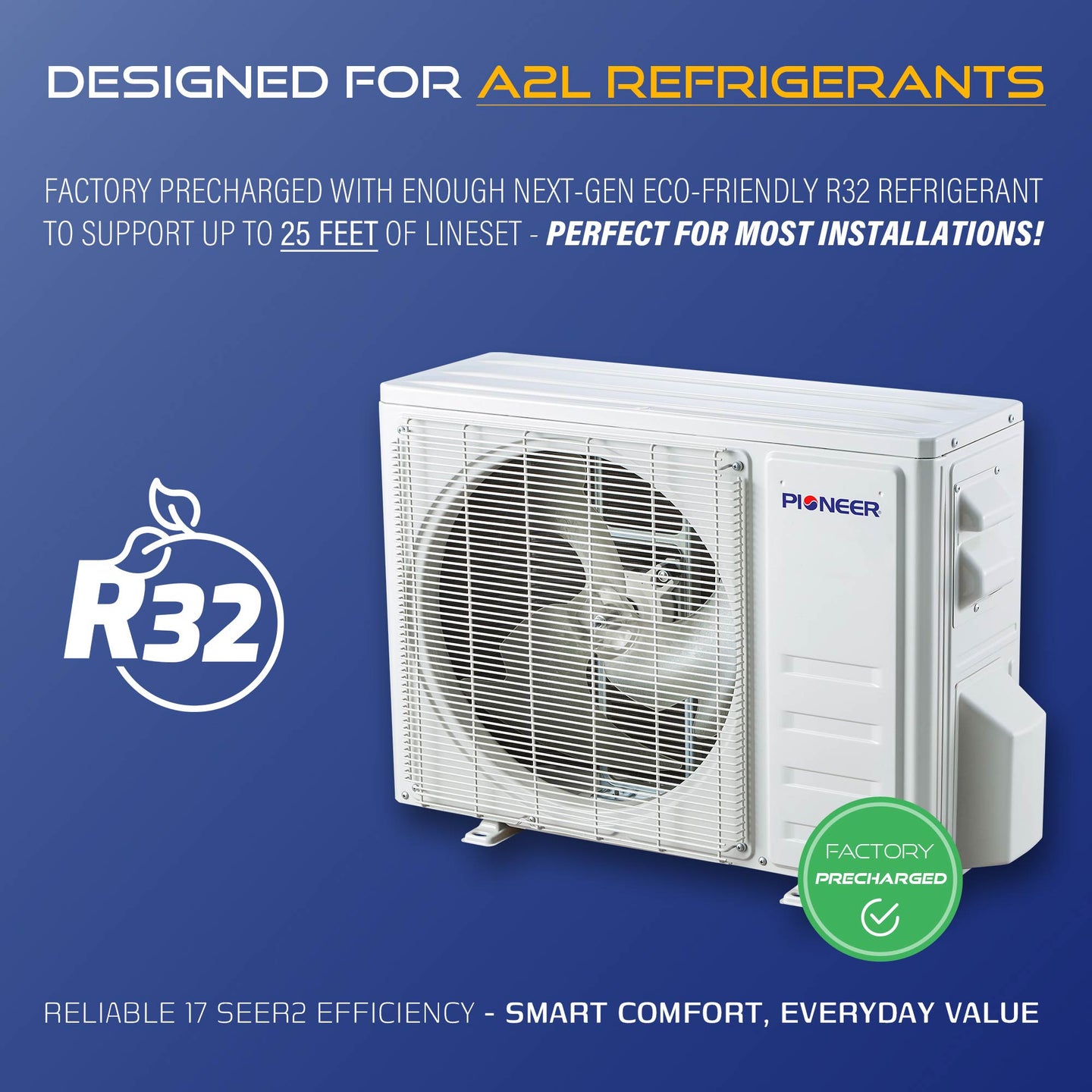

  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 35,000 BTU/h
    • Cooling Capacity Range: 7,500~36,000 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 9.5 BTU/W.h
    • Heating Rated Capacity: 35,400 BTU/h
    • Heating Capacity Range: 7,500~36,000 BTU/h
    • Heating HSPF2 (Region IV): 8.5 / 7.5 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
    • Refrigerant Type: R-32
    • Recommended Room Size: 800~1350 sq ft
    • Minimum Room Size: 63 sq ft
    • Minimum Installation Height: 6 ft

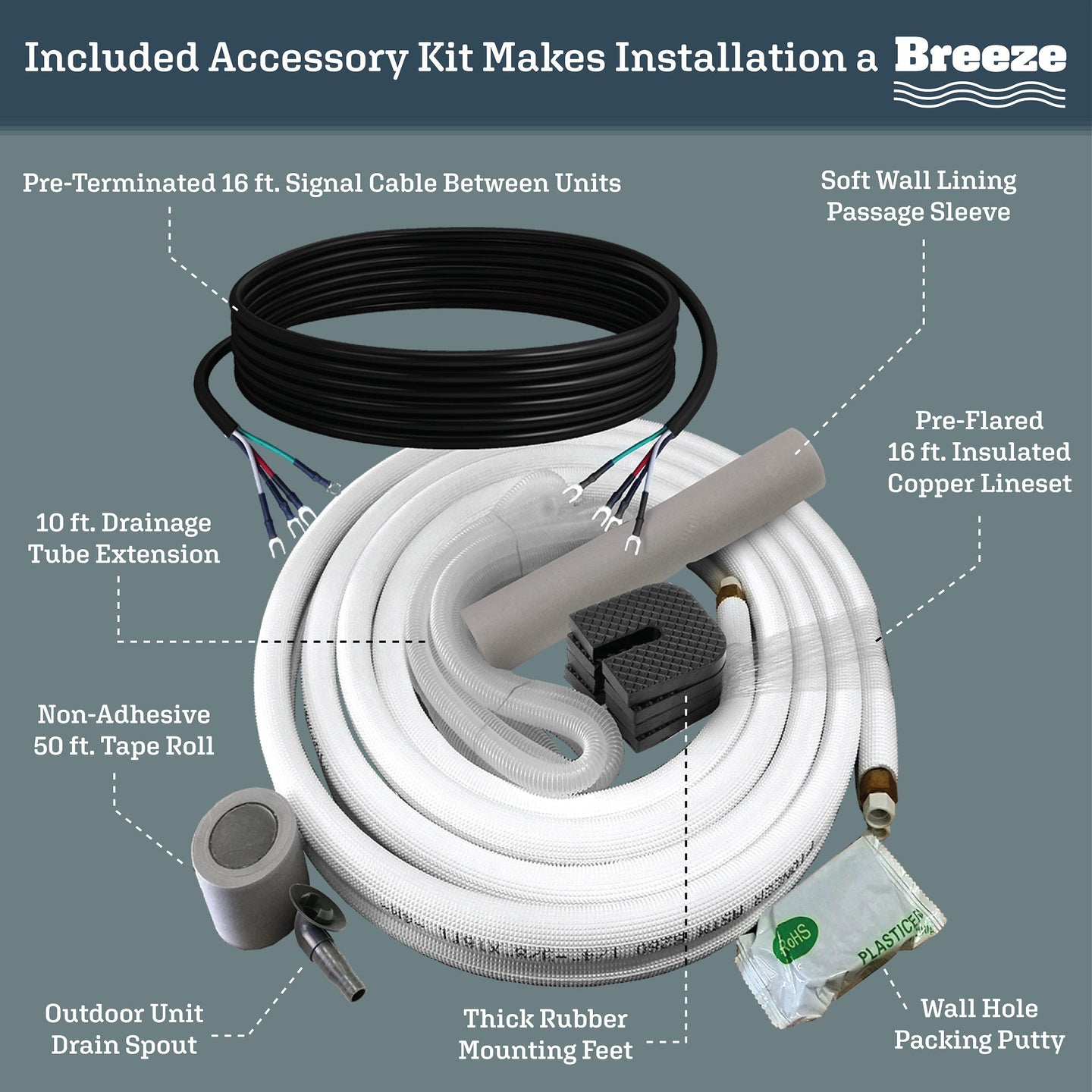

    • Piping Diameter: 1/4-5/8"
    • AHRI Reference: 217048738
  • Indoor Unit
    • Part Number: WT036GLUI17HLD
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)
    • Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
    • Carton Dimensions (WDH): 49-5/8 x 12-7/8 x 16-7/8 Inches
    • Net / Gross Weight: 38.6 / 46.3 lbs.
  • Outdoor Unit
    • Part Number: YN036GLUI17RPD
    • Breaker Needed: 30A (double-pole)
    • Sound Level: 63 dB(A)
    • Net Dimensions (WDH): 38-1/2 x 16-1/2 x 31-5/8 Inches
    • Carton Dimensions (WDH): 40-1/4 x 18-7/8 x 32-7/8 Inches
    • Net / Gross Weight: 105.8 / 120.2 lbs

Dimension Chart

46⅞ 10¼ 14¼ 38½ 16½ 31⅝ ¾
