Summary

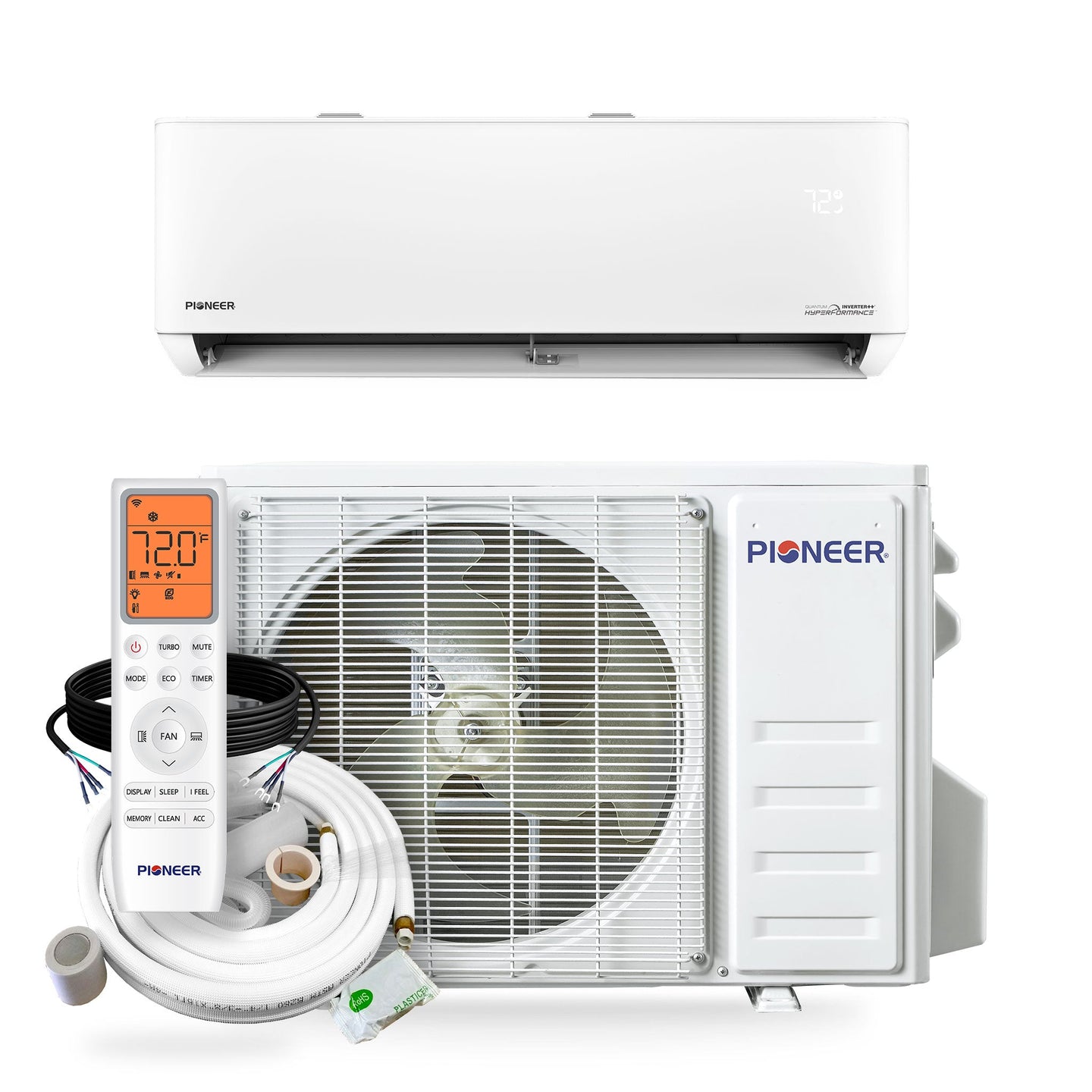

  • Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 25.0 SEER2 / 14.0 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

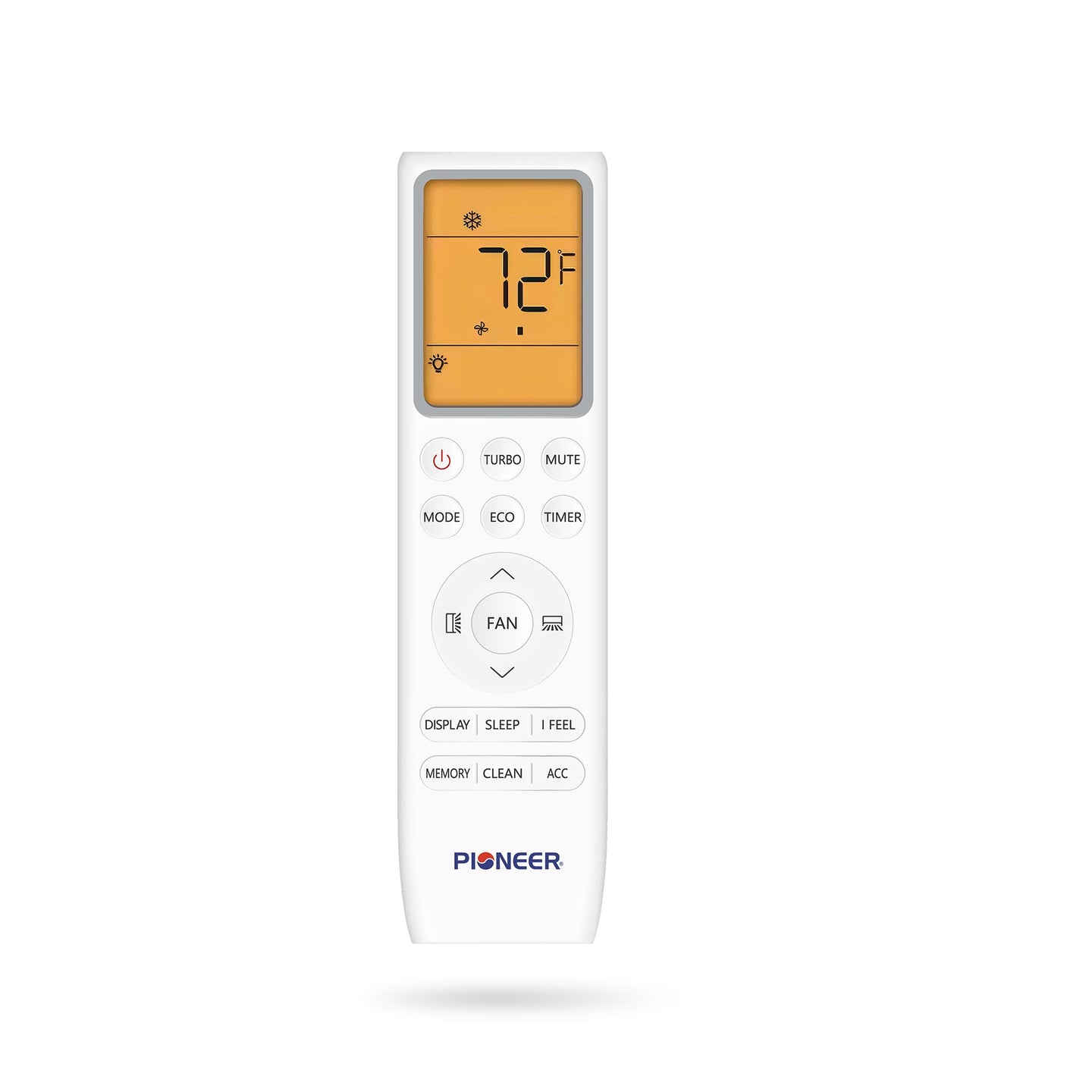

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 12,000 BTU/h
    • Cooling Capacity Range: 2,500~15,600 BTU/h
    • Cooling SEER2: 25.0 BTU/W.h
    • Cooling EER2: 14.0 BTU/W.h
    • Heating Rated Capacity: 12,000 BTU/h
    • Heating Capacity Range: 2,500~19,700 BTU/h
    • Heating HSPF2 (Region IV): 10.5 / 9.0 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 4.0 / 1.8 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 250~500 Sq.F
    • Minimum Room Size: 40 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4 x 3/8"
    • AHRI Reference: 217048755

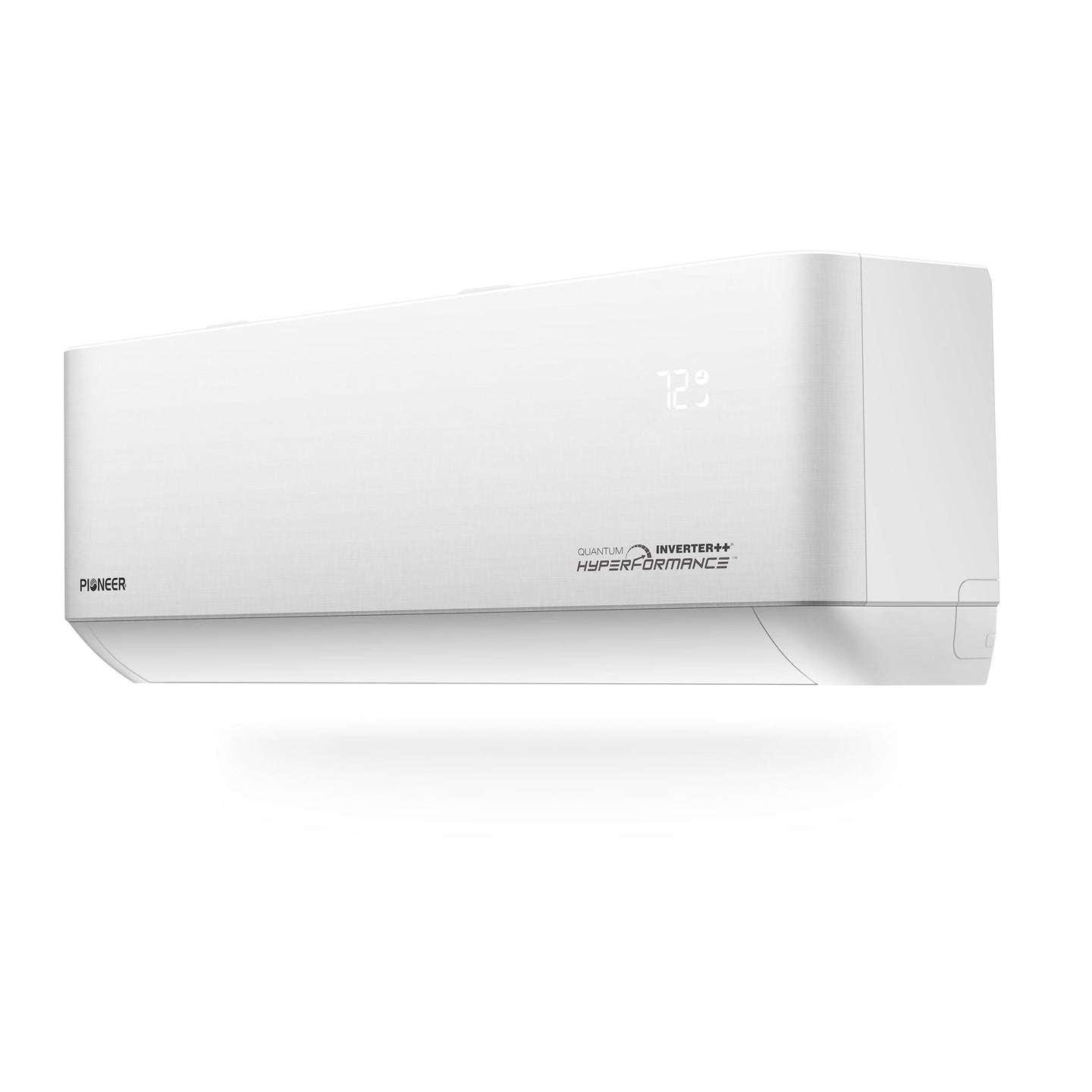

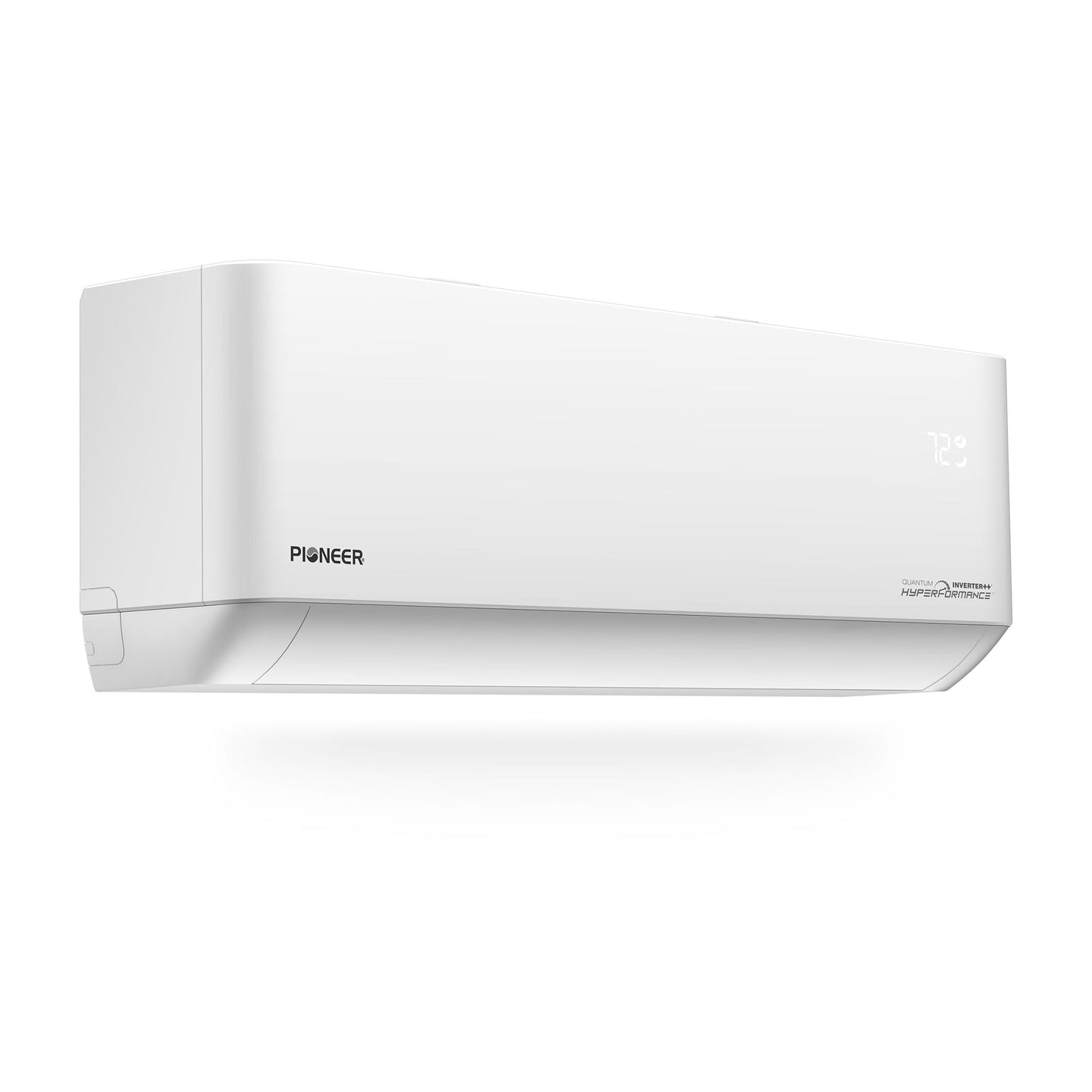

  • Indoor Unit
    • Part Number: WT012GLSI25HLH
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
    • Product Dimensions (WDH): 36"-1/4 x 7"-5/8 x 12" Inches
    • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
    • Net / Gross Weight: 23.1 / 30.9 lbs.

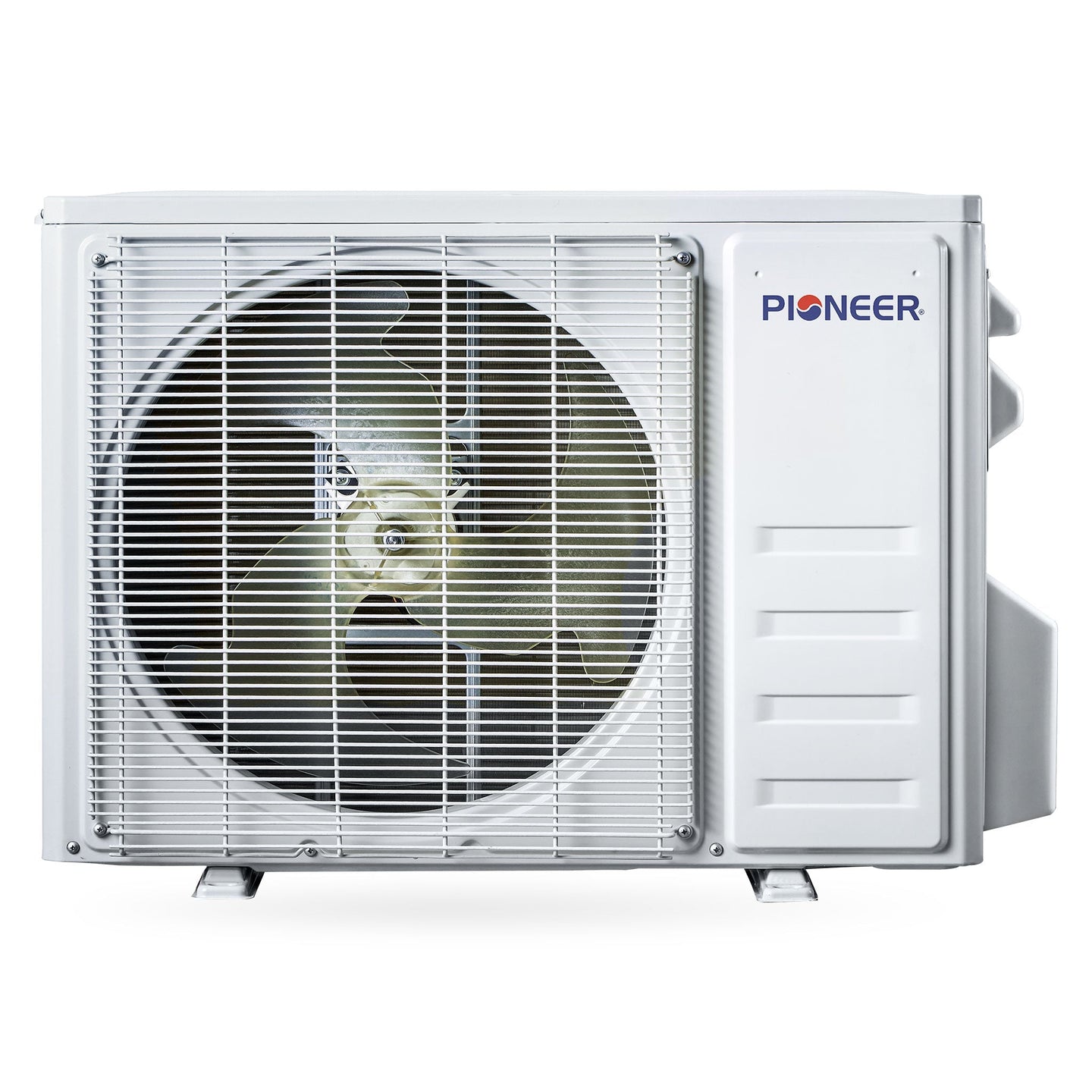

  • Outdoor Unit
    • Part Number: YN012GLSI25RPH
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 57 dB(A)
    • Net Dimensions (WDH): 34" x 13"-3/4 x 23"-3/4 Inches
    • Carton Dimensions (WDH): 35" x 15"-1/8 x 24"-3/4 Inches
    • Net / Gross Weight: 69.4 / 73.9 lbs.

Dimension Chart

36¼ 7⅝ 12 34 13¾ 23¾ ¾
