Summary

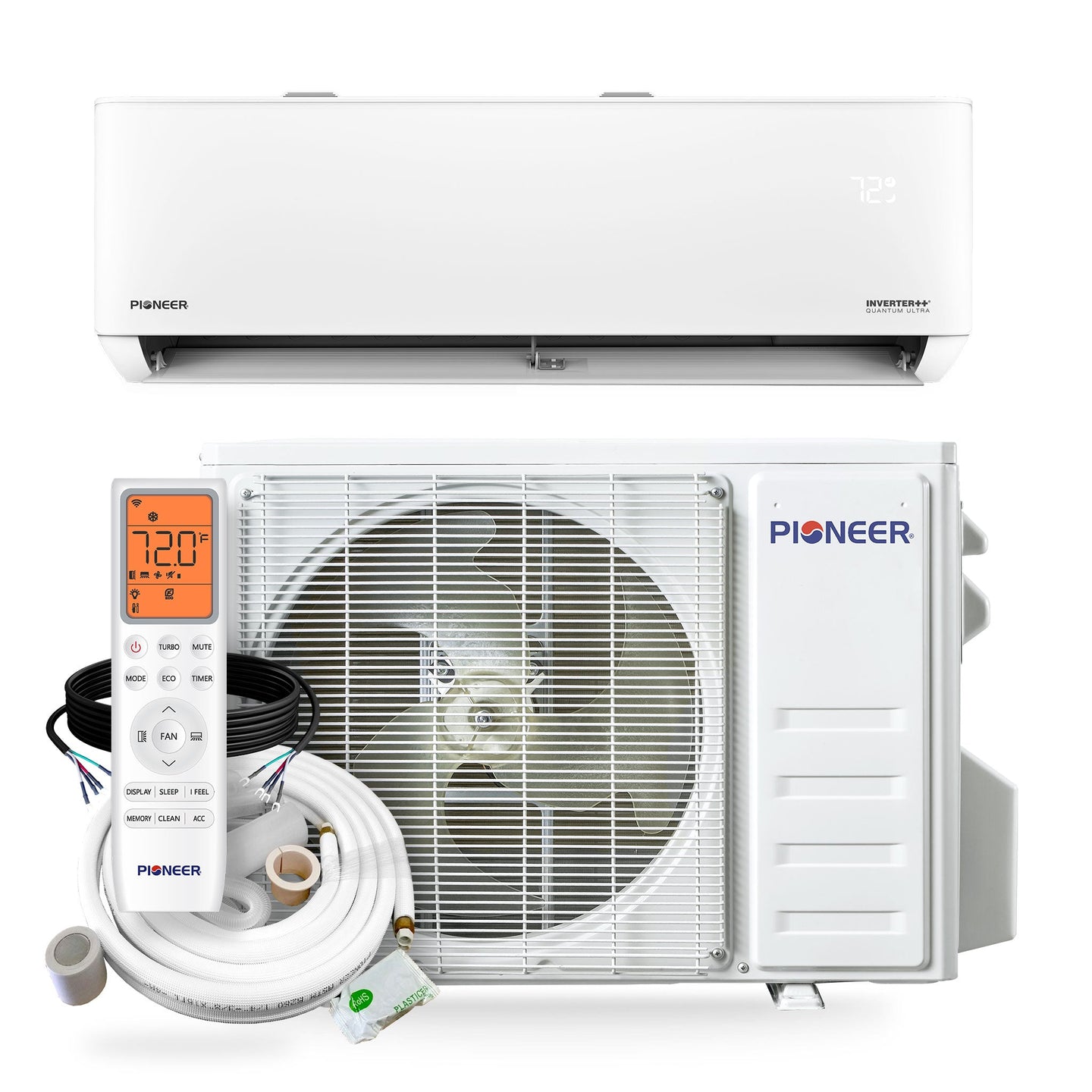

  • Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 18,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.81 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System

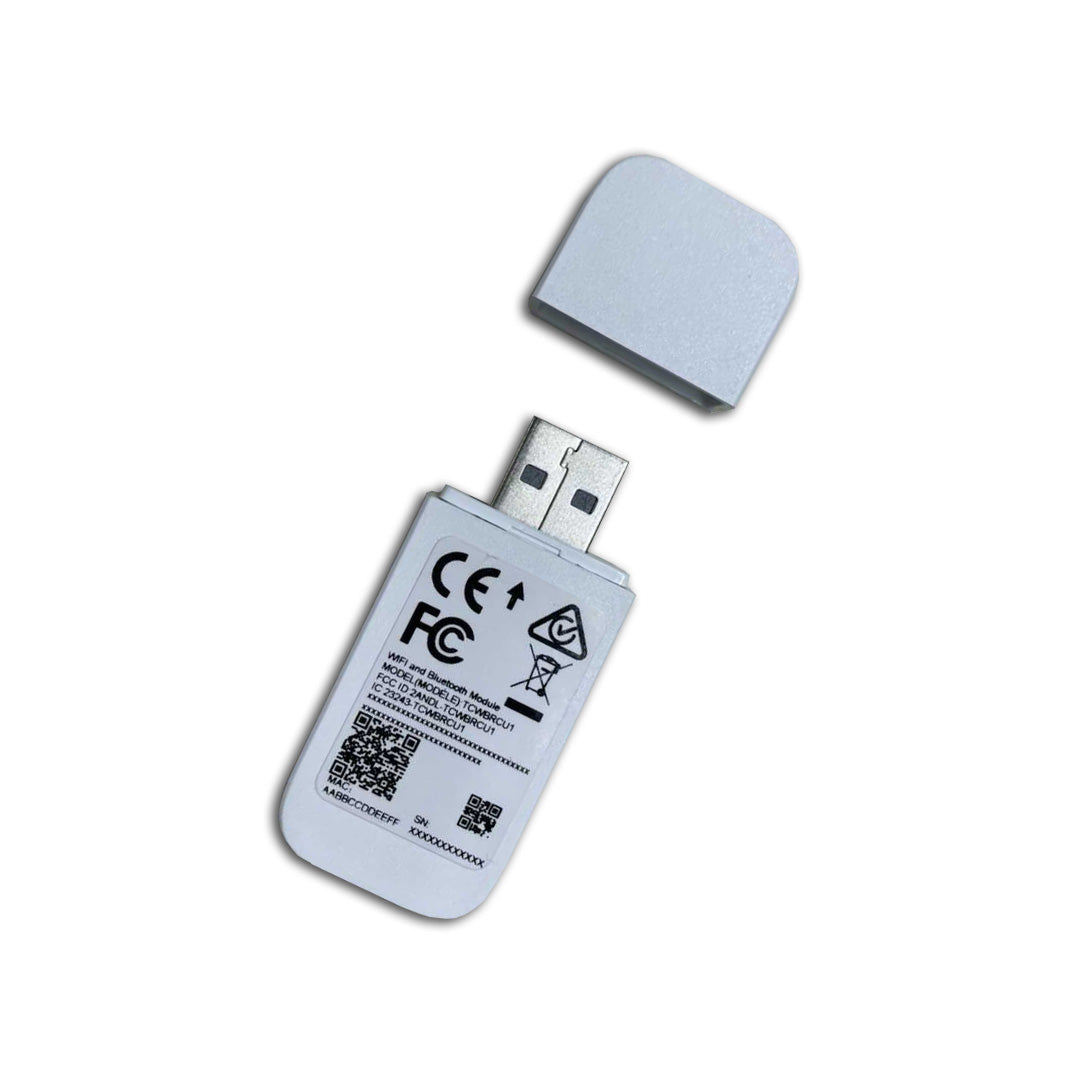

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

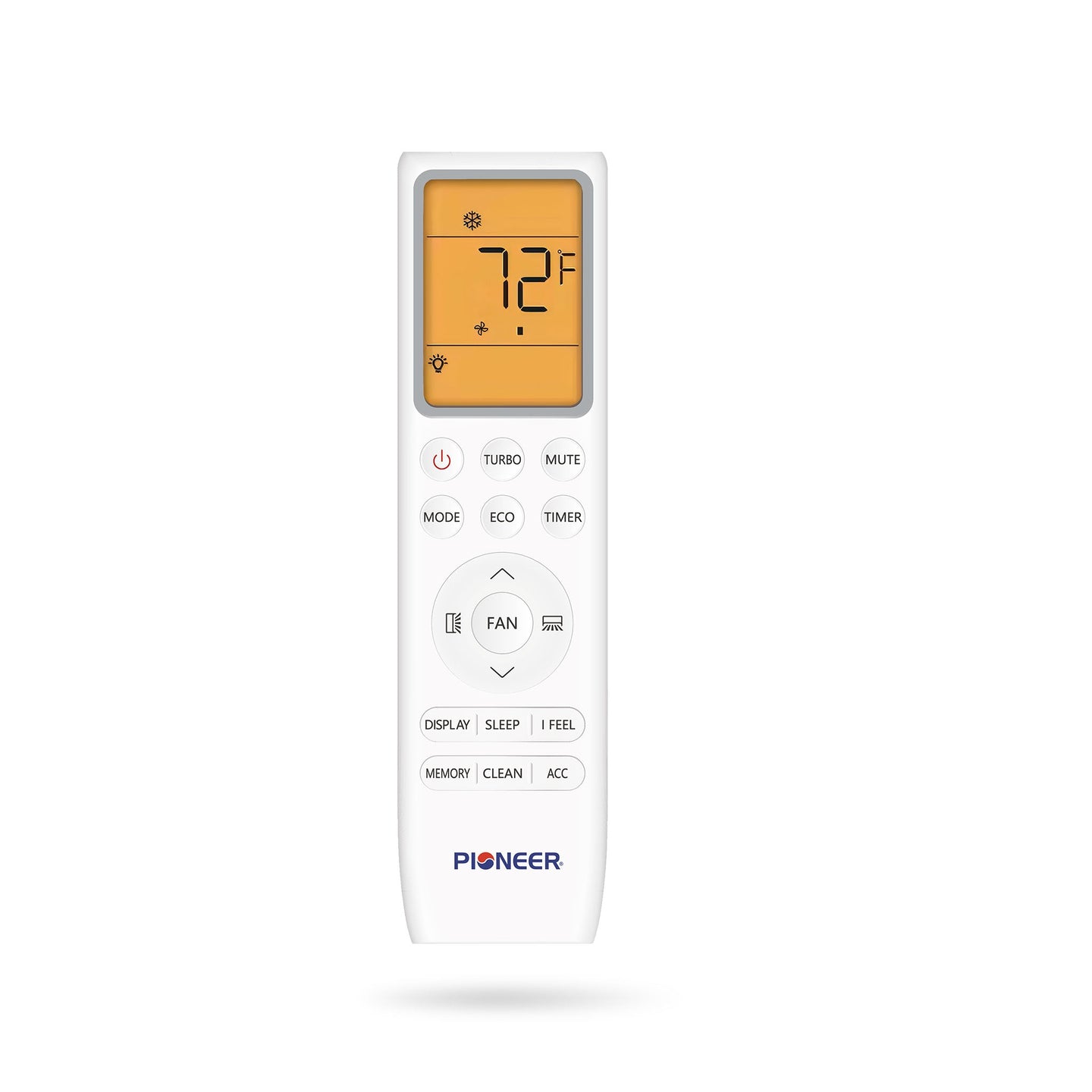

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 18,000 BTU/h
    • Cooling Capacity Range: 4,000~19,000 BTU/h
    • Cooling SEER2: 23.0 BTU/W.h
    • Cooling EER2: 12.5 BTU/W.h
    • Heating Rated Capacity: 19,000 BTU/h
    • Heating Capacity Range: 4,000~21,000 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.81 / 1.8 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 500~750 Sq.F
    • Minimum Room Size: 51 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4 x 1/2"
    • AHRI Reference: 217048752

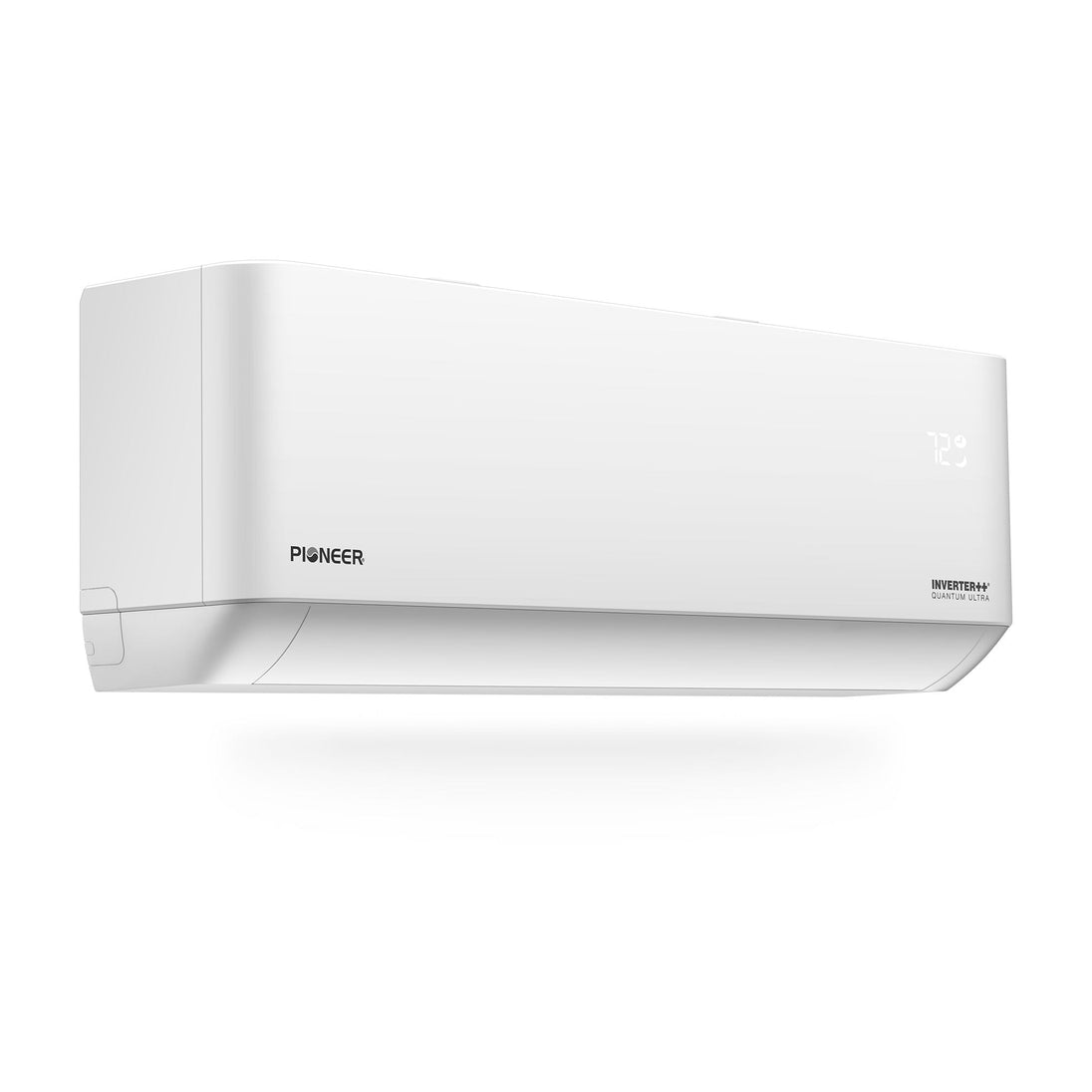

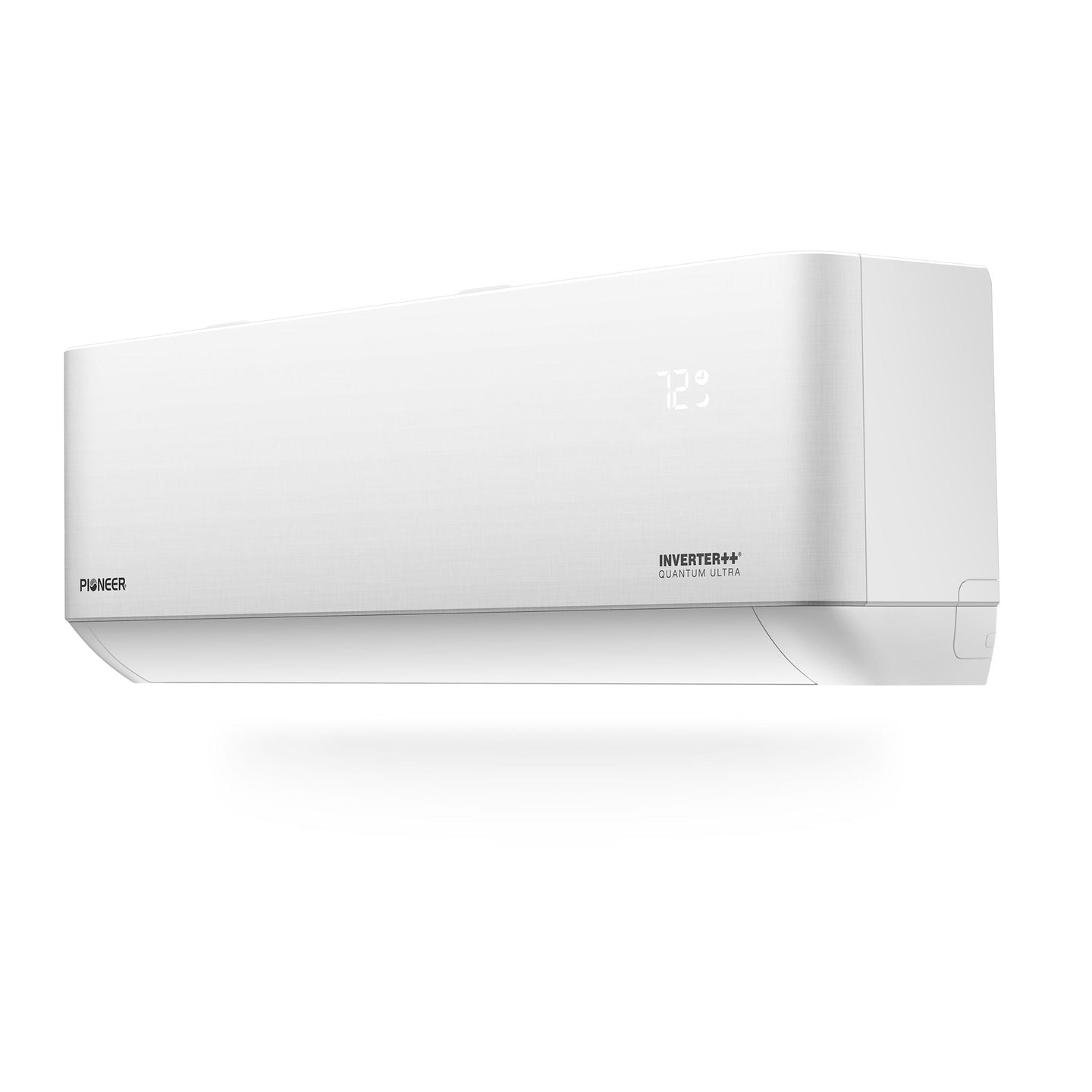

  • Indoor Unit
    • Part Number: WT018GLSI24HLG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
    • Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13" Inches
    • Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
    • Net / Gross Weight: 30.9 / 35.3 lbs.

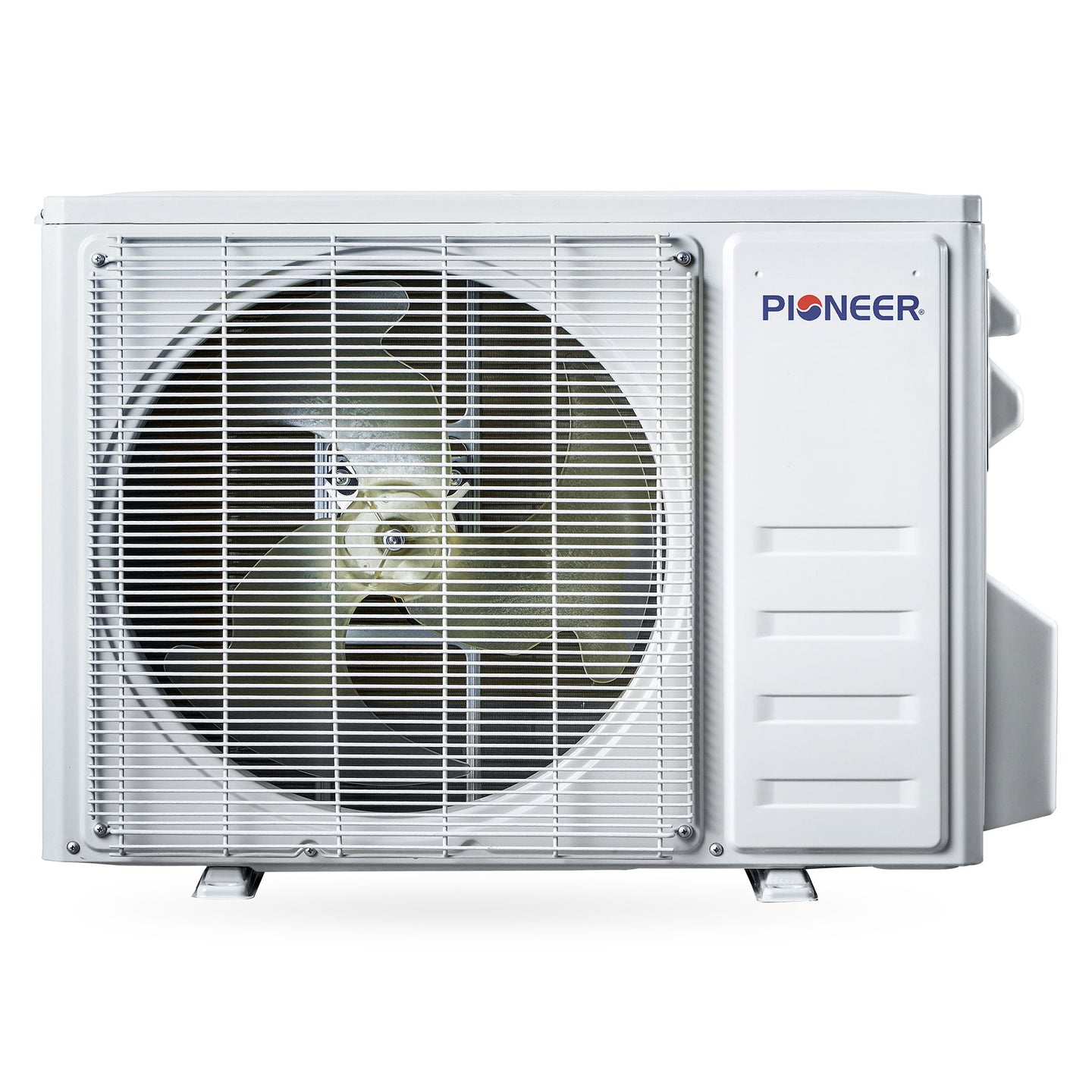

  • Outdoor Unit
    • Part Number: YN018GLSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 53 dB(A)
    • Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
    • Carton Dimensions (WDH): 37"-3/8 x 16"-3/4 x 28"-3/4 Inches
    • Net / Gross Weight: 90.4 / 99.2 lbs.

Dimension Chart

43⅛ 13 36½ 15 27½ ¾
