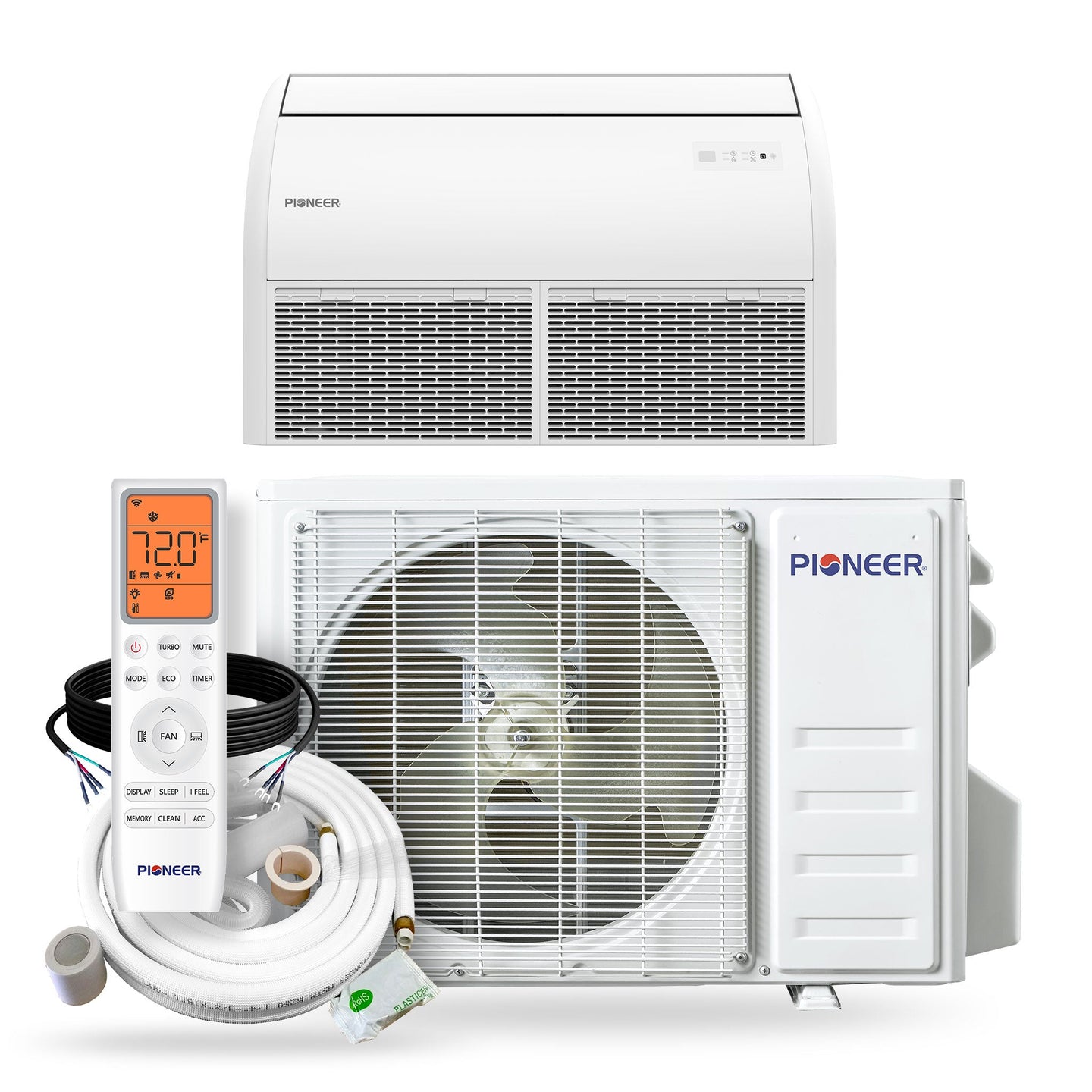

Summary

  • High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
  • Cooling capacity: 22,200 BTU/H with 20.0 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

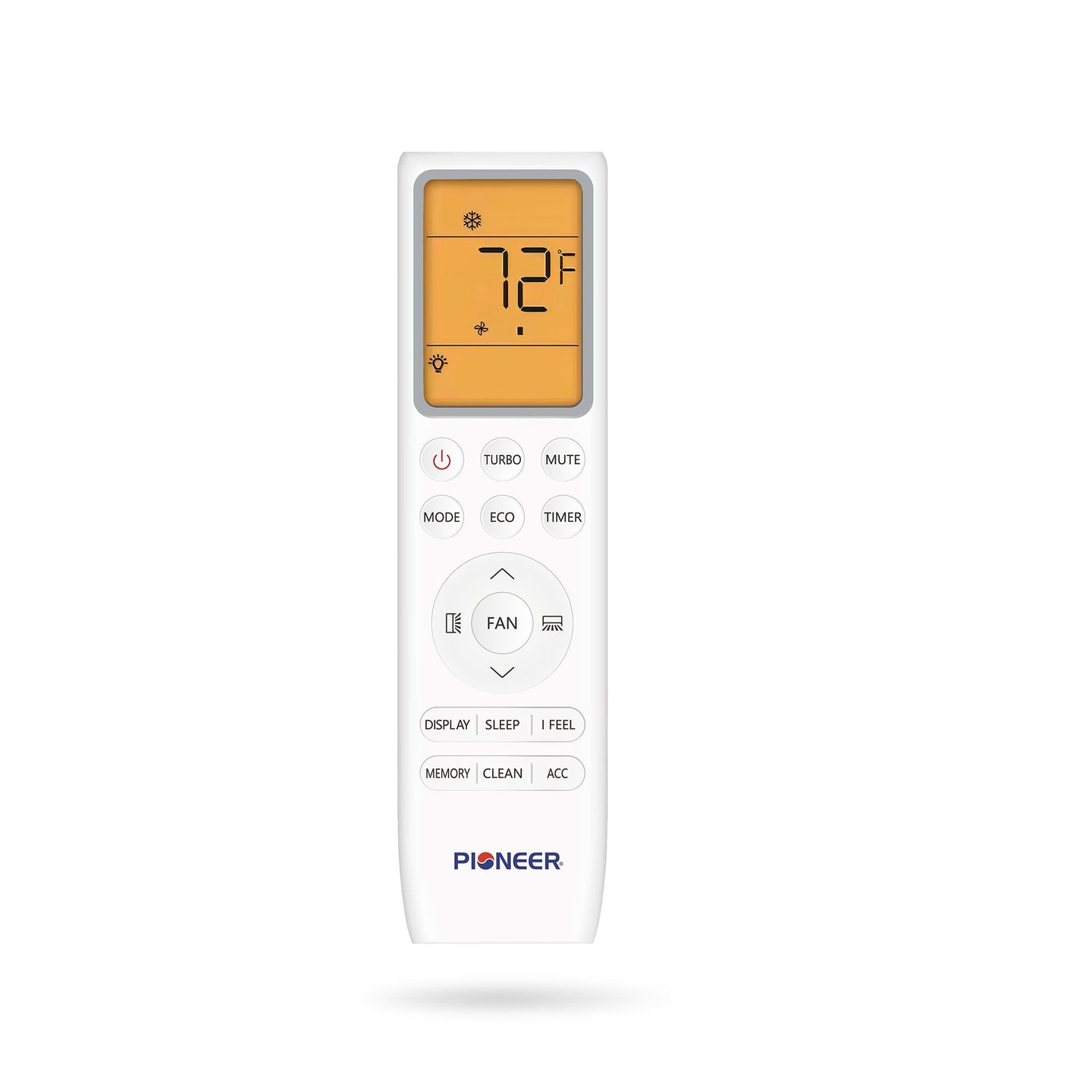

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 22,200 BTU/h
    • Cooling Capacity Range: 6,010~24,610 BTU/h
    • Cooling SEER2: 20.0 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 24,400 BTU/h
    • Heating Capacity Range: 4,750~28,640 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.0 / 2.0 W/W
    • Refrigerant Type: R454b
    • Suitable Area: 750~1,000 Sq.F
    • AHRI Reference: 217048767

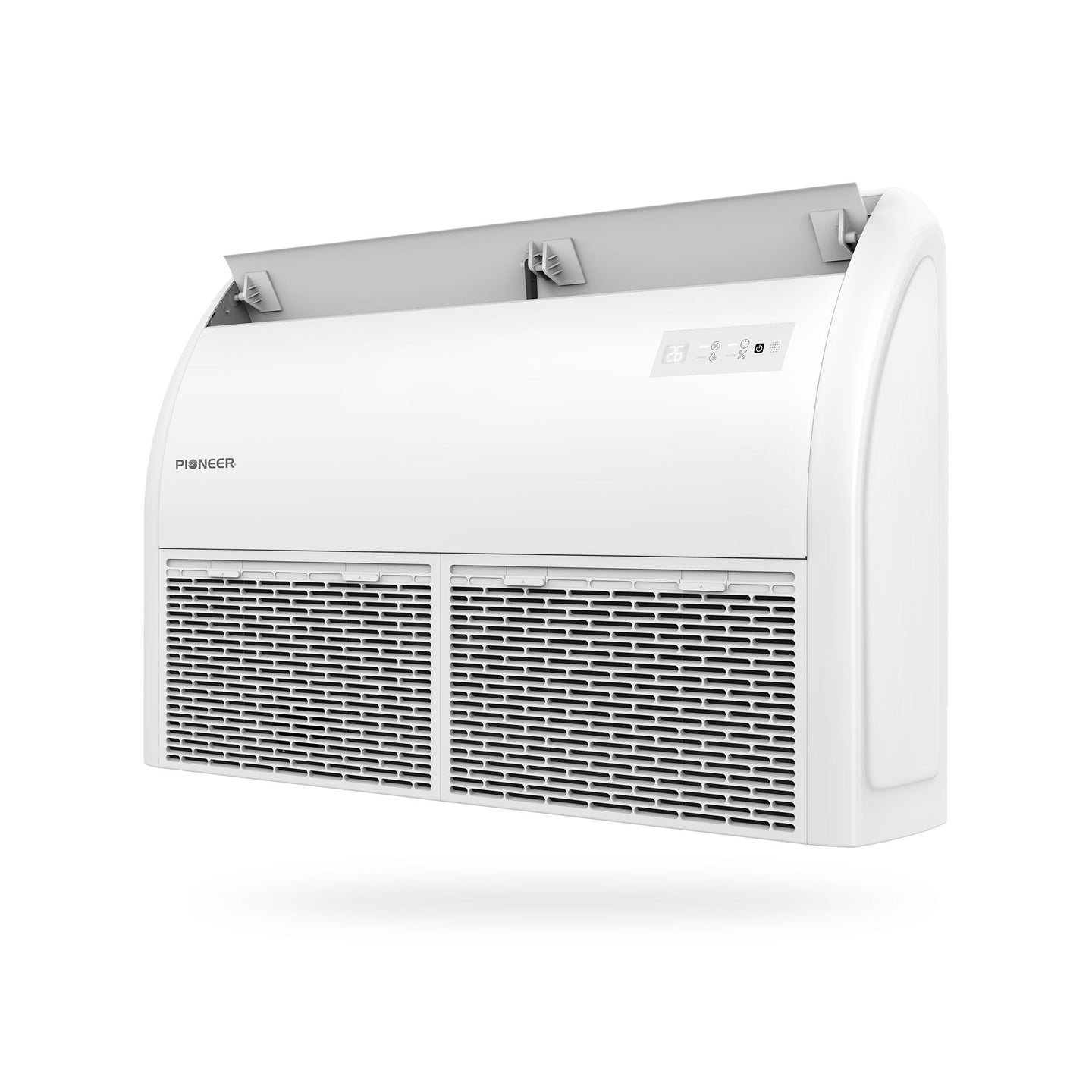

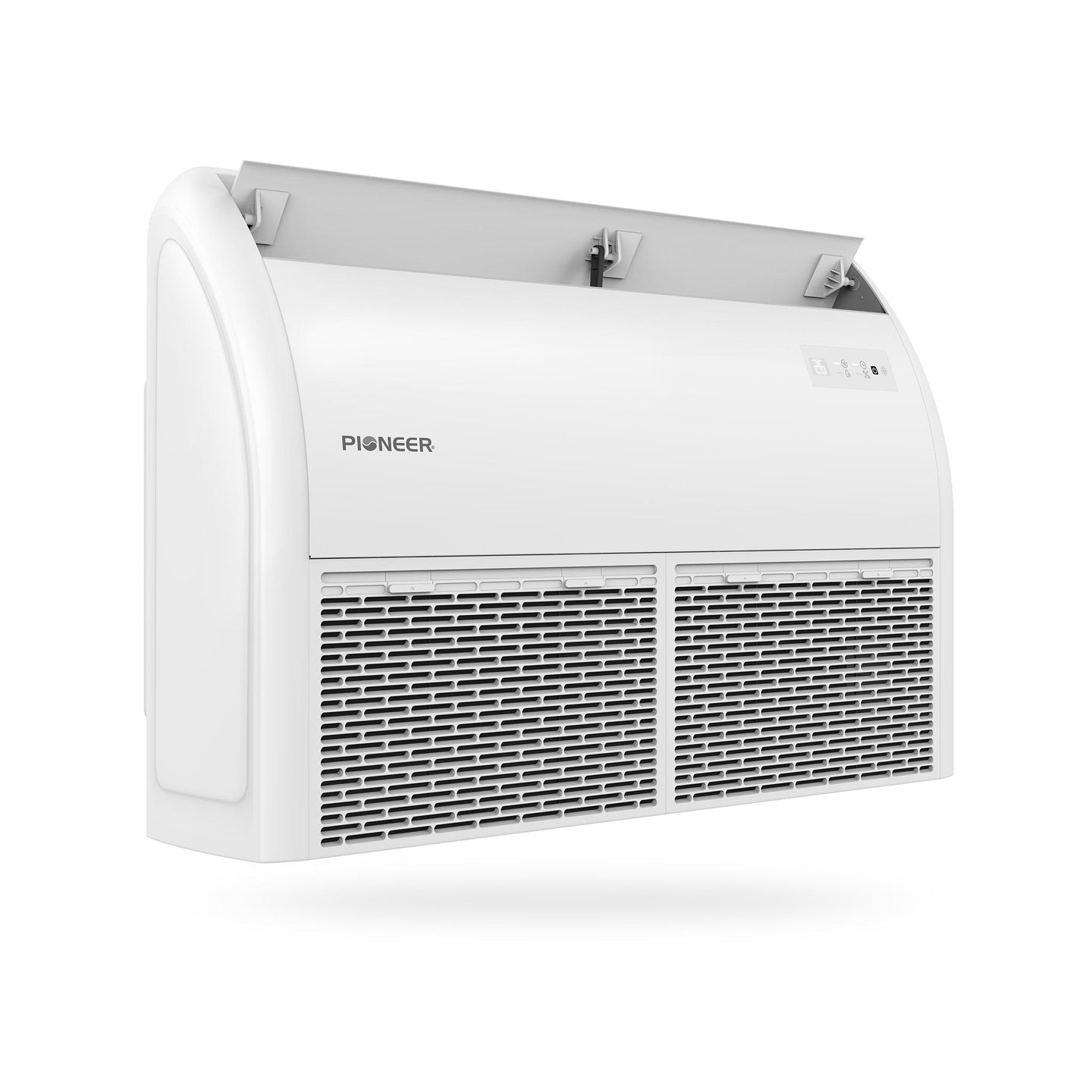

  • Indoor Unit
    • Part Number: UT024GLSILSFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
    • Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
    • Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
    • Net / Gross Weight: 57.3 / 68.3 lbs.

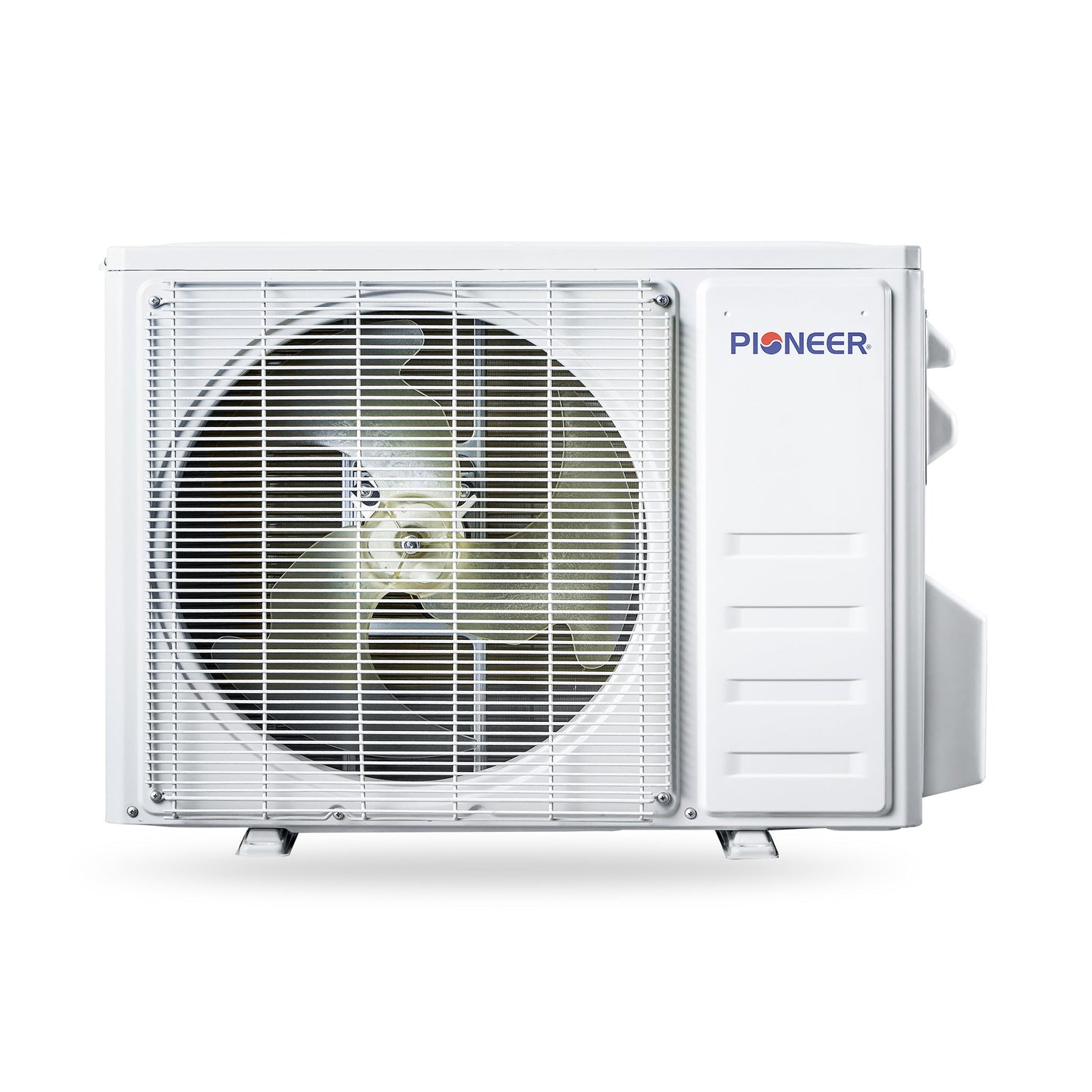

  • Outdoor Unit
    • Part Number: YN024GLSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 54 dB(A)
    • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
    • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
    • Net / Gross Weight: 104.7 / 119.0 lbs.

Dimension Chart

41½ 26½ 38½ 16⅝ 31⅝ ¾
