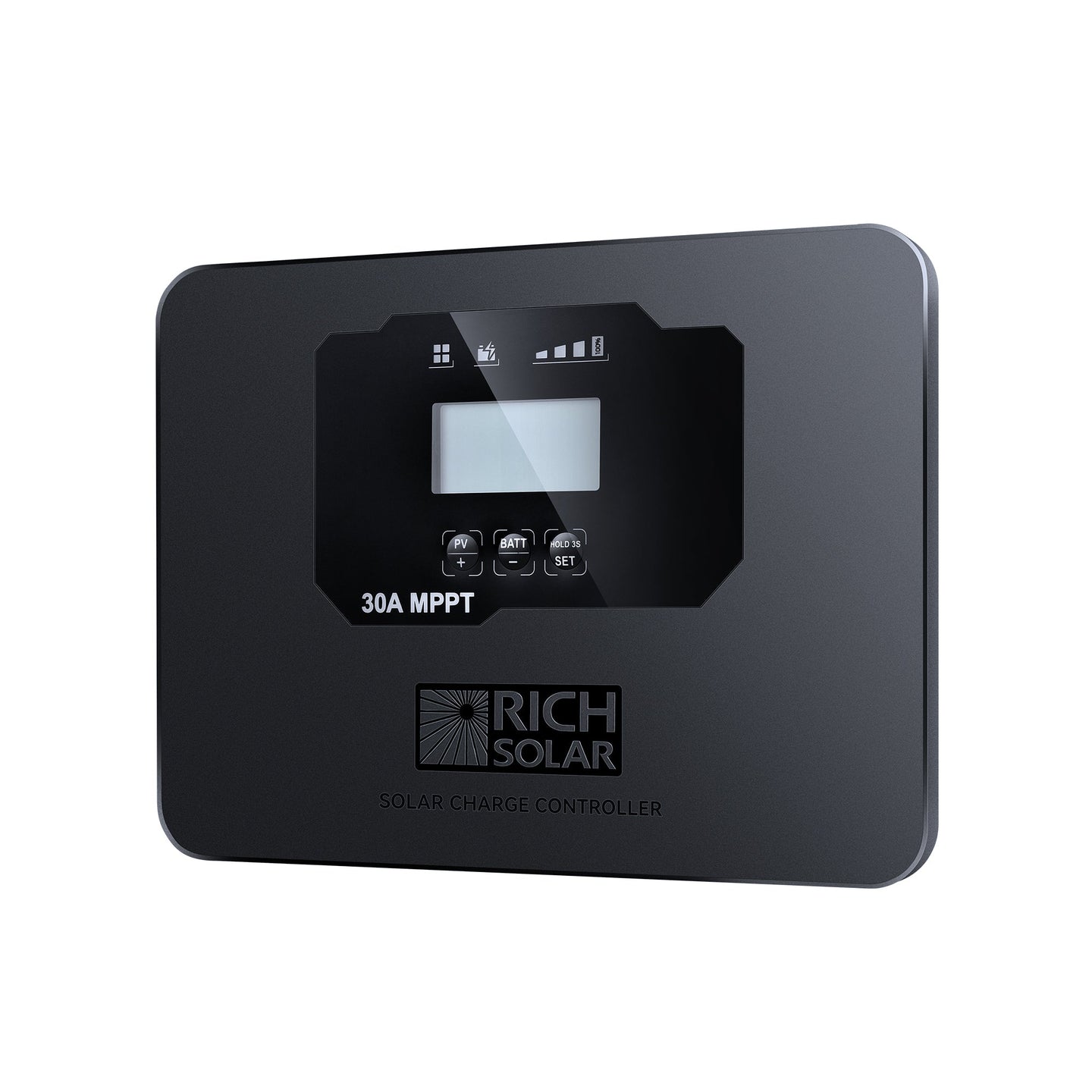

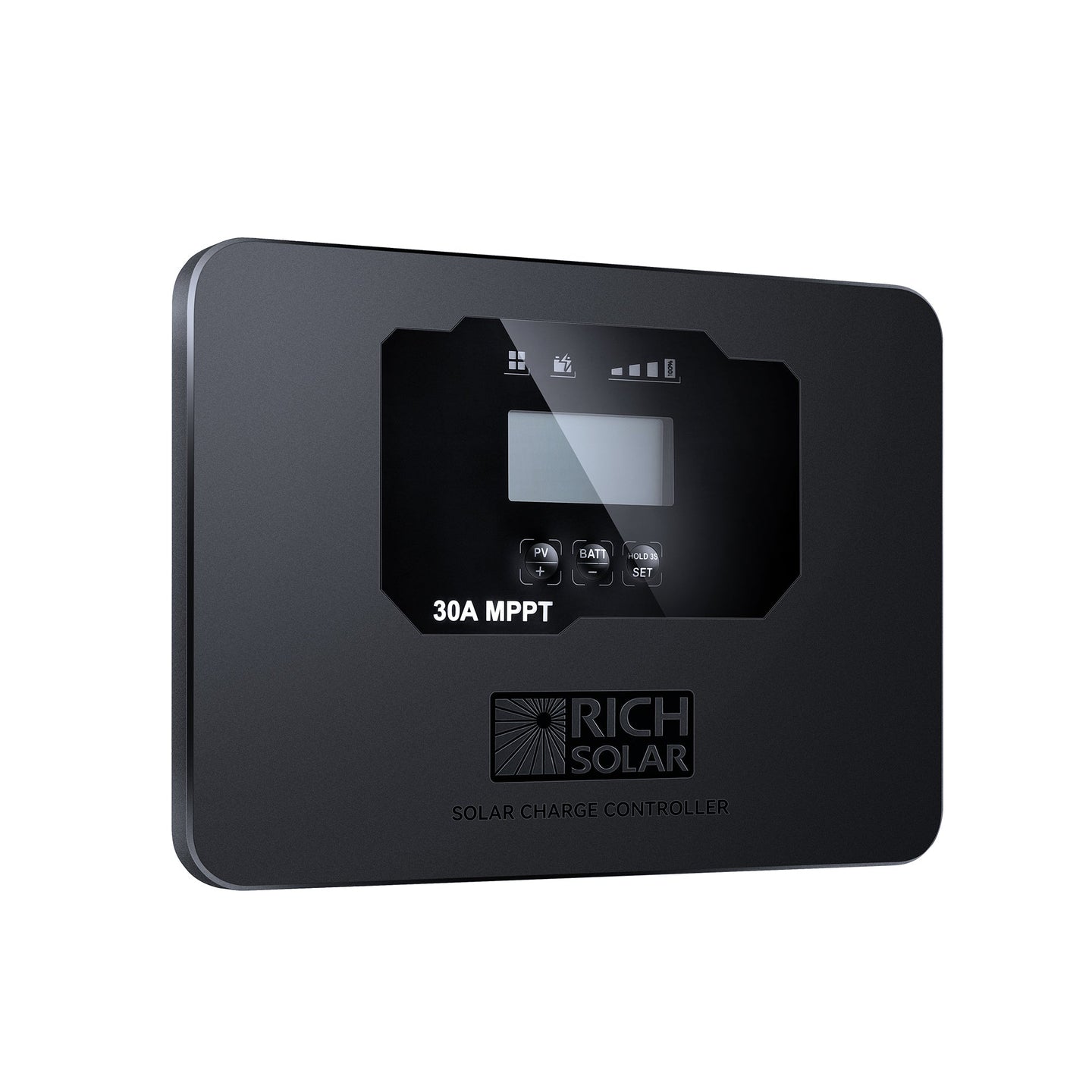

Features

  • PV open circuit voltage up to 100V.
  • The latest Maximum Power Point Tracking (MPPT) algorithm.
  • Unique multiple peaks detected technology for MPPT.
  • MPPT efficiency above 99.5%.
  • Wider MPP operating voltage range.
  • Common negative grounding connection.
  • Suitable for most rechargeable batteries, up to 9 battery types preset plus custom setting.
  • Extensive internal electronics in-circuit protection.
  • Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, and thermal protection.
  • Automatically detect 12V or 24V DC system voltages.

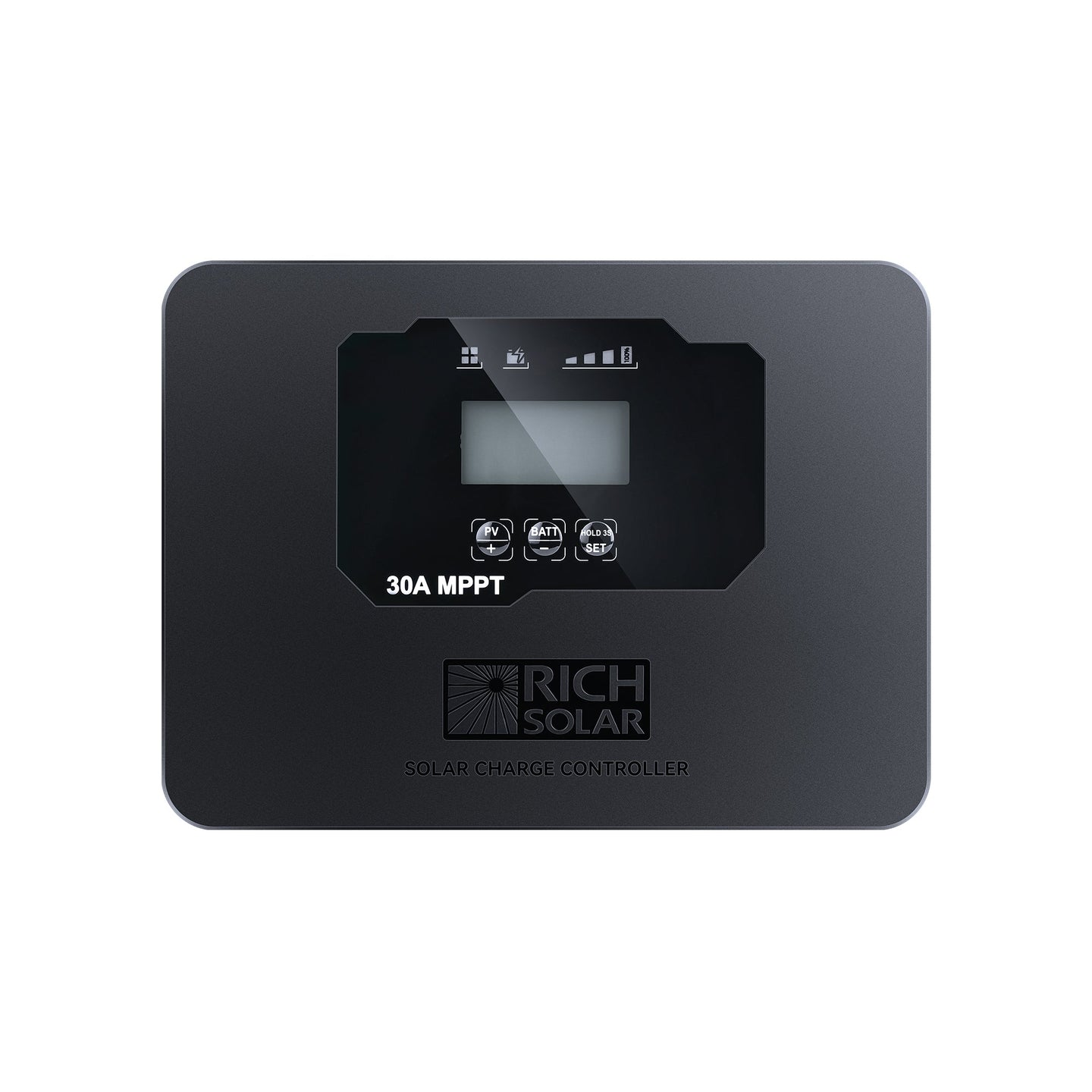

  • Unique and concise LED bar to indicate the solar status and battery charging condition.
  • Large and informative display interface to show solar parameters, battery charging parameters, battery type, battery temperature, custom presetting and faulty codes, etc.
  • Provides plug-in remote digital display meter (Optional).
  • Provides external battery temperature sensor (Optional).
  • Splash-proof IP43.
  • Rubber mask for connecting terminal’s protection.
  • Conformal coating for internal boards.
  • Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.



Specifications

  • Max. PV Open Circuit Voltage: 100 VDC
  • Max. Normal Input PV Voltage: 92 VDC
  • Max. PV Input Current: 30 AMP
  • Max. PV Short Circuit Current: 35 AMP
  • Max. Conversion Efficiency: 98%
  • Min. Tracking Efficiency: 99.5%
  • Nominal PV Power: 500W@12V/1000W@24V
  • Min. Battery Start Charging Voltage: 5 VDC
  • Soft Start Charging Voltage: 5~10±0.2 VDC
  • Soft Start Charging Current: 15 AMP
  • Max. Bulk Charge: 30 AMP
  • Controller Material: Plastic, PC
  • Mounting: Surface Mounting
  • IP Grade: IP43
  • Net Weight: 1.87 lb
  • Operating Temperature: -13 ~ 122 ℉
  • Storage Temperature: -40 ~ 185 ℉
  • Operating Humidity Range: 0-85% RH
