High-capacity performance, intelligent protection, and efficient charging for larger solar power systems.

Engineered for serious off-grid setups, this 60A MPPT Solar Charge Controller delivers reliable, high-efficiency power conversion with advanced safety features. Designed to handle multiple voltage systems and higher solar input, it’s the ideal choice for cabins, RVs, or full residential arrays requiring dependable energy management.


Key Features:

  • Smart Voltage Detection – Automatically recognizes 12V, 24V, 36V, and 48V DC systems for easy installation.

  • Wide Battery Compatibility – Works with Sealed, Gel, Flooded, and Lithium deep cycle batteries.

  • High Efficiency Charging – Advanced MPPT technology with up to 99% tracking efficiency and 98% peak conversion efficiency.

  • Comprehensive Protection – Safeguards against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

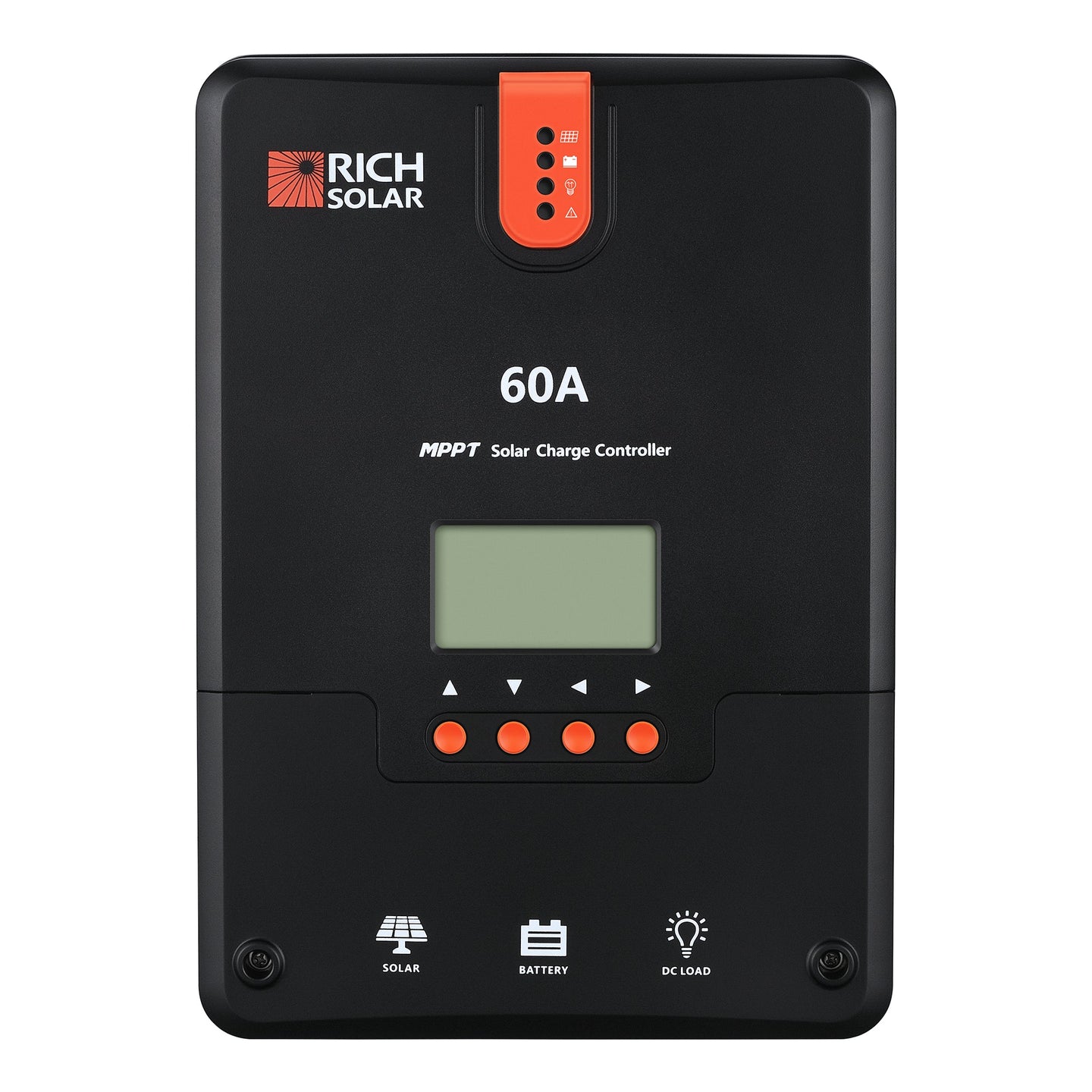

  • User-Friendly Display – LCD screen plus multiple LED indicators provide real-time system status, customizable parameters, and error codes.

  • Versatile Load Control – Supports diverse load functions and can recharge over-discharged lithium batteries.

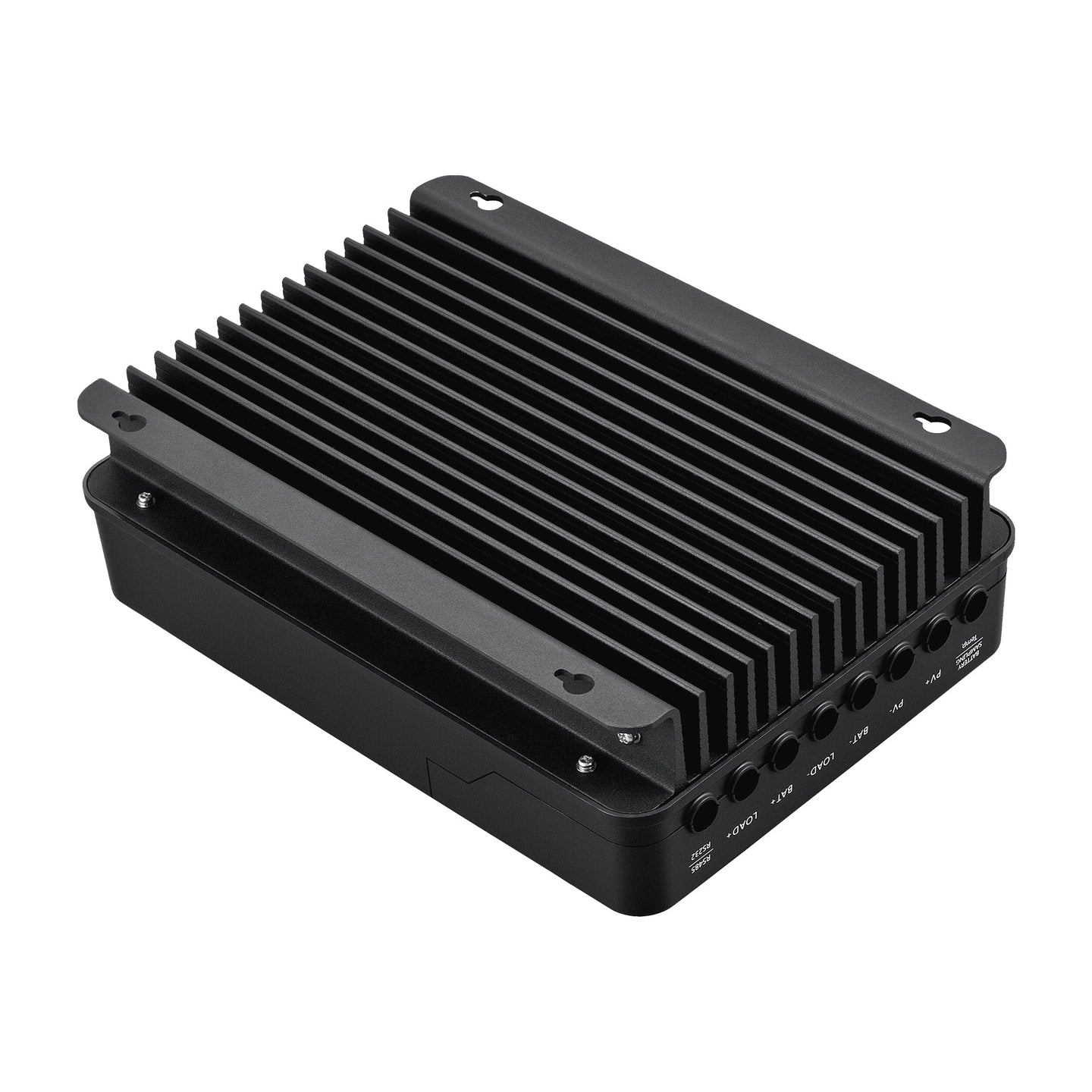

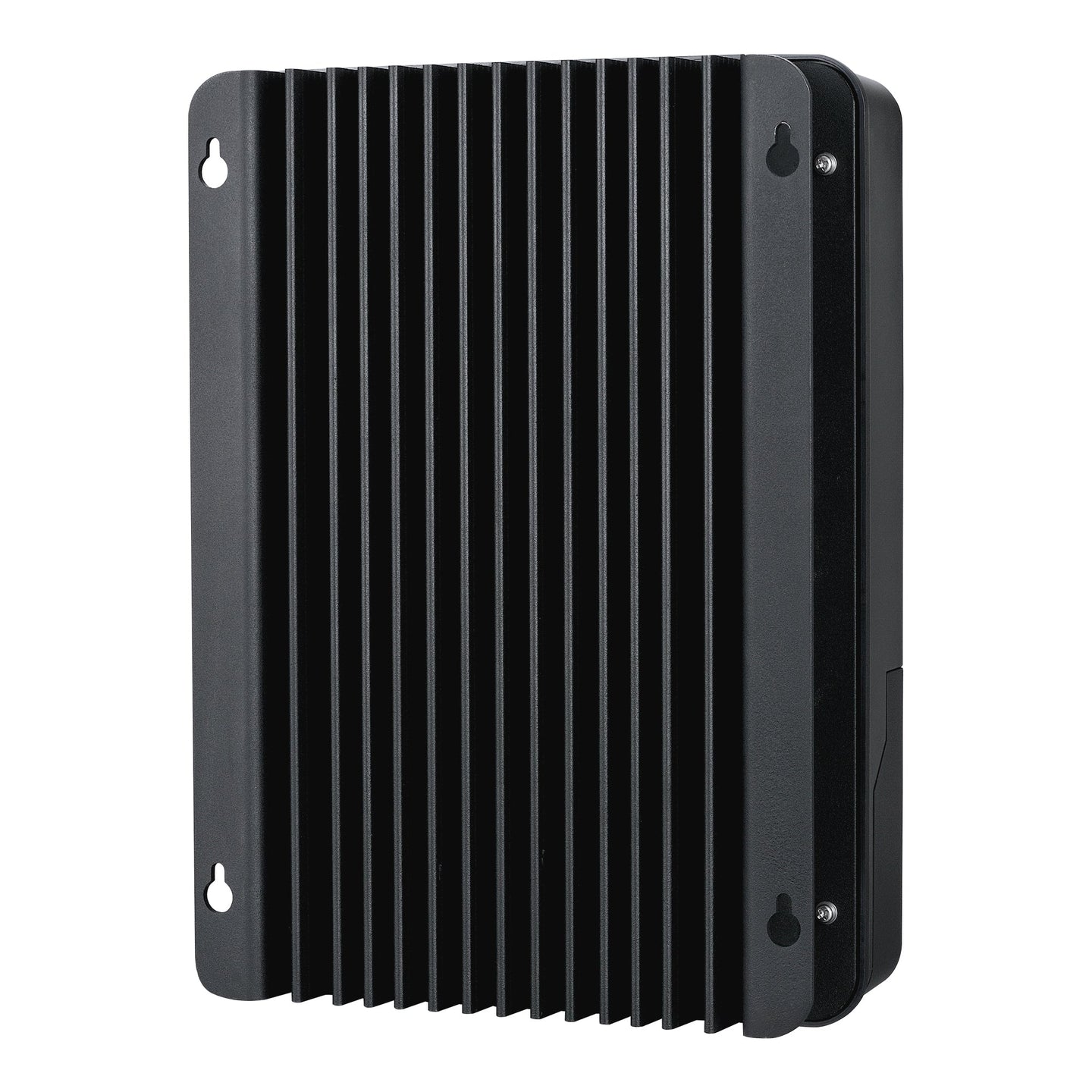

  • Durable Build – Die-cast aluminum housing enhances heat dissipation for long-term reliability.

  • Bluetooth Ready – RS232 port supports connection to the BT-1 Bluetooth module (sold separately).


Specifications:

  • Rated Battery Current: 60A

  • Rated Load Current: 20A

  • Max Solar Input Voltage: 150V (77°F) / 145V (-13°F)

  • Max Solar Input Power: 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)

  • Charge Circuit Voltage Drop: ≤0.26V

  • Discharge Circuit Voltage Drop: ≤0.15V

  • Operating Temperature: -31°F to +113°F

  • Max Terminal Size: <11mm

  • Dimensions: 11.2 x 8.1 x 3.7 in

  • Net Weight: 7.94 lb
