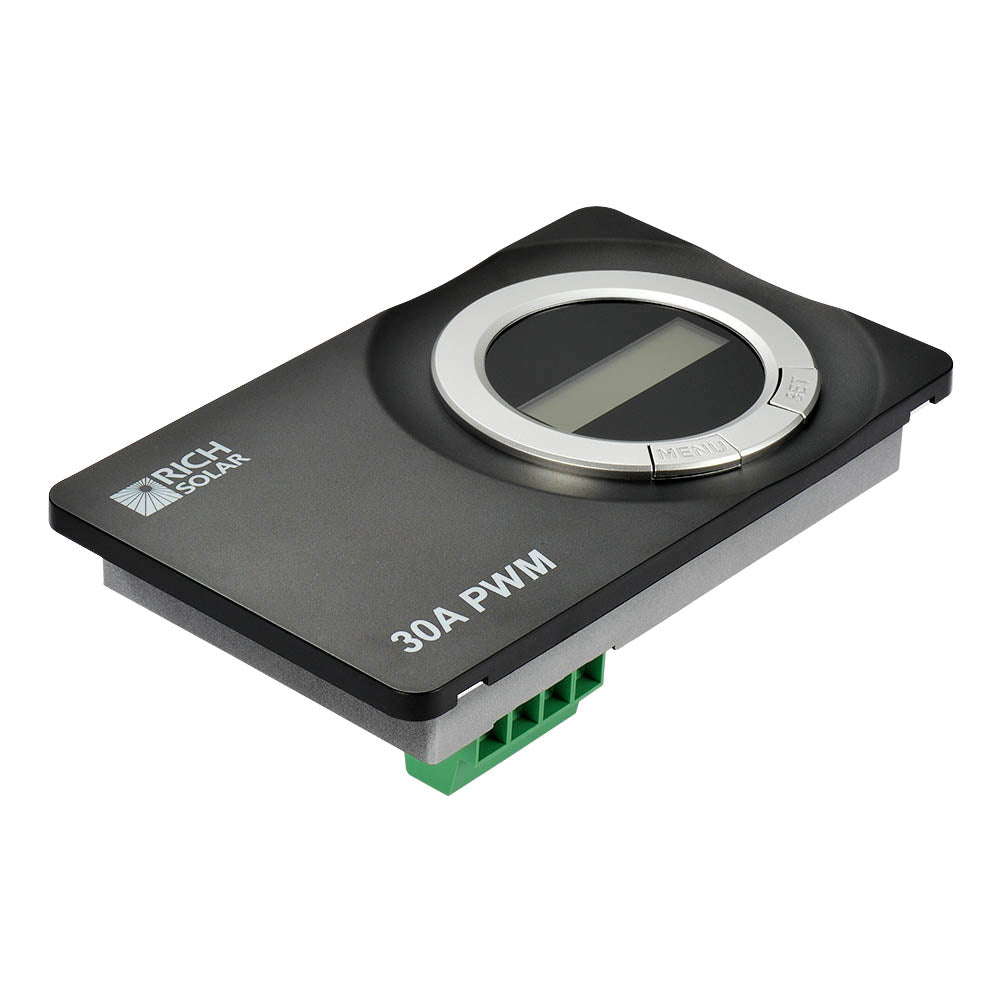

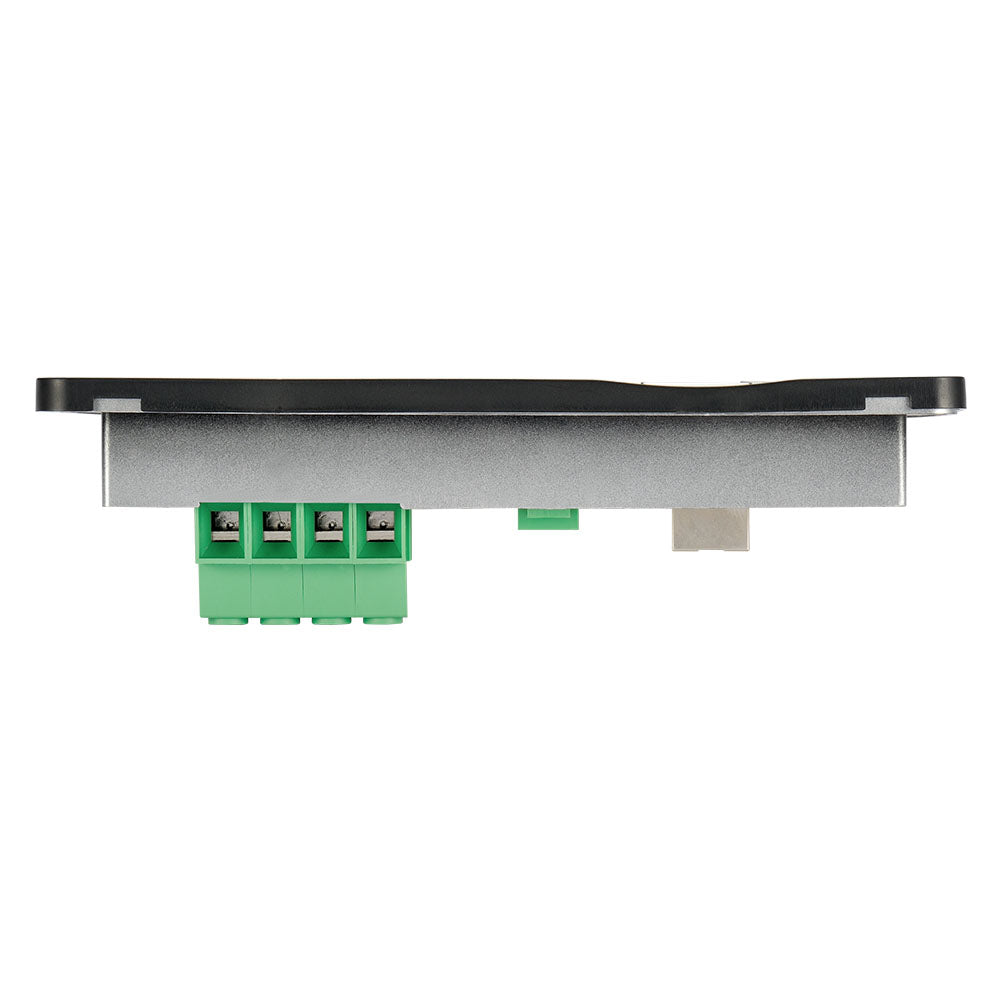

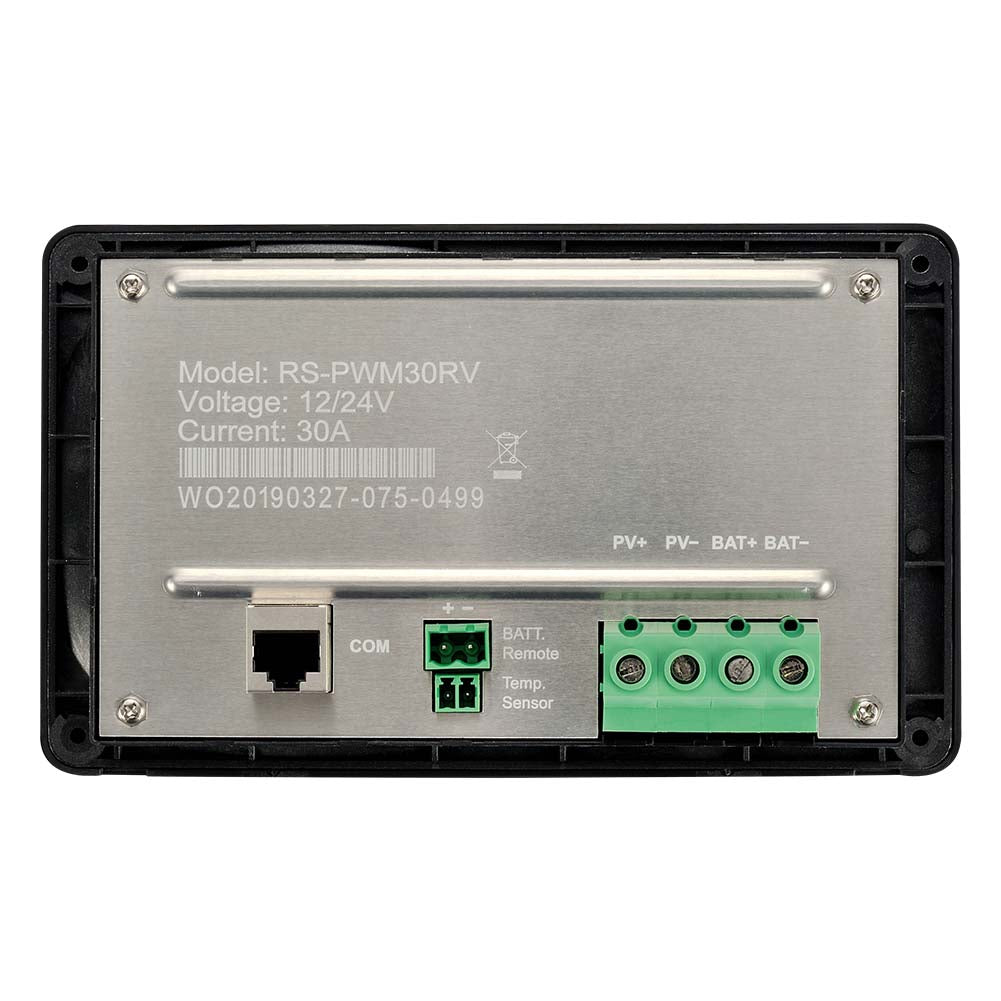

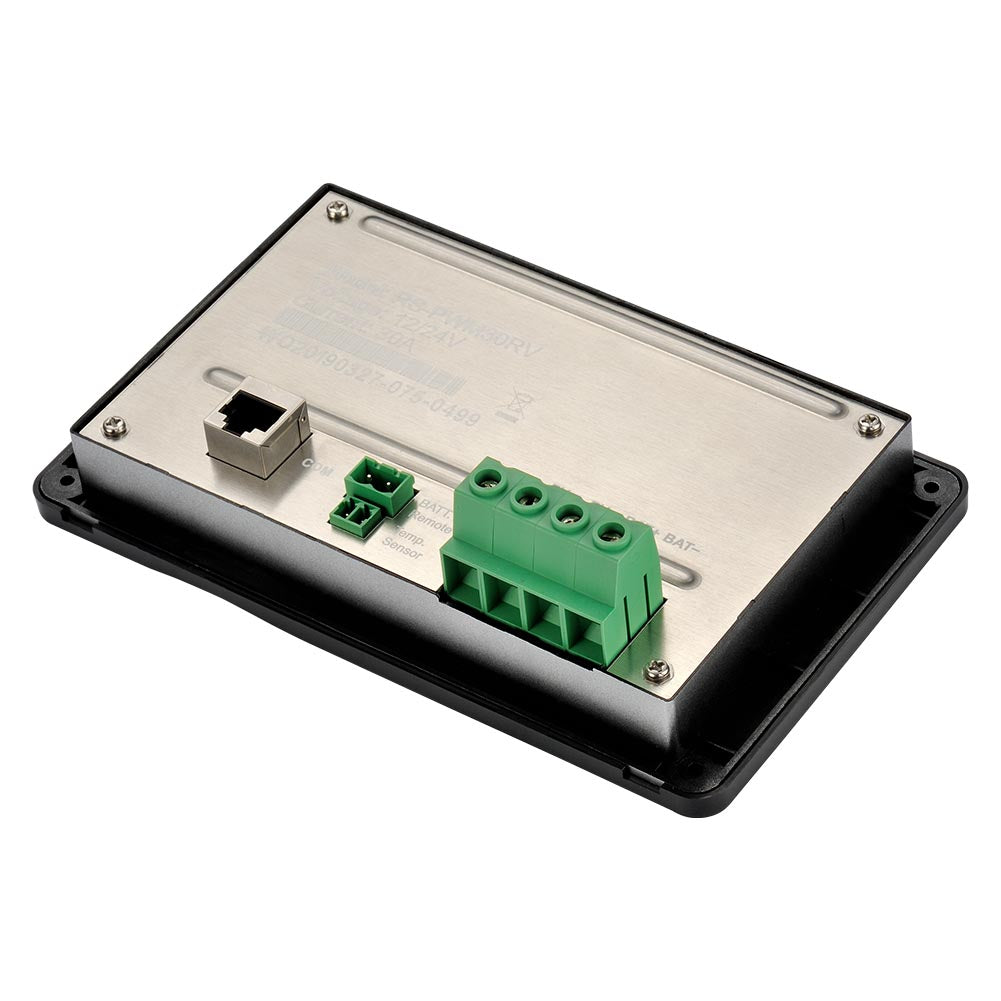

30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated

$79.99
$79.99
FREE SHIPPING

Estimated shipping time

We offer free shipping across the United States, with orders processed within 1–2 business days and delivered in about 4–7 business days. Every order comes with tracking and insurance, and our team is here to help if your package is delayed, lost, or arrives damaged. Returns are accepted within 30 days, with no cost for return shipping. Please ensure your shipping address is accurate to avoid delays. Refer to full policy here.

What is your Return Policy?

We accept returns within 30 days of delivery if items are unused, undamaged, and in their original packaging. Return shipping is free, and refunds are processed within 7 days after inspection to your original payment method. Defective, damaged, or incorrect items will be replaced or refunded at no cost, while change-of-mind returns may incur a restocking fee. Some items (custom, perishable, intimate goods, gift cards, software) are non-returnable. Refer to full policy here.

The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.

Features

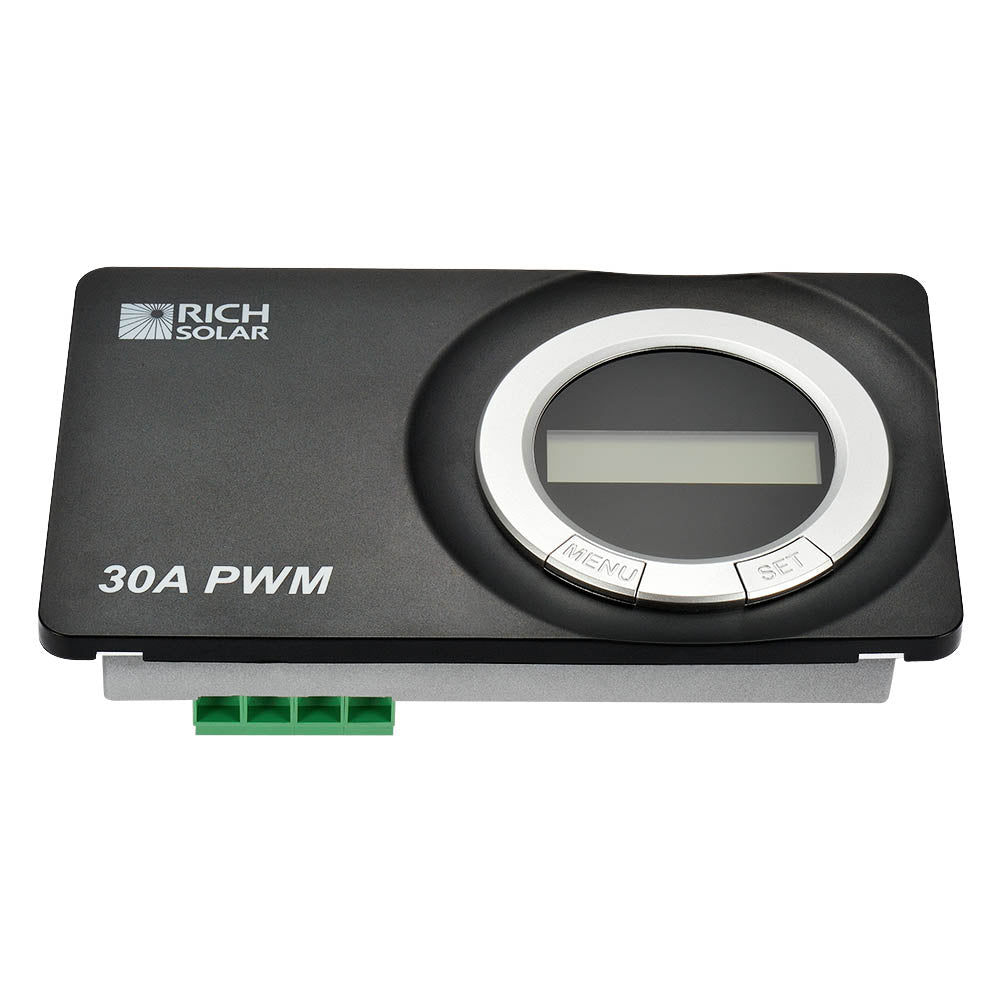

  • Flush mounted and embedded installation design
  • High quality and low failure rate components (ST/IR) to ensure the product lifetime
  • 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
  • Compatible with lead-acid and lithium batteries①
  • Real-time energy statistics feature

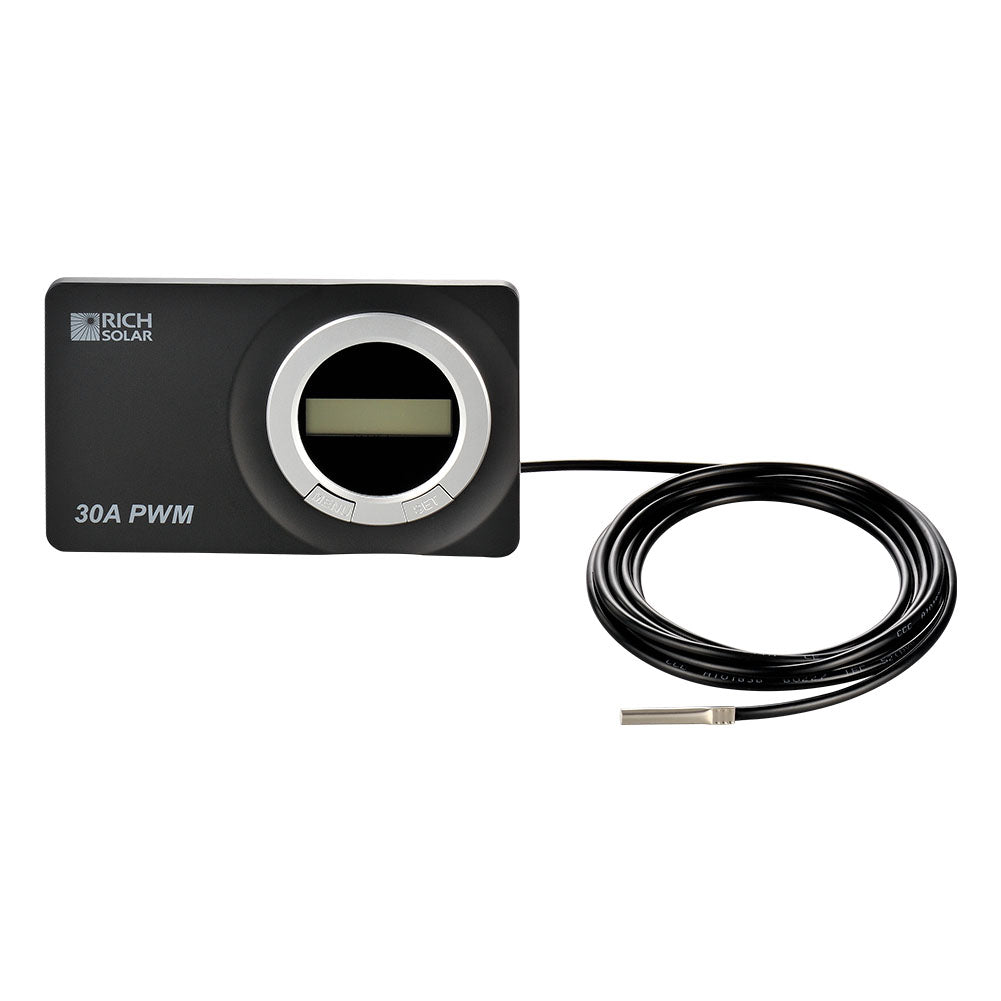

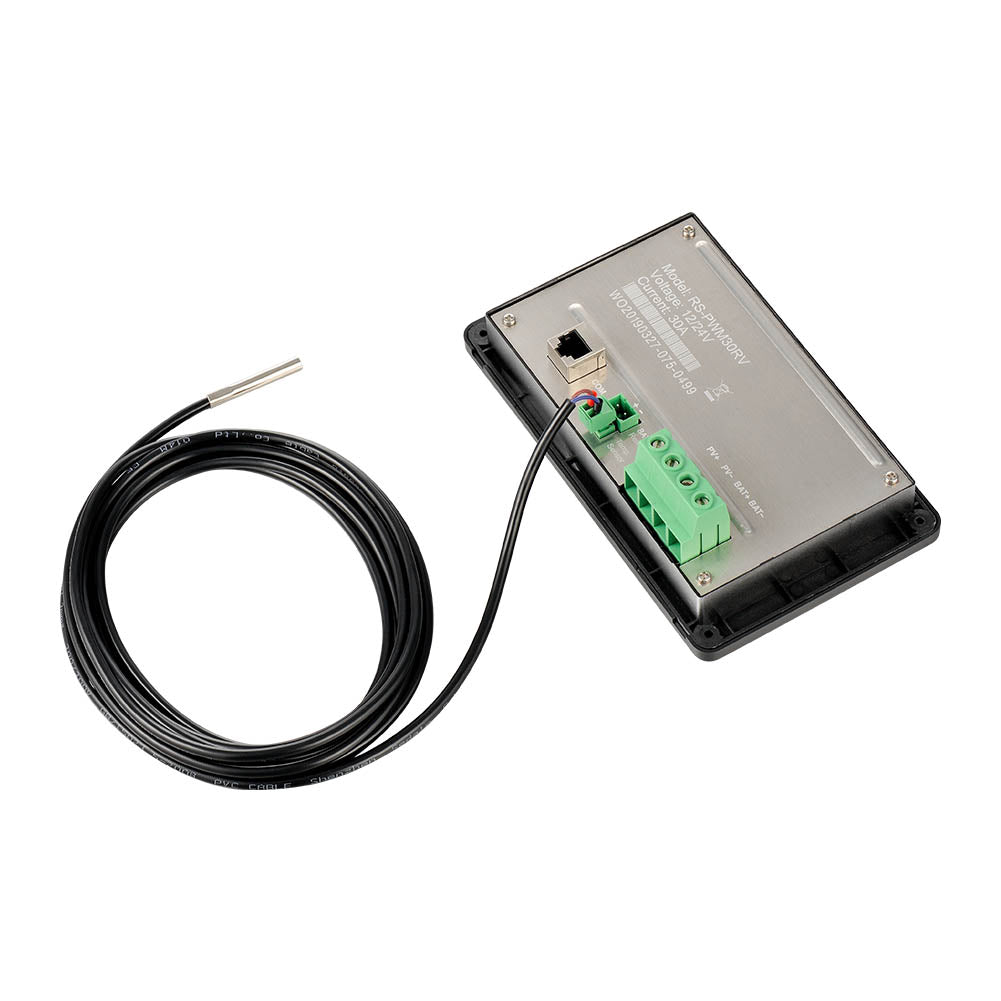

  • Battery temperature compensation feature

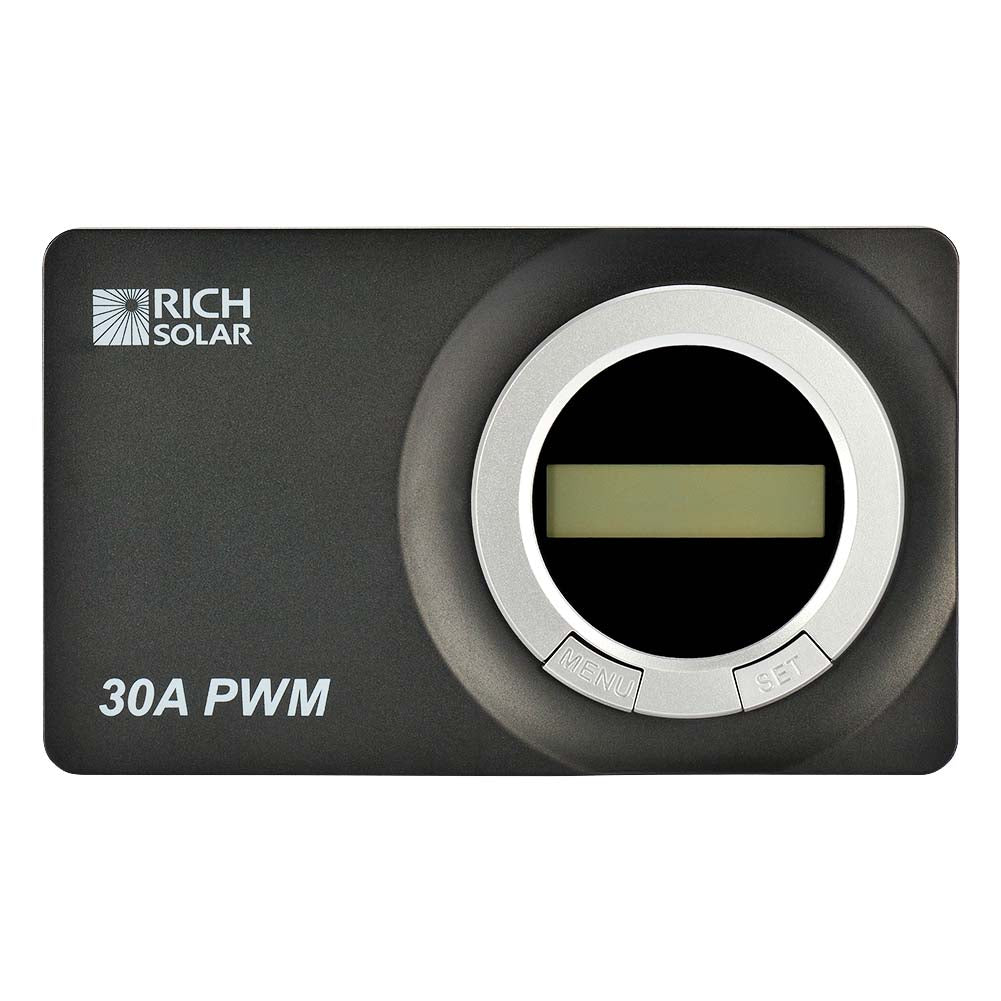

  • Digital LCD monitor for informative display of operational parameters and fault messages
  • Voltage drop and temperature compensation sampling interface design
  • RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
  • Multiple communication peripherals
  • Rated charging current at working temperature without de-rating
  • Extensive electronic protections
  • Monitor and set the parameters via PC software or APP

①The Lead-acid battery of User and Lithium battery can be set via the PC software.

Specifications

  • Electrical Specifications

  • Nominal Voltage: 12/24VDC or Auto
  • Battery Input Voltage Range: 8V～32V
  • Rated Charge Current: 30A
  • Max. PV Short Circuit Current: 30A
  • Max. PV Open Circuit Voltage: 50V
  • Battery Type: Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery: LiFePO4/Li-NiCoMn/User
  • Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
  • Temperature Compensation Coefficient: -3mV/°C/2V(Default)
  • Charge Circuit Voltage Drop: 0.21V



  • Environmental Parameters

  • Storage Temperature Range: -35℃～+70℃
  • Working Environment Temperature: -35℃～+55℃ (100% input and output)
  • Relative Humidity: ≤95%, N.C.
  • Enclosure: IP30
  • Grounding: Common negative



  • Mechanical Parameters

  • Dimension (L×W×H): 178.5×105.5×48.3mm
  • Mounting Dimension: 166.5×93.5mm
  • Mounting Hole Size: Φ5mm
  • Terminal: 16mm²/6AWG
  • Recommended Cable: 10mm²/8AWG
  • Net Weight: 0.31kg
