30 Amp MPPT Solar Charge Controller

$139.99
$111.99
$139.99
$111.99
FREE SHIPPING

Estimated shipping time

We offer free shipping across the United States, with orders processed within 1–2 business days and delivered in about 4–7 business days. Every order comes with tracking and insurance, and our team is here to help if your package is delayed, lost, or arrives damaged. Returns are accepted within 30 days, with no cost for return shipping. Please ensure your shipping address is accurate to avoid delays. Refer to full policy here.

What is your Return Policy?

We accept returns within 30 days of delivery if items are unused, undamaged, and in their original packaging. Return shipping is free, and refunds are processed within 7 days after inspection to your original payment method. Defective, damaged, or incorrect items will be replaced or refunded at no cost, while change-of-mind returns may incur a restocking fee. Some items (custom, perishable, intimate goods, gift cards, software) are non-returnable. Refer to full policy here.

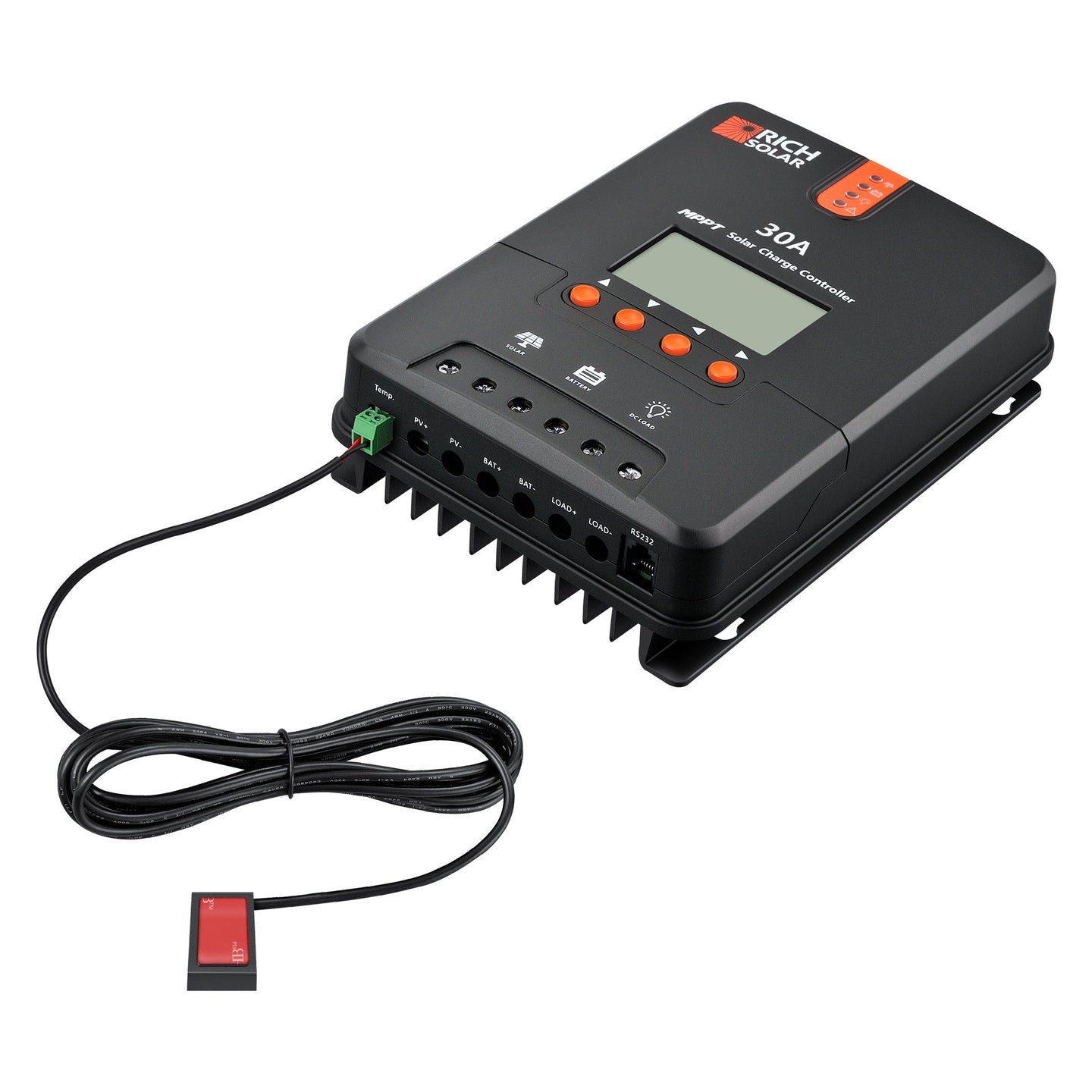

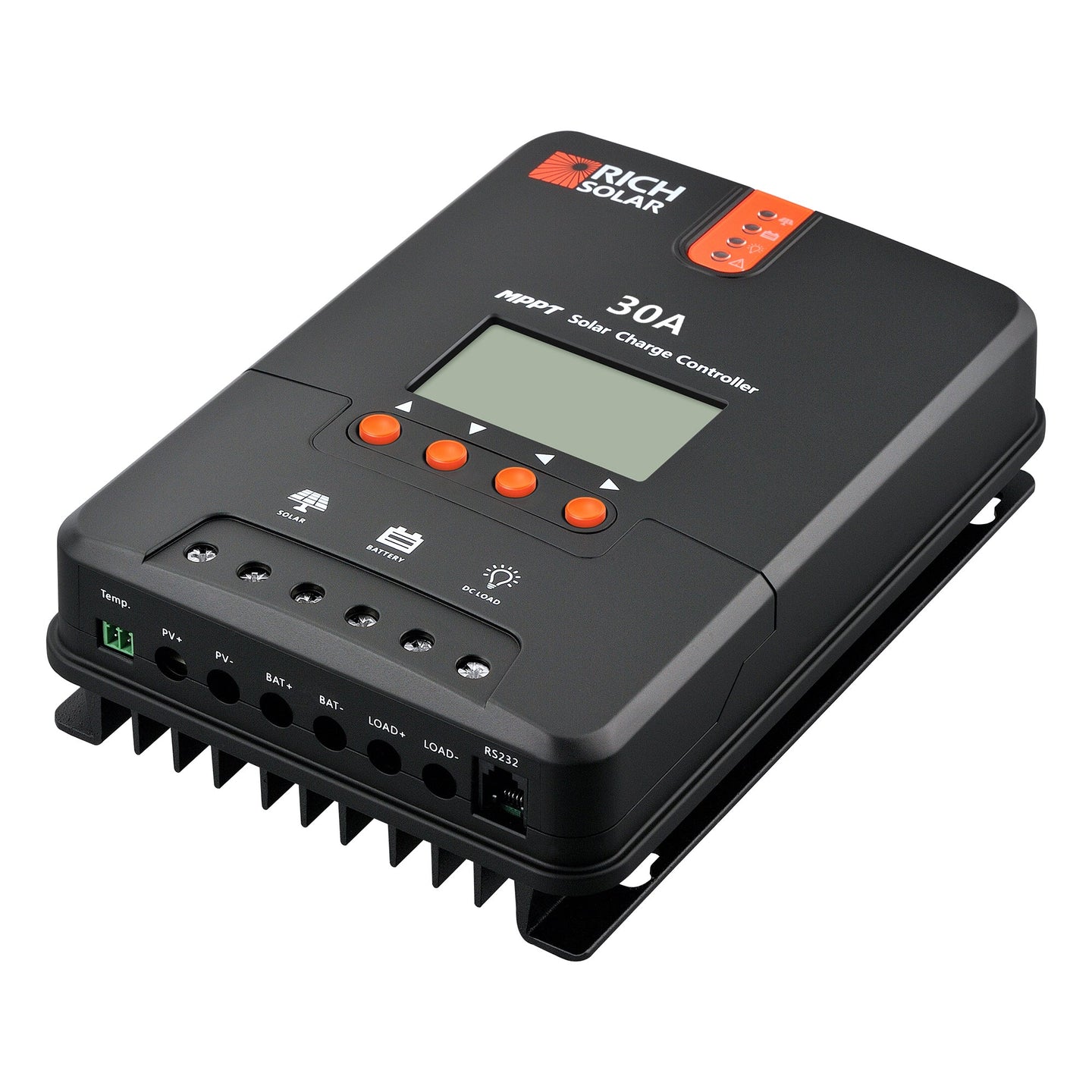

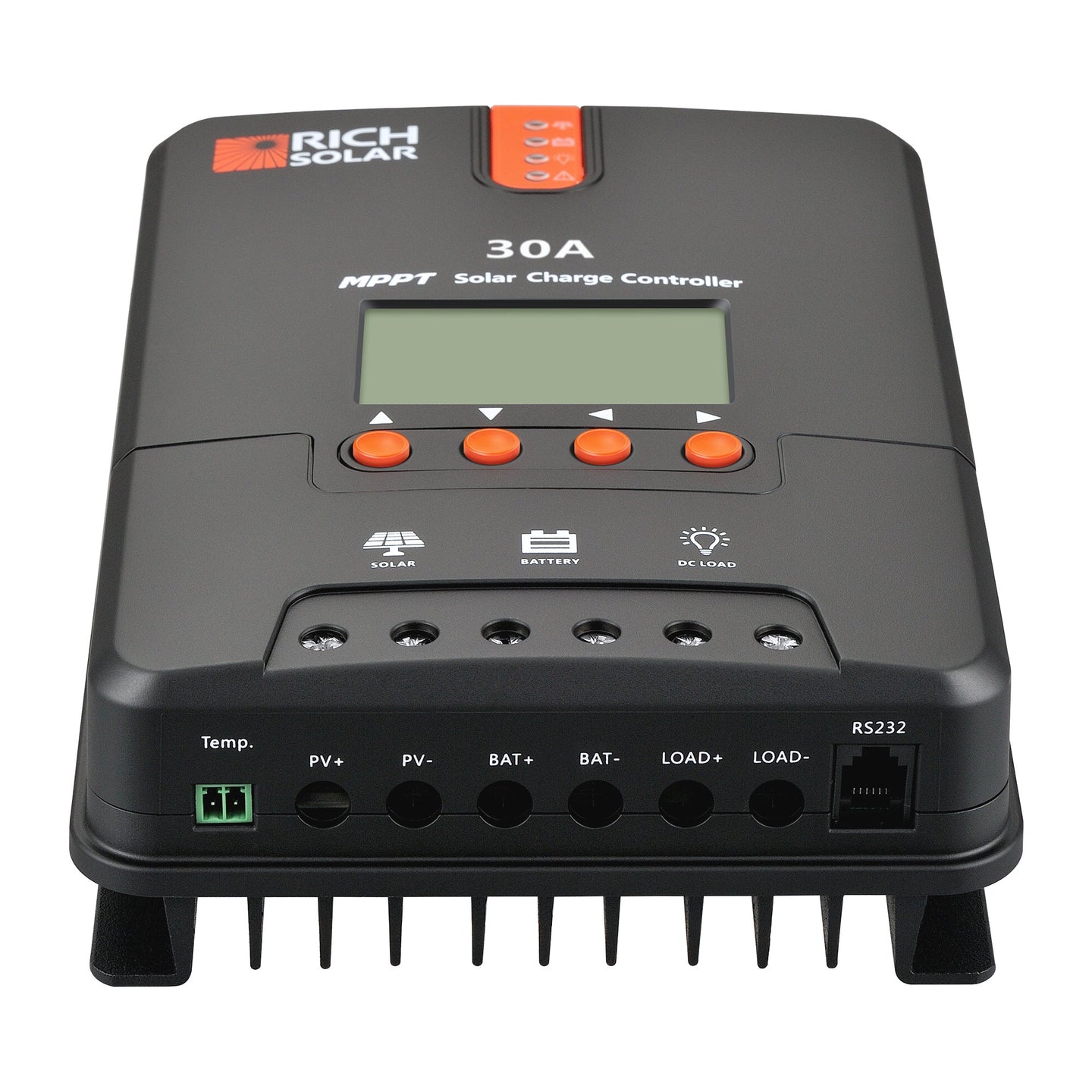

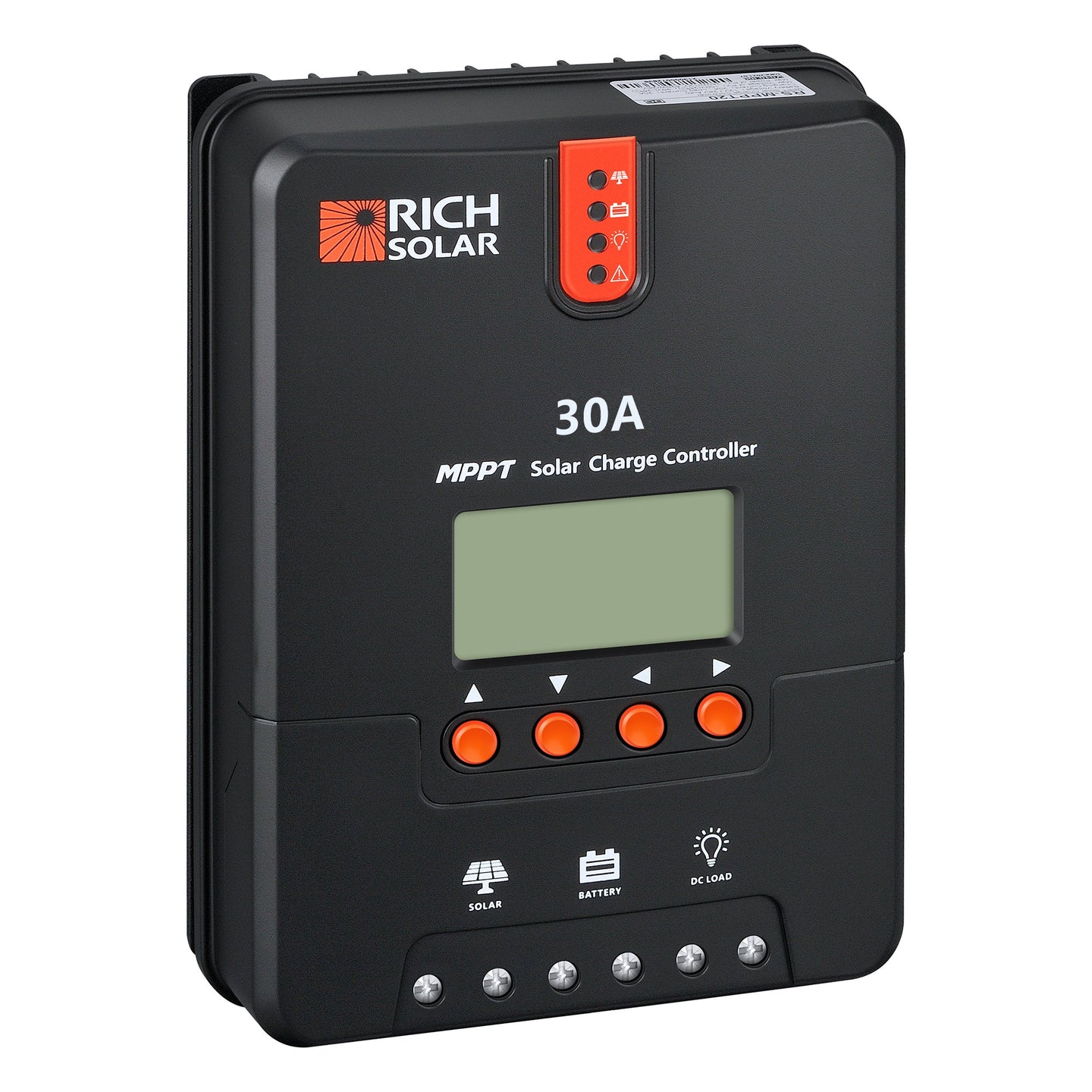

The Rich Solar Bravo 30A MPPT Charge Controller is built to deliver reliable and efficient solar power management for medium-to-large off-grid systems. With intelligent MPPT tracking, advanced protection features, and broad battery compatibility, this controller ensures your batteries charge safely and efficiently in any environment.

Features

  • Automatic system recognition – detects 12V or 24V DC system voltages

  • Battery compatibility – optimized for Sealed, Gel, Flooded, and Lithium deep cycle batteries

  • High-performance MPPT technology – up to 99% tracking efficiency and 98% peak conversion efficiency

  • Comprehensive electronic protection – safeguards against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

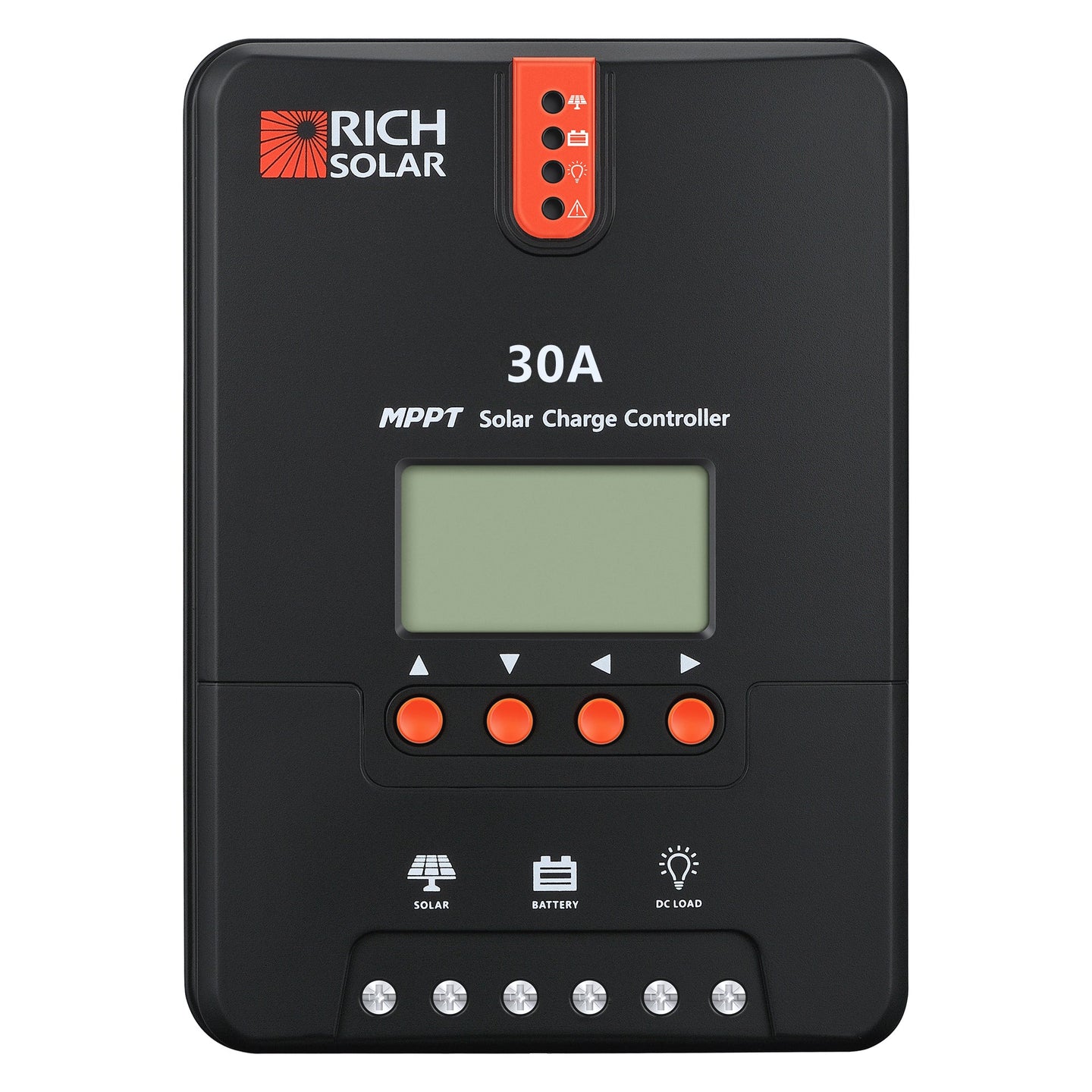

  • Clear system monitoring – LCD display with multiple LED indicators for system data, customizable parameters, and error codes

  • Load control & lithium recovery – supports diverse load functions and can charge over-discharged lithium batteries

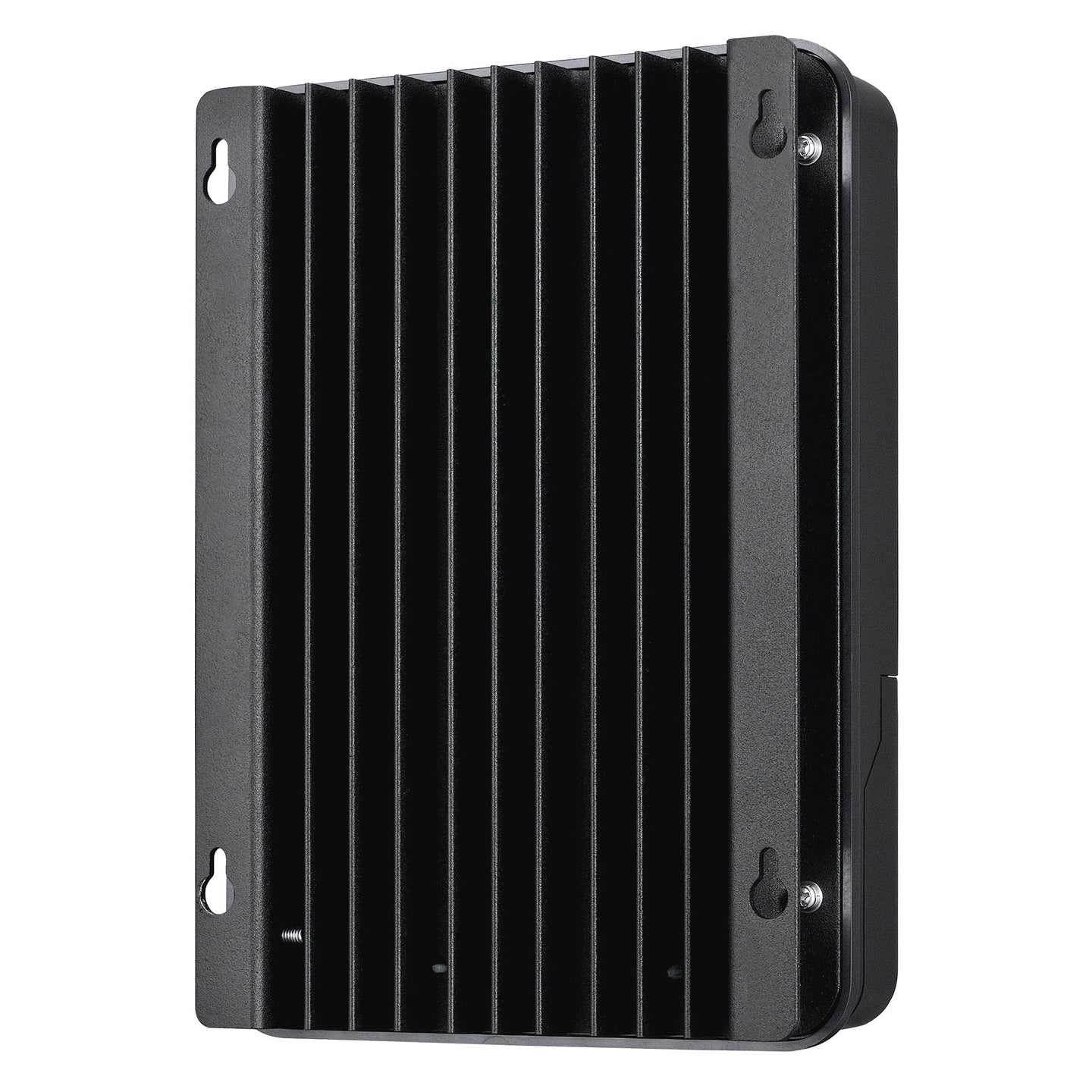

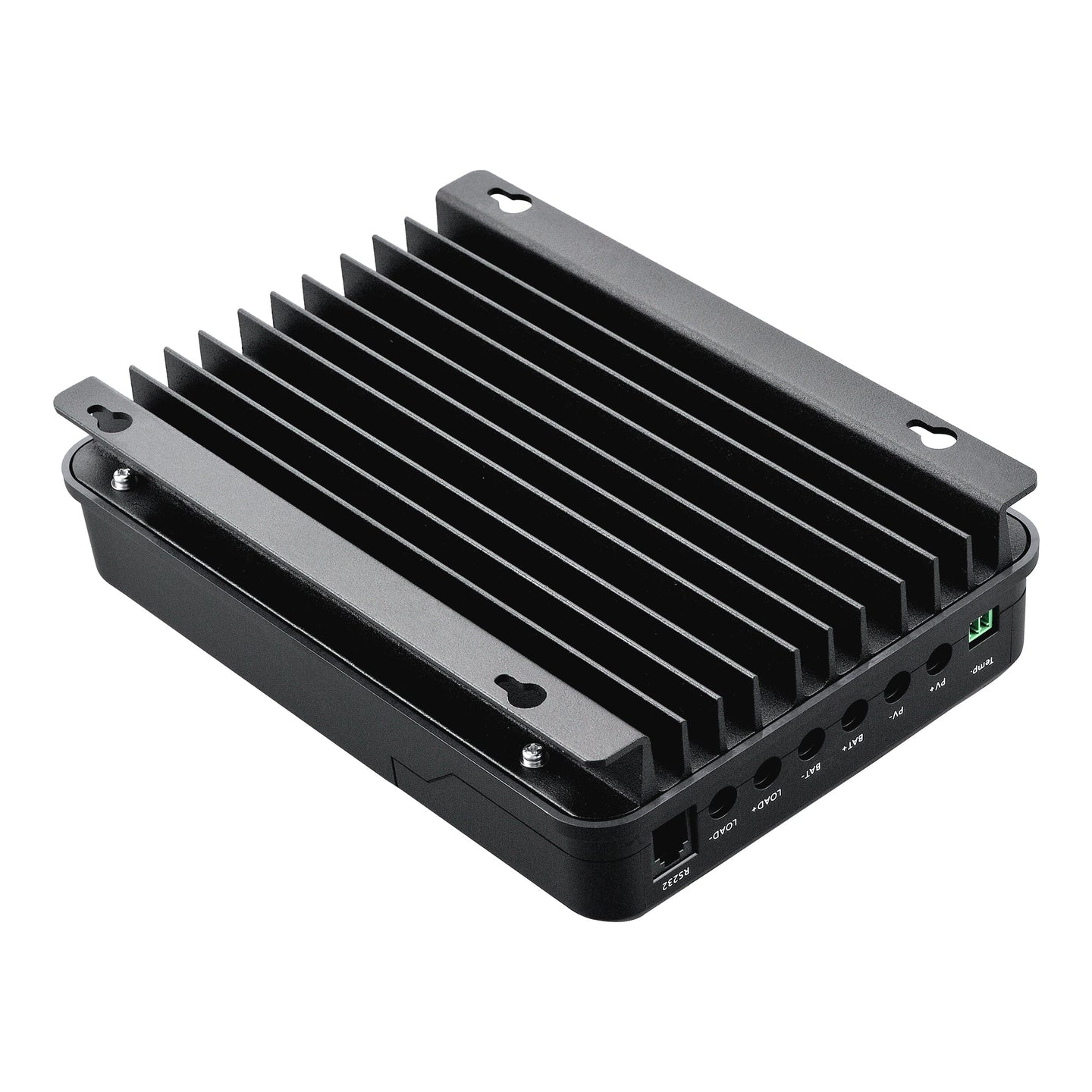

  • Durable die-cast aluminum housing – excellent heat dissipation for long-lasting performance

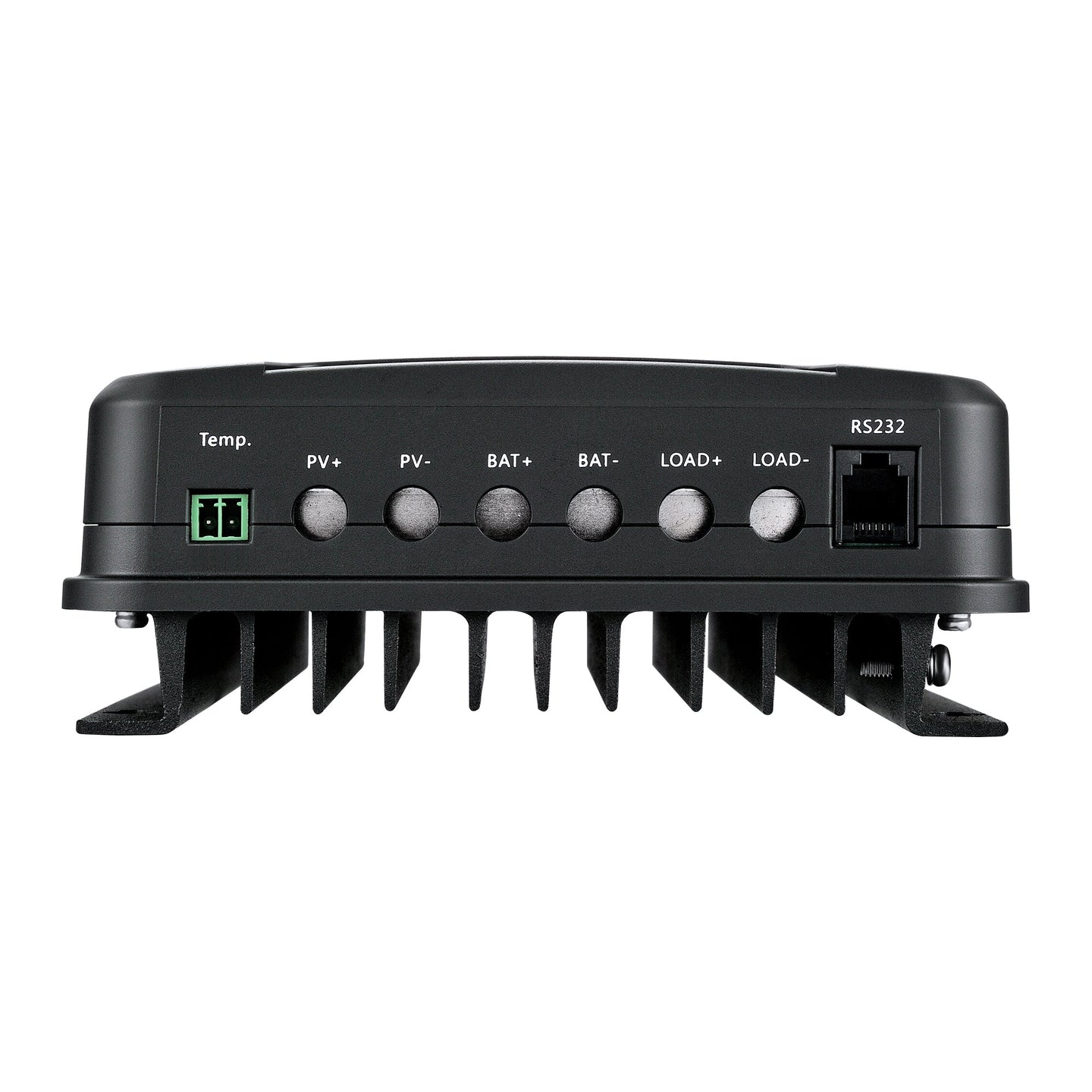

  • Remote monitoring ready – RS232 port compatible with BT-1 Bluetooth module

Specifications

  • Nominal System Voltage: 12V/24V Auto Recognition

  • Rated Battery Current: 30A

  • Rated Load Current: 20A

  • Max. PV Input Short Current: 40A

  • Max. Battery Voltage: 32V

  • Max Solar Input Voltage: 100 VDC

  • Max PV Input Power: 390W (12V), 780W (24V)

  • Conversion Efficiency: ≤98%

  • MPPT Tracking Efficiency: >99%

  • Discharge Circuit Voltage Drop: ≤0.15 V

  • Operating Temperature: -35℃ to +45℃

  • Protection Degree: IP32

  • Net Weight: ~3.9 lb

  • Overall Dimensions: 8.27 x 5.94 x 2.34 in

Documents

User Manual

Specifications
