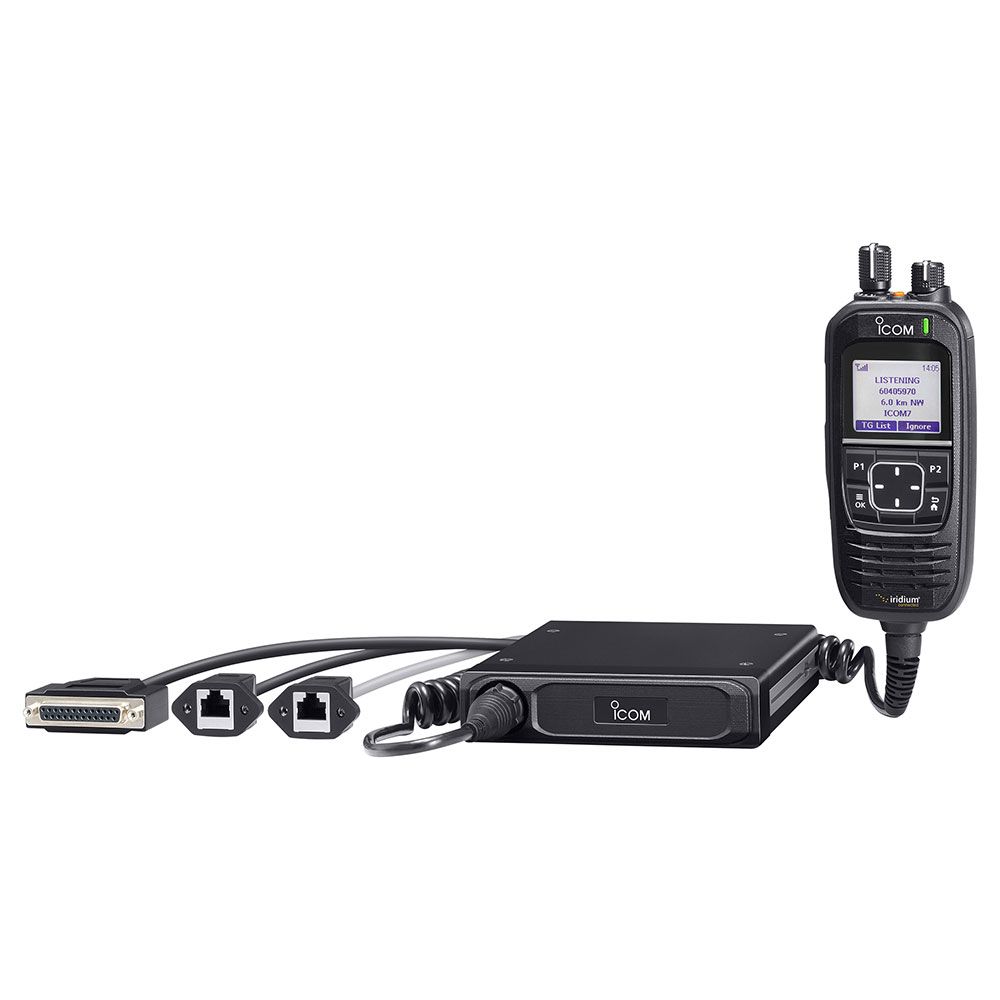

Icom IC-SAT100M Fixed Mount Satellite PTT Radio – Global Push-To-Talk, 1500 mW Audio, In-Vehicle & In-Building Use

The Icom IC-SAT100M Fixed Mount Satellite PTT Radio delivers reliable, one-to-many global communication via the Iridium® satellite network—ideal for vehicles, command centers, or in-building installations where consistent connectivity is critical. Unlike handheld radios, the IC-SAT100M allows users to operate indoors or from enclosed vehicles without needing a direct line of sight to the sky, thanks to its RF antenna unit with extended LAN cabling.

Engineered for demanding professional use, the IC-SAT100M combines rugged construction, high-powered 1500 mW audio, and AES 256-bit encryption for secure and crystal-clear global communication. With integrated Bluetooth®, a multi-functional speaker microphone, and interoperability through Icom’s VE-PG4 RoIP gateway, this system offers seamless communication across satellite, LTE, IP, and conventional radio networks.

Key Features

– Global PTT Coverage – Communicate anywhere on Earth through the Iridium satellite network.
– Fixed Mount Design – Optimized for in-vehicle or in-building installation using a separate RF antenna unit.
– Extended Connectivity – Connect main and antenna units via up to 100 m (328 ft) CAT5e LAN cable without signal loss.
– High-Power Audio – 1500 mW front-ported speaker for clear, loud communication in noisy environments.
– Durable Construction – MIL-STD 810G certified; IP67 (antenna), IP55 (mic), IP54 (main unit) for water and dust resistance.
– Emergency Button – Quickly transmit distress calls to designated talkgroups.
– Integrated GPS Receiver – Displays position information for enhanced situational awareness.
– Interoperability via VE-PG4 – Connects to IP phones, LTE networks, WLAN, IDAS digital, and analog radio systems.
– Encrypted Communication – AES 256-bit encryption for secure data transmission.
– Bluetooth® Support – Enables optional hands-free operation.
– Global Command Management – Manage users, talkgroups, and coverage areas via the Iridium PTT Command Center web app.

(Note: A monthly PTT service plan is required to operate over the Iridium network. Plans offer unlimited talkgroup communication at a flat monthly rate.)

Technical Specifications

• Main Unit Dimensions: 4.9" × 1.1" × 6.2" (125 × 29 × 156.5 mm)

• Antenna Unit Dimensions: 3" × 7.9" × 3" (76.8 × 200 × 76.8 mm)

• Microphone Dimensions: 2.3" × 5.3" × 1.2" (59.5 × 134.6 × 30.1 mm)

• Weight: Antenna 1.1 lb (500 g); Main Unit 2.1 lb (950 g); Microphone 0.55 lb (250 g)

• Operating Temperature: -22°F to 140°F (-30°C to 60°C)

• Durability: MIL-STD 810G (also meets 810C–F)

• Ingress Protection: IP67 (antenna), IP55 (mic), IP54 (main unit)

• Audio Output: 1500 mW

• Encryption: AES 256-bit

• Antenna Connector: SMA

• Display Languages: English, Spanish, French, Japanese, Chinese

What’s Included

• Icom IC-SAT100M main unit

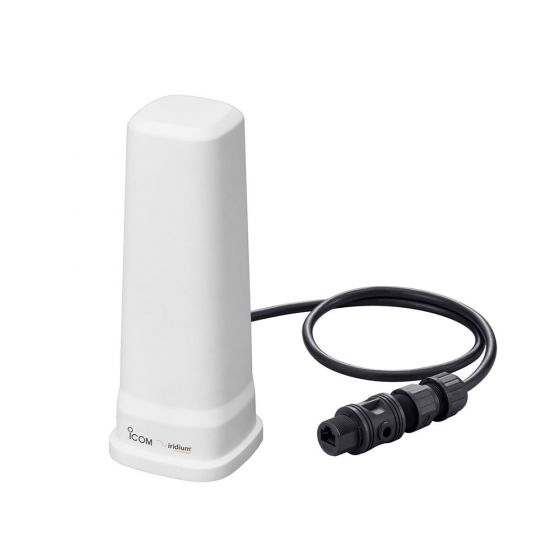

• Antenna unit with RF module

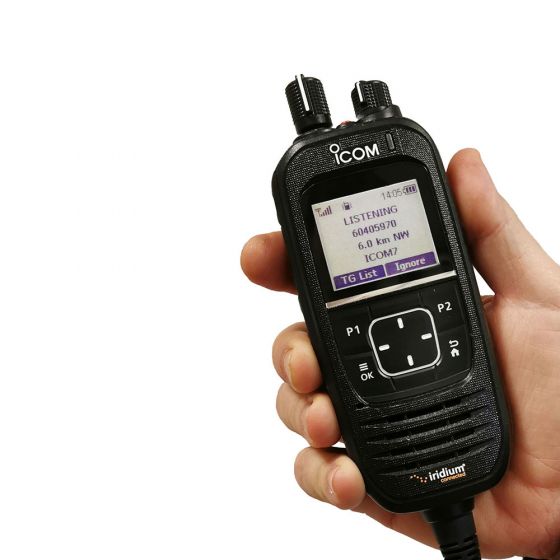

• Multi-functional speaker-microphone

• OPC-2435 DC power cable

• OPC-2102 LAN cable (65.6 ft / 20 m)

• Mobile mounting bracket (main unit)

• Antenna angle and mounting hardware

Warranty & Support

• 1-Year Manufacturer’s Warranty

• Free Shipping within the continental U.S.

User Manuals & Brochures

• Icom Satellite PTT Radio Brochure (PDF)
