The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.

Features

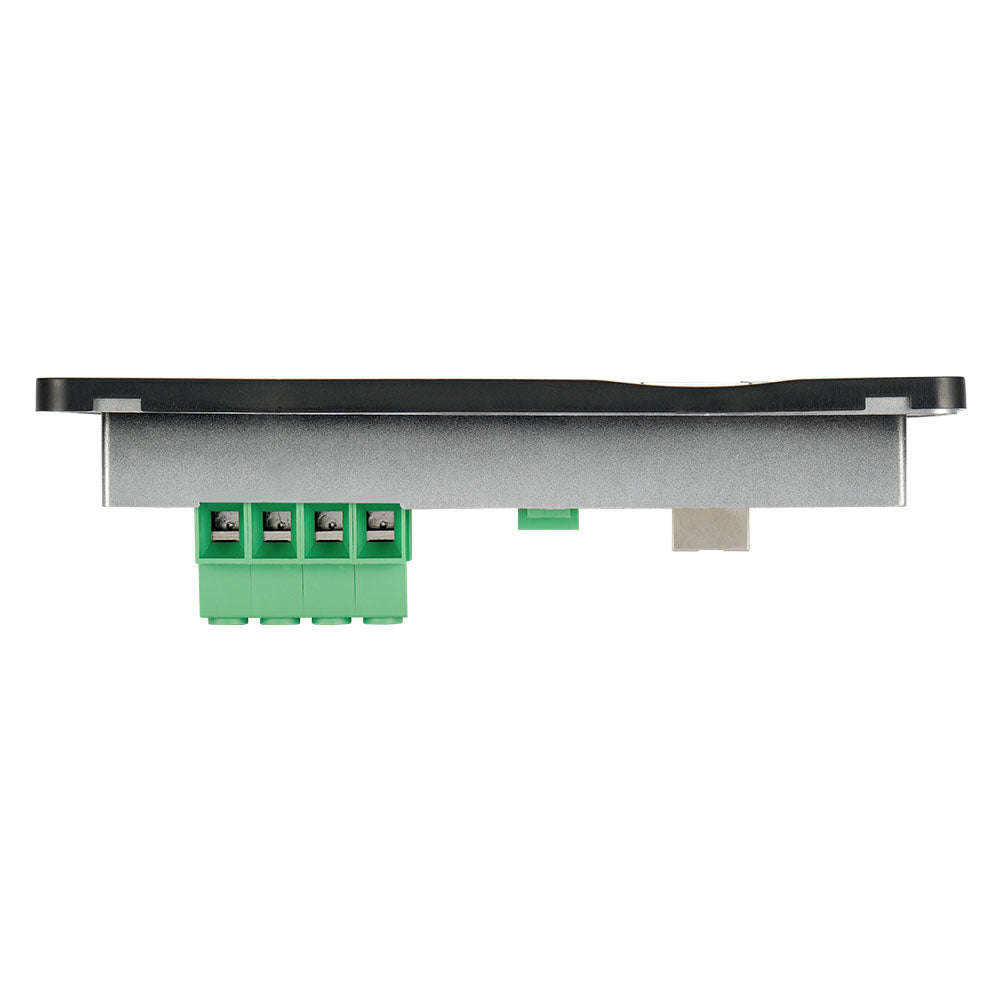

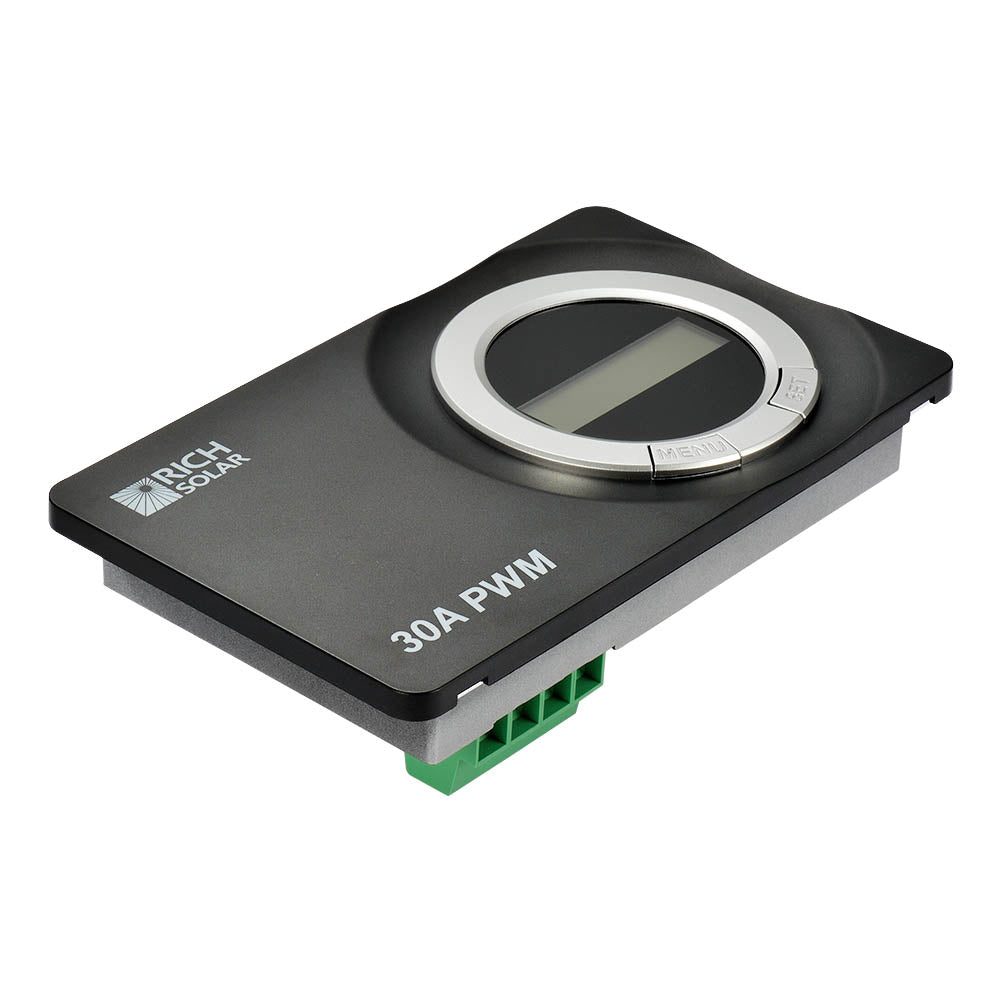

  • Flush mounted and embedded installation design
  • High quality and low failure rate components (ST/IR) to ensure the product lifetime
  • 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
  • Compatible with lead-acid and lithium batteries
  • Real-time energy statistics feature

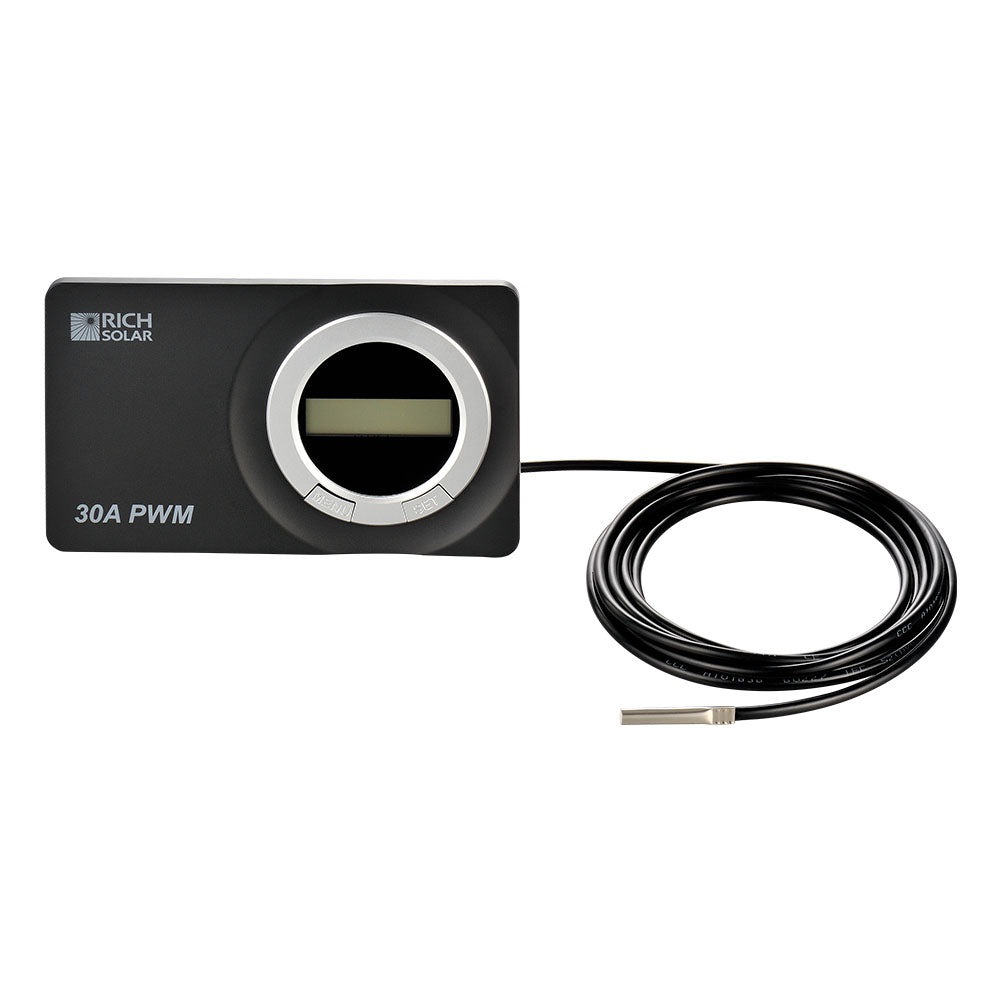

  • Battery temperature compensation feature

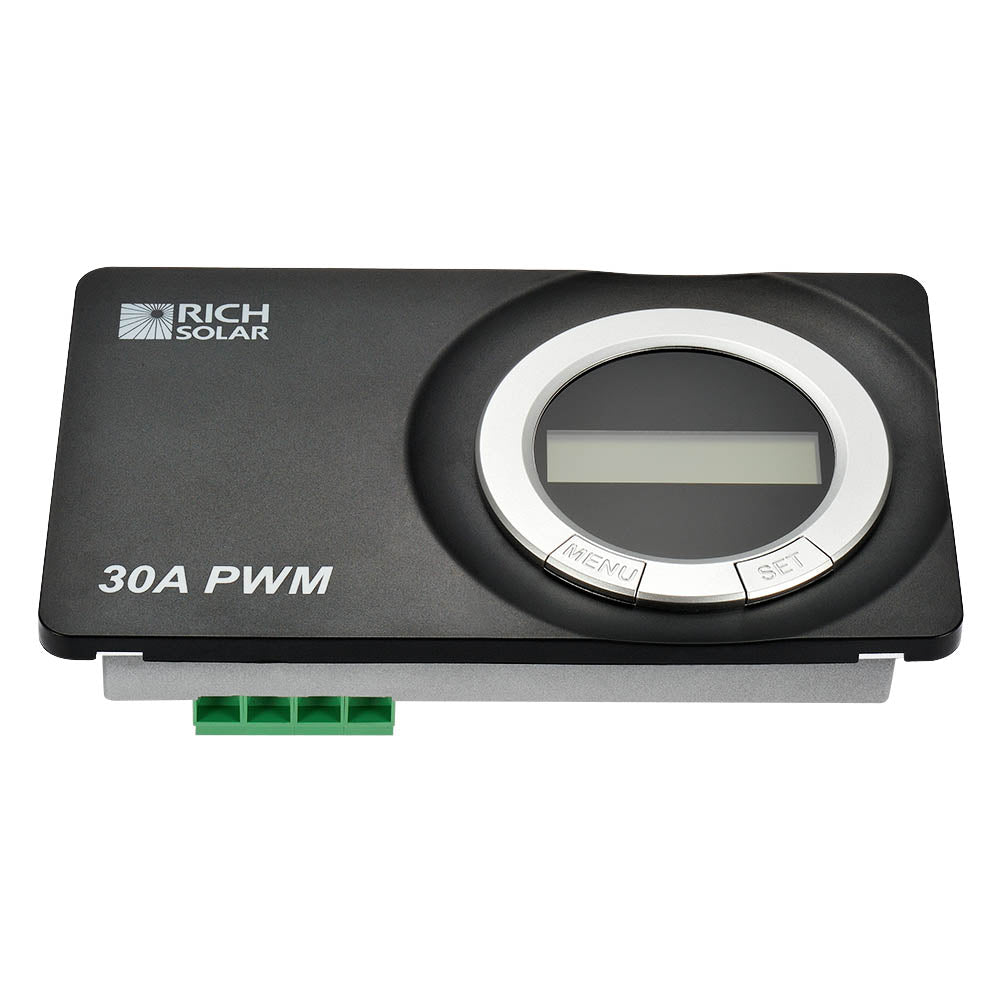

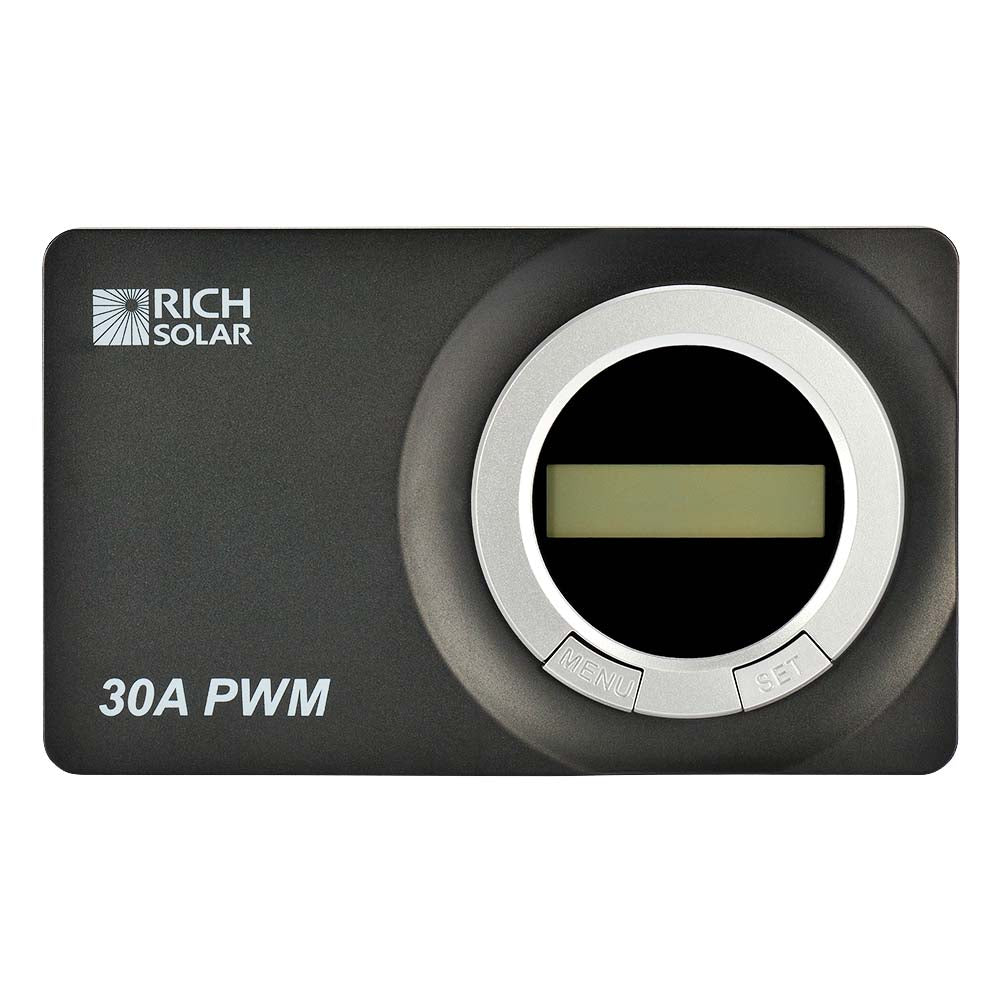

  • Digital LCD monitor for informative display of operational parameters and fault messages

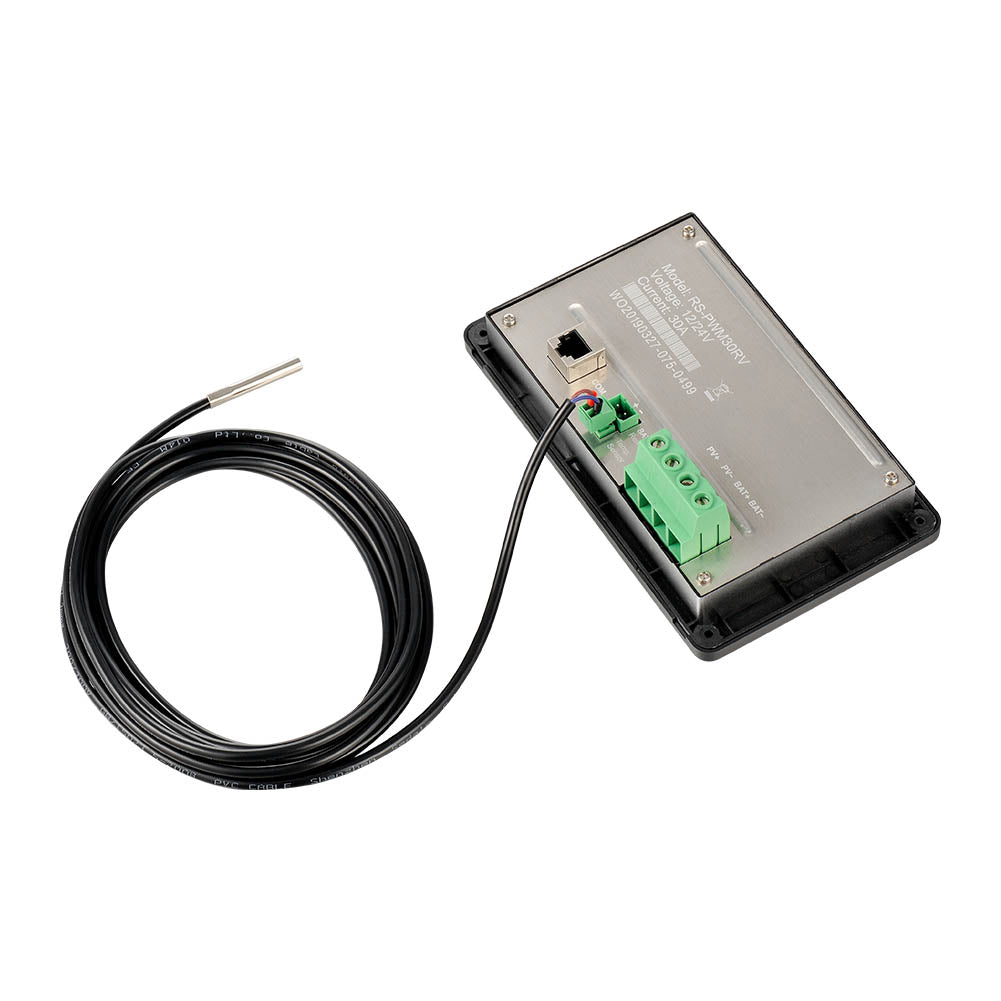

  • Voltage drop and temperature compensation sampling interface design

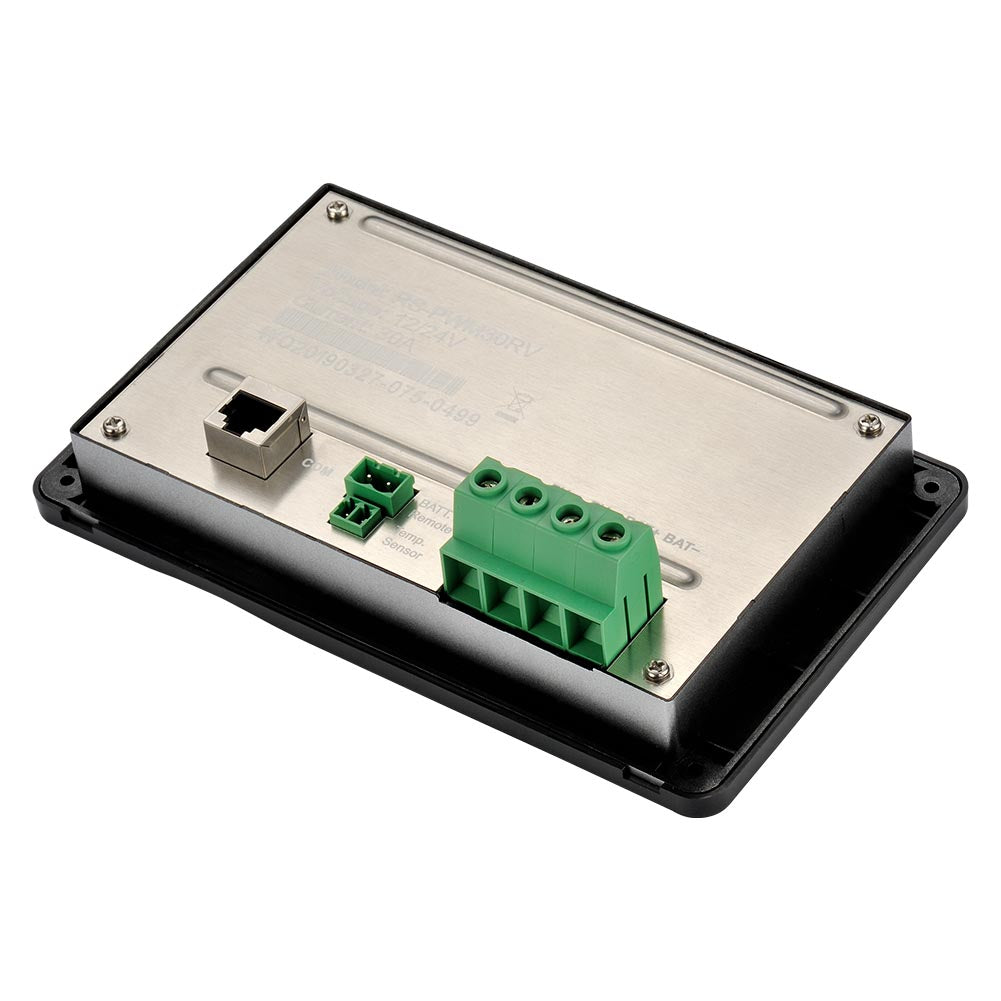

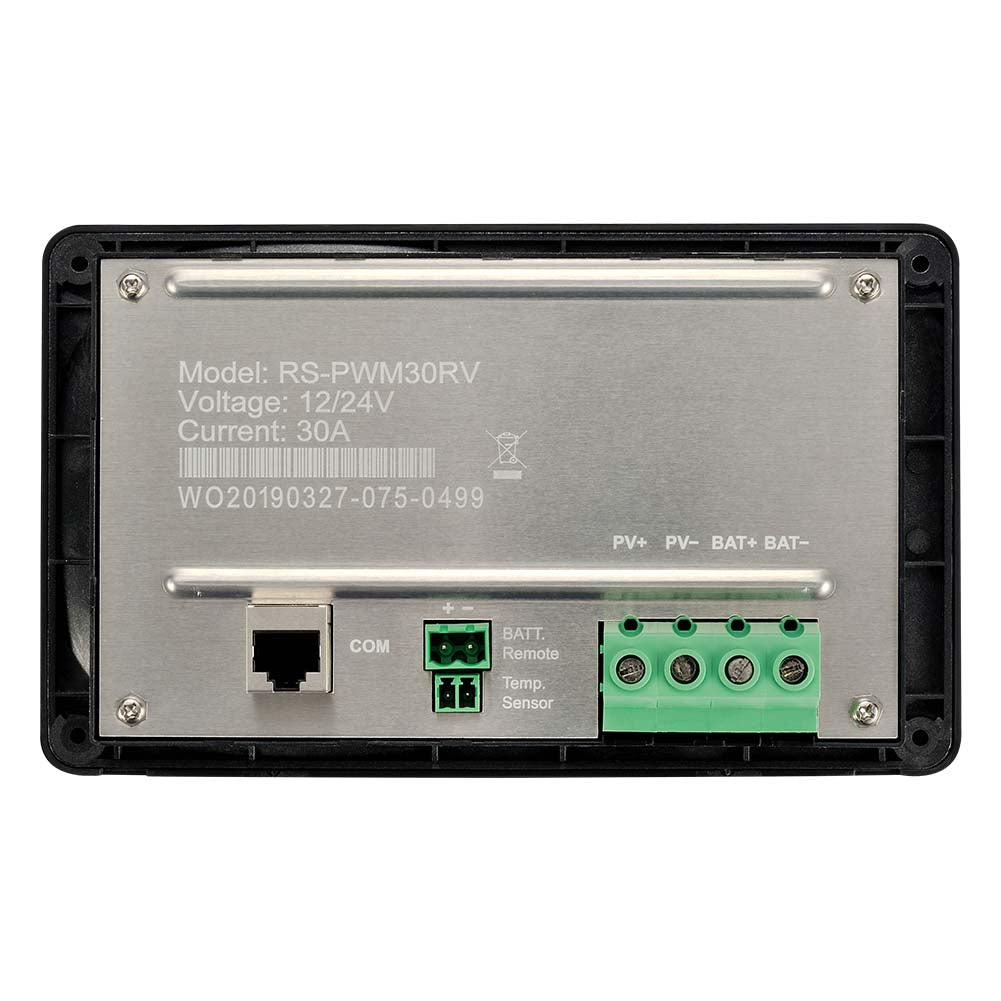

  • RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
  • Multiple communication peripherals
  • Rated charging current at working temperature without de-rating
  • Extensive electronic protections
  • Monitor and set the parameters via PC software or APP

①The Lead-acid battery of User and Lithium battery can be set via the PC software.

Specifications

  • Electrical Specifications

  • Nominal Voltage: 12/24VDC or Auto
  • Battery Input Voltage Range: 8V~32V
  • Rated Charge Current: 30A
  • Max. PV Short Circuit Current: 30A
  • Max. PV Open Circuit Voltage: 50V
  • Battery Type: Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery: LiFePO4/Li-NiCoMn/User
  • Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
  • Temperature Compensation Coefficient: -3mV/°C/2V(Default)
  • Charge Circuit Voltage Drop: 0.21V



  • Environmental Parameters

  • Storage Temperature Range: -35℃~+70℃
  • Working Environment Temperature: -35℃~+55℃ (100% input and output)
  • Relative Humidity: ≤95%, N.C.
  • Enclosure: IP30
  • Grounding: Common negative



  • Mechanical Parameters

  • Dimension (L×W×H): 178.5×105.5×48.3mm
  • Mounting Dimension: 166.5×93.5mm
  • Mounting Hole Size: Φ5mm
  • Terminal: 16mm²/6AWG
  • Recommended Cable: 10mm²/8AWG
  • Net Weight: 0.31kg
