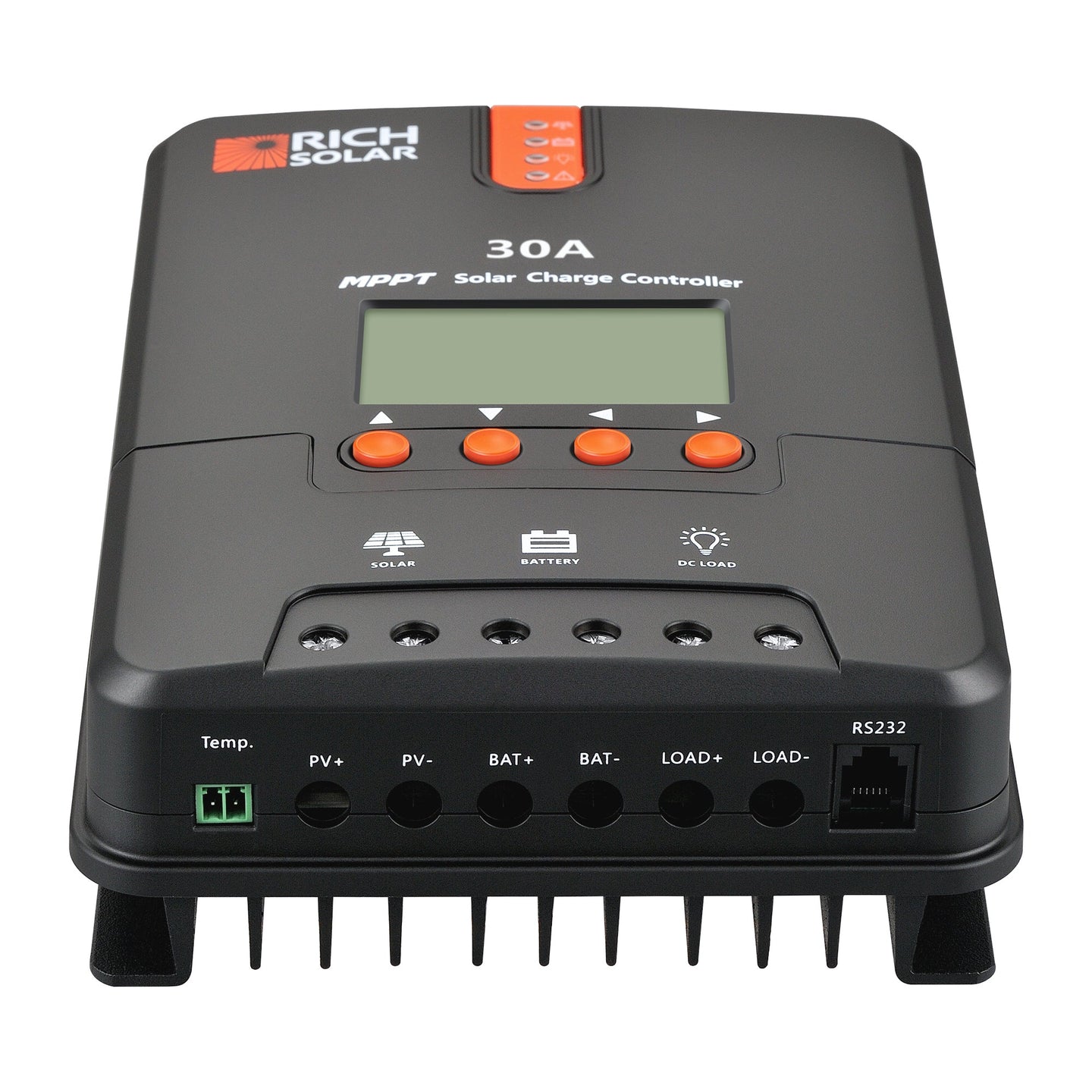

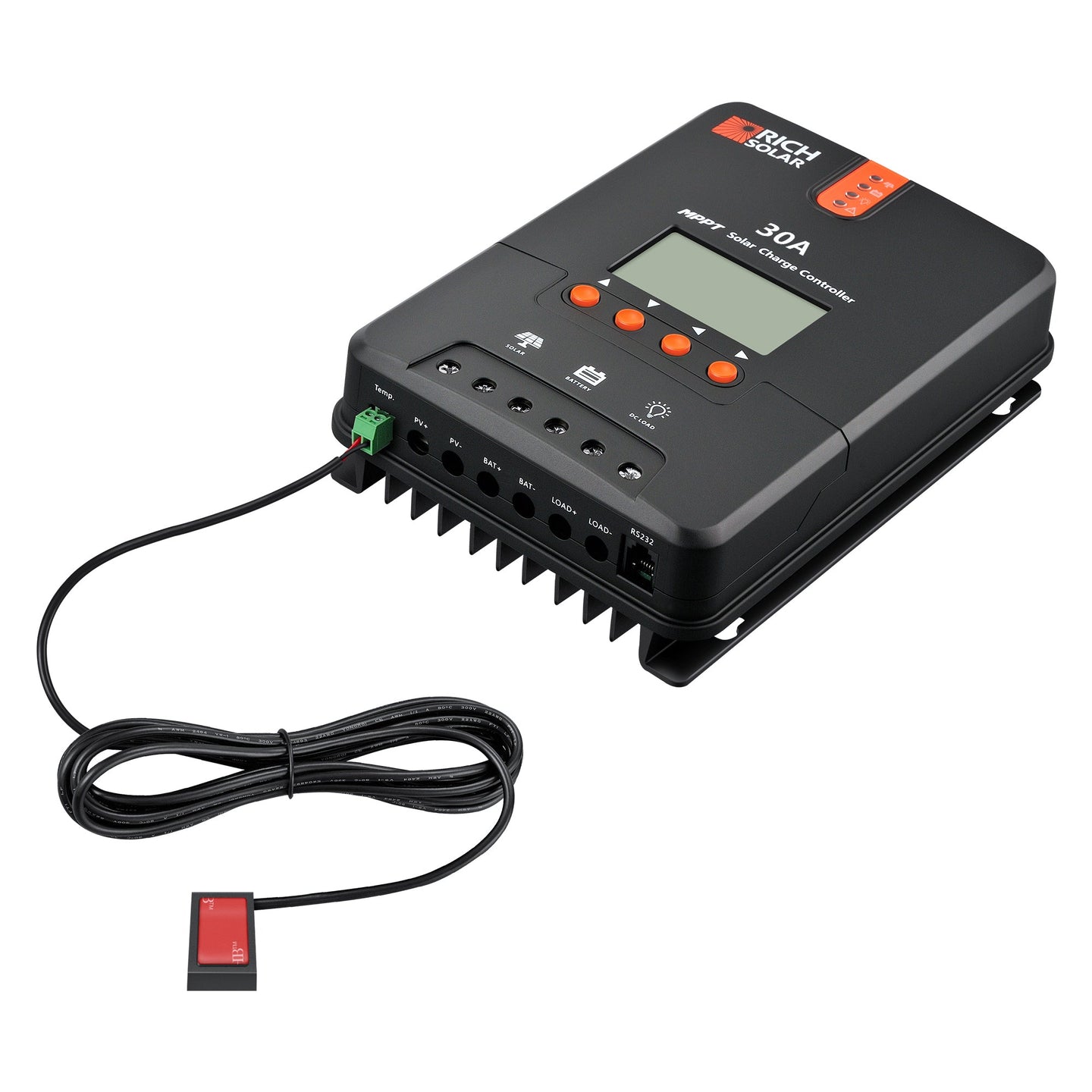

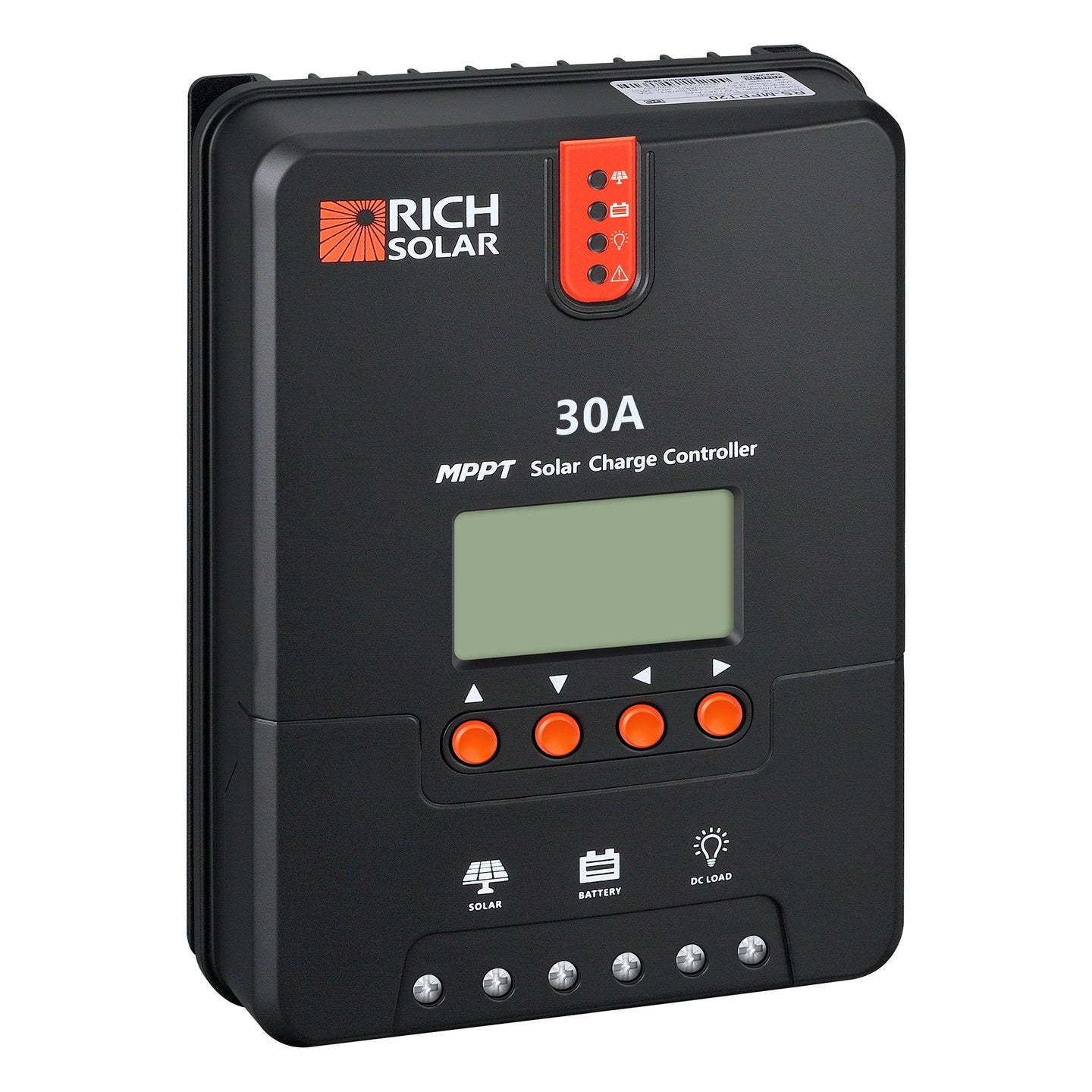

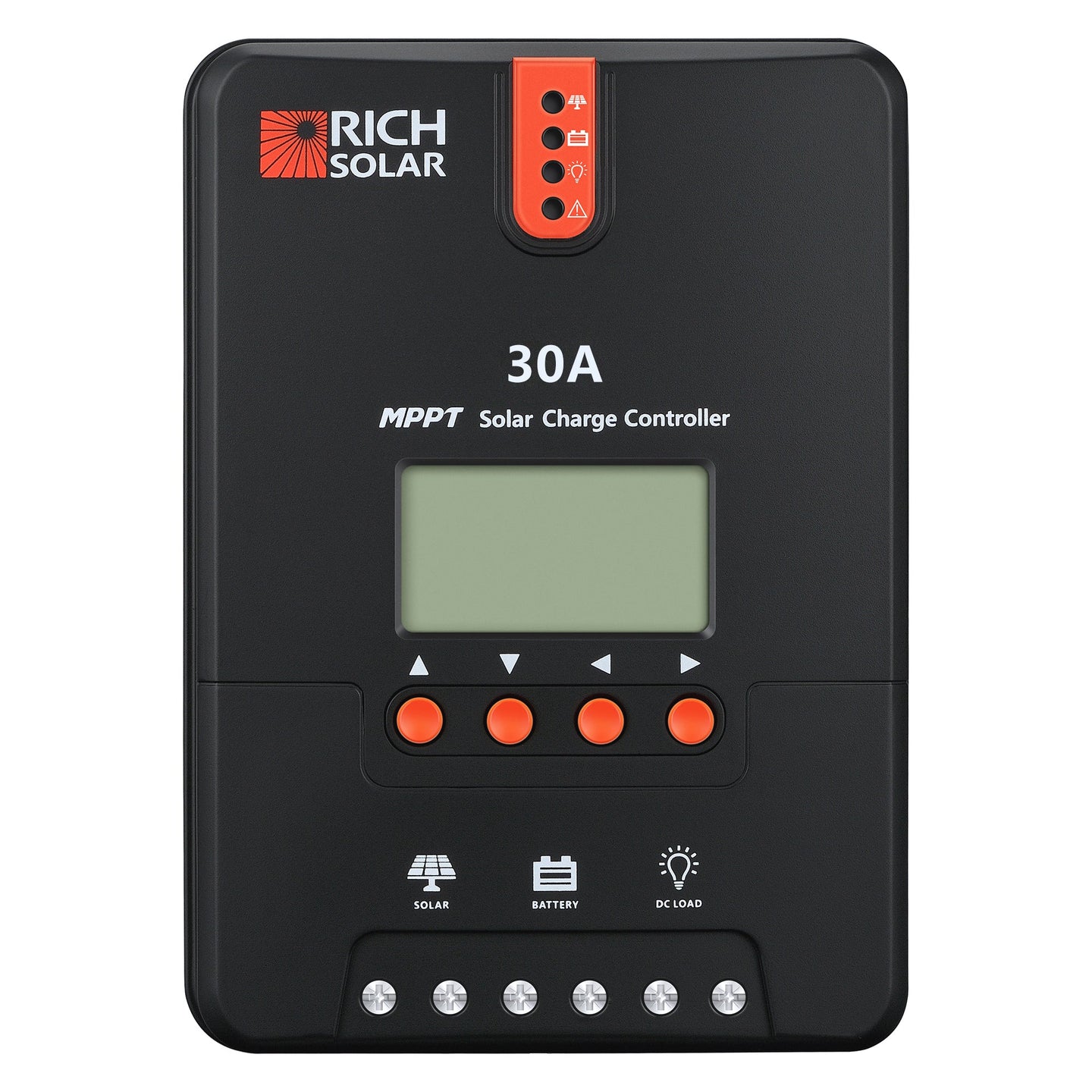

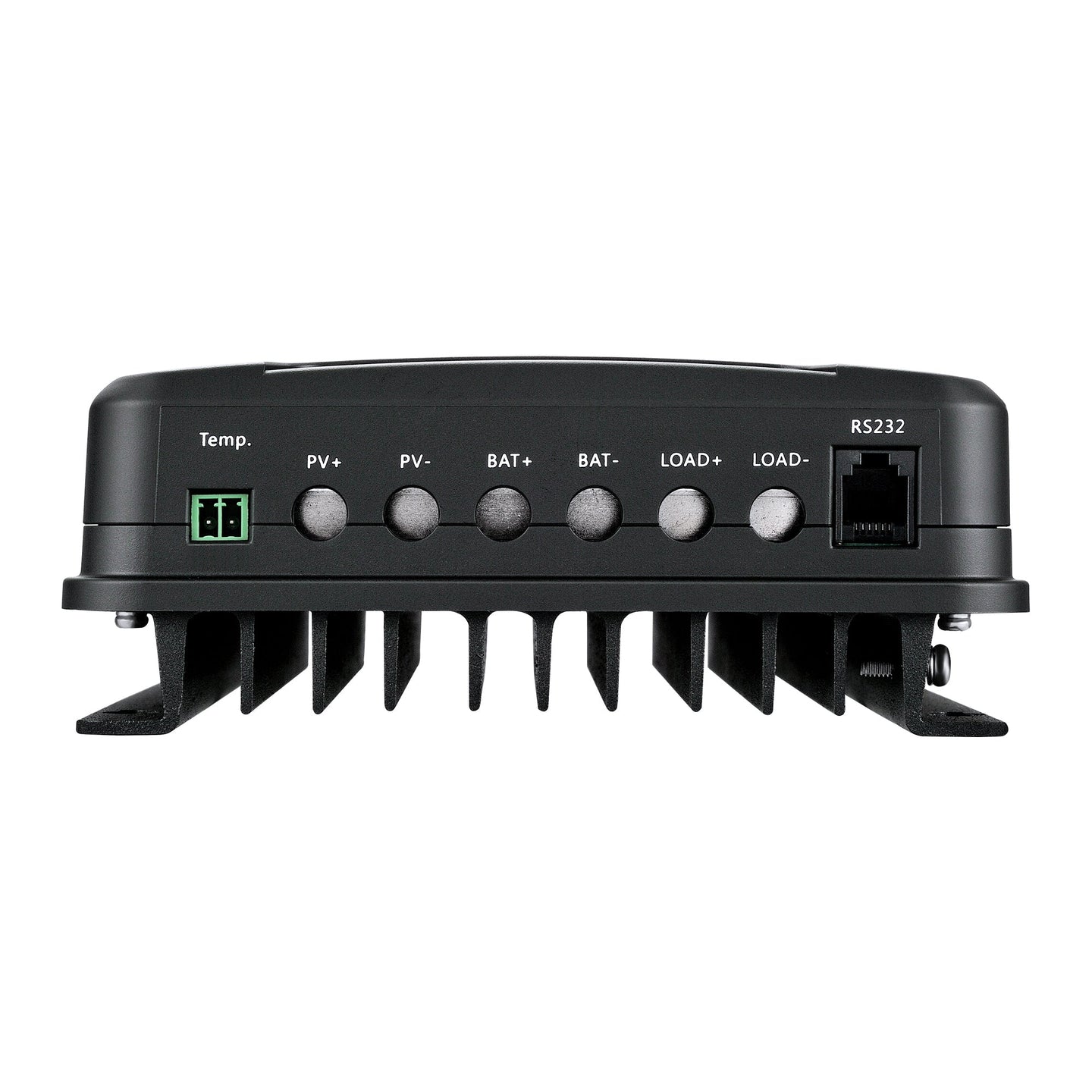

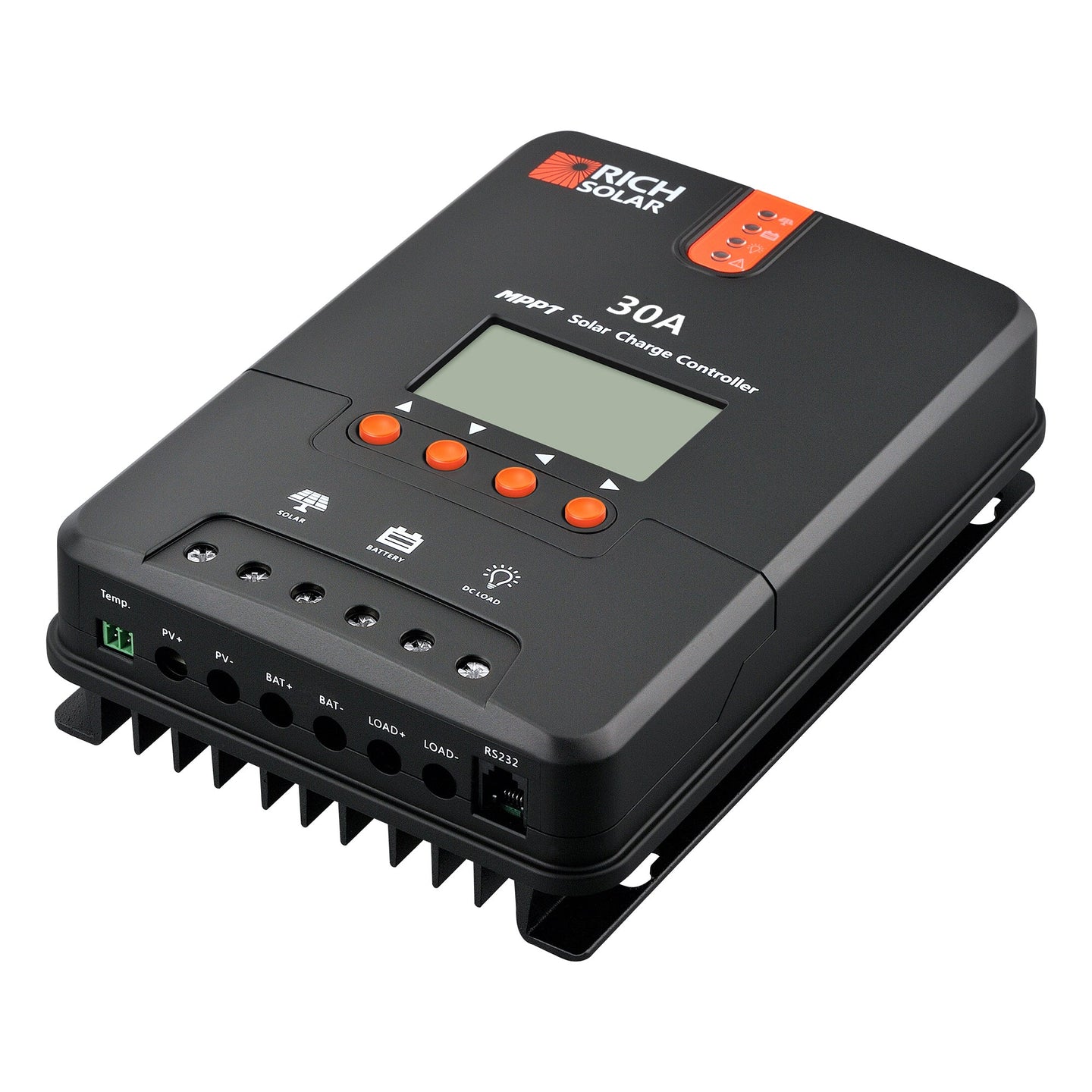

The Rich Solar Bravo 30A MPPT Charge Controller is built to deliver reliable and efficient solar power management for medium-to-large off-grid systems. With intelligent MPPT tracking, advanced protection features, and broad battery compatibility, this controller ensures your batteries charge safely and efficiently in any environment.

Features

  • Automatic system recognition – detects 12V or 24V DC system voltages

  • Battery compatibility – optimized for Sealed, Gel, Flooded, and Lithium deep cycle batteries

  • High-performance MPPT technology – up to 99% tracking efficiency and 98% peak conversion efficiency

  • Comprehensive electronic protection – safeguards against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

  • Clear system monitoring – LCD display with multiple LED indicators for system data, customizable parameters, and error codes

  • Load control & lithium recovery – supports diverse load functions and can charge over-discharged lithium batteries

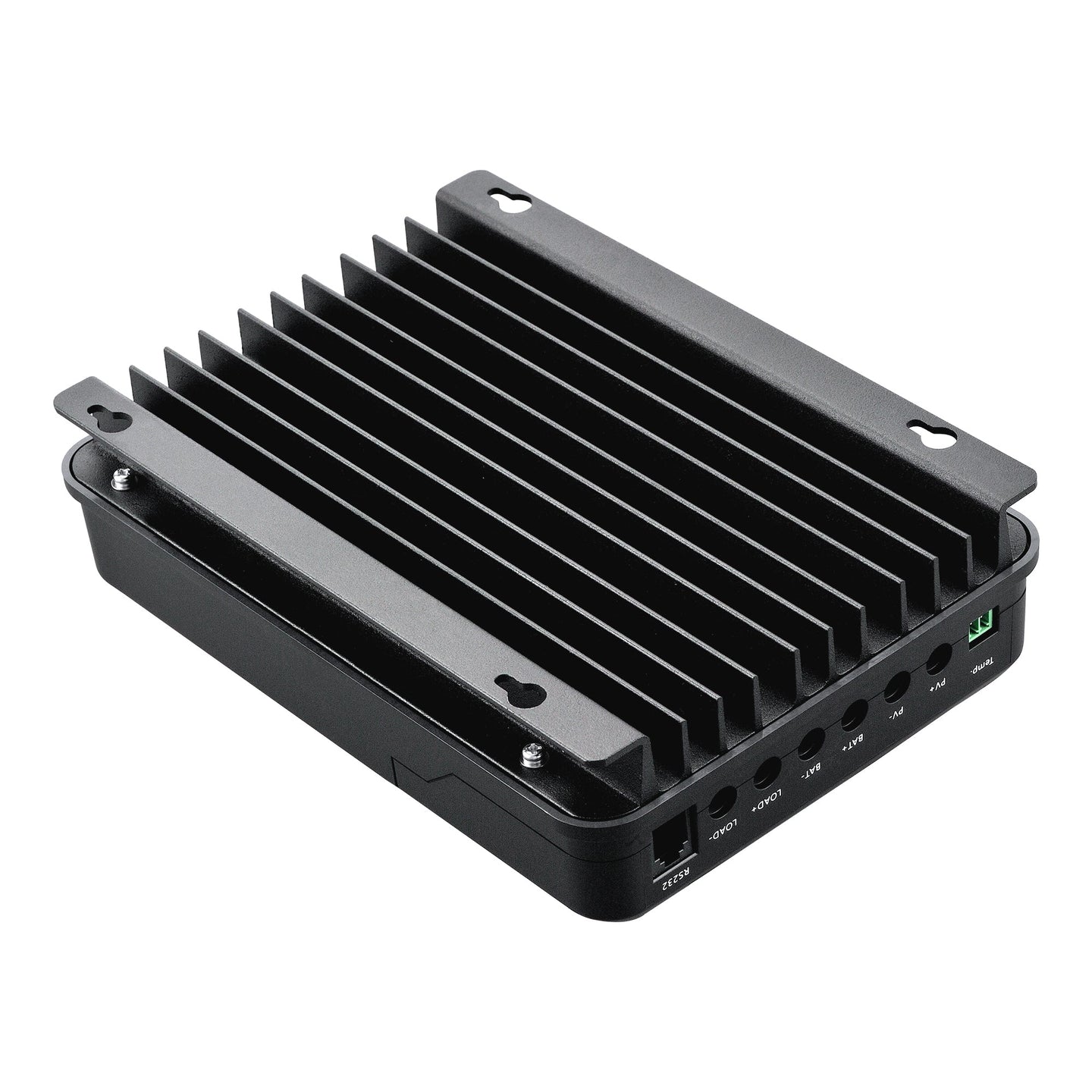

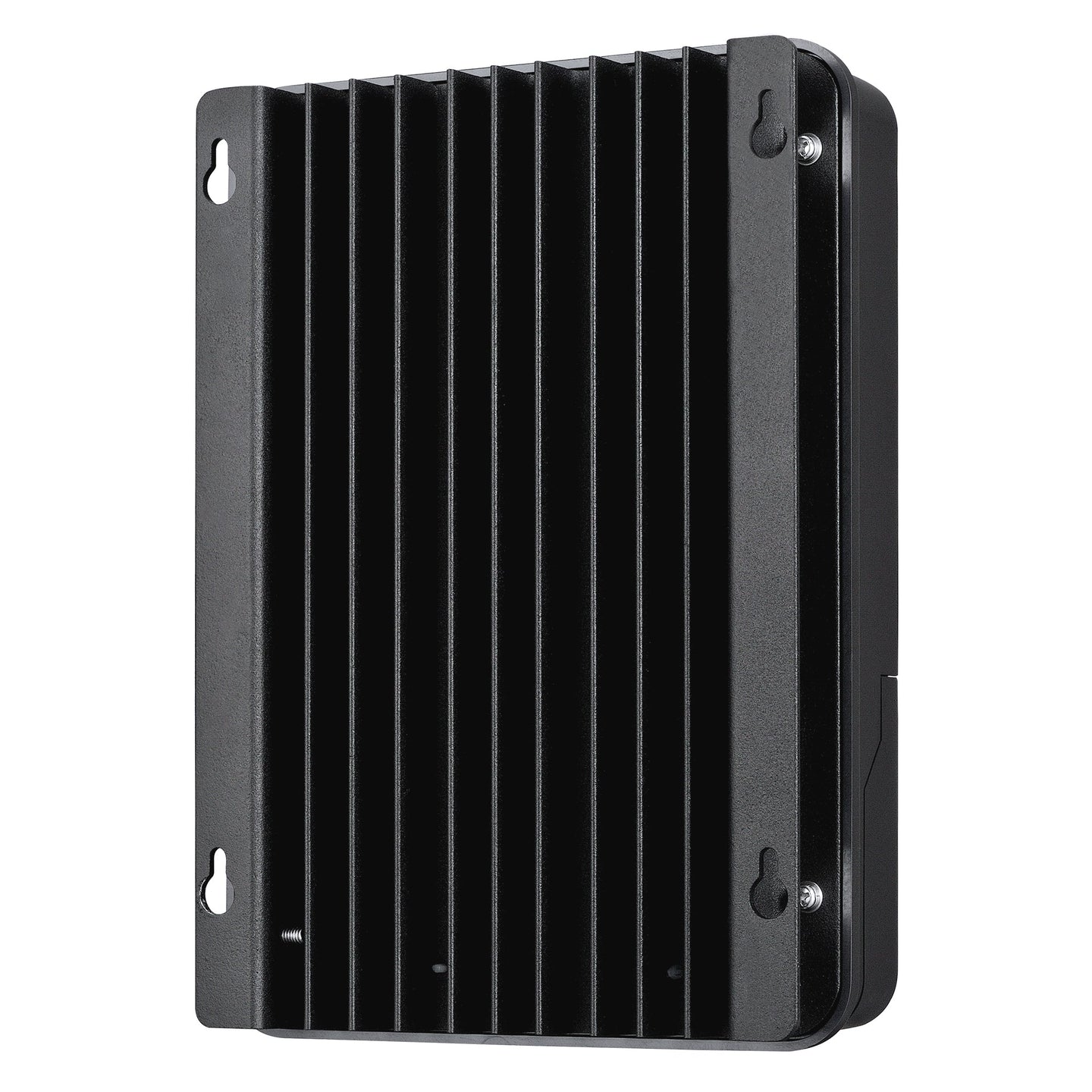

  • Durable die-cast aluminum housing – excellent heat dissipation for long-lasting performance

  • Remote monitoring ready – RS232 port compatible with BT-1 Bluetooth module

Specifications

  • Nominal System Voltage: 12V/24V Auto Recognition

  • Rated Battery Current: 30A

  • Rated Load Current: 20A

  • Max. PV Input Short Current: 40A

  • Max. Battery Voltage: 32V

  • Max Solar Input Voltage: 100 VDC

  • Max PV Input Power: 390W (12V), 780W (24V)

  • Conversion Efficiency: ≤98%

  • MPPT Tracking Efficiency: >99%

  • Discharge Circuit Voltage Drop: ≤0.15 V

  • Operating Temperature: -35℃ to +45℃

  • Protection Degree: IP32

  • Net Weight: ~3.9 lb

  • Overall Dimensions: 8.27 x 5.94 x 2.34 in

Documents

User Manual

Specifications
