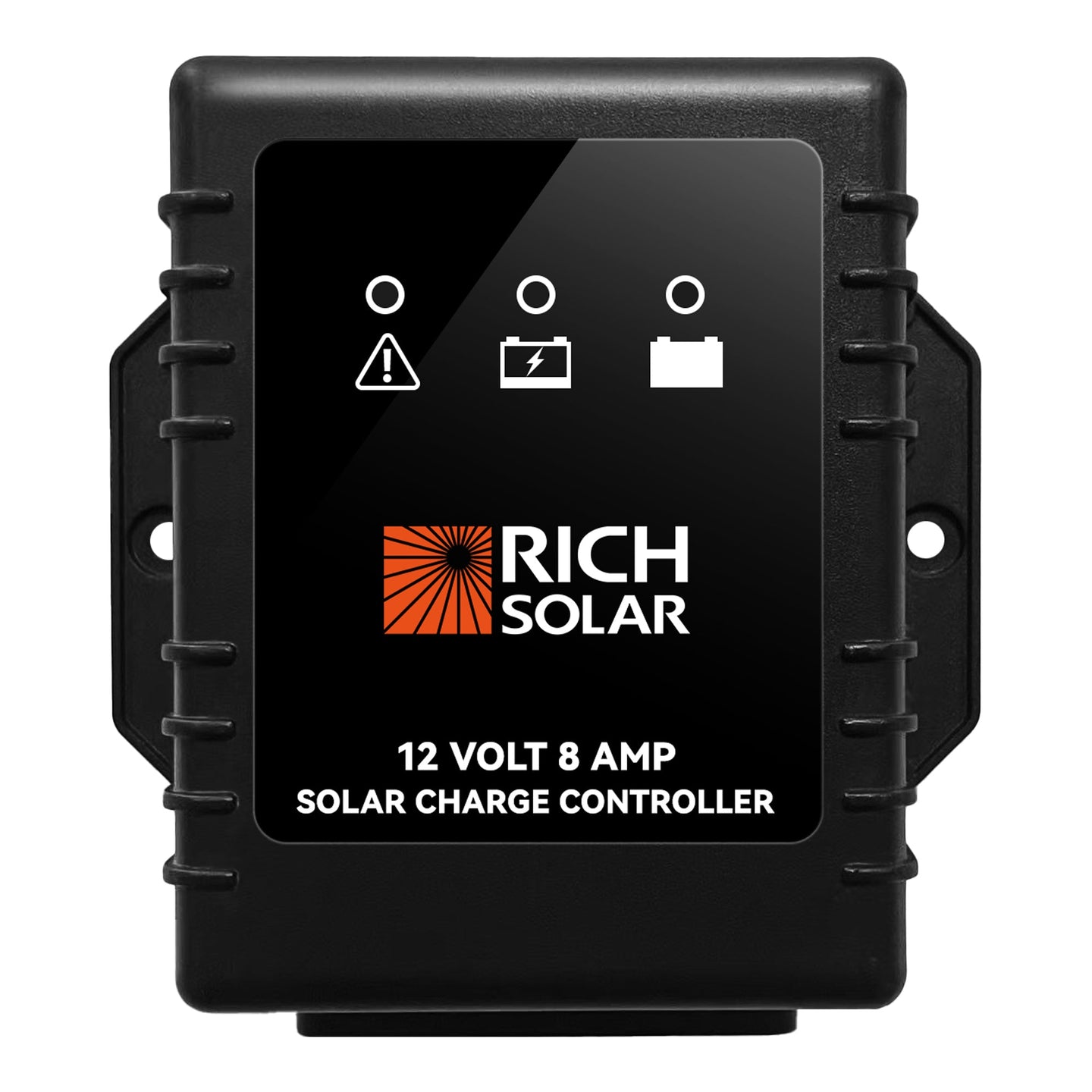

Features

  • PWM technology, switching control by MOSFET
  • Common Positive Grounding connection
  • High efficiency and low power consumption
  • Battery type setting via DIP switch
  • Smart charging control
  • Charging time management
  • LED indication for the battery condition and charging status
  • Thermal protection
  • No sparks
  • Waterproof
  • Corrosion-resistant terminals and connectors
  • Conformal coating supplied to the inside board against moisture
  • Overvoltage protection, Short circuit protection, Reverse polarity protection
  • Suitable for most of the rechargeable Lead acid battery, including Flooded (WET), AGM, GEL, Lithium (LiFePO4) battery
  • Designed according to CE standards, EMC, and FCC compliance



Mounting the Device

The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.


Specifications

  • Electrical Parameters

  • Rated Solar Panel Amps: Max. 8AMP
  • Normal Input Solar Cell Array Voltage: 15-22VDC
  • Max. Solar Cell Array Voltage (Output Has No Load): 25VDC
  • Lowest Operating Voltage (At Solar or Battery Side): 9VDC
  • Standby Current Consumption At Night: 2mA
  • Maximum Voltage Drop - Solar Panel to Battery: 0.25VDC



  • Charging Characteristics

  • Minimum Battery Starting Charging Voltage: 3VDC
  • Soft Start Charging Voltage: 3-10±0.2VDC
  • Soft Start Charging Current (50% PWM Duty): Up to 4AMP
  • Bulk Charge Voltage: 10-14±0.2VDC
  • Equalization Charging Voltage at 25℃: 15.5±0.2VDC
  • Equalization Charging Timer Timeout: 2 Hours
  • Battery Temperature Compensation Coefficient: -24mV/°C
  • Temperature Compensation Range: -4°F~+122°F



  • Protection

  • Over Temperature Protection During Charging: 149°F



  • Electrical Parts

  • Input/Output Terminal: M4 terminals



  • Physical Parameters

  • Controller Material: Plastic, Standard ABS
  • Power Terminal Maximum Stranded Wire Size: #12AWG stranded-3mm²
  • Mounting: Vertical wall mounting
  • IP Grade: IP65
  • Net Weight: Approx. 0.2kg/0.44lb



  • Environmental Characteristics

  • Operating Temperature: -25~50°C (-13~122℉)
  • Storage Temperature: -40~85°C (-40~185℉)
  • Operating Humidity Range: 100% no condensation
