Rich Solar 1200 Watt 24V Off-Grid Solar Kit | 6x 200W Monocrystalline Panels + 60A MPPT Controller

Take your off-grid adventures to the next level with the Rich Solar 1200 Watt Solar Kit. Designed for RVs, boats, trailers, and cabins, this powerful kit includes six high-efficiency 200W monocrystalline solar panels paired with a 60A MPPT charge controller for maximum energy harvesting.

Whether you’re camping in the wilderness or powering a remote cabin, this solar kit delivers quiet, clean, and reliable energy—no noise, no fuel, no hassle. Built with durable materials and backed by industry-leading warranties, Rich Solar ensures long-lasting performance you can count on.

Available Options:

• Standard Kit (with controller & fuse)

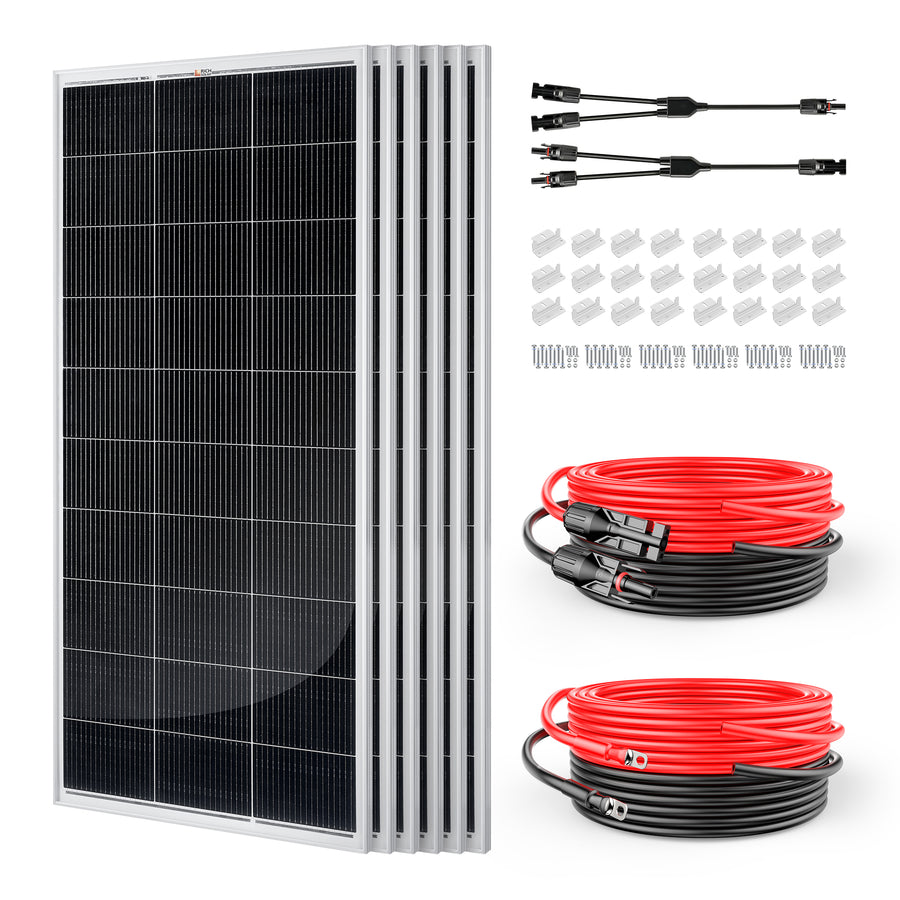

• Standard Kit without controller & fuse

Key Features

• Complete 1200W off-grid solar kit with panels, controller, cabling, fuse, and mounts
• Six 200W monocrystalline solar panels with 18 busbars for maximum efficiency
• High-performance 60A MPPT solar charge controller (auto-detects 12V/24V/36V/48V systems)
• Excellent low-light performance – works on cloudy days, mornings, and evenings
• Rugged, anti-reflective tempered glass and anodized aluminum frame for durability
• Pre-drilled panels for fast and simple installation on RVs, boats, trailers, and cabins
• Advanced electronic protections: reverse polarity, overcharge, short circuit, overload
• Compatible with multiple battery types including lithium, AGM, gel, and flooded
• Long-lasting warranties: 25 years power output (panels), 10 years workmanship, 2 years (controller)

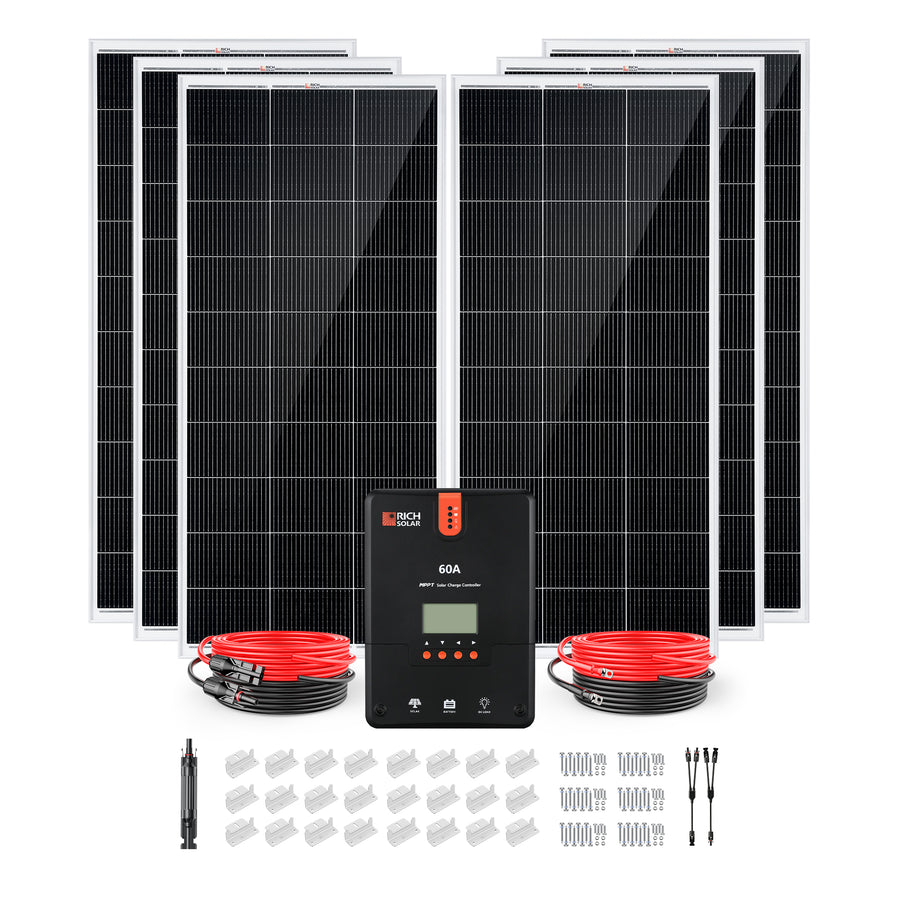

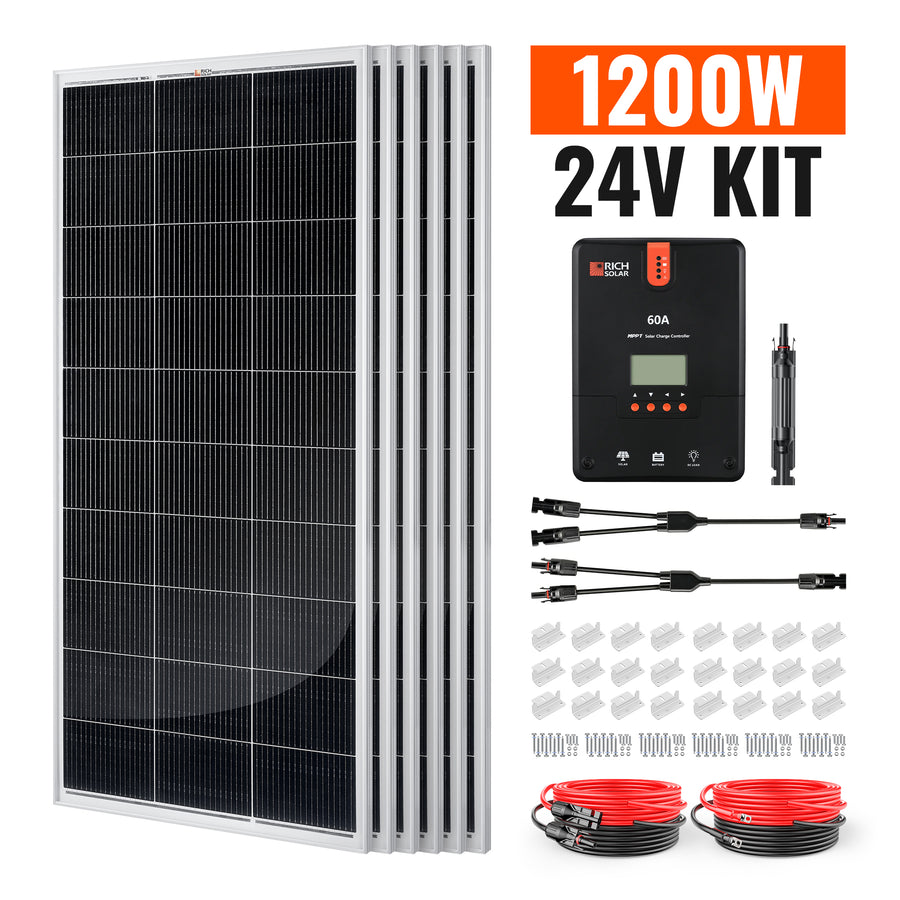

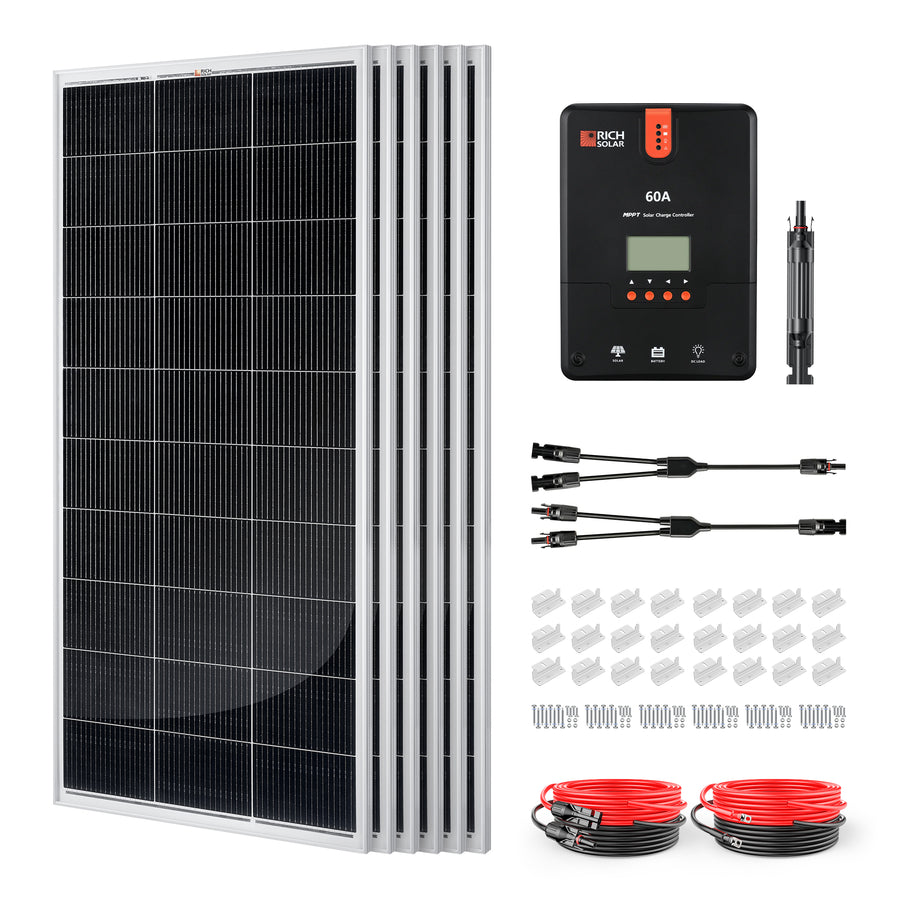

Kit Contents

• 6 x 200 Watt Monocrystalline Solar Panel  (RS-M200)
• 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
• 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
• 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
• 1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery (RS-1010)
• 1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery (RS-1010)
• 6 x Mounting Z Brackets (one set) (RS-ZB4C)
• 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)
• 1 x Y Branch Parallel Adapters(RS-Y2)

Specifications

Component	Specification
Solar Panels (6 × 200W MEGA Monocrystalline)
Wattage per Panel	200W
Total System Wattage	1200W
Max Power Voltage (Vmp)	18.4V
Max Power Current (Imp)	10.9A
Open Circuit Voltage (Voc)	21.8V
Short Circuit Current (Isc)	11.6A
Temperature Range	-40°F ~ +185°F
Max Series Fuse Rating	15A
Panel Weight	24 lb each
Panel Dimensions	58.7 × 26.8 × 1.2 in
Warranty	25-Year Power Output, 10-Year Workmanship
60A MPPT Charge Controller
System Voltage Detection	Auto (12V / 24V / 36V / 48V)
Rated Battery Current	60A
Rated Load Current	20A
Max Solar Input Voltage	150V (77°F), 145V (-13°F)
Max Solar Input Power	800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)
Efficiency	Tracking up to 99%, Conversion up to 98%
Circuit Voltage Drop	≤0.26V (charge), ≤0.15V (discharge)
Protections	Reverse polarity, overload, short circuit, reverse current, over/undercharge
Operating Temperature	-31°F ~ 113°F
Controller Weight	7.94 lb
Controller Dimensions	11.2 × 8.1 × 3.7 in
Warranty	2 Years

Documents

• MEGA 200W Solar Panel - Specification Sheet
• 60A MPPT Solar Charge Controller(RS-MPPT60) - Specification Sheet
• 60A MPPT Solar Charge Controller(RS-MPPT60)- User Manual
• Certification
