Take control of your energy with the Rich Solar 1200W 24V Complete Solar Kit—designed for off-grid living, RV adventures, and tiny homes. This all-in-one kit delivers everything you need to harness solar energy efficiently, store it safely, and power your appliances reliably. Featuring six 200W high-efficiency solar panels, two ALPHA 4 lithium batteries, a 3000W pure sine inverter, and a 60A MPPT charge controller, this system makes going solar simple and stress-free.

Whether you're hitting the road in your RV, upgrading your cabin, or setting up a tiny home, this kit provides dependable solar power with premium components built to last. Easy to install, scalable, and designed for maximum performance, the Rich Solar 1200W 24V Complete Solar Kit is your gateway to sustainable energy freedom.

Key Features

  • Complete solar kit for RVs, tiny homes, cabins, and off-grid systems
  • High-efficiency 200W solar panels with excellent low-light performance
  • Advanced ALPHA 4 Lithium batteries with 5000+ cycles and IP65 waterproofing
  • 3000W NOVA pure sine wave inverter ensures reliable AC power
  • 60A MPPT controller for optimized solar charging efficiency (up to 99%)
  • Easy installation with pre-drilled panels and universal mounting options
  • Safe, eco-friendly, and designed for long-term off-grid performance
  • Scalable system—expandable for additional panels and batteries

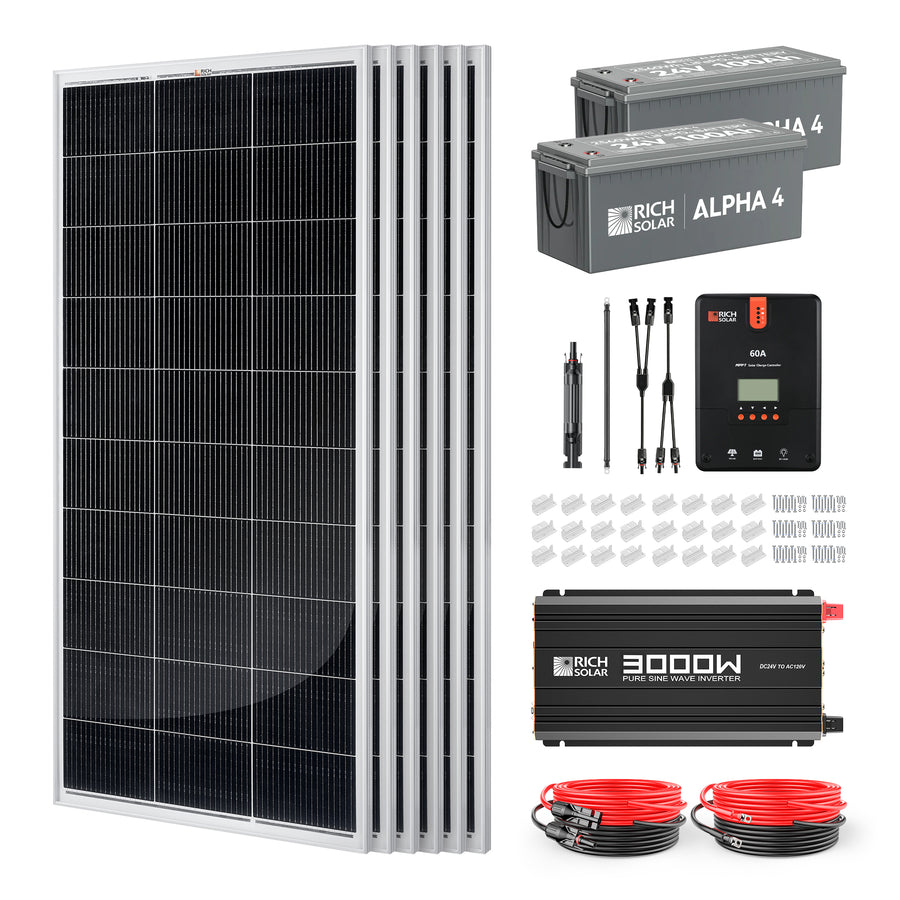

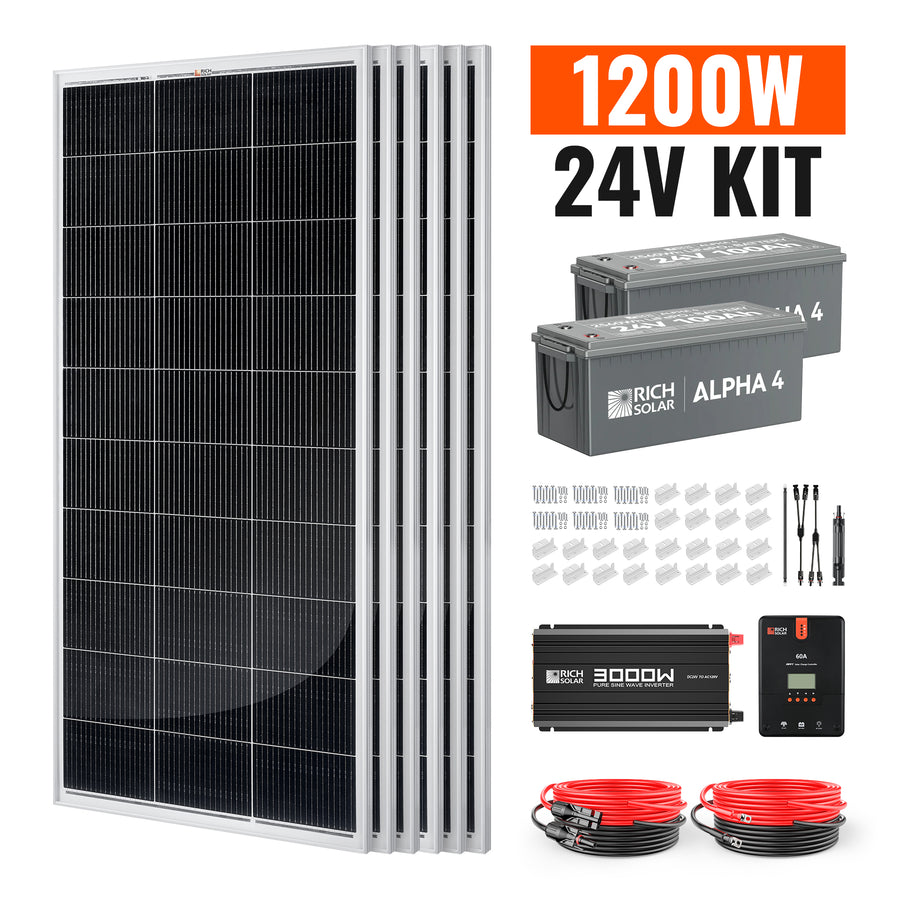

Kit Contents

Specifications

Component Model Specification / Feature
Solar Panels MEGA 200W 12V (x6) Maximum Power (Pmax): 200W per panelTotal System Power: 1200WMaximum Power Voltage (Vmp): 18.4VMaximum Power Current (Imp): 10.9AOpen Circuit Voltage (Voc): 21.8VShort Circuit Current (Isc): 11.6ATemperature Range: -40 ~ +185°FMax Series Fuse Rating: 15AWeight: 24 lb per panelDimensions: 58.7 x 26.8 x 1.2 inWarranty: 25-year power output / 10-year workmanshipInstallation: Pre-drilled holes for Z-brackets, ground/pole/tilt mounts
Battery ALPHA 4 24V 100Ah LiFePO4 (x2) Nominal Voltage: 25.6VNominal Capacity: 100AhNominal Energy: 2560WhCycle Life: 5000 cyclesBMS: 100AMax Charge / Discharge Current: 100AMax Discharge Current 10s: 110ACharge Method: CC/CV, Recommend Current: 50ACharge Temp: 32℉ to 131℉ (0–55°C)Discharge Temp: -4℉ to 140℉ (-20–60°C)Storage Temp: 14℉ to 95℉ (-10–35°C)Self-Heating: External Draw 100W, Internal Heating <41°F / stops >50°FNet Weight: 48.5 lbDimensions: 20.9 x 8.1 x 8.5 inProtection: IP65, Flame Retardant ABSWarranty: 5 Years
Inverter NOVA PURE MAX 3000W 24V Rated Voltage: 24V DCContinuous Power: 3000WPeak Surge: 6000WWaveform: Pure Sine WaveOutput Voltage: 120V ACOutput Frequency: 60HzOutput Efficiency: >88%AC Output Sockets: 3USB Output: 5V / 2.1APower Control: AC On/Off SwitchOperating Temp: 14°F to 122°FDimensions: 18.7 x 9.6 x 4 inWeight: 12.1 lbWarranty: 2 YearsProtection: Overload, Short Circuit, Over Temp, Low Battery Voltage, Internal Backup DC Fuse
MPPT Charge Controller 60A MPPT Rated Battery Current: 60ARated Load Current: 20AMax Solar Input Voltage: 150VMax Solar Input Power: 1600W (24V)Charge Efficiency: Peak 98%Battery Compatibility: Sealed, Gel, Flooded, LithiumProtection: Reverse Polarity, Overcharge, Over-discharge, Overload, Short Circuit, Reverse CurrentLCD Display with LED IndicatorsRS232 Port for Bluetooth ModuleOperating Temp: -31°F to 113°FDimensions: 11.2 x 8.1 x 3.7 inWeight: 7.94 lbWarranty: 2 Years

Documents

⚠️ California Proposition 65 Warning: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
