Rich Solar 1600 Watt 24V Off-Grid Solar Kit | 8 x 200W Monocrystalline Panels with 60A MPPT Charge Controller

Upgrade your off-grid power system with the Rich Solar 1600 Watt 24V Solar Kit, our most powerful kit designed for serious energy independence. Equipped with eight high-efficiency 200W monocrystalline panels and a 60A MPPT charge controller, this kit delivers exceptional performance, durability, and reliability.

Perfect for RVs, cabins, trailers, or boats, the Rich Solar 1600W Kit can be paired with a 400Ah 24V battery bank to power most off-grid applications. Enjoy clean, quiet, and renewable energy—wherever your journey takes you.

Available Options:

• Standard Kit (with controller & fuse)

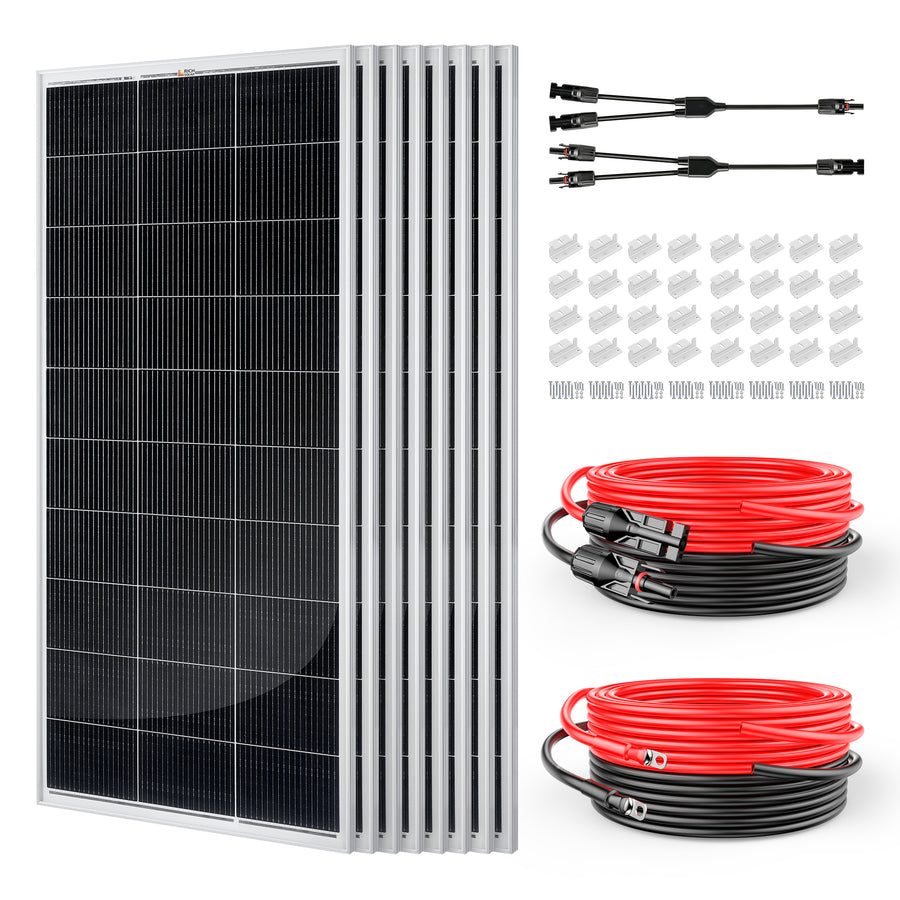

• Standard Kit without controller & fuse

Key Features

• 1600W total solar output from 8 x 200W monocrystalline panels
• 18 busbars per panel for higher efficiency and durability
• 60A MPPT controller with 99% tracking efficiency and 98% peak conversion
• Compatible with lithium, sealed, gel, and flooded batteries
• Excellent low-light performance in mornings, evenings, and cloudy conditions
• Pre-drilled mounting holes for easy installation on RVs, boats, cabins, or trailers
• Weather-resistant panels with anti-reflective tempered glass and anodized aluminum frame
• 25-year limited power output warranty and 10-year workmanship warranty
• Electronic protections: reverse polarity, overcharge, overload, short-circuit, and reverse current
• Supports both on-grid and off-grid inverter setups

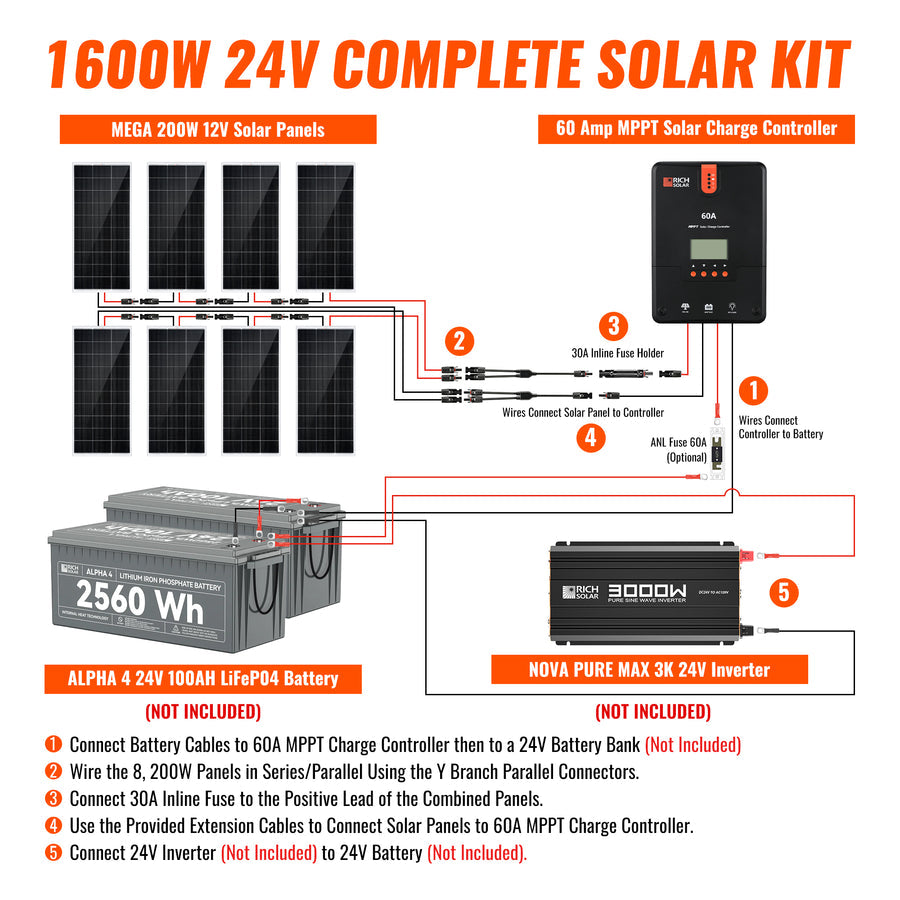

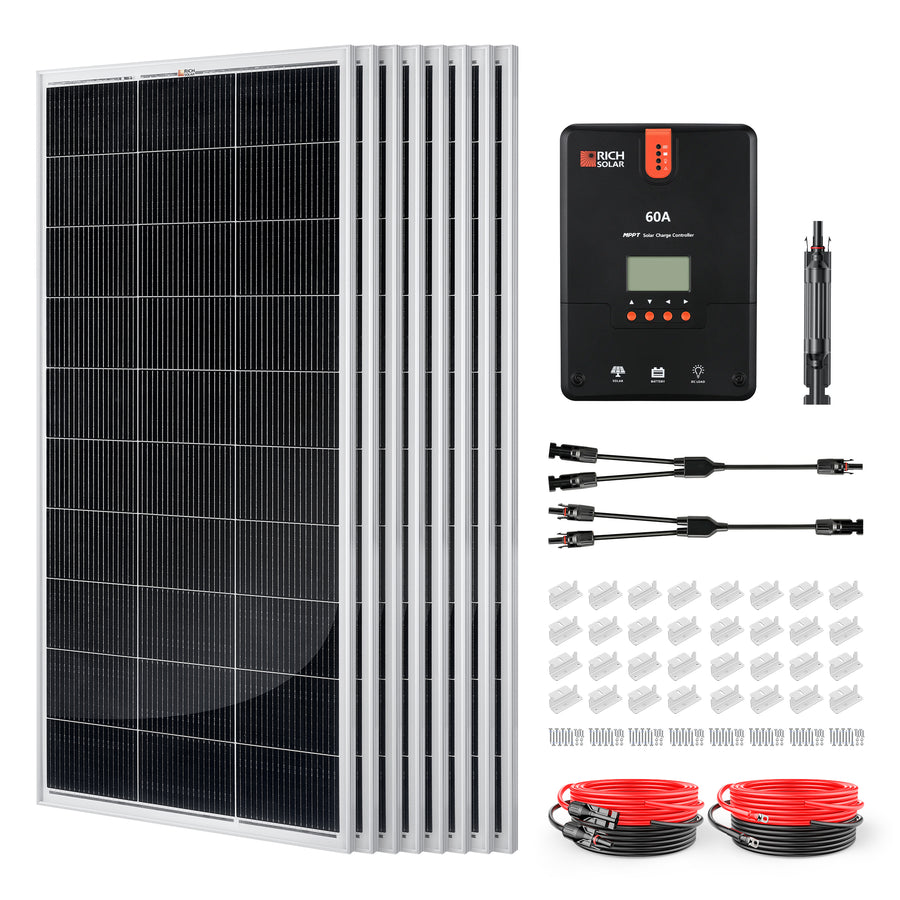

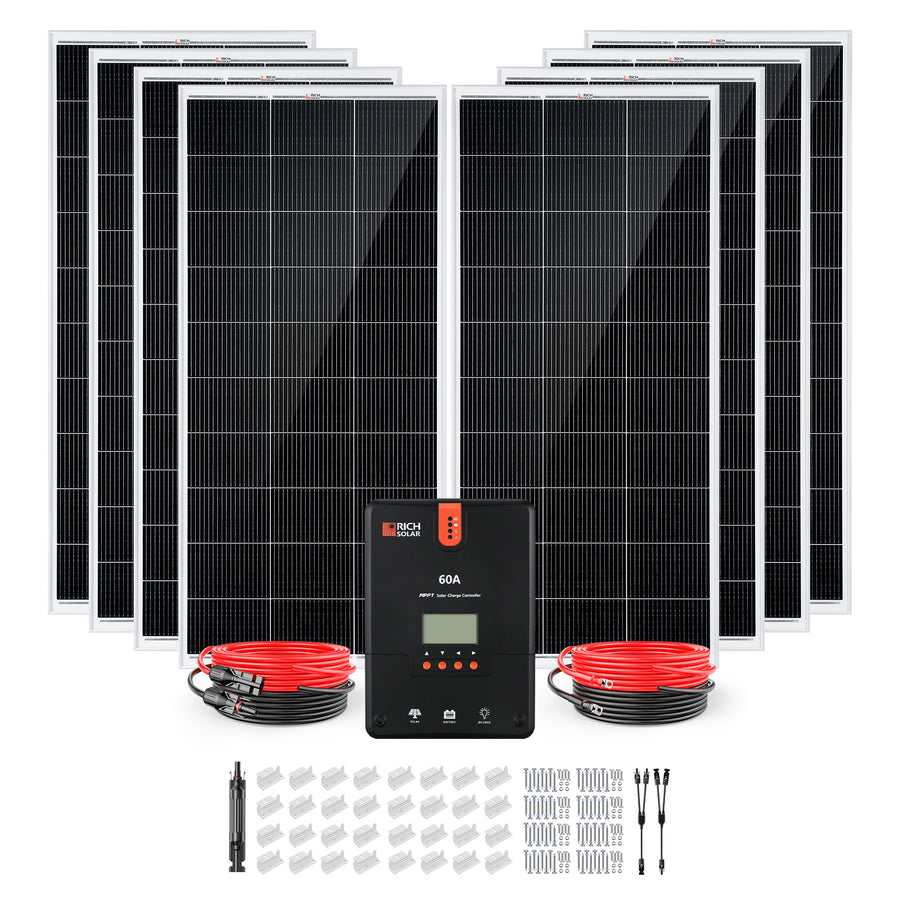

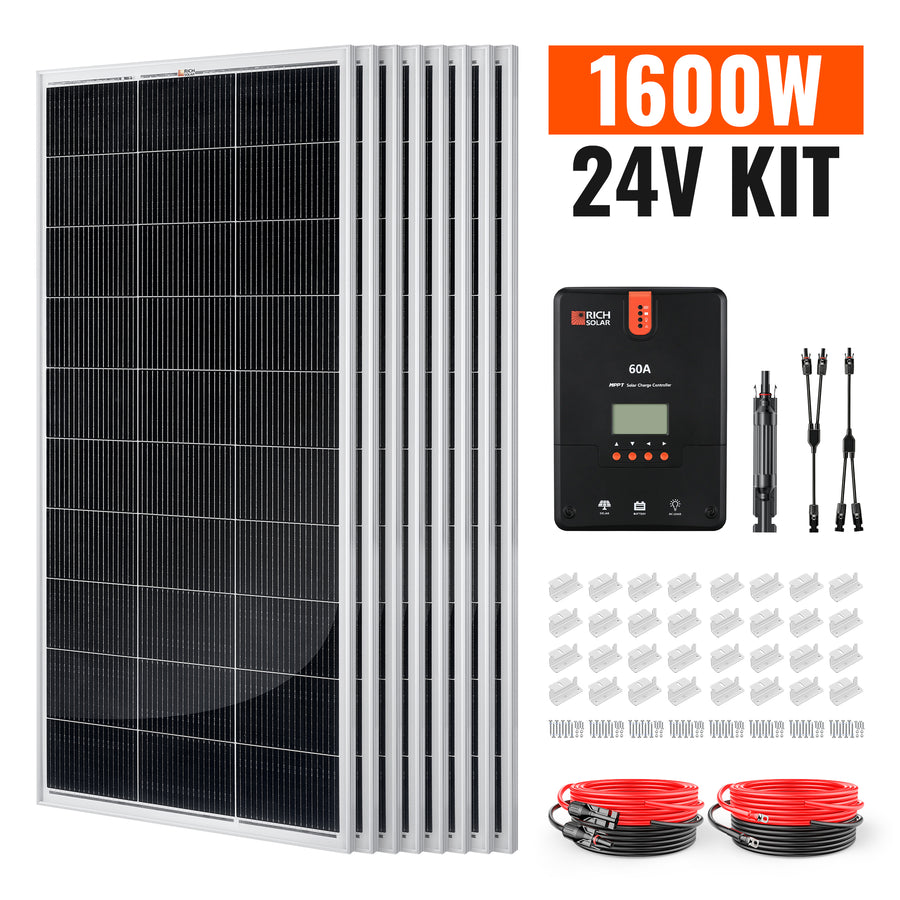

Kit Contents

• 8 x 200 Watt Monocrystalline Solar Panel  (RS-M200)
• 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
• 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
• 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
• 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
• 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
• 8 x Mounting Z Brackets (one set) (RS-ZB4C)
• 1 x 30A Inline Fuse Holder with Fuse(RS-SC30F)
• 1 x Y Branch Parallel Adapters(RS-Y2)

Specifications

Component	Specification
Solar Panel (200W Monocrystalline)
No. of Panels	8 x MEGA 200W
Total Wattage	1600W
Max Power (Pmax)	200W (per panel)
Max Power Voltage (Vmp)	18.4V
Max Power Current (Imp)	10.9A
Open Circuit Voltage (Voc)	21.8V
Short Circuit Current (Isc)	11.6A
Temperature Range	-40°F ~ +185°F
Max Series Fuse Rating	15A
Dimensions	58.7 x 26.8 x 1.2 in
Weight	24.0 lb (per panel)
Warranty	25-Year Power Output, 10-Year Workmanship
Charge Controller (60A MPPT)
Rated Battery Current	60A
Rated Load Current	20A
Max Solar Input Voltage	150V (77°F), 145V (-13°F)
Max Solar Input Power	800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Efficiency	99% Tracking, 98% Conversion
Protection Features	Reverse Polarity, Overcharge, Overload, Short Circuit, Reverse Current
Operating Temp	-31°F to 113°F
Dimensions	11.2 x 8.1 x 3.7 in
Weight	7.94 lb
Warranty	2-Year

Documents

• MEGA 200W Solar Panel - Specification Sheet
• 60A MPPT Solar Charge Controller(RS-MPPT60) - Specification Sheet
• 60A MPPT Solar Charge Controller(RS-MPPT60)- User Manual
• Certification
