Rich Solar 400 Watt Off-Grid Solar Kit with 2x 200W Panels & 40A MPPT Controller

Take your off-grid adventures to the next level with the Rich Solar 400 Watt Solar Kit—our most popular 12V system. Featuring two high-performance 200W monocrystalline panels and a powerful 40A MPPT charge controller, this kit delivers clean, reliable energy for your RV, camper, boat, trailer, or cabin.

With expandable capacity up to 600W on a 12V system, it’s the perfect solution for powering appliances, lights, and electronics while enjoying a quieter, fuel-free experience. Designed for durability and easy installation, this solar kit ensures maximum performance even in low-light conditions. Pair it with a 200Ah 12V lithium battery for an optimized setup that lasts for years.

Key Features

• Complete 400W solar kit with 2 x 200W monocrystalline solar panels
• High-efficiency panels with 18 busbars for maximum output
• 40A MPPT charge controller with 99.5% tracking efficiency & 98% conversion
• Expandable system – supports up to 600W (12V) / 1200W (24V)
• Durable tempered glass & anodized aluminum frame for long life
• Excellent low-light performance (early mornings, evenings, cloudy days)
• Easy DIY installation with pre-drilled mounting holes & all cables included
• Ideal for RVs, boats, trailers, cabins & other off-grid applications
• Long-lasting warranties: 25-year panel output & 10-year workmanship

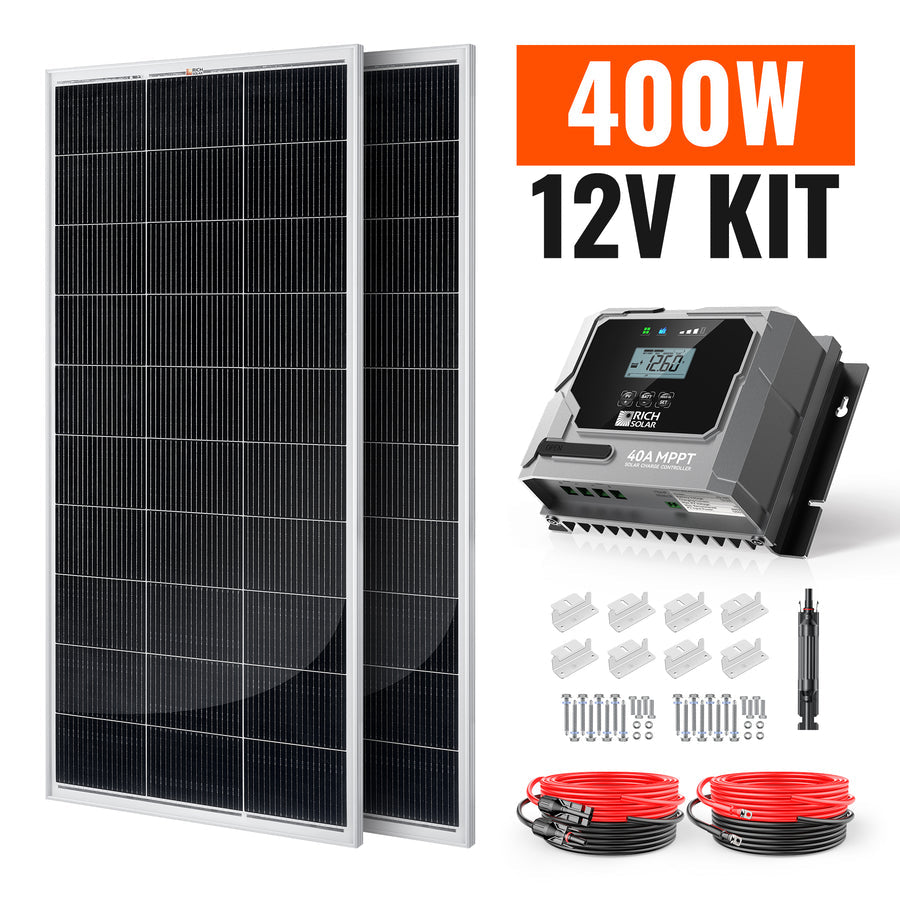

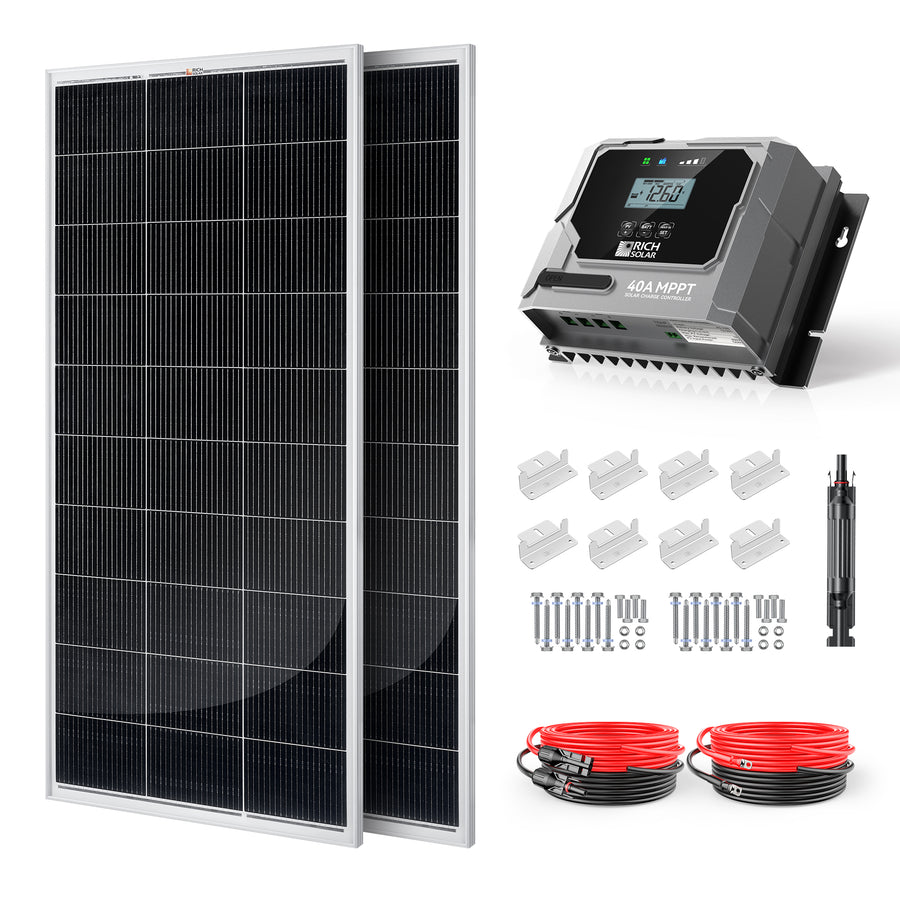

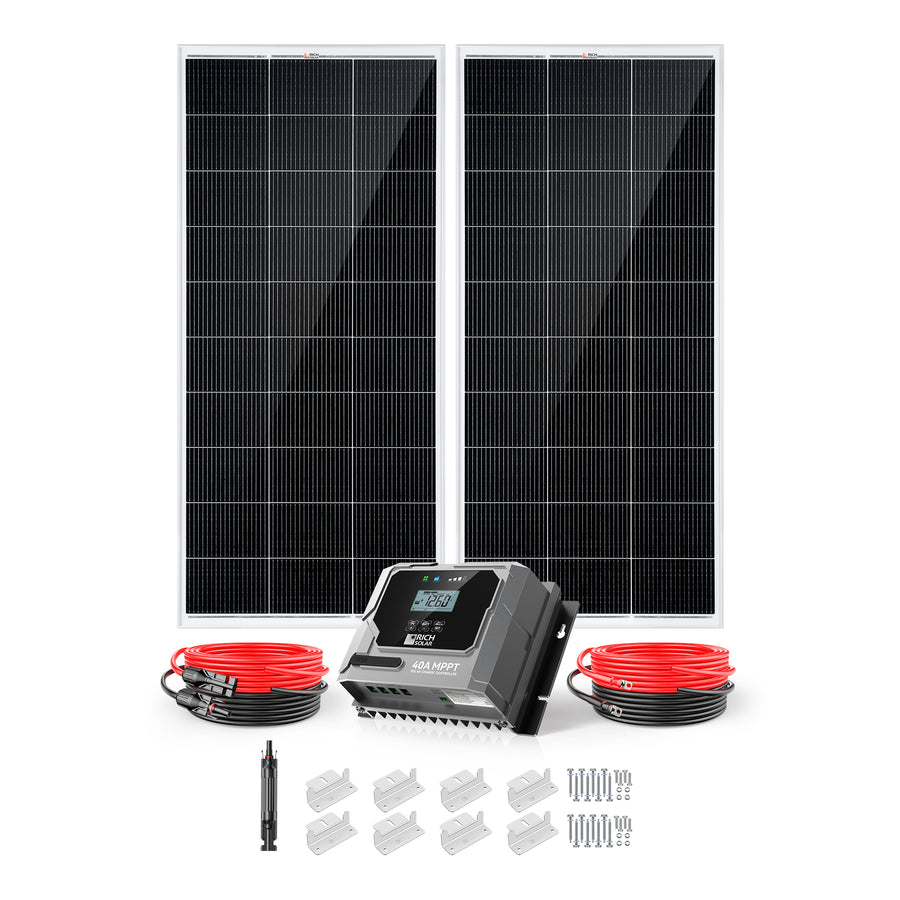

Kit Contents

• 2 x 200 Watt Monocrystalline Solar Panel  (RS-M200)
• 1 x 40A MPPT Solar Charge Controller
• 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
• 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
• 1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery (RS-1010)
• 1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery (RS-1010)
• 2 x Mounting Z Brackets (one set) (RS-ZB4C)
• 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)

Specifications

Component	Model	Key Features	Specifications
Solar Panel (x2)	MEGA 200W (RS-M200)	- 200W monocrystalline panel- 18 busbars for higher efficiency- Anti-reflective tempered glass- Works in series or parallel- 25-year power output warranty- 10-year workmanship warranty	- Maximum Power: 200W- Voltage (Vmp): 18.4V- Current (Imp): 10.9A- Open Circuit Voltage (Voc): 21.8V- Short Circuit Current (Isc): 11.6A- Max Series Fuse: 15A- Temp Range: -40°F ~ +185°F- Dimensions: 58.7 × 26.8 × 1.2 in- Weight: 24 lb
Charge Controller	BRAVO 40A MPPT (RS-MPPT40P)	- MPPT technology- 99.5% tracking efficiency- 98% conversion efficiency- Auto 12V/24V system detection- Overvoltage & reverse discharge protection- Supports Lithium & Lead Acid batteries- Conformal coating for PCB protection- 2-year warranty	- Max PV Open Circuit Voltage: 100VDC- Charging Current: 40A- Max Input Power: 600W (12V) / 1200W (24V)- Battery Compatibility: Gel, AGM, Wet, Calcium, LiFePO4, LTO, LCO- IP Rating: IP43 (PCBA), IP22 (connection area)- Dimensions: 7.7 × 5.5 × 2.9 in- Weight: 2.58 lb
Cables & Accessories	–	- Includes all wiring & fuses- Mounting brackets for secure panel installation	- 20’ #10 AWG solar cables (red/black)- 10’ #8 AWG battery cables (red/black)- 15A inline fuse with holder- 2 × Z Bracket sets

Documents

• MEGA 200W Solar Panel - Specification Sheet
• BRAVO 40A MPPT Charge Controller - Specification Sheet
• BRAVO 40A MPPT Charge Controller- User Manual
• Certification
