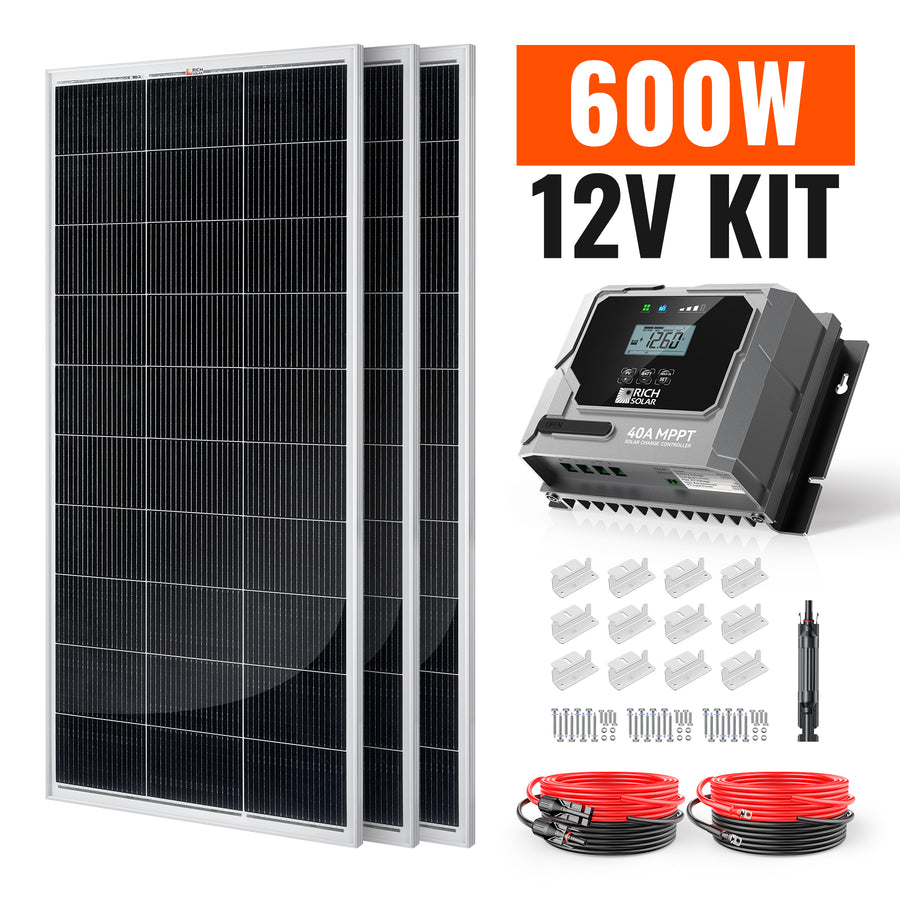

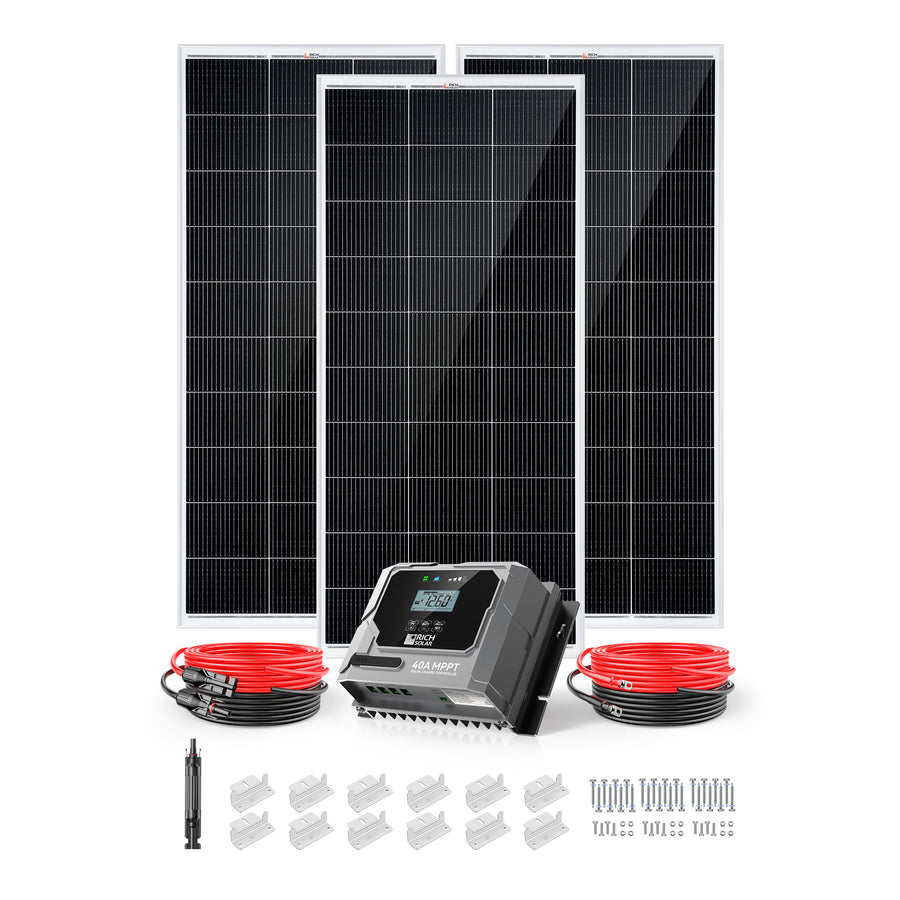

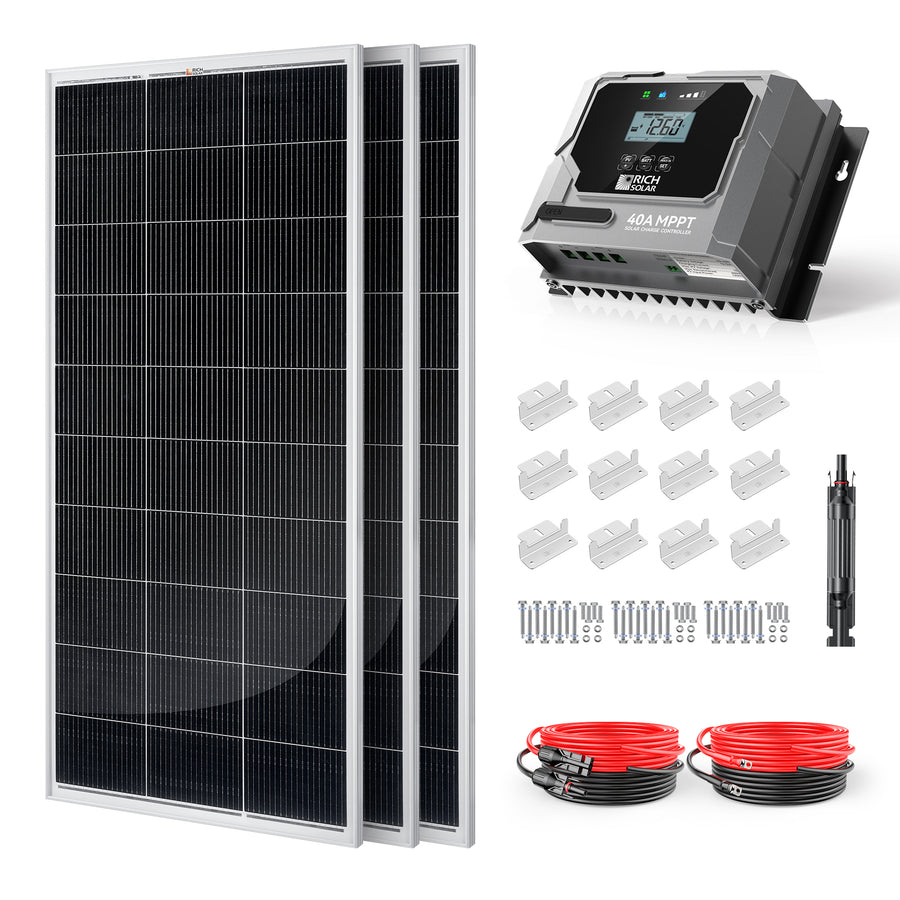

Rich Solar 600 Watt Solar Kit – 3x 200W Panels + 40A MPPT Controller for RV, Boat & Off-Grid

Take your adventures off the grid with the Rich Solar 600 Watt Solar Kit—a complete solution designed for RVs, boats, trailers, and cabins. This kit combines three high-efficiency 200W monocrystalline solar panels with a powerful 40A MPPT charge controller, delivering consistent, reliable power wherever you go.

Built to last with rugged, weather-resistant panels and an intelligent MPPT controller, this kit ensures maximum solar energy capture—even in low-light conditions. Whether you’re camping, sailing, or living off-grid, the Rich Solar 600W kit offers the freedom of clean, quiet, and maintenance-free power.

Available Options:

• Standard Kit (with controller & fuse)

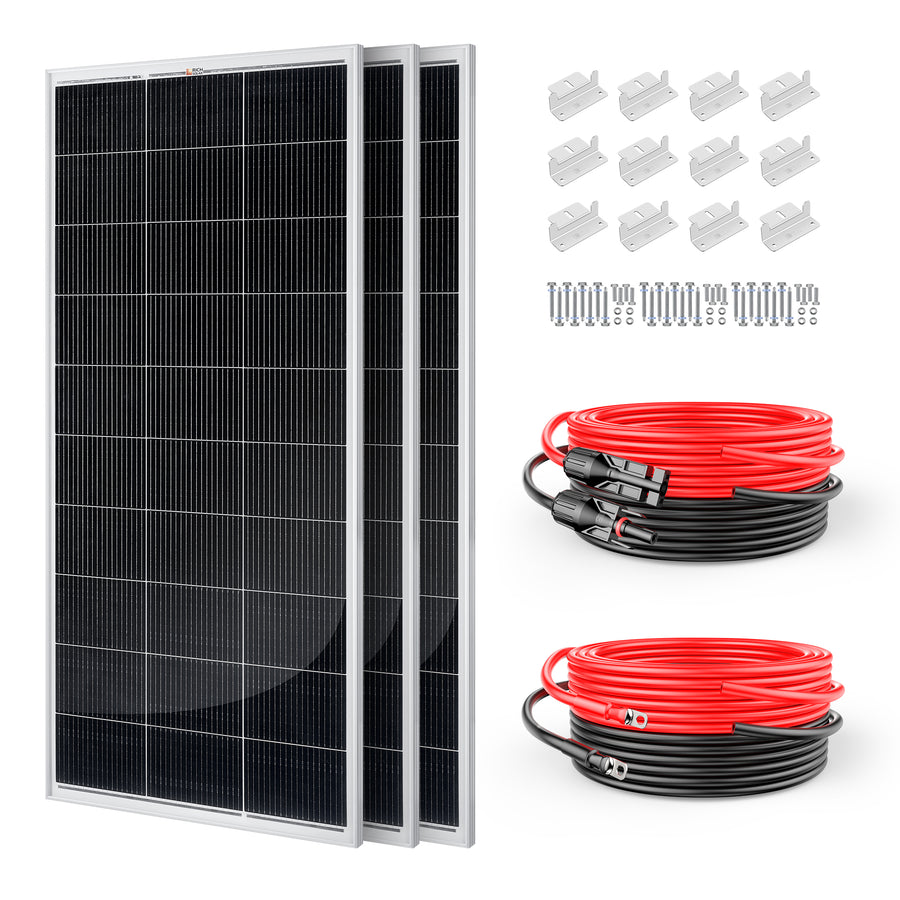

• Standard Kit without controller & fuse

Key Features

• Complete 600W off-grid solar power solution for RVs, boats, trailers, and cabins
• Includes 3x 200W monocrystalline solar panels with 18 busbars for maximum efficiency
• 40A MPPT solar charge controller with 99.5% tracking efficiency
• Excellent low-light performance during mornings, evenings, and cloudy days
• Rugged tempered glass and anodized aluminum frame for durability
• Pre-drilled mounting holes for fast, secure installation
• Works with 12V and 24V battery systems (Lithium or Lead-Acid)
• Expandable and compatible with on-grid/off-grid inverters
• Backed by a 25-year power output warranty (panels) and 2-year warranty (controller)

Kit Contents

• 3 x 200 Watt Monocrystalline Solar Panel  (RS-M200)
• 1 x 40A MPPT Solar Charge Controller
• 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
• 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
• 1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery (RS-1010)
• 1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery (RS-1010)
• 3 x Mounting Z Brackets (one set) (RS-ZB4C)
• 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)

Specifications

Component	Model	Key Features	Specifications	Warranty
Solar Panel (x3)	RS-M200 (MEGA 200W)	- 18 busbars for high efficiency - Low-light performance - Tempered glass & aluminum frame - Pre-drilled holes for easy mounting	- Max Power (Pmax): 200W - Voltage (Vmp): 18.4V - Current (Imp): 10.9A - Open Circuit Voltage (Voc): 21.8V - Short Circuit Current (Isc): 11.6A - Fuse Rating: 15A - Dimensions: 58.7 × 26.8 × 1.2 in - Weight: 24 lb - Temp Range: -40°F to +185°F	25-Year Power Output 10-Year Workmanship
MPPT Charge Controller	RS-MPPT40P (BRAVO 40A)	- 99.5% tracking efficiency - Works with Lithium & Lead-Acid - Reverse discharge & overvoltage protection - Multi-battery compatibility (Gel, AGM, LiFePO4, etc.)	- Nominal Voltage: 12V/24V Auto - Max PV Voltage: 100VDC - Max Charging Current: 40A - Max Input Power: 600W (12V) / 1200W (24V) - IP Grade: IP43 / IP22 - Dimensions: 7.7 × 5.5 × 2.9 in - Weight: 2.58 lb	2-Year Warranty

Documents

• MEGA 200W Solar Panel - Specification Sheet
• BRAVO 40A MPPT Charge Controller - Specification Sheet
• BRAVO 40A MPPT Charge Controller- User Manual
• Certification
