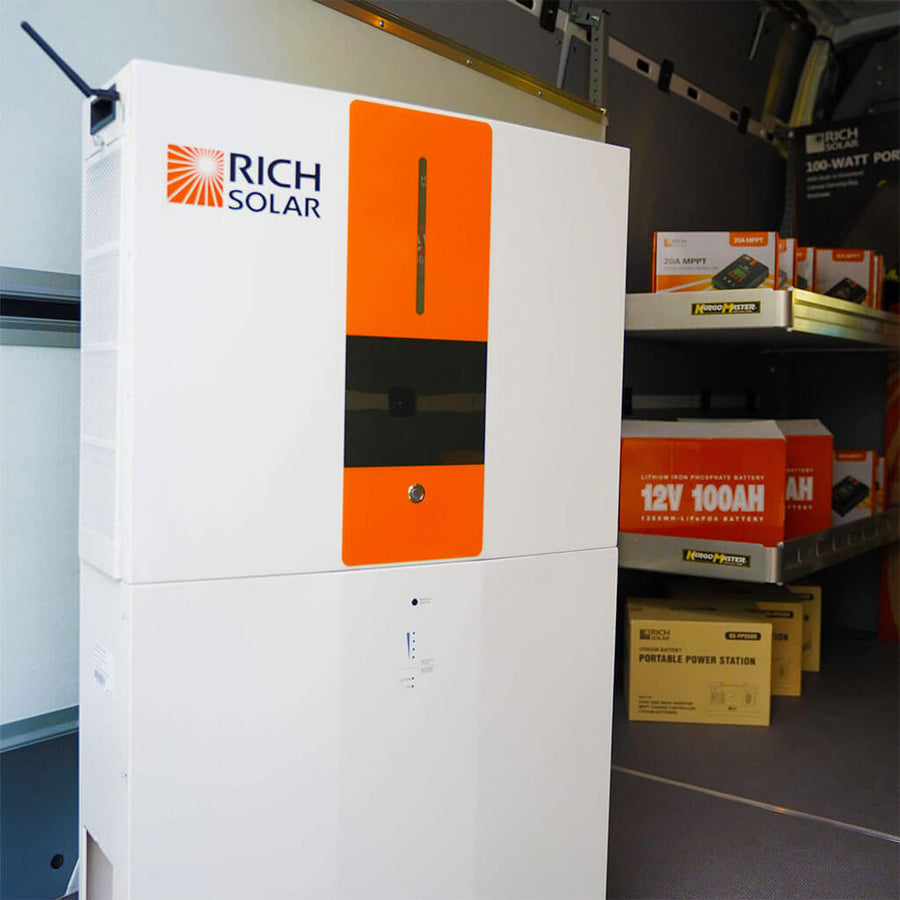

Reliable Off-Grid Power in One Compact Solution

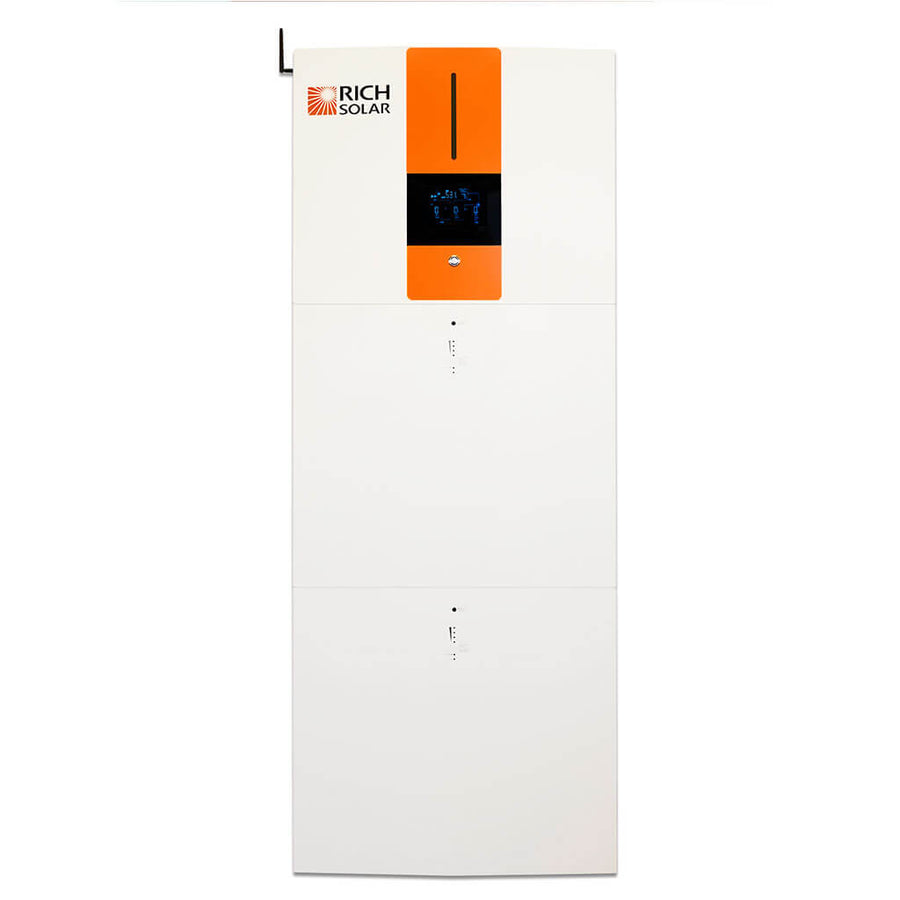

The Rich Solar All-in-One Energy Storage System (RS-A10) delivers clean, reliable, and uninterrupted electricity—perfect for homes, cabins, and businesses looking to break free from grid dependence.

Combining a pure sine wave inverter, 5.12kWh LiFePO₄ battery, dual MPPT solar charge controller, and intelligent monitoring, the RS-A10 packs professional-grade performance into one sleek, easy-to-install unit.

Whether you want to power an off-grid home, store backup energy for emergencies, or run critical equipment during outages, this system makes solar energy simple, scalable, and dependable.

Why Choose Rich Solar All-in-One ESS?

  • All-in-One Convenience – Inverter, battery, and charge controller in one compact system.
  • True Off-Grid Capability – Reliable energy even in remote locations.
  • Smart Energy Management – Prioritize solar, battery, or grid supply as needed.
  • Expandable Design – Add more LiFePO₄ batteries to increase storage.
  • App Control Anywhere – Monitor and control system performance from your phone.

Key Features

  • Pure Sine Wave Output for stable, clean power
  • Off-Grid Ready – Ideal for remote or backup power use
  • Programmable Supply Priority (PV, battery, or grid)
  • User-Adjustable Charging Current for flexibility
  • Battery-Independent Design – Works with or without batteries
  • Multiple Communication Options – USB, RS232, SNMP, Modbus, GPRS, Wi-Fi

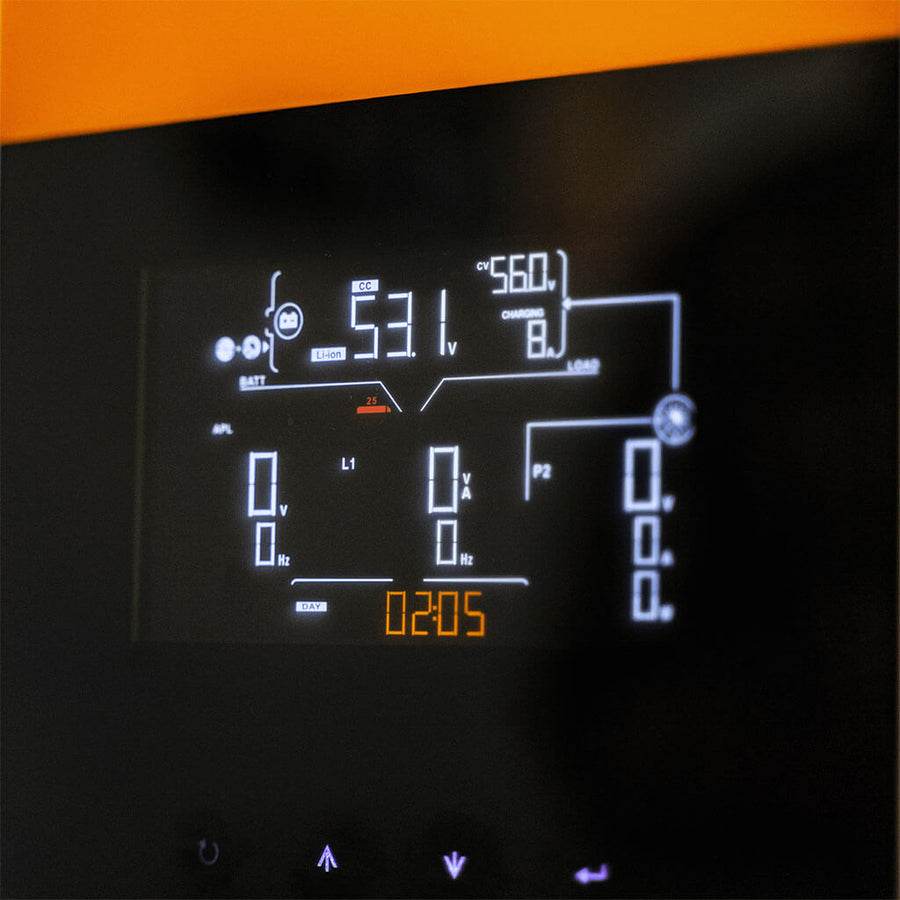

  • Real-Time Mobile App (iOS & Android) monitoring
  • Dual MPPT Trackers with up to 120A solar charging
  • Generator-Compatible for hybrid systems

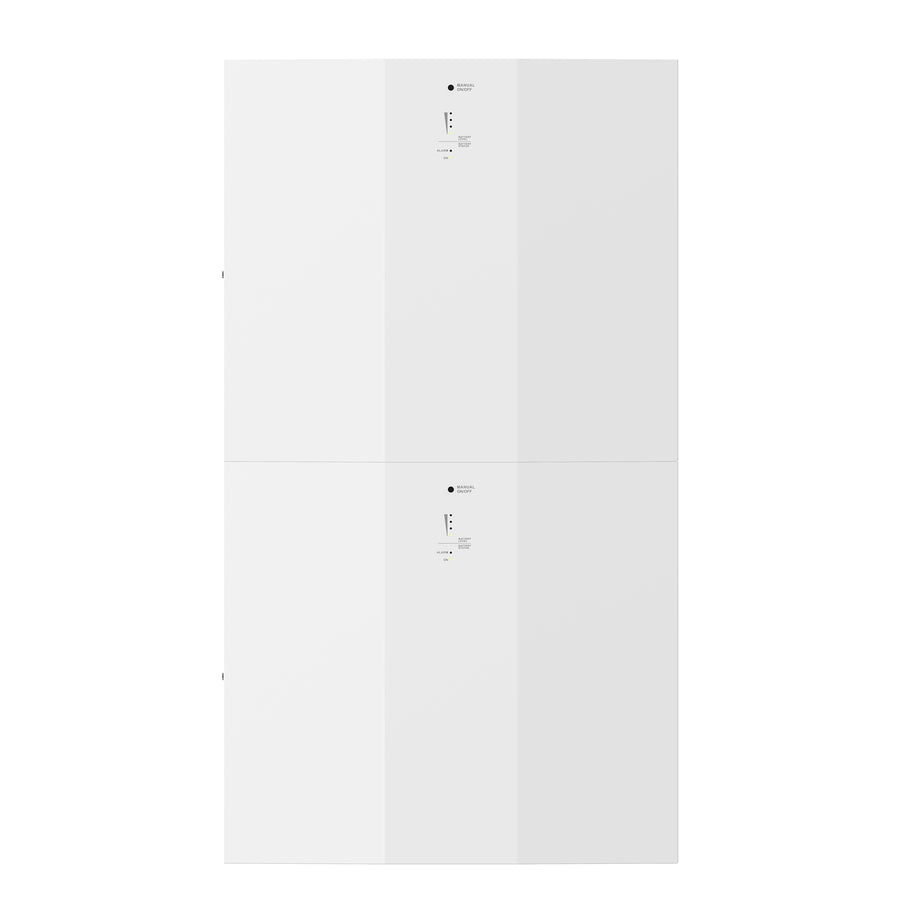

  • Scalable LiFePO₄ Battery Expansion for higher capacity

Model Options

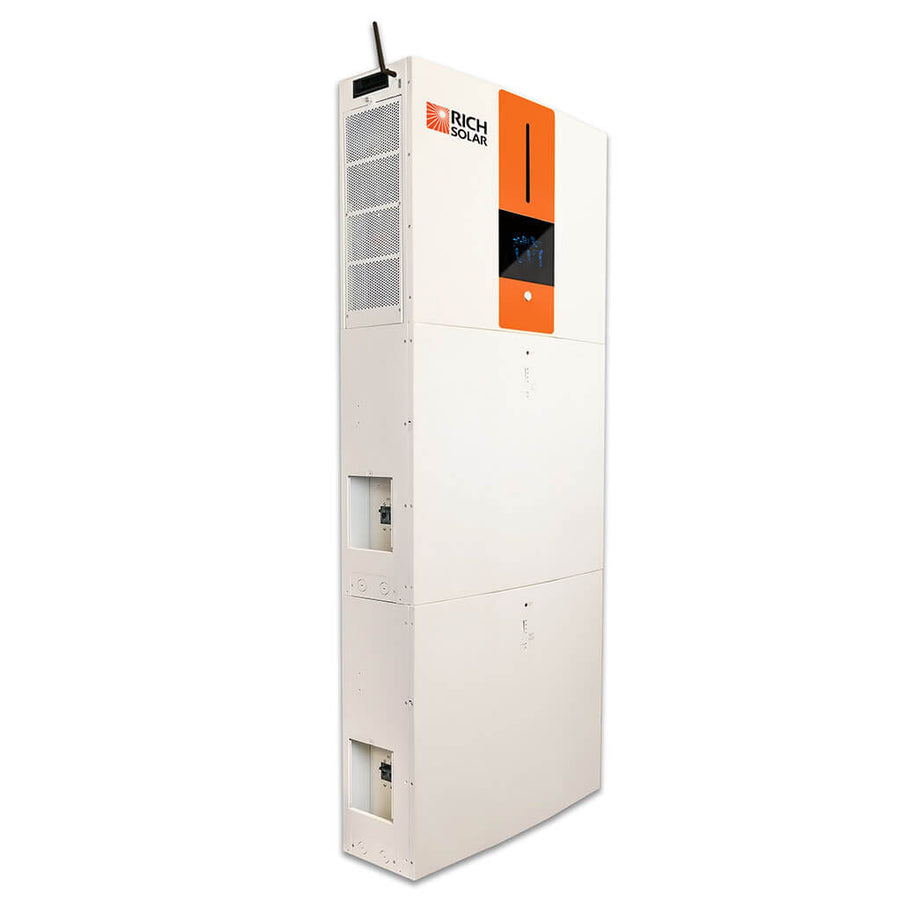

  • All-in-One ESS – RS-A10

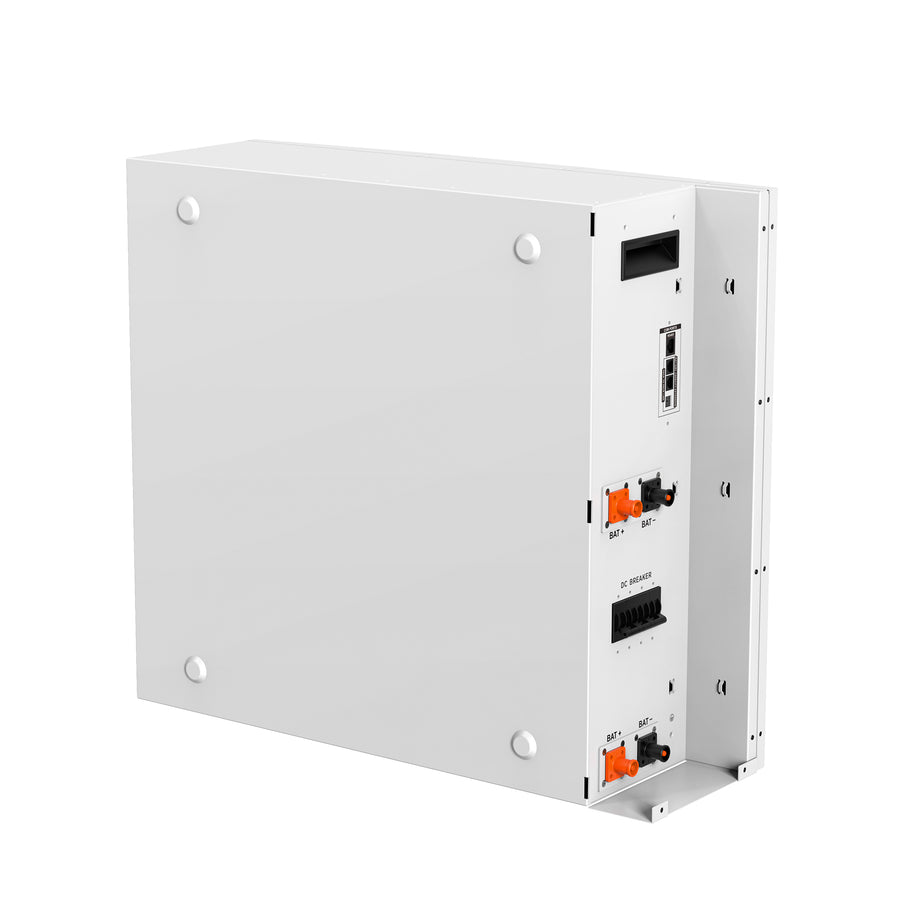

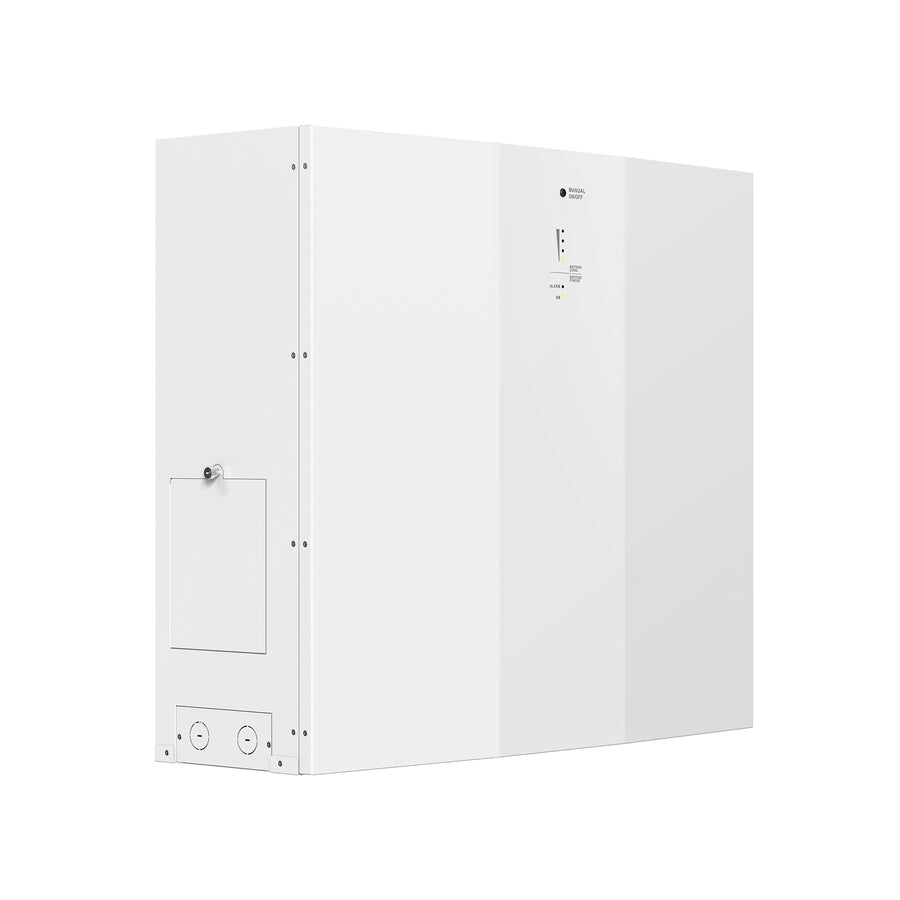

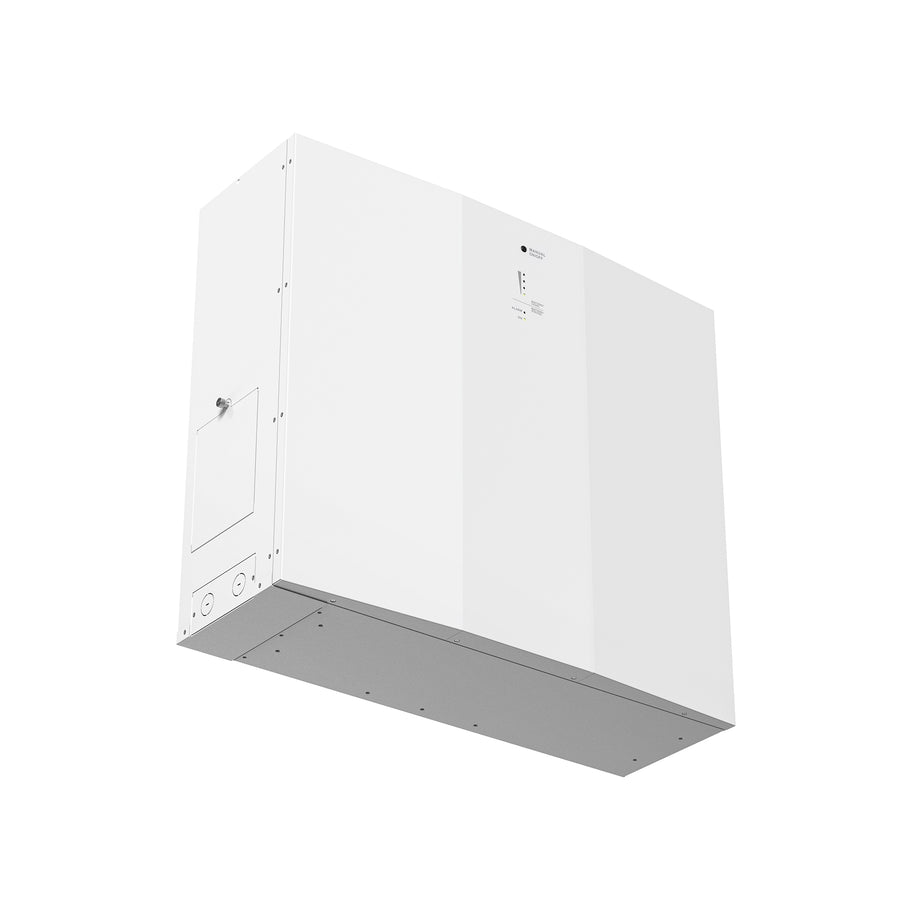

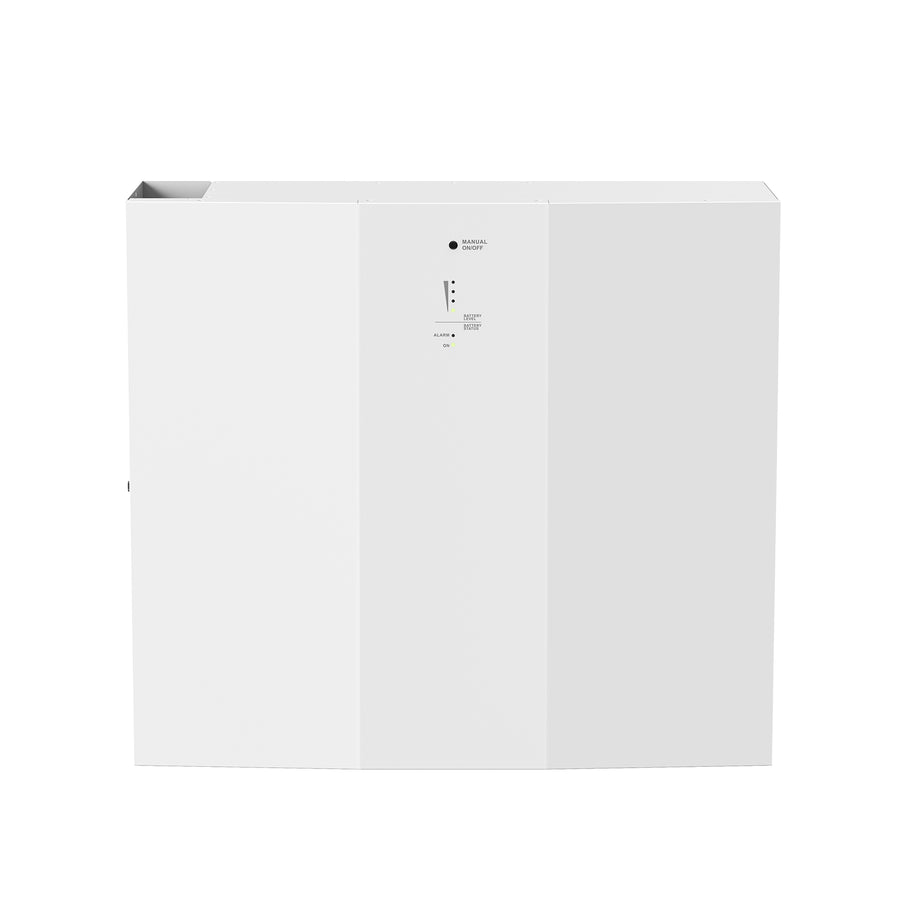

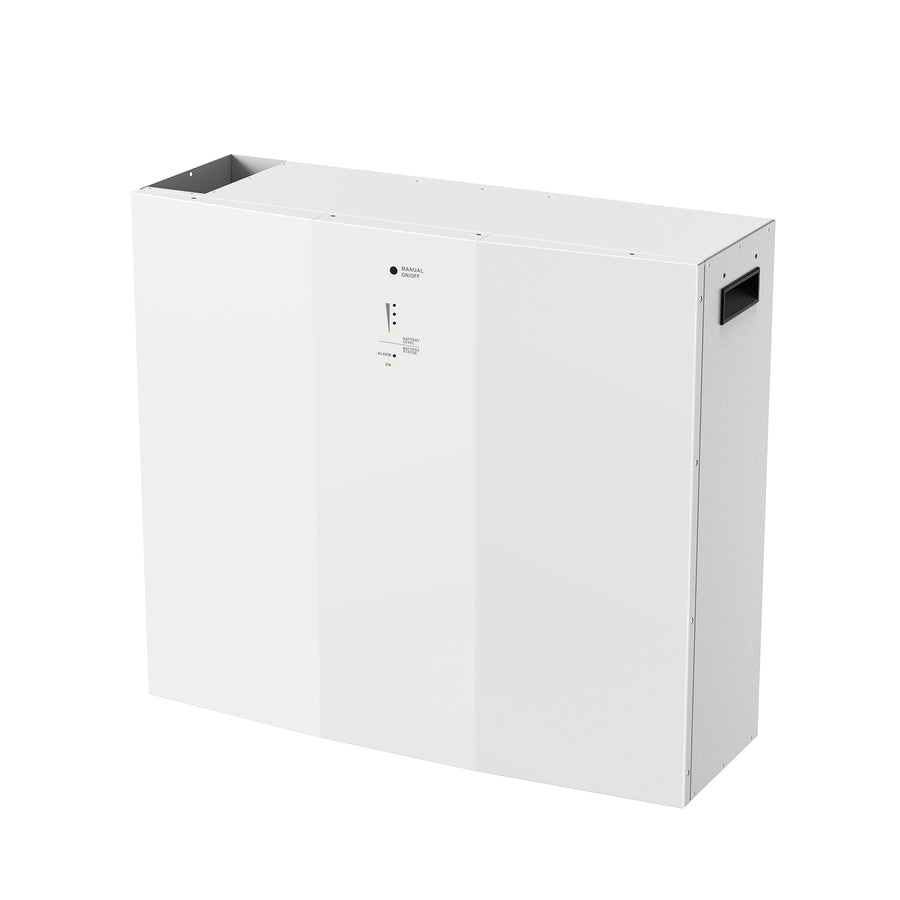

  • Battery Only – RS-A10BT (21.2V 100Ah)

Specifications

Category Specification RS-A10 All-in-One ESS RS-A10BT Battery Only
Type Product Model RS-A10 RS-A10BT
Battery Type LiFePO₄ LiFePO₄ LiFePO₄
Battery Capacity 5.12kWh ✔ Included ✔ Standalone
Nominal Voltage 51.2V DC 51.2V DC 51.2V DC
Typical Capacity 100Ah 100Ah 100Ah
Max Continuous Discharge 120A 120A 120A
Peak Discharge (1 min) 192A 192A 192A
Charging Current 20A (Max 50A) 20A (Max 50A) 20A (Max 50A)

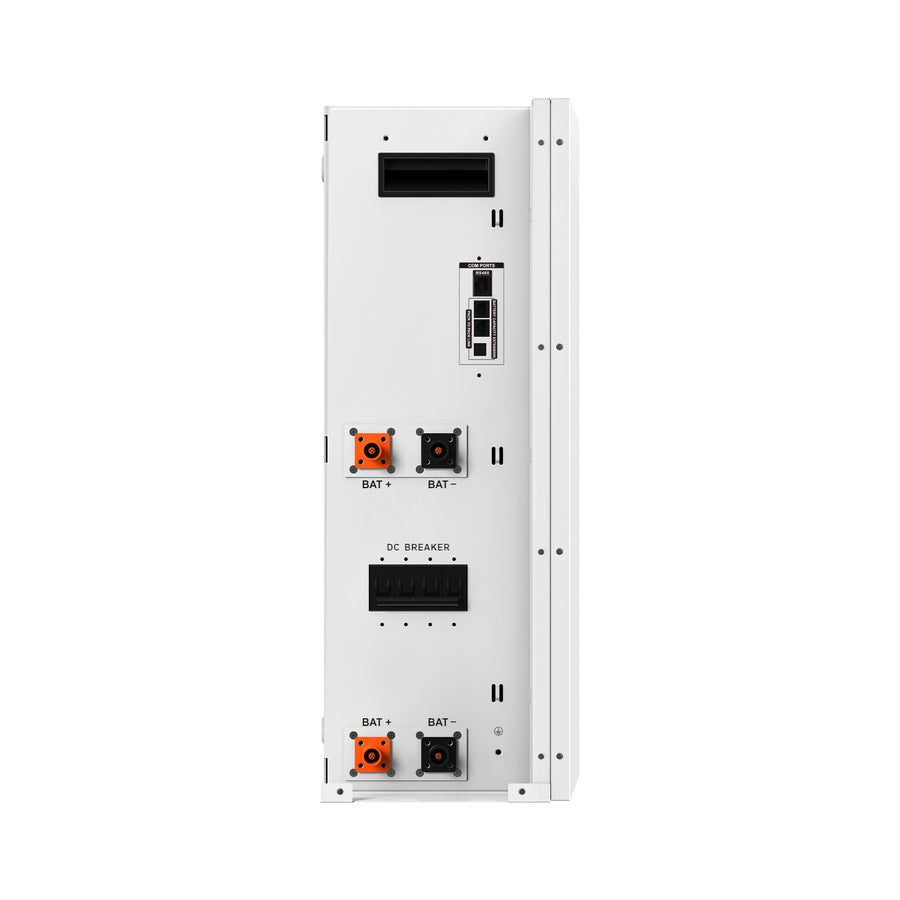

Battery Protection BMS, Breaker
Inverter Output Power Rated 6,500W
Inverter Output Voltage 120V AC 120V AC
Max Conversion Efficiency DC/AC 93%
Max PV Input Power 8,000W
MPPT Voltage Range 90–230V DC
Max PV Open Circuit Voltage 250V DC
MPPT Trackers 2
Max Solar Charge Current 120A
AC Input Voltage Range 90–140V (Computers) / 80–140V (Appliances)
Max AC Input Current 60A
Dimensions (D × W × H) System: 19.7" × 26" × 49.2" Battery: 8.4" × 24.4" × 19.7" 8.4" × 24.4" × 19.7"
Net Weight System: 287 lb Battery: 99 lb 99 lb
Certifications IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

Physical & Compliance

Specification RS-A10
System Dimensions (D × W × H) 19.7" × 26" × 49.2"
Net Weight 287 lb
Certifications IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
