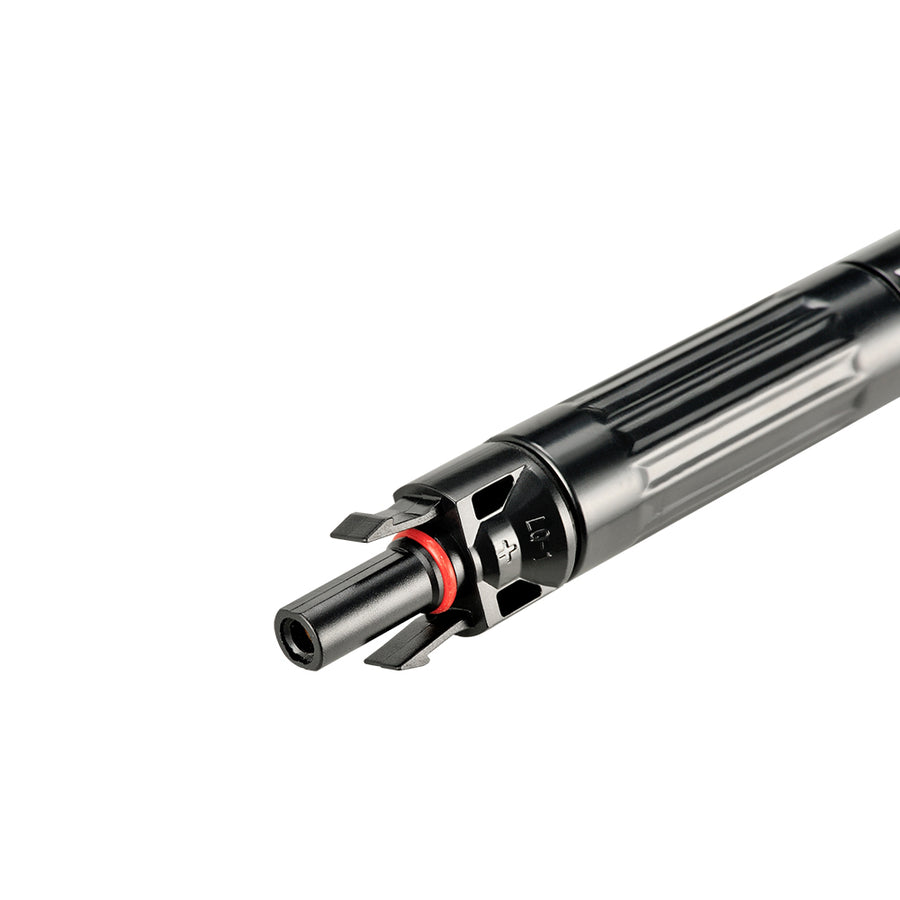

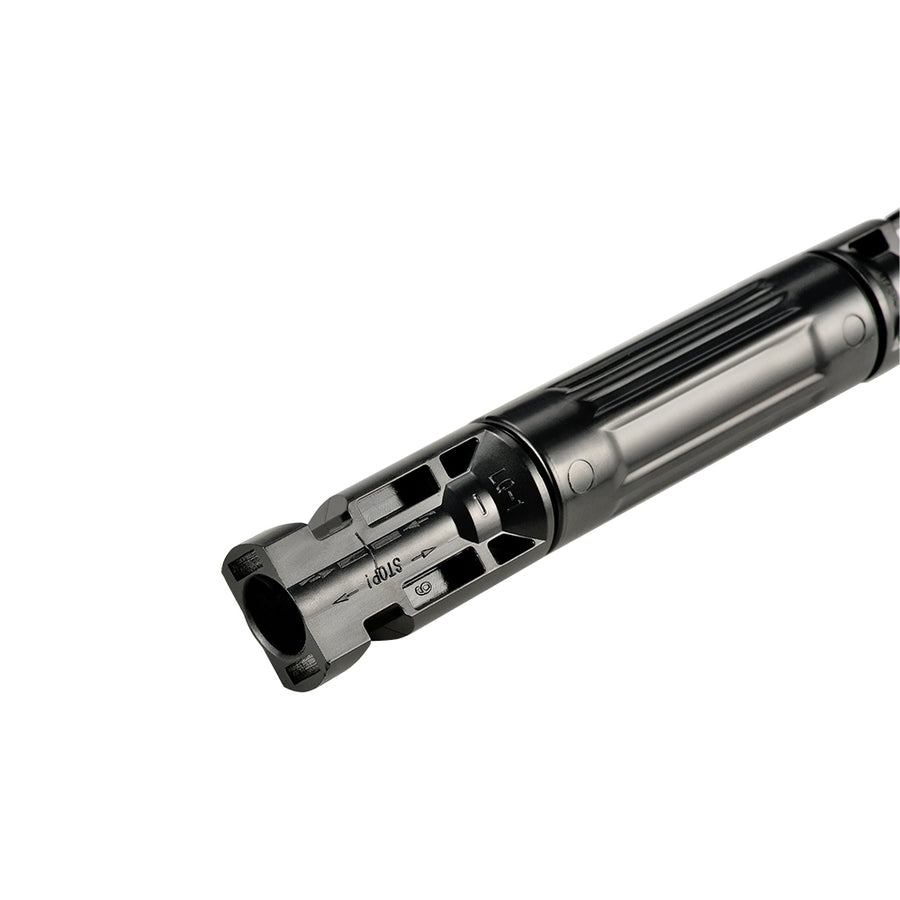

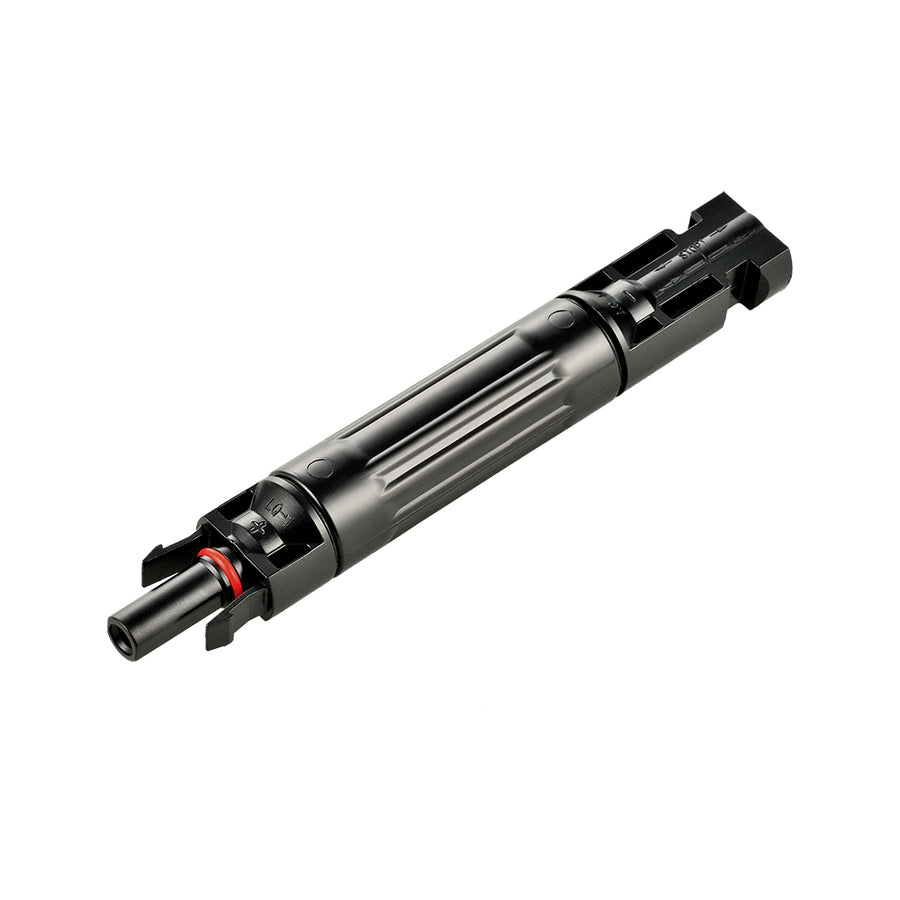

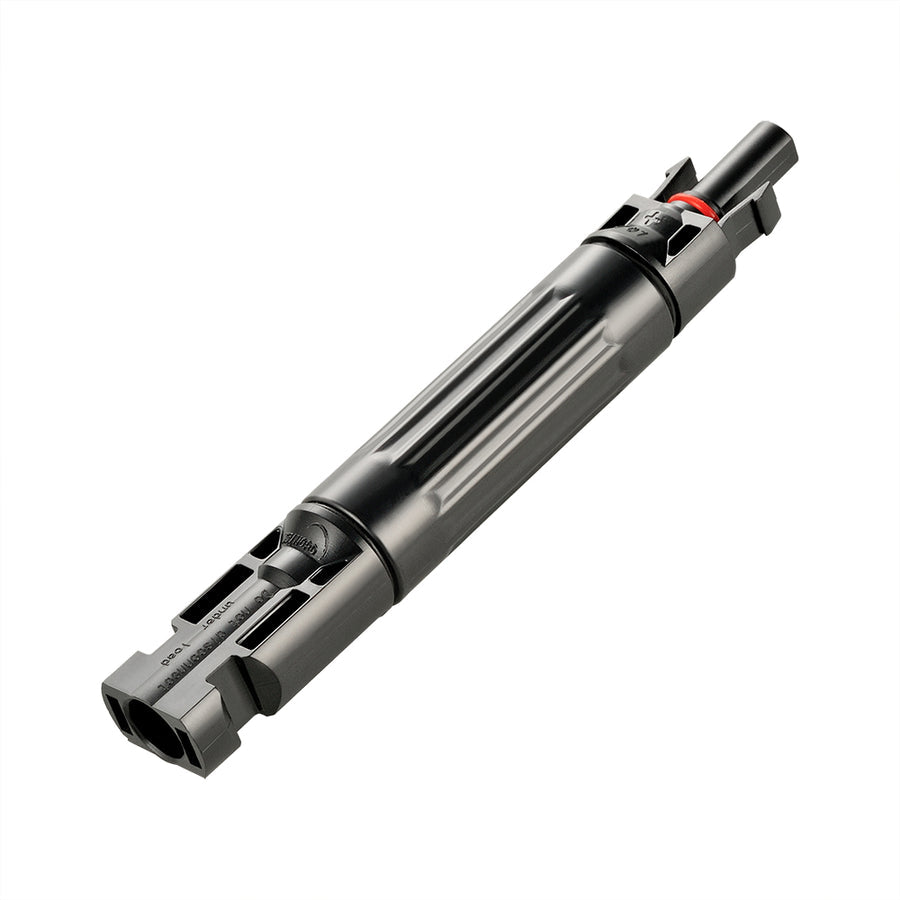

Ensure reliable protection for your solar power system with the Rich Solar Inline Fuse Holder. Designed for a wide range of DC applications, this waterproof fuse holder comes with a replaceable fuse and solar connector leads on each end. Its durable IP67-rated casing protects against water and dust, while the simple plug-and-play design ensures secure connections every time. Perfect for preventing overcurrent damage and safeguarding your solar panels, this fuse holder supports 10A, 15A, 20A, and 30A fuses for flexible system protection.

Key Features

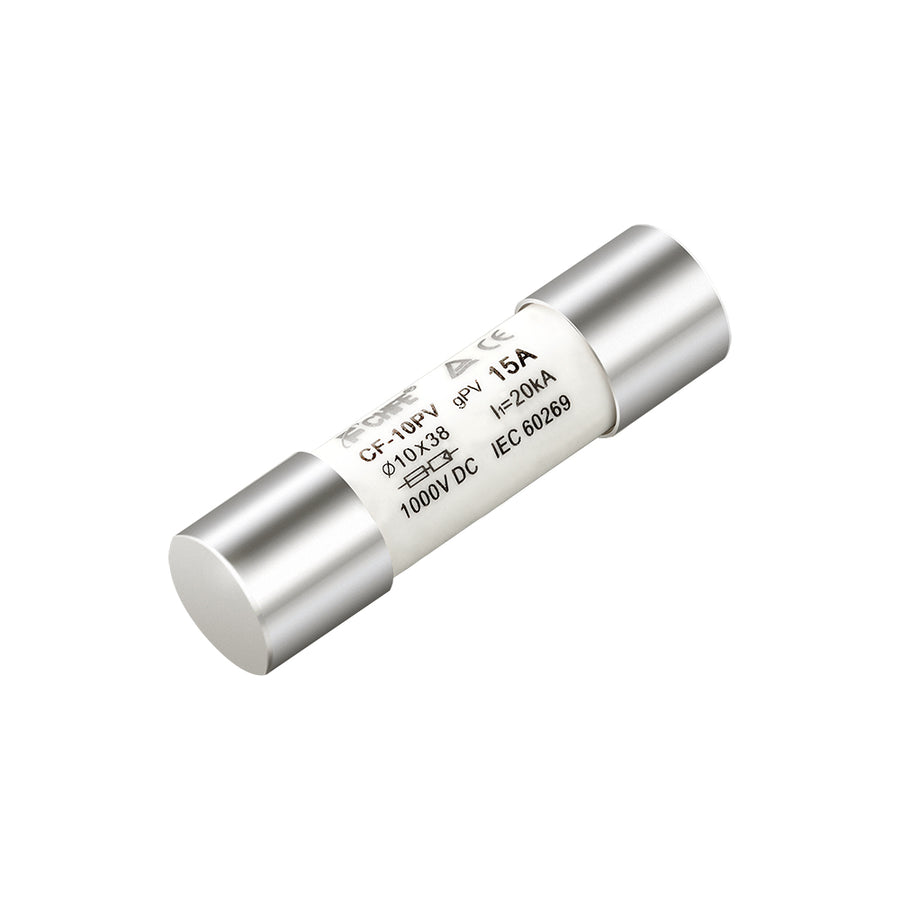

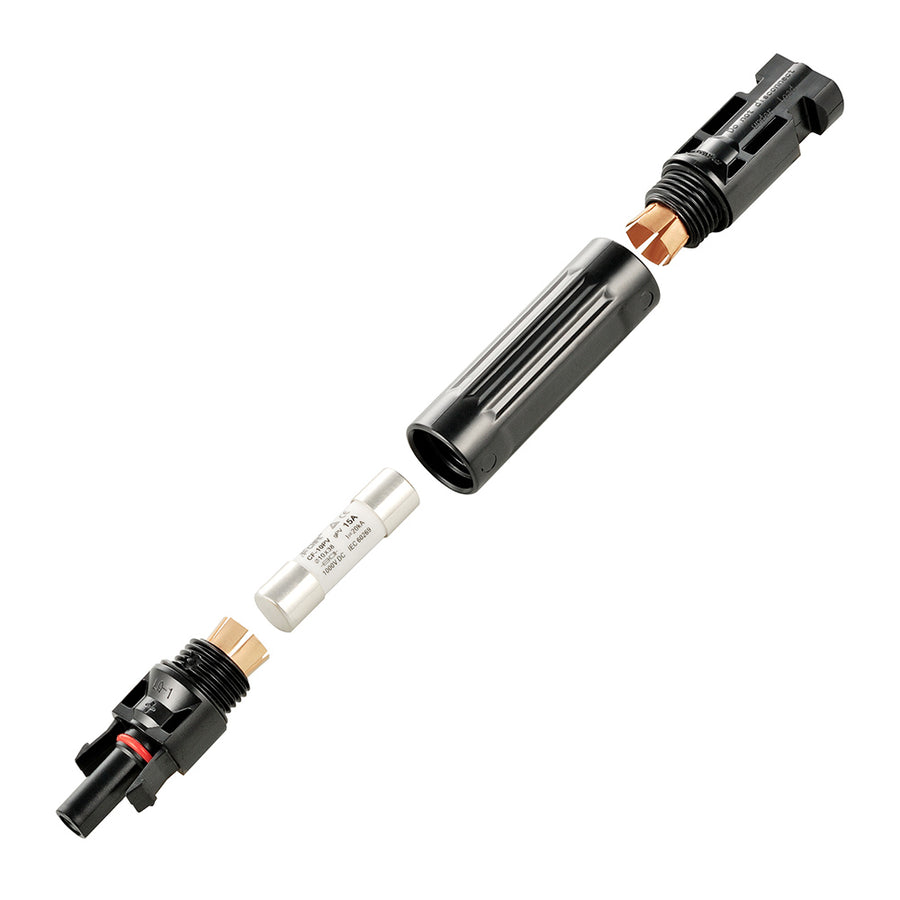

  • Replaceable fuse with options: 10A, 15A, 20A, 30A
  • IP67 waterproof fuse holder for outdoor solar setups
  • High-current protection for solar panels
  • Simple plug-and-play design with auto-lock connectors
  • Compatible with PV cables of various insulation diameters
  • Durable PPO insulation and silver-plated copper contacts
  • Protection Class II, overvoltage Category CATIII
  • Wide operating temperature range for extreme environments

Key Benefits:

  • Replaceable fuse for long-lasting use.
  • IP67 waterproof protection for outdoor and indoor installations.
  • Auto-lock male and female connectors for secure, reliable connections.
  • Compatible with PV cables of various insulation diameters.
  • High current-carrying capacity to prevent overcurrent damage.
  • Provides complete single-circuit protection for your solar array.
  • Made with durable PPO insulation material and silver-plated copper contacts.
  • Wide operating temperature range (-40°F to +257°F) for extreme conditions.

Specifications

Feature Specification
Rated Current 10A / 15A / 20A / 30A
Rated Voltage 1000 V DC
Degree of Protection IP2X / IP67
Flame Class UL94-V0
Test Voltage 6000V (50Hz, 1 min)
Safety Class II
Overvoltage Category CATIII
Suitable Connector Solar Connector
Contact Resistance 1mΩ
Insertion / Withdrawal Force ≤50N / ≥50N
Contact Material Copper, Silver Plated
Insulation Material PPO
Temperature Range -40 to +257°F

Documents

⚠️ California Proposition 65 Warning: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
