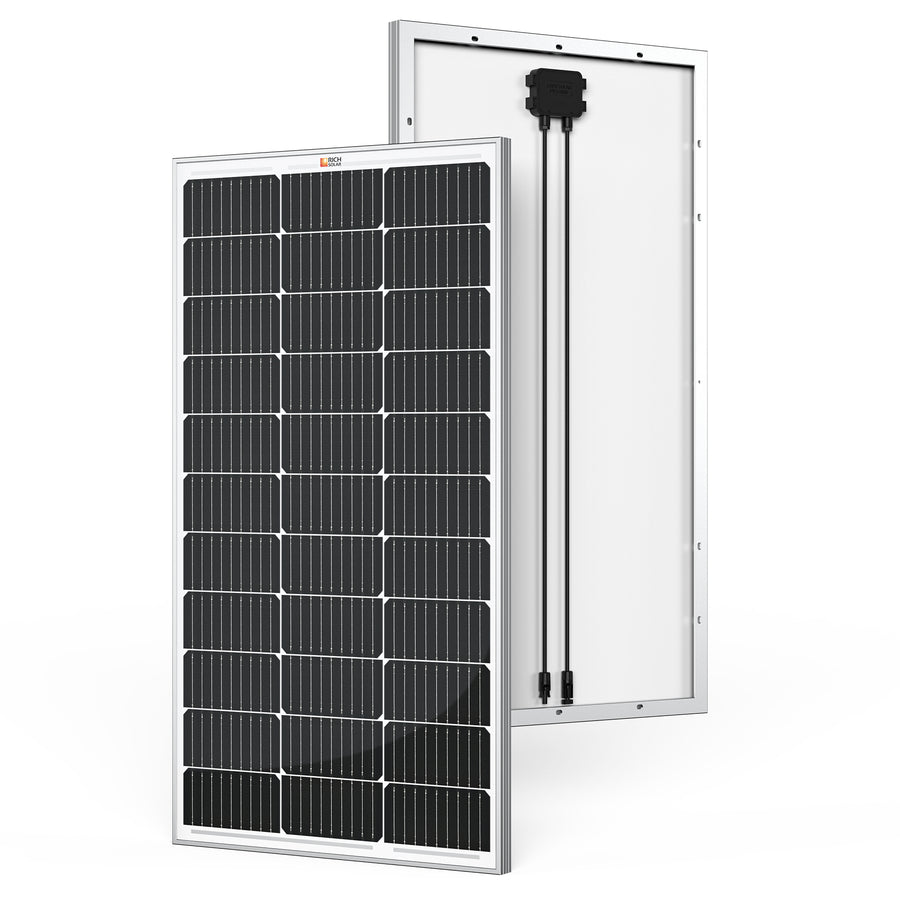

Reliable Off-Grid Power, Wherever You Go

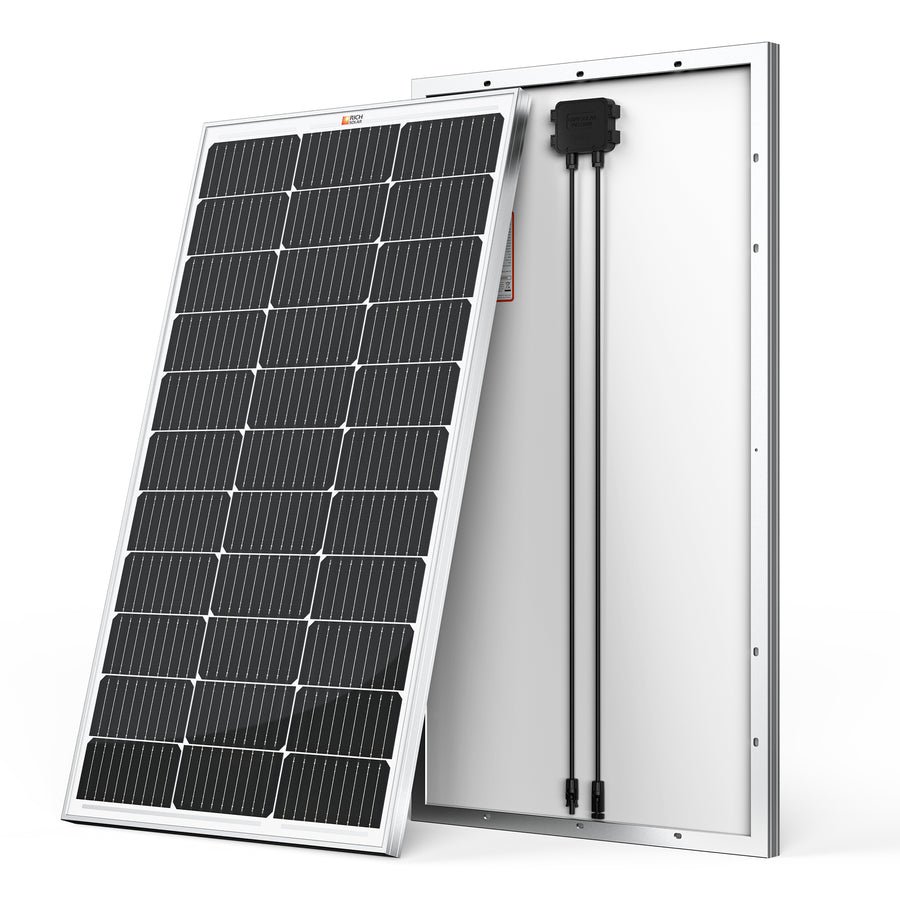

The MEGA 100 100W 12V Off-Grid Solar Panel delivers dependable, clean energy for life’s adventures—perfect for RVs, vans, boats, cabins, and remote off-grid setups. Built with premium monocrystalline cells for high efficiency, this UL Certified panel is engineered to perform in any environment—from sunny coastlines to rugged mountain terrain.

With a guaranteed positive power output (0~+5W), IP67 waterproof rating, and robust tempered glass & anodized aluminum frame, the MEGA 100 stands strong against harsh weather, impact, and corrosion. Its excellent low-light performance means you’ll still generate power during early mornings, late evenings, and cloudy days.

Installation is quick and flexible—pre-drilled holes allow compatibility with Z-brackets, pole mounts, tilt mounts, and ground mounts. Whether you’re powering an RV refrigerator, boat navigation systems, cabin lighting, or backup power systems, the MEGA 100 is designed for efficiency, durability, and long-term performance.

Backed by a 25-year output warranty and a 10-year workmanship guarantee, this panel is an investment in worry-free, renewable energy for decades.

Key Features

  • 100W High-Efficiency Power Output – Monocrystalline cells deliver maximum performance in a compact footprint.
  • UL Certified & IP67 Waterproof – Ensures safety, durability, and performance in all weather conditions.
  • Guaranteed Positive Output – 0~+5W tolerance for reliable, consistent energy production.
  • Rugged Construction – Tempered glass, anodized aluminum frame, and corrosion-resistant materials withstand extreme climates.
  • Excellent Low-Light Performance – Optimized for mornings, evenings, and overcast days.

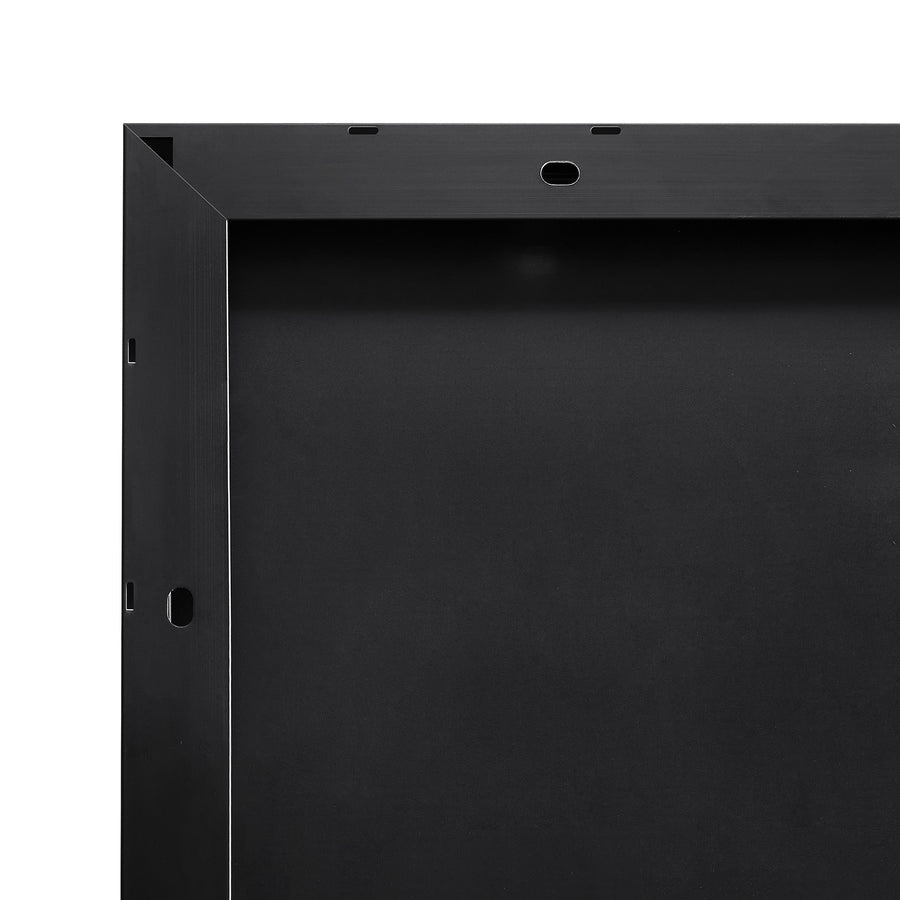

  • Easy Installation – Pre-drilled mounting holes fit a wide range of installation options.
  • Long-Term Protection – 25-year output warranty & 10-year workmanship warranty.

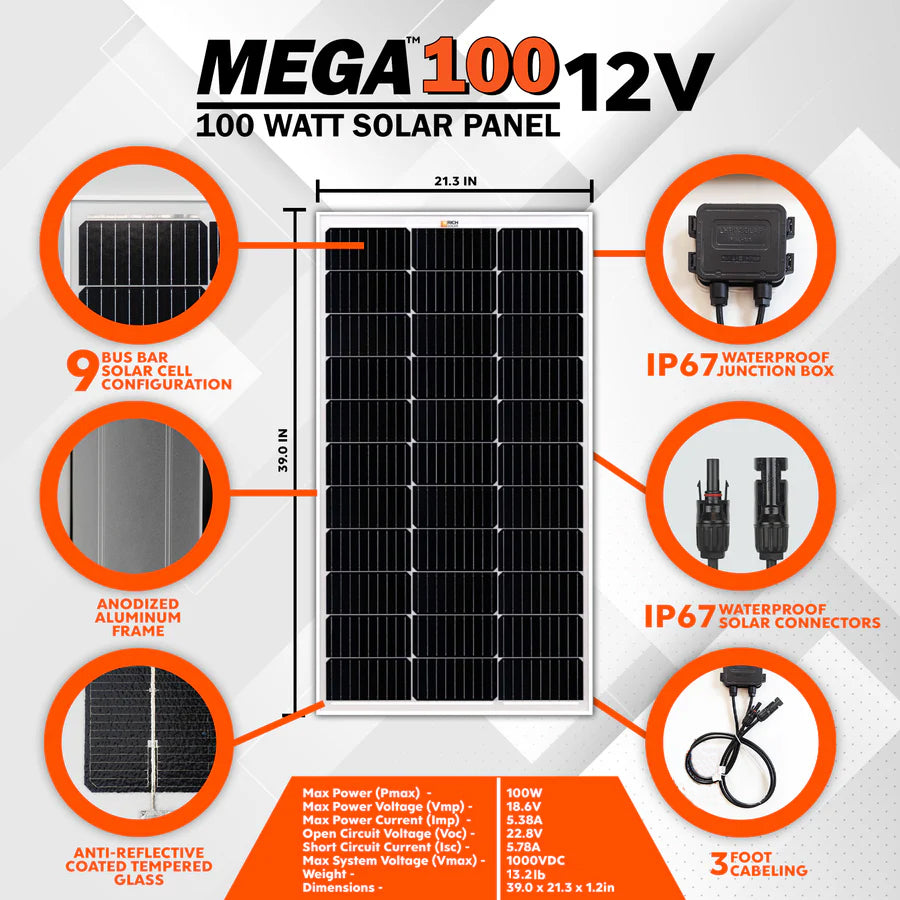

Product Specifications

Specification Details

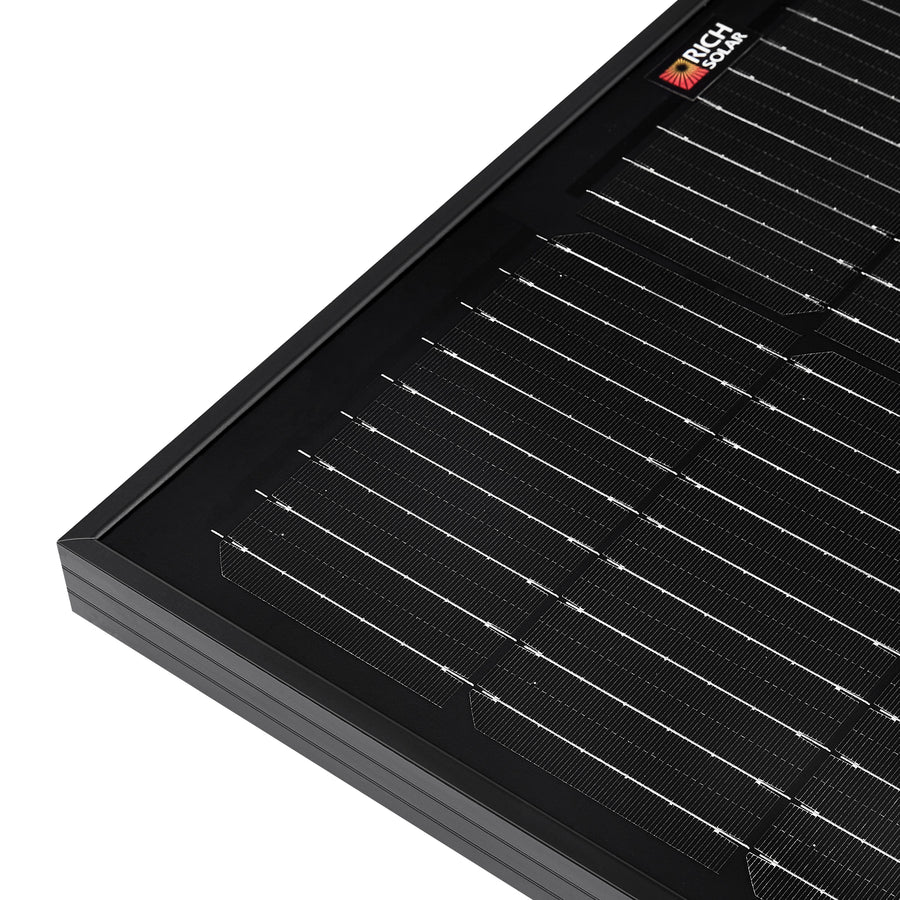

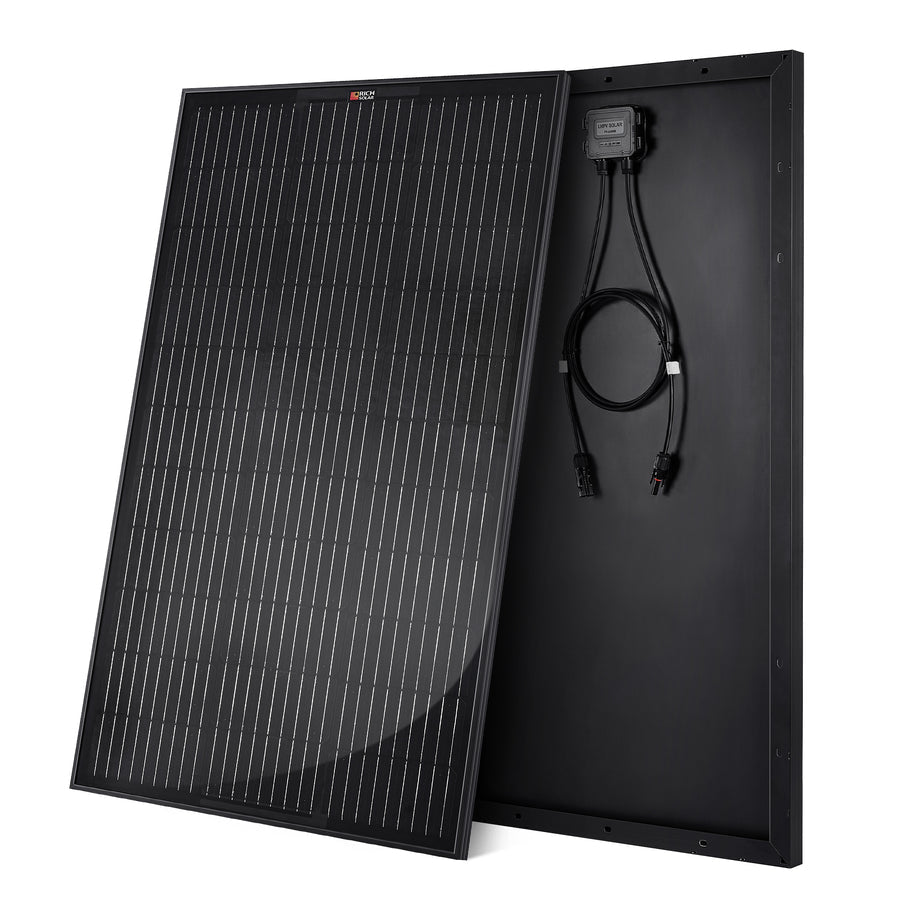

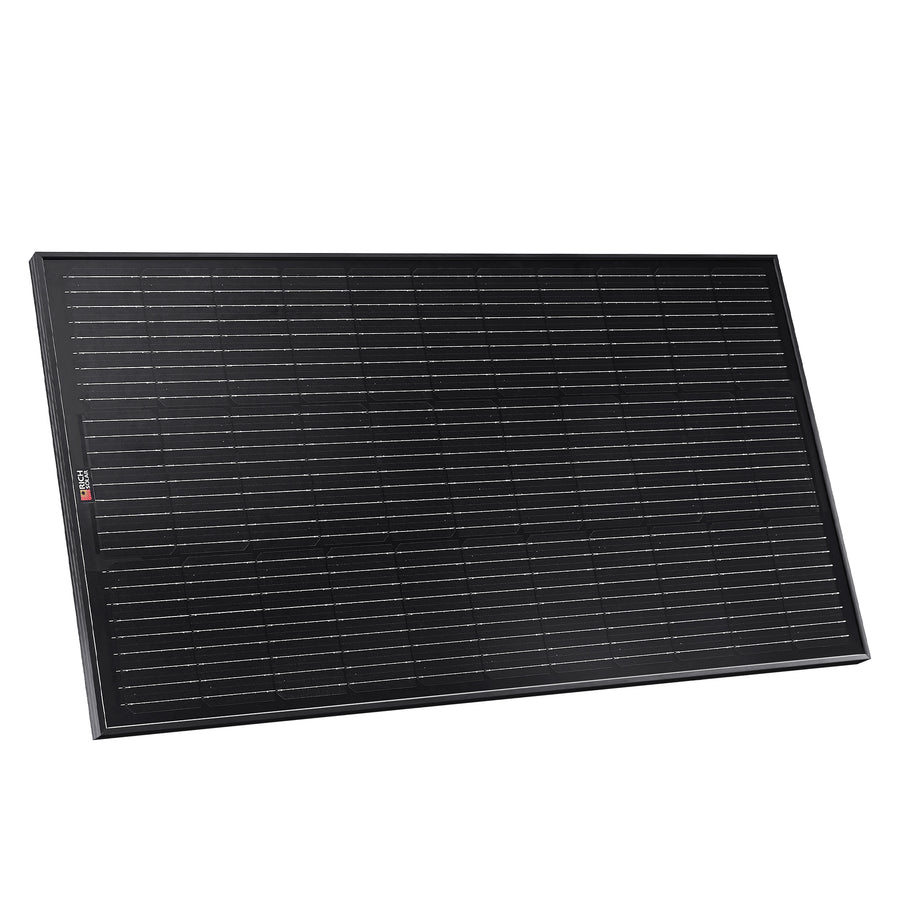

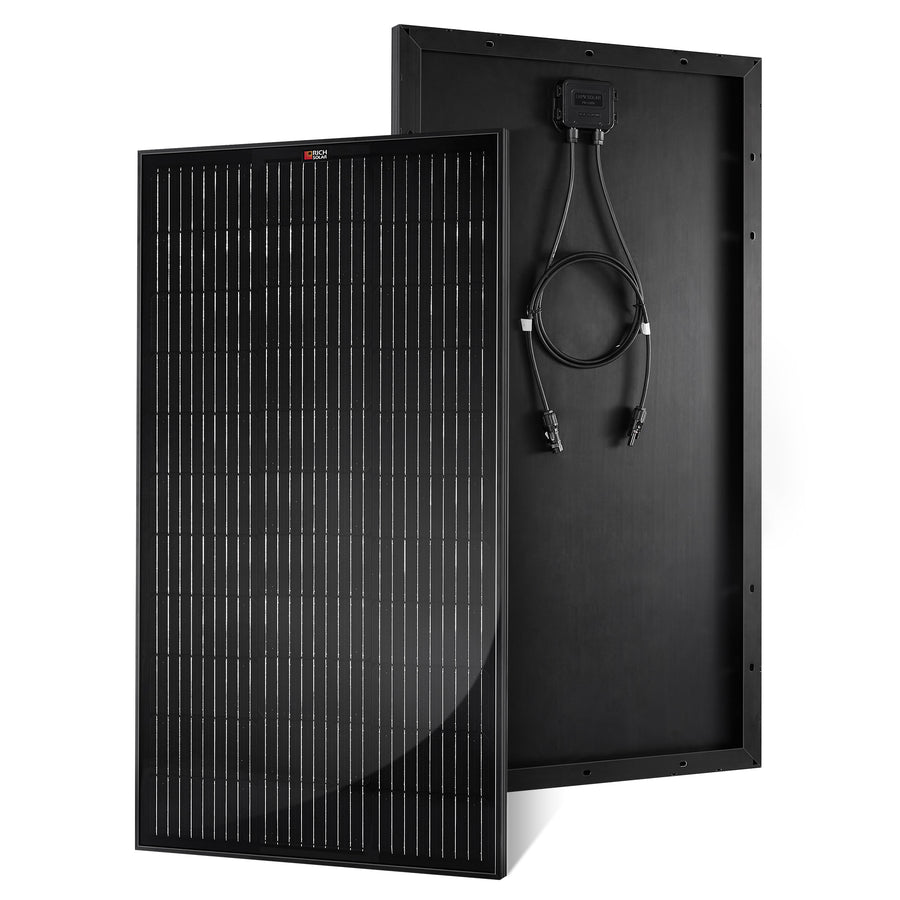

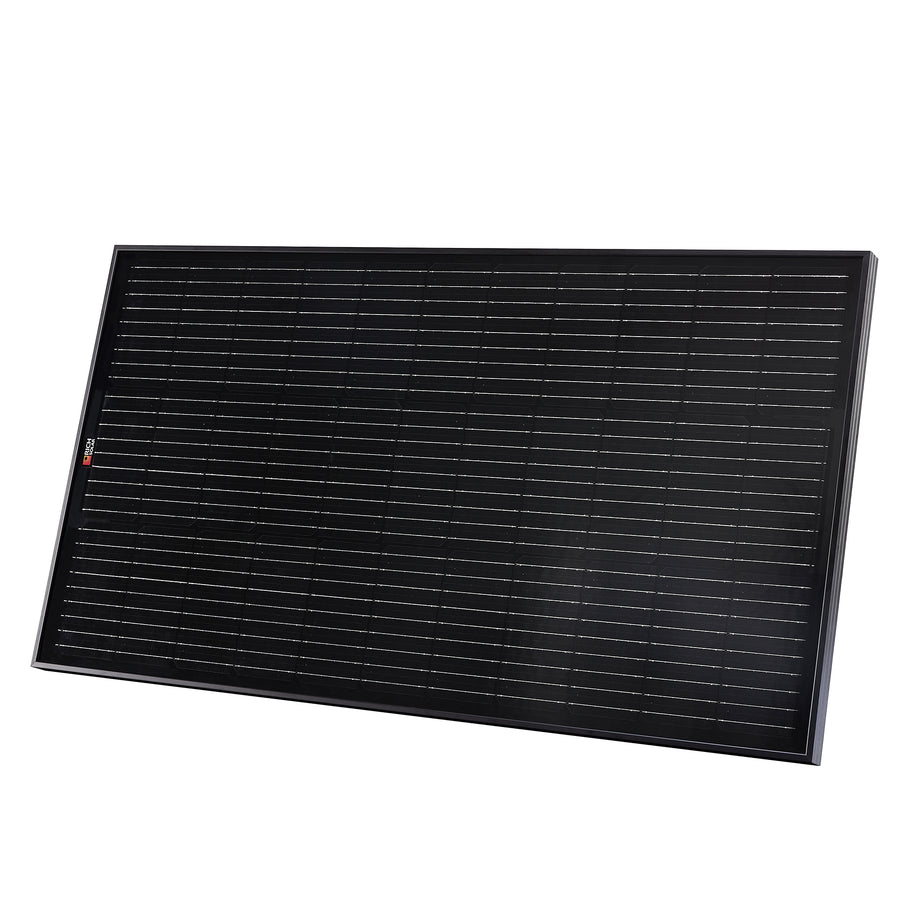

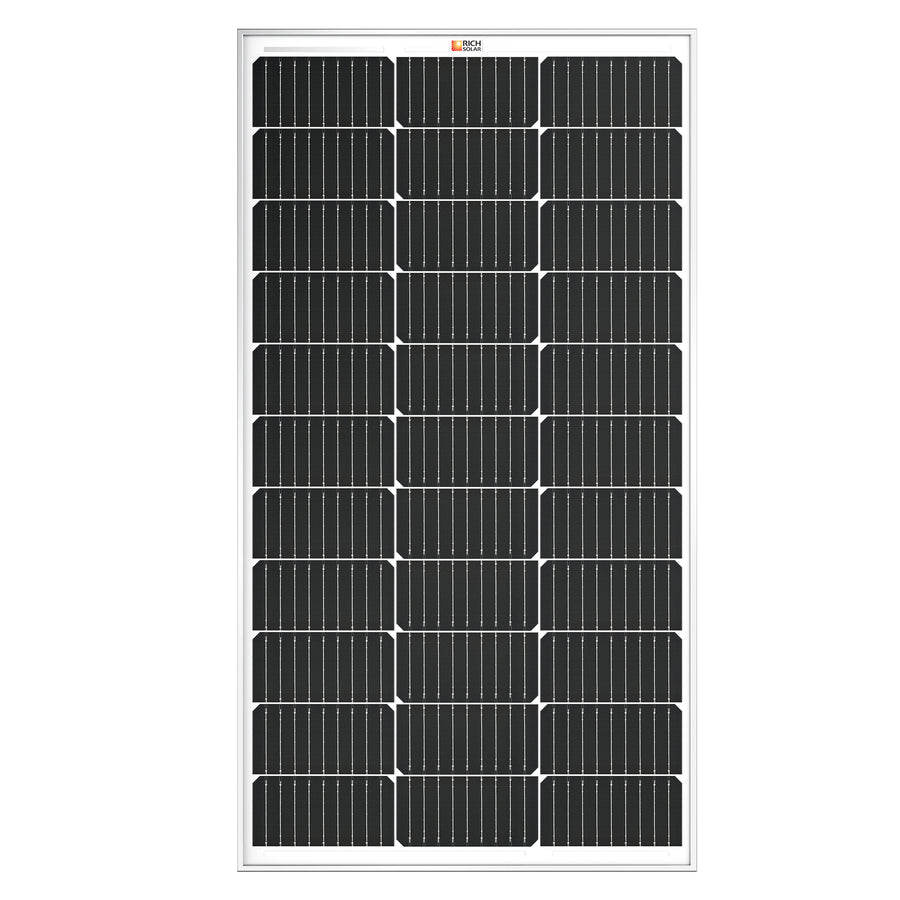

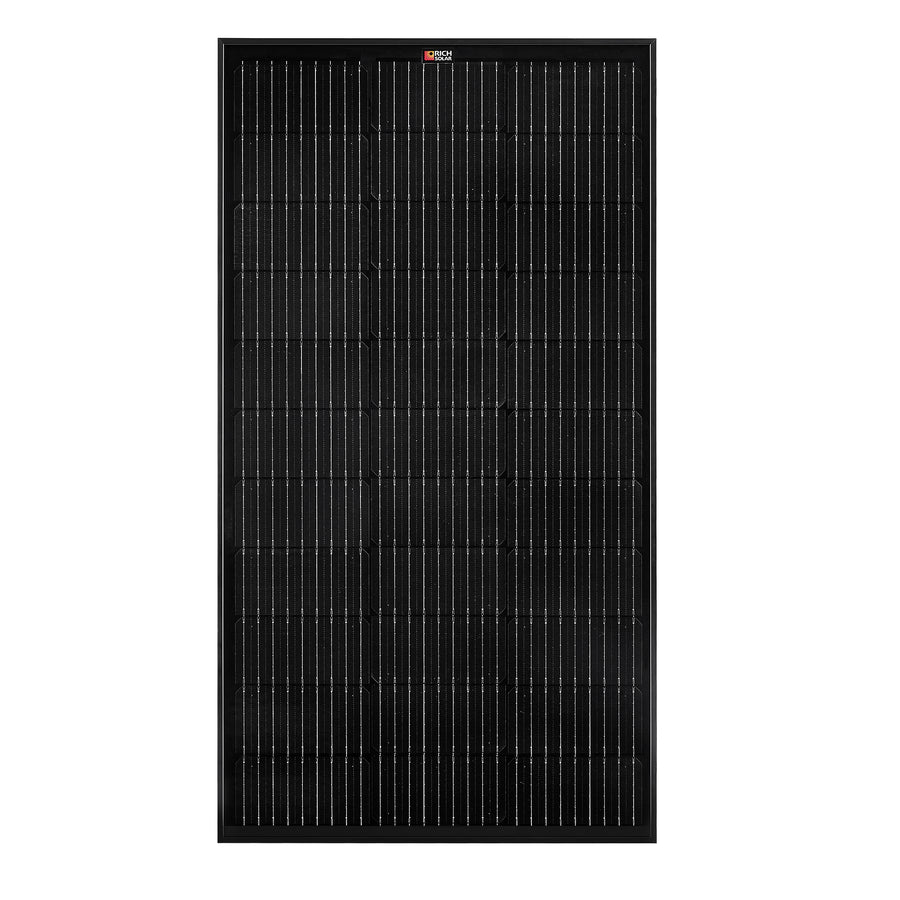

Model Options Mega 100 (Silver) / Mega 100 ONYX (Black)
Model RS-M100
On-Panel Cable Length 35 in (900 mm)
Material Tempered Glass, Aluminum, Monocrystalline Silicon

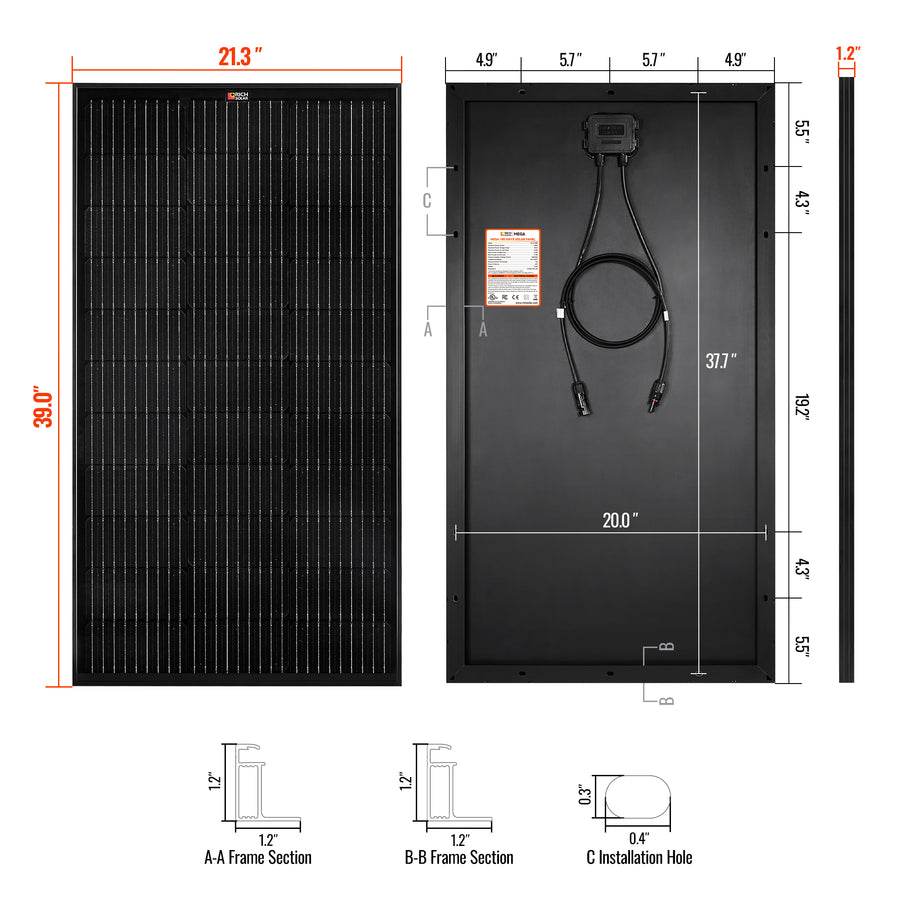

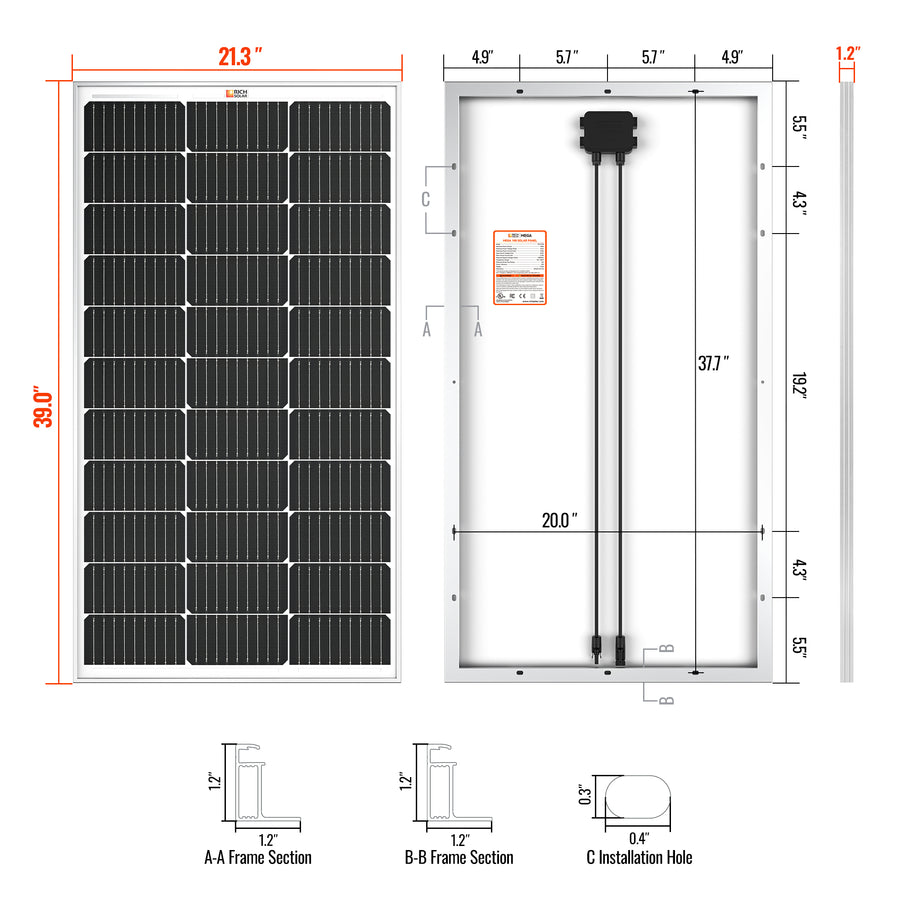

Dimensions 39.0 × 21.3 × 1.2 in (990 × 540 × 30 mm)
Weight 13.2 lb (6 kg)
Maximum Power (Pmax) 100W
Maximum Power Voltage (Vmp) 18.6V
Maximum Power Current (Imp) 5.38A
Open Circuit Voltage (Voc) 22.8V
Short Circuit Current (Isc) 5.78A
Maximum System Voltage 1000VDC
Maximum Series Fuse Rating 15A
Module Efficiency 22.6%
Power Tolerance 0~+5W
Nominal Operating Cell Temp 45°C (±2°C)
Temperature Coefficient of Pmax -0.39%/°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficient of Isc 0.05%/°C
Cell Type Monocrystalline, 6.5 × 3.3 in (166 × 83 mm)
Cell Orientation 33 cells (3 × 11)
Glass 3.2 mm, High Transmission, AR Coated Tempered Glass

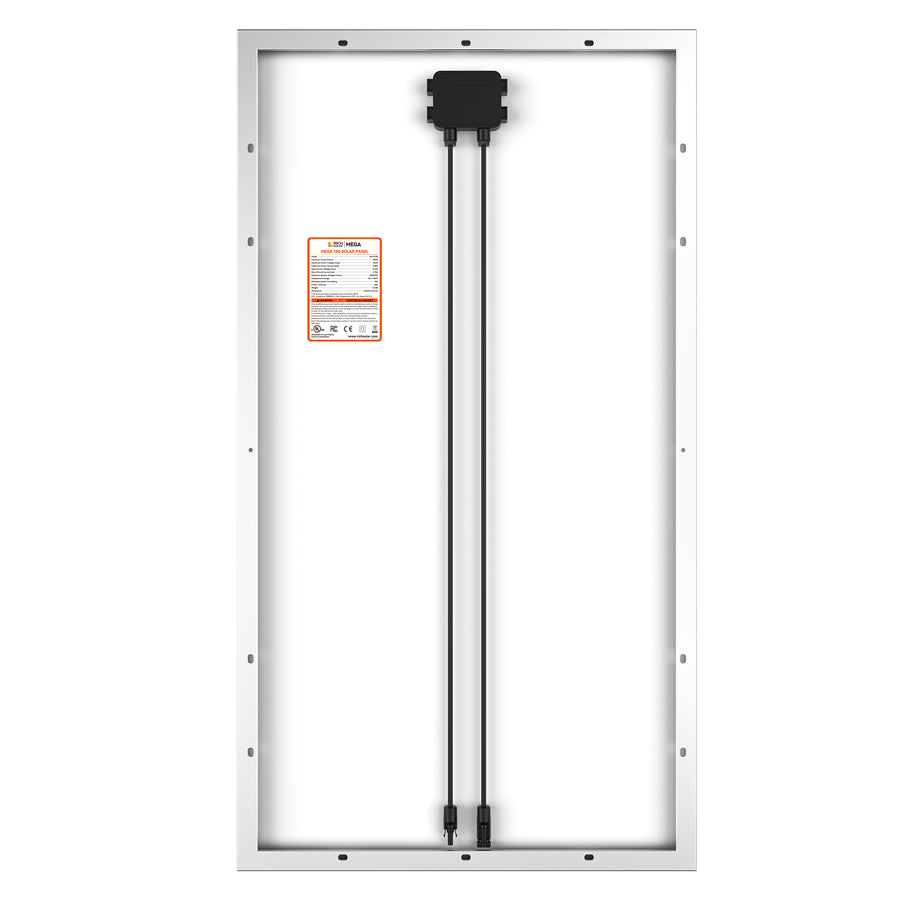

Backsheet White
Connector IP67-rated Solar Connectors

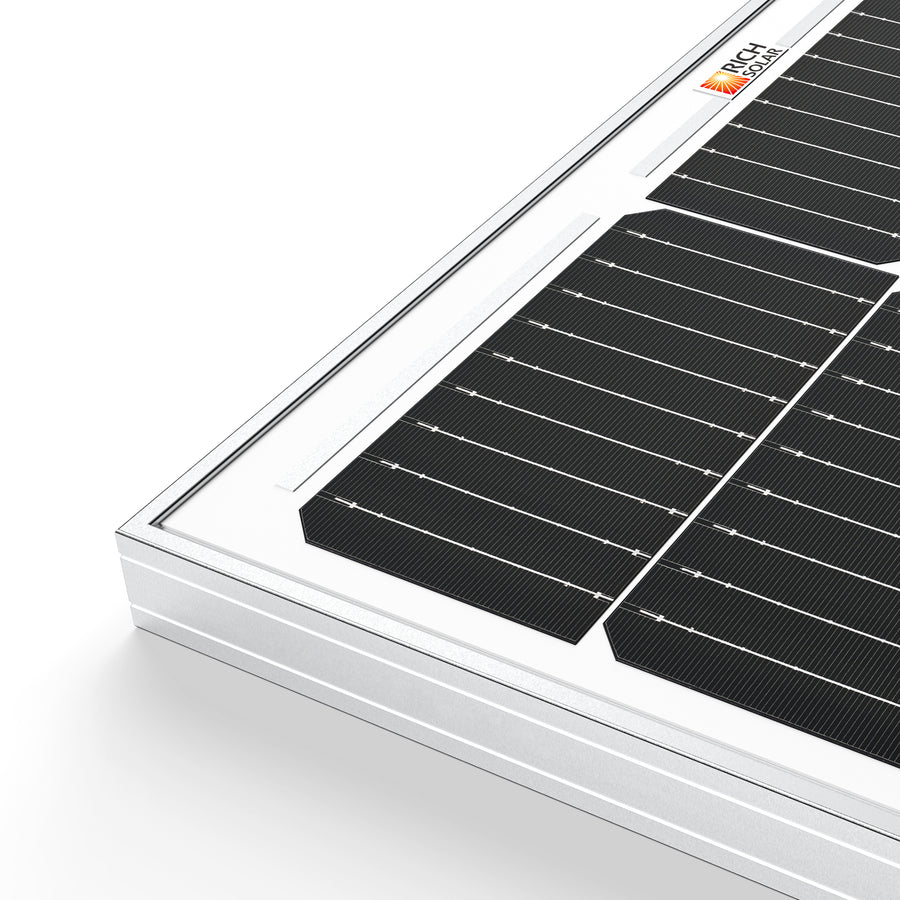

Frame Anodized Aluminum Alloy

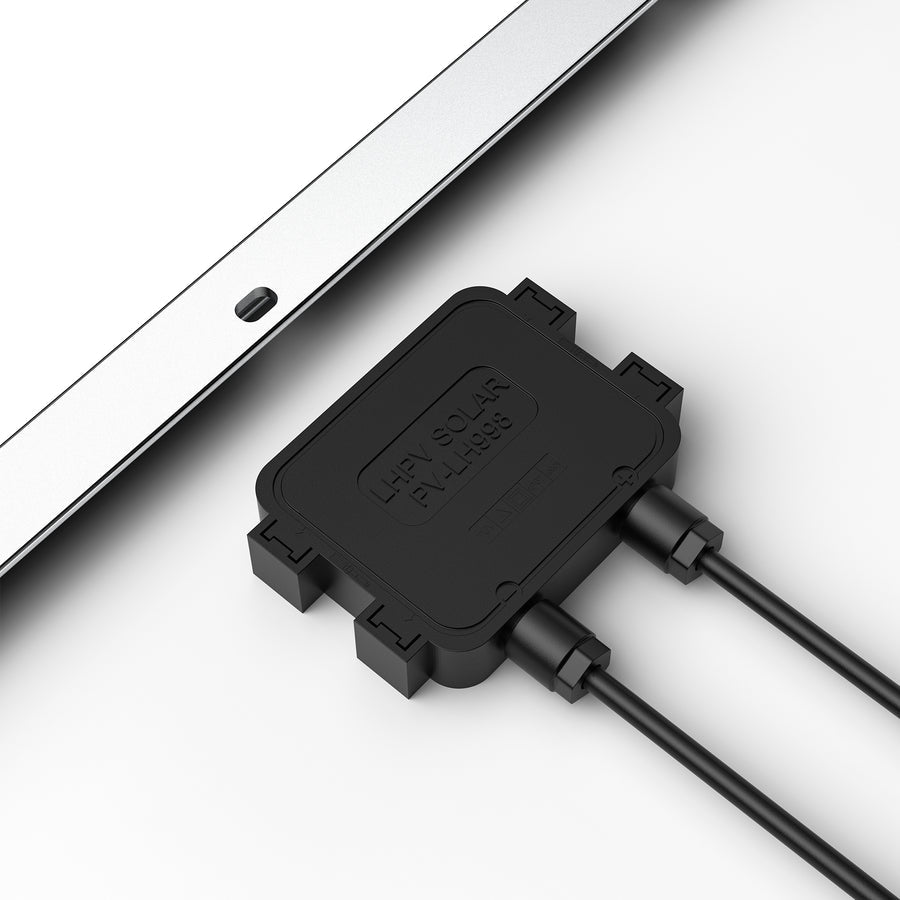

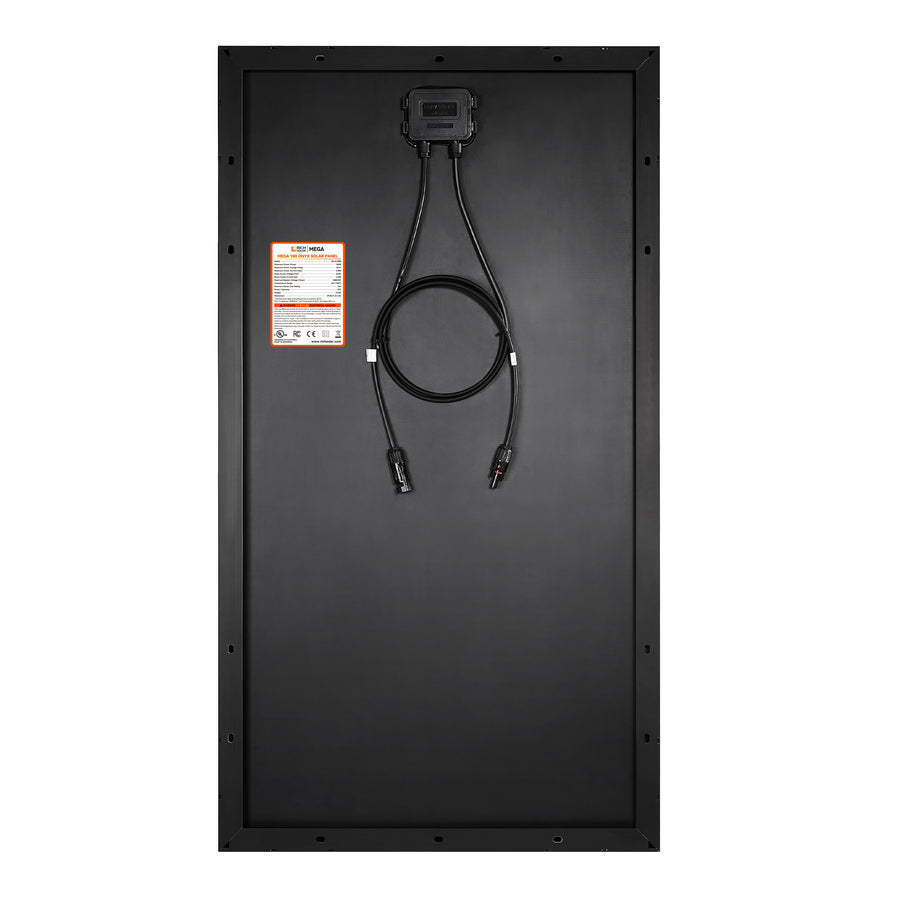

Junction Box IP67-rated Waterproof
Cables 12AWG, 3FT each (4.0 mm²)

Warranty

  • 25-year power output warranty
  • 10-year workmanship warranty

Documents

⚠️ California Proposition 65 Warning: This product can expose you to chemicals, including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
