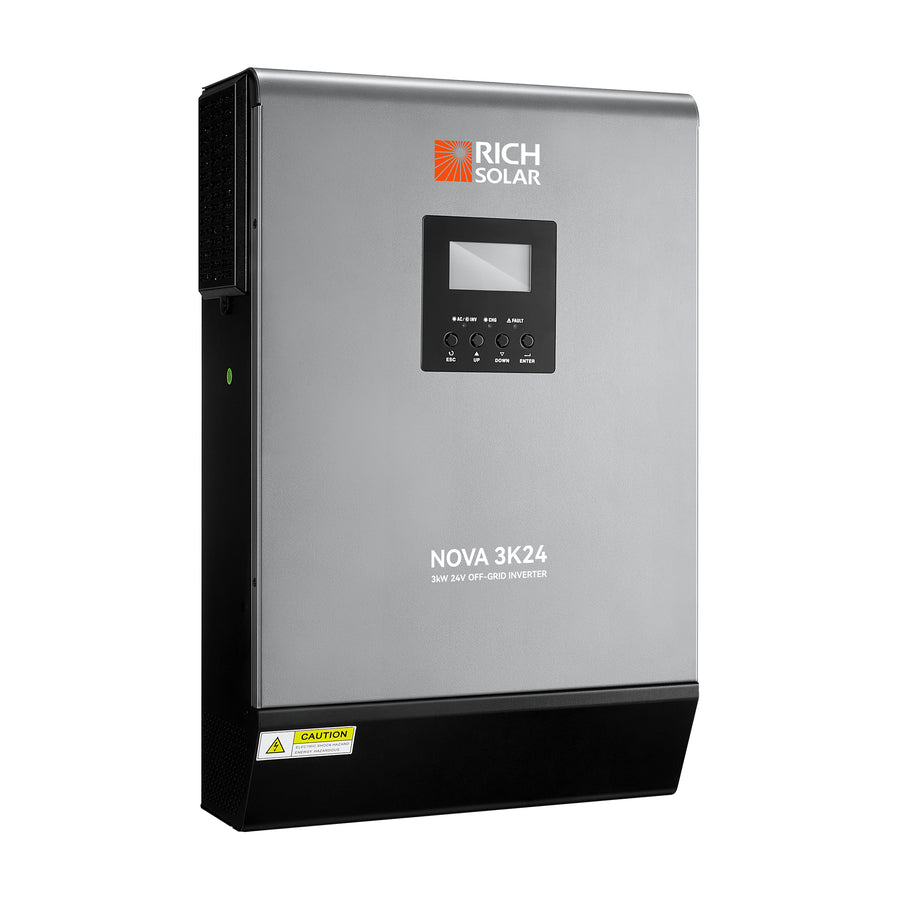

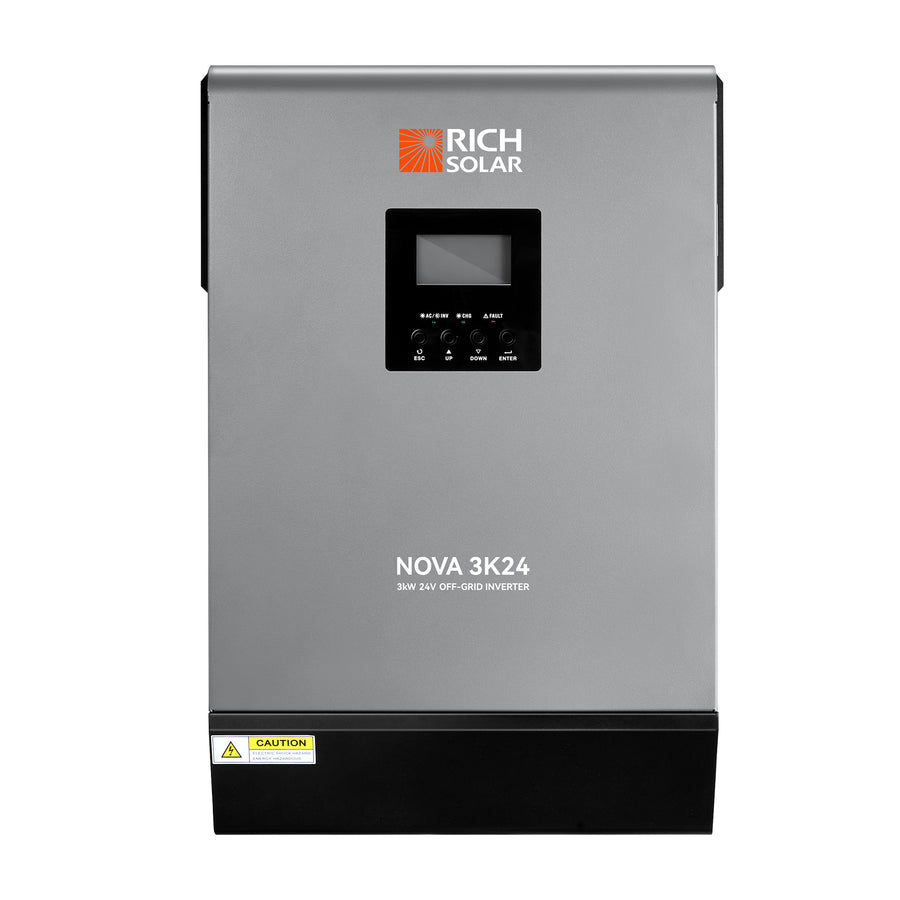

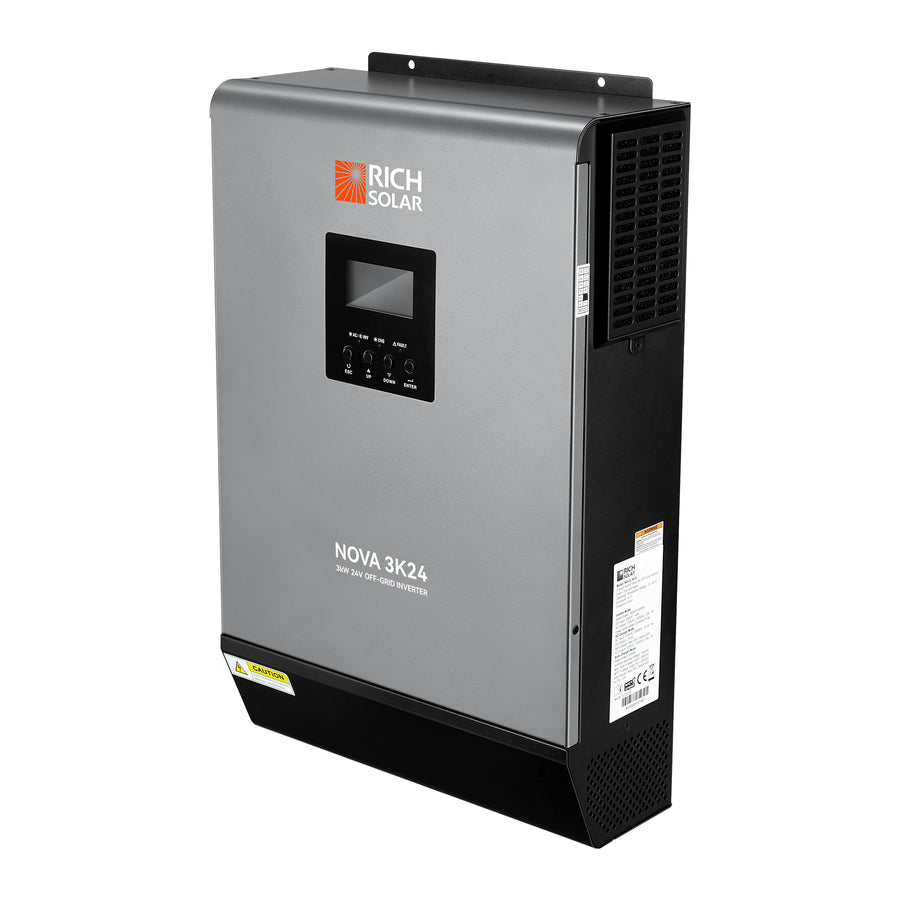

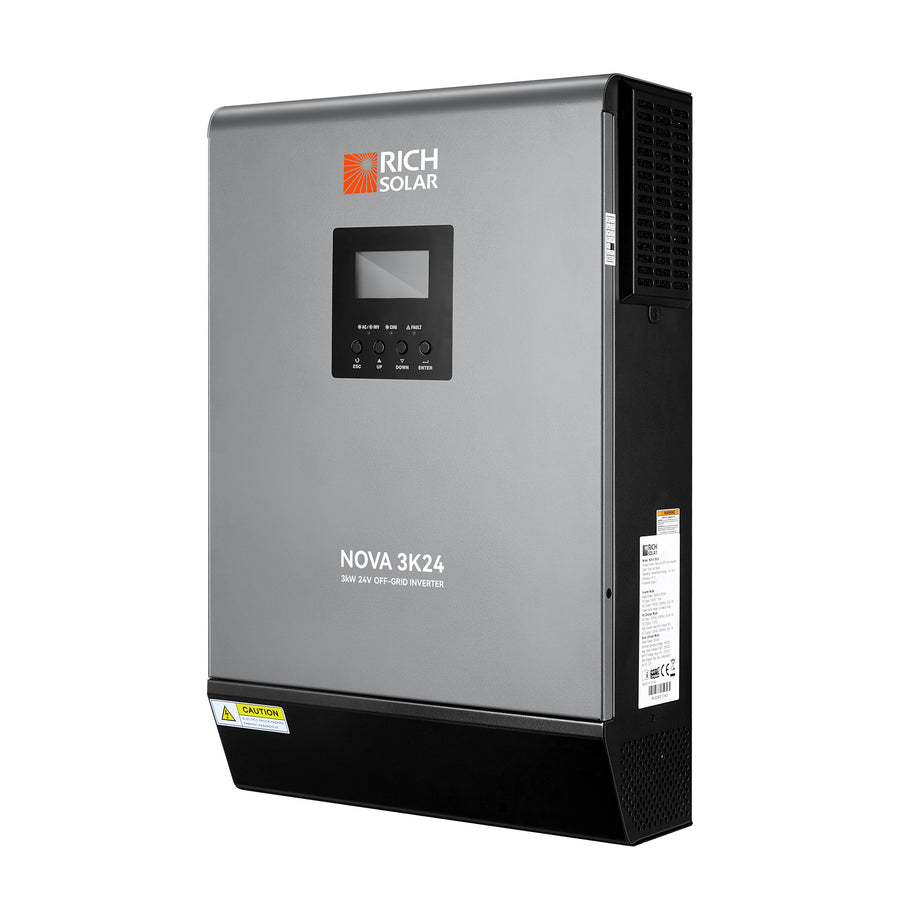

Power your adventures with the Rich Solar NOVA MAX 3K | 3000W 24V Off-Grid Hybrid Solar Inverter – the ultimate hybrid inverter designed for RVs, campers, trailers, vans, trucks, boats, and off-grid homes.

Built with a pure sine wave inverter and an integrated MPPT solar charge controller, this unit delivers reliable and efficient energy conversion while protecting your batteries and appliances. With 3,000 watts of continuous output power, configurable charging options, and automatic generator/AC compatibility, it’s engineered to keep your off-grid system running smoothly—whether you’re on the road, on the water, or off the grid.

Enjoy optimized battery performance, smart protection features, and seamless automatic restart when AC power returns. The NOVA MAX 3K is compact, durable, and built to handle the toughest environments—giving you freedom and confidence anywhere your journey takes you.

The Rich Solar NOVA MAX 3K is the #1 Ranked 24V Hybrid Inverter for off-grid power—built to last, built for freedom.

Key Features

  • Pure sine wave output for safe, reliable power.
  • Built-in MPPT solar charge controller for maximum solar efficiency.
  • 3,000W continuous output power (24V DC).

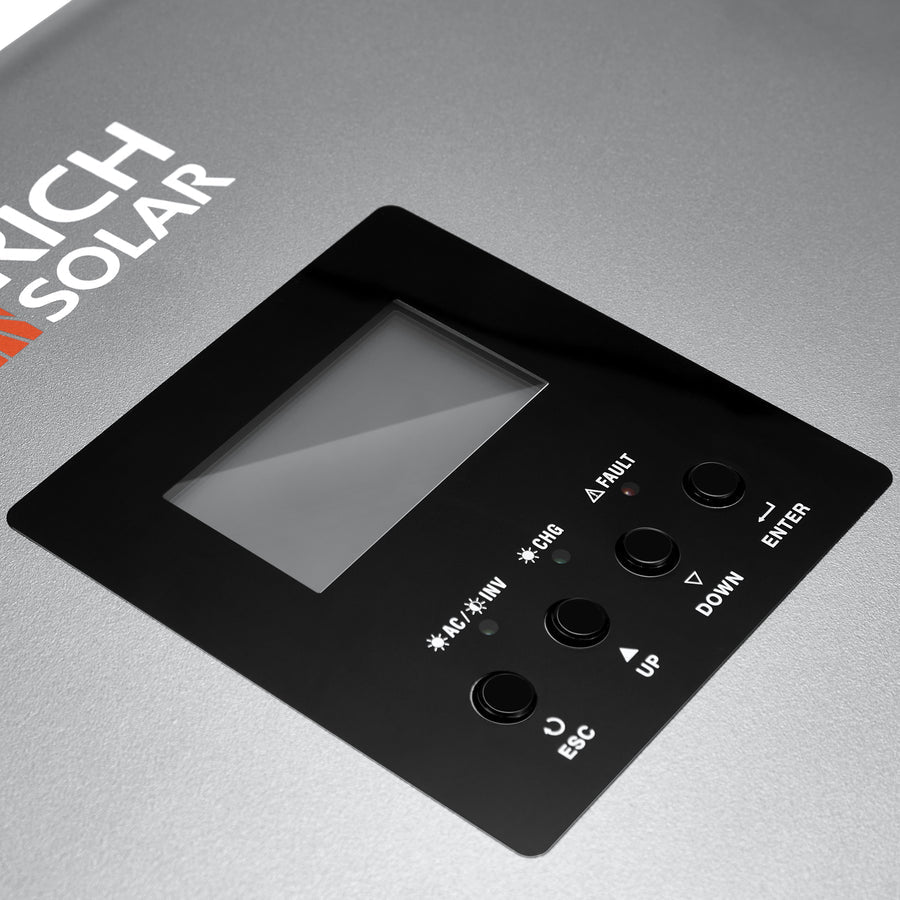

  • Configurable input voltage ranges for home appliances and PCs via LCD.
  • Adjustable battery charging current to match application needs.
  • Programmable AC/Solar charging priority.
  • Compatible with mains power or generator input.
  • Automatic restart when AC power recovers.
  • Multiple protection features: overload, over-temperature, short circuit.
  • Smart battery charger design for longer battery life.
  • Cold start function for reliable startup without grid power.

Ideal For

  • RVs & Motorhomes
  • Travel Trailers & Campers
  • Vans & Overlanding Setups
  • Boats & Marine Power Systems
  • Off-Grid Cabins & Tiny Homes

Specifications

Category Specification Details
Model Product Model NOVA 3K24
Output (Inverter Mode) Rated Output Power 3000W / 3KVA
Output Waveform Pure Sine Wave
Output Voltage Regulation 120 VAC ±5%
Output Frequency 50Hz / 60Hz (Auto Selectable)
Peak Efficiency 91%
Surge Capacity 2 × rated power for 5 seconds
Nominal DC Voltage 24 VDC
THD (Total Harmonic Distortion) <5% linear load, <10% non-linear load
Cold Start Voltage 23.0 VDC
Low DC Warning Voltage 20.2V–23.0V (based on load %)
Low DC Cut-off Voltage 19.2V–22.0V (based on load %)
High DC Cut-off Voltage 33 VDC
High DC Recovery Voltage 32 VDC
Input (Line/AC Mode) Input Voltage Waveform Sinusoidal (Utility or Generator)
Nominal Input Voltage 120 VAC
Input Voltage Range 90–150 VAC
Frequency Range 40Hz–65Hz (Auto Detection)
Max AC Input Voltage 150 VAC
Efficiency (Line Mode) >95% (full load, charged battery)
Transfer Time 10ms (UPS), 20ms (Appliances)
Solar Input (PV) Max PV Array Open Circuit Voltage 250 VDC
MPPT Voltage Range 90–230 VDC
Max Input Current 18A
Start-up Voltage 80V ±5V
Battery Charging Max Charging Current 80A
Charging Algorithm 3-Stage Smart Charging
Bulk Charging Voltage 29.2V (Flooded), 28.8V (AGM/GEL)
Floating Voltage 27.6 VDC
Overcharge Protection 33 VDC
Physical & Environmental Dimensions (D × W × H) 5.6 × 12.1 × 18.8 in (142.4 × 307.8 × 477.6 mm)
Net Weight 26.5 lbs (12 kg)
Operating Temperature 14°F to 104°F (-10°C to 40°C)
Storage Temperature -15°C to 60°C
Humidity 5%–95% (Non-condensing)
