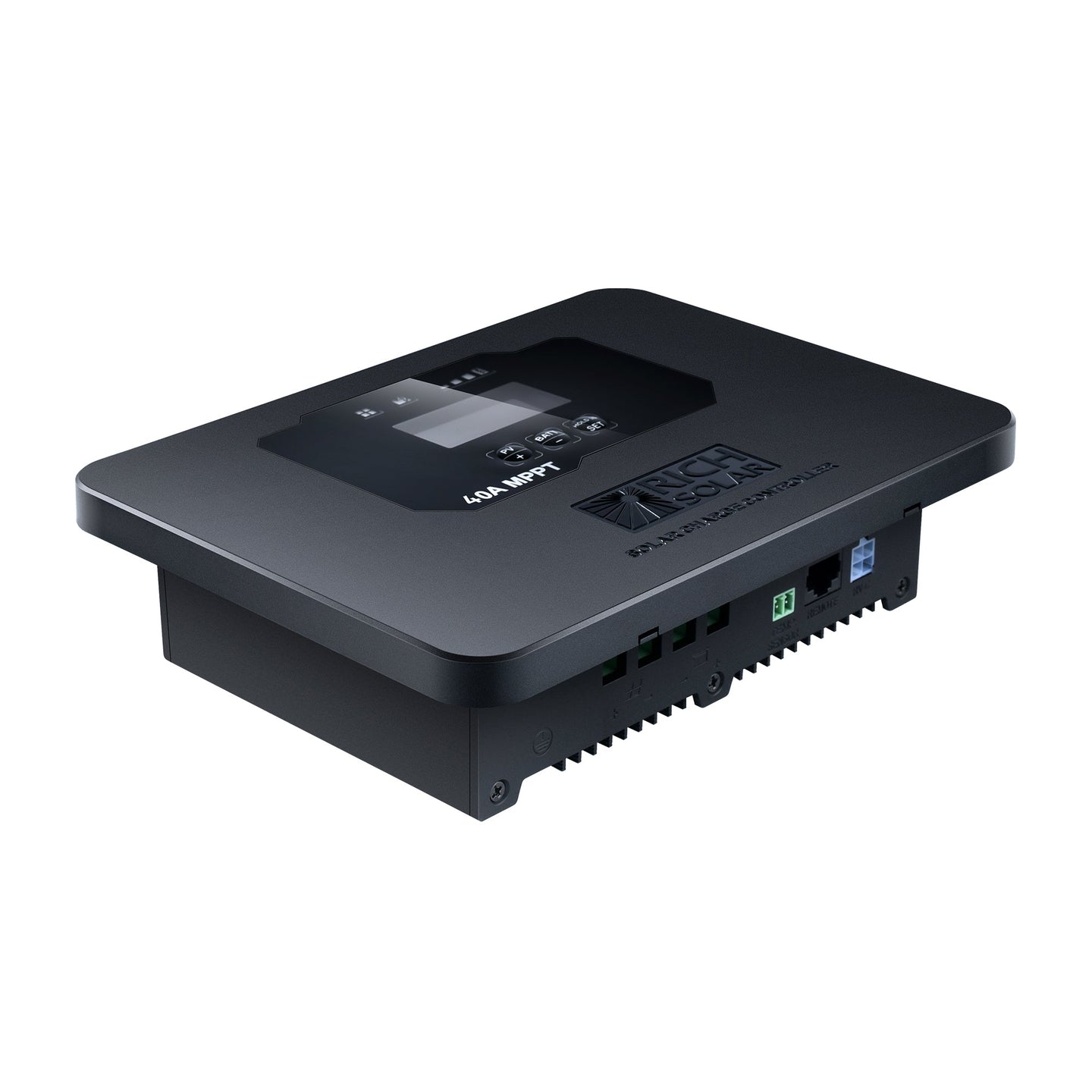

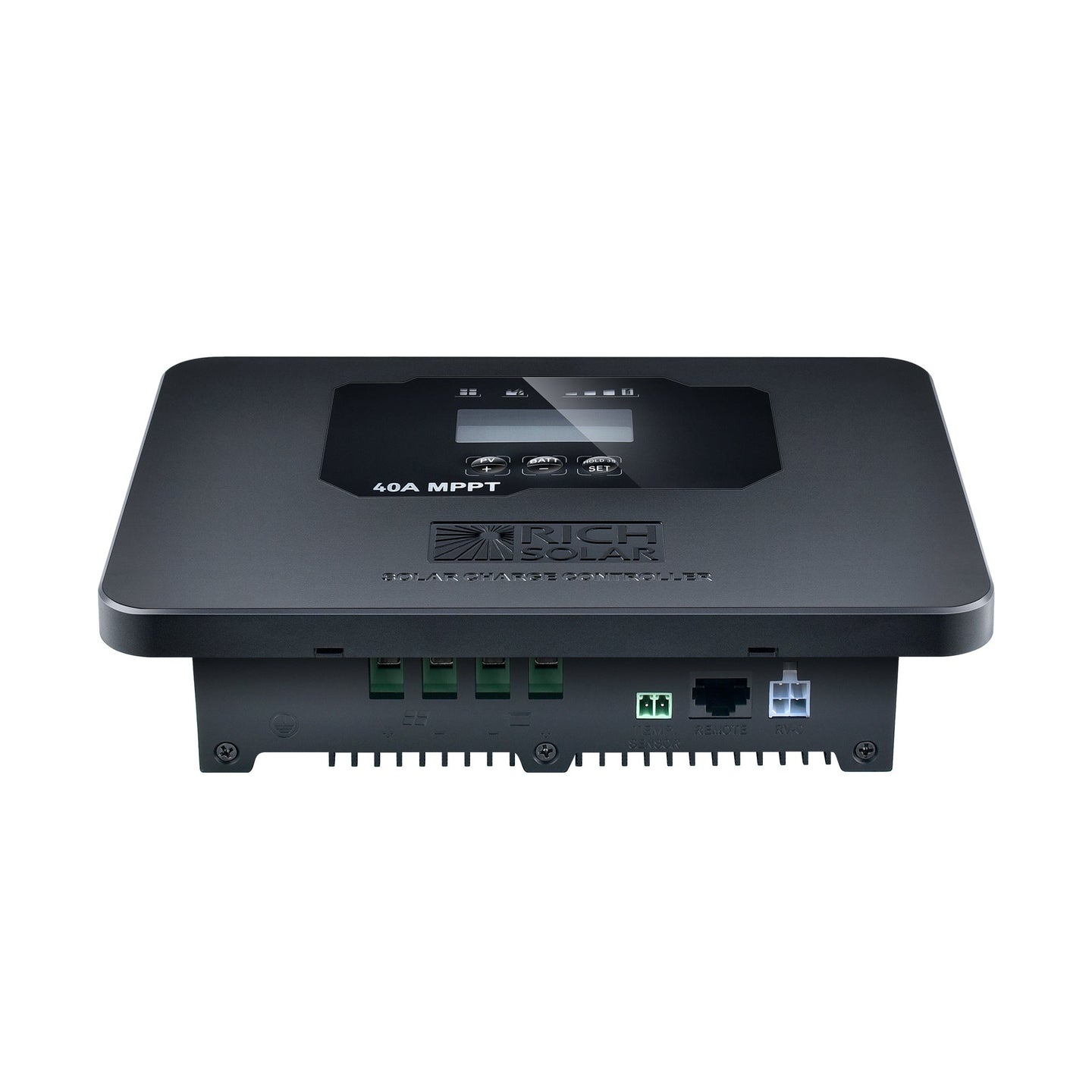

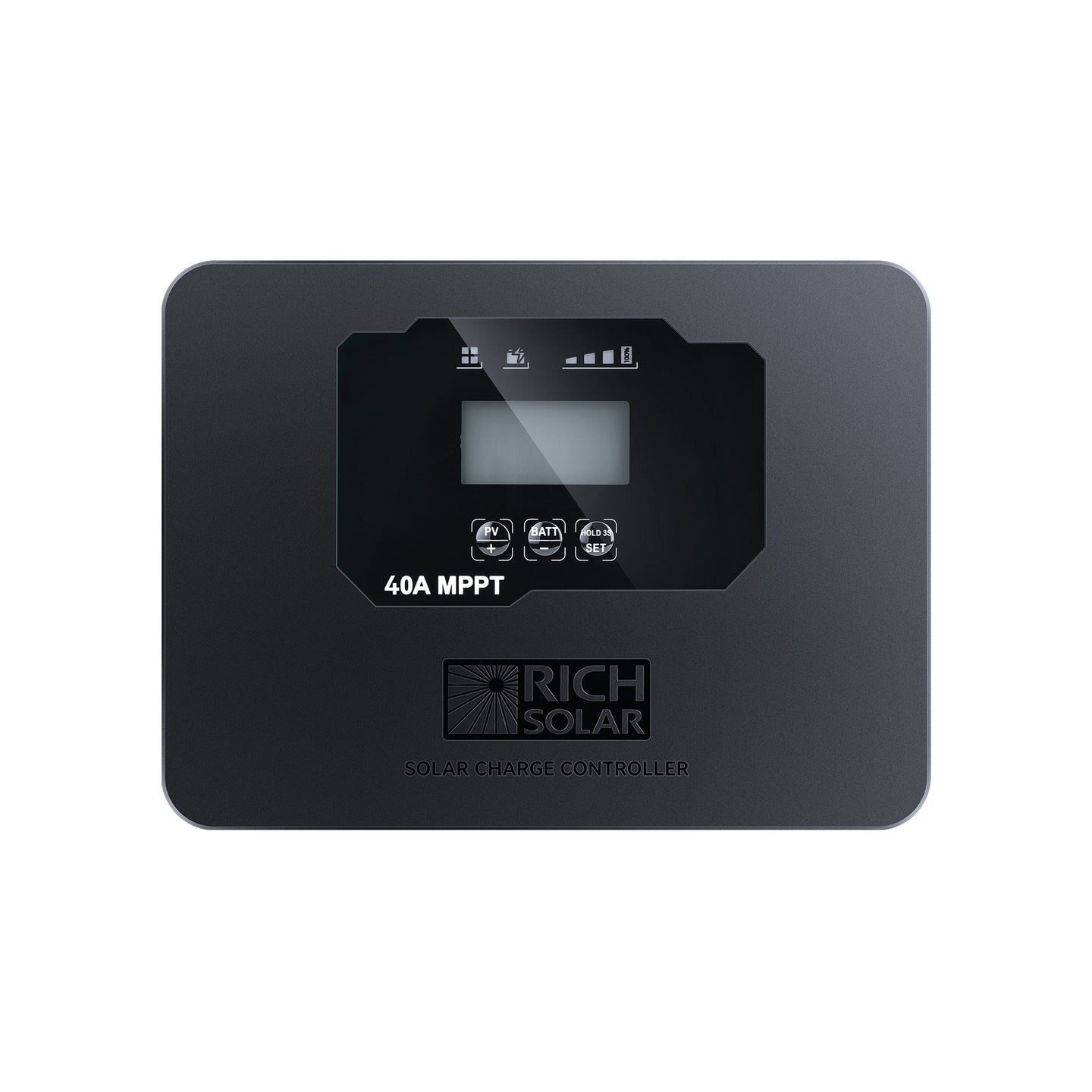

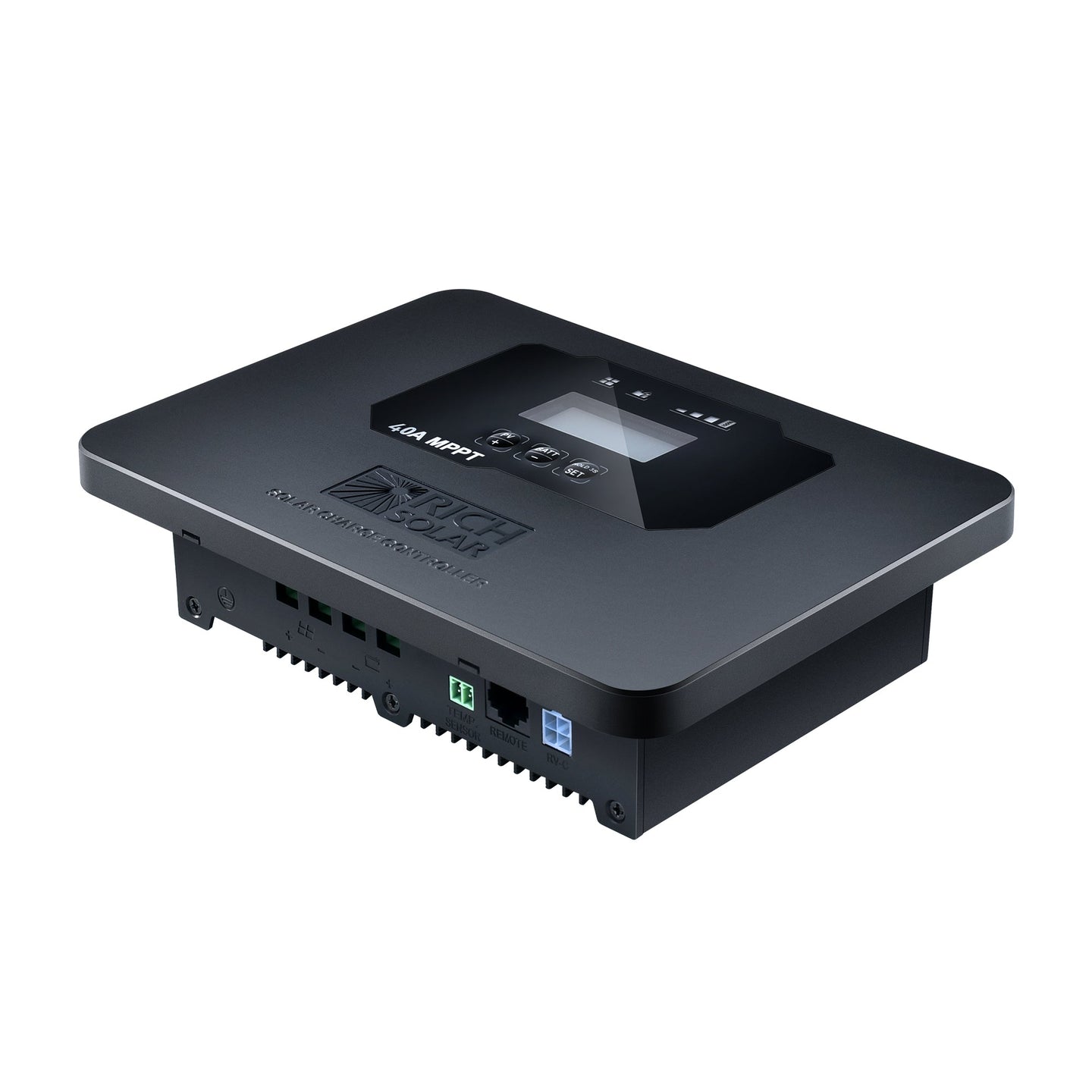

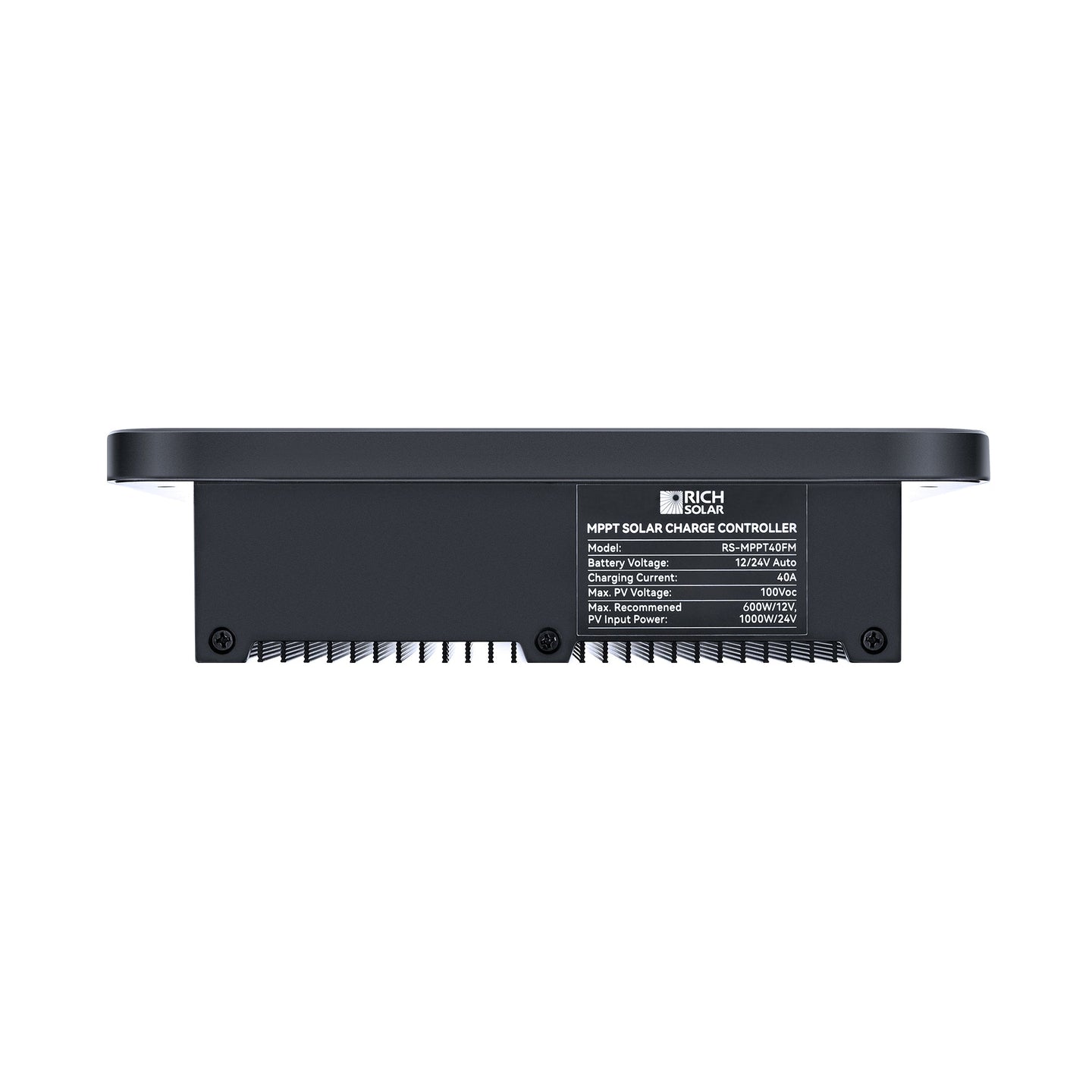

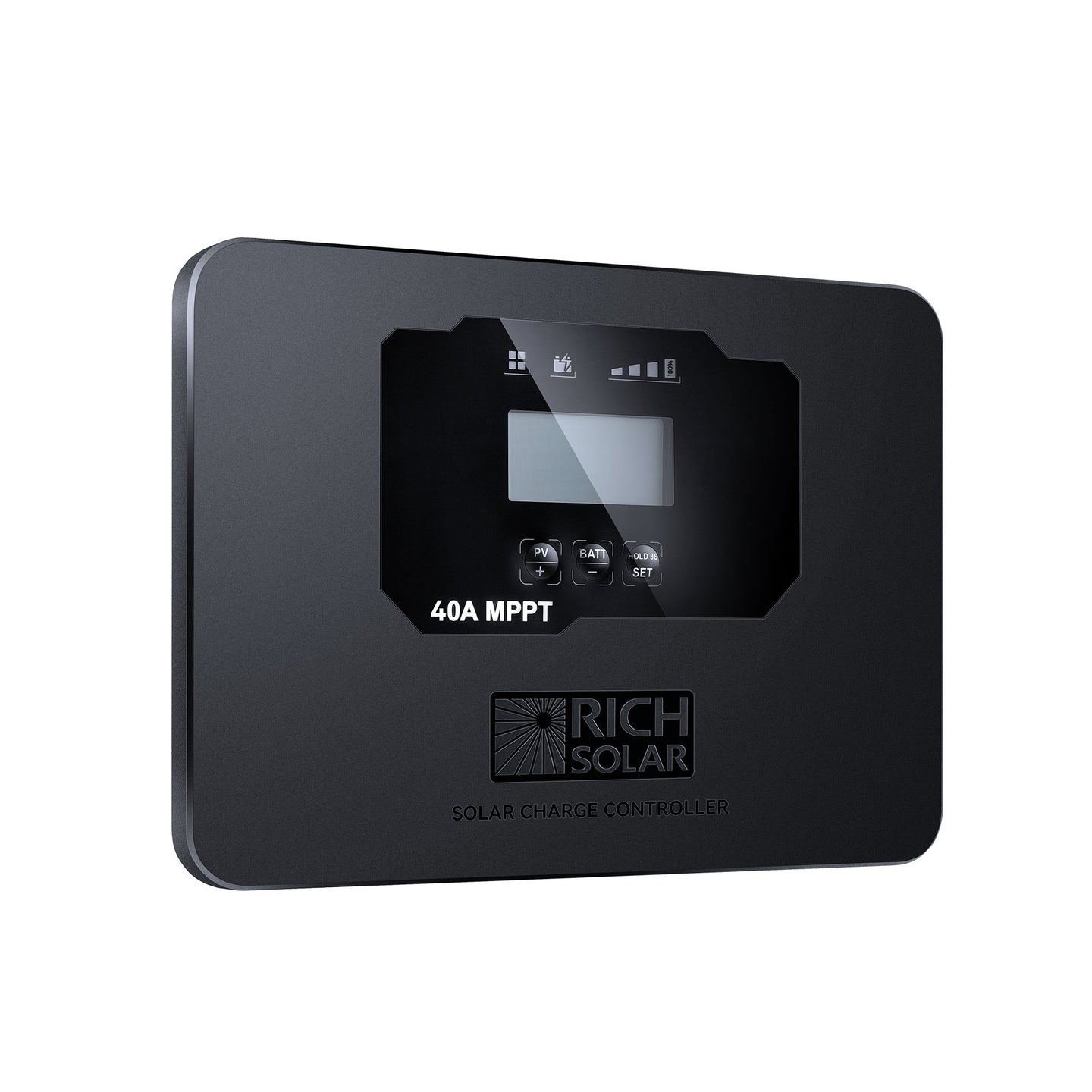

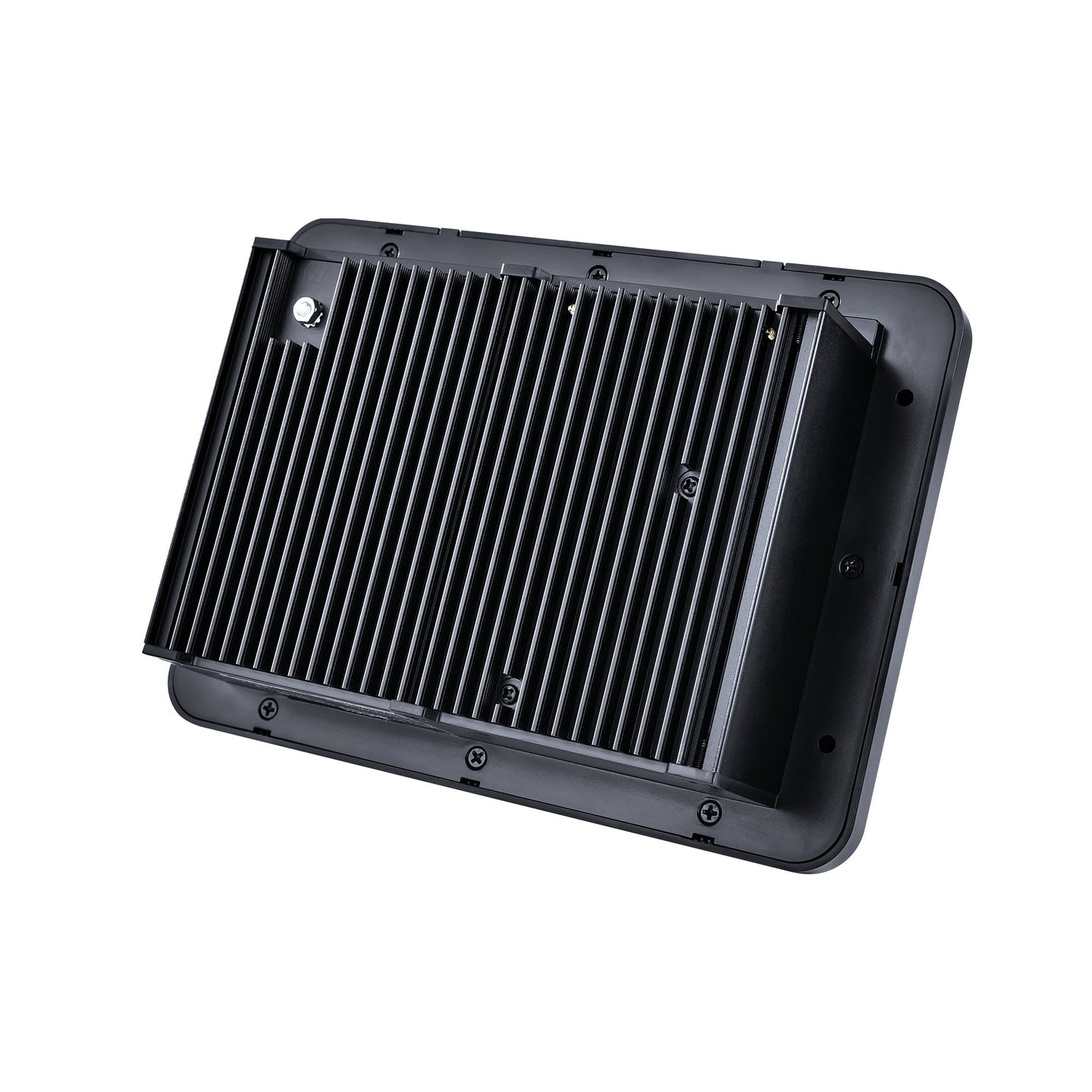

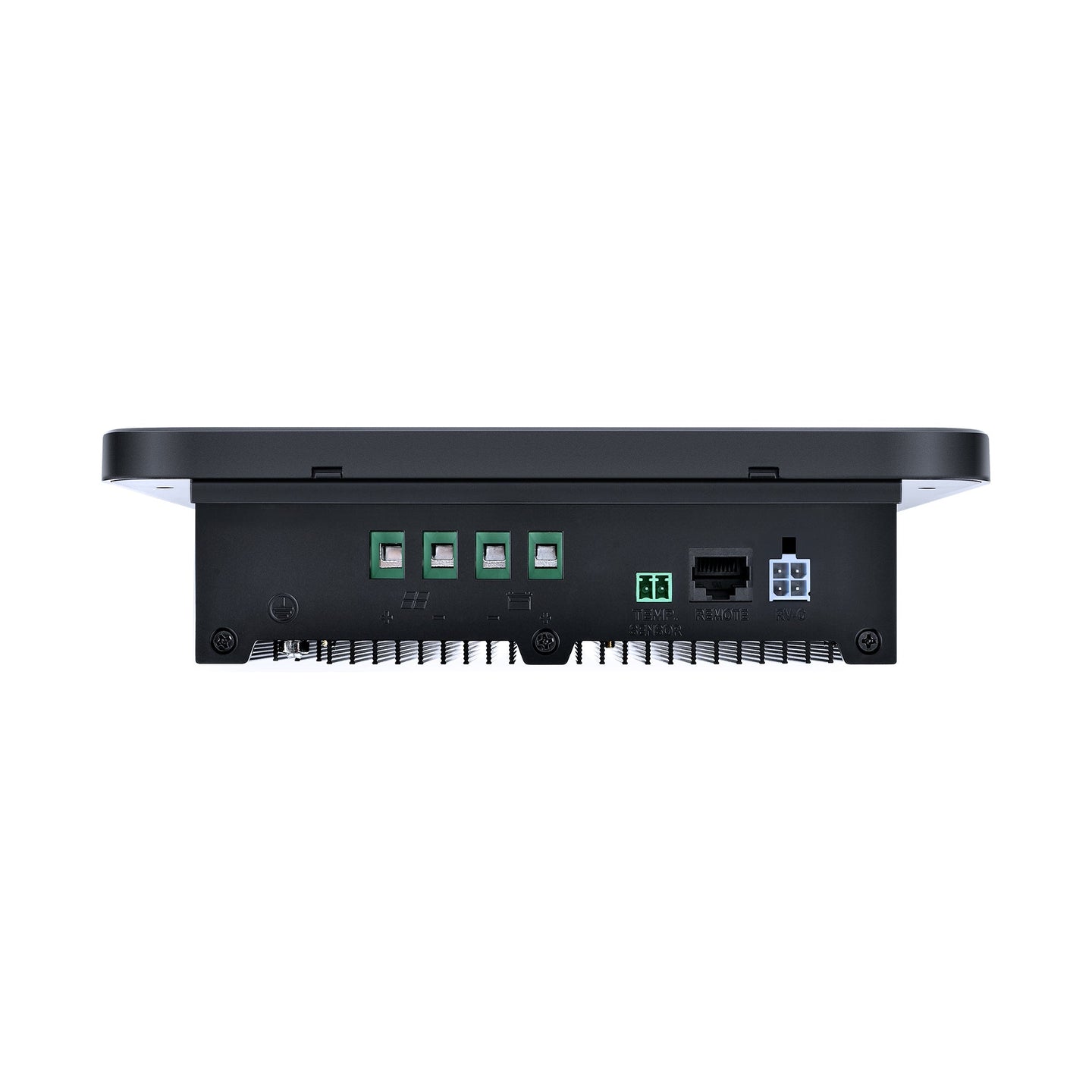

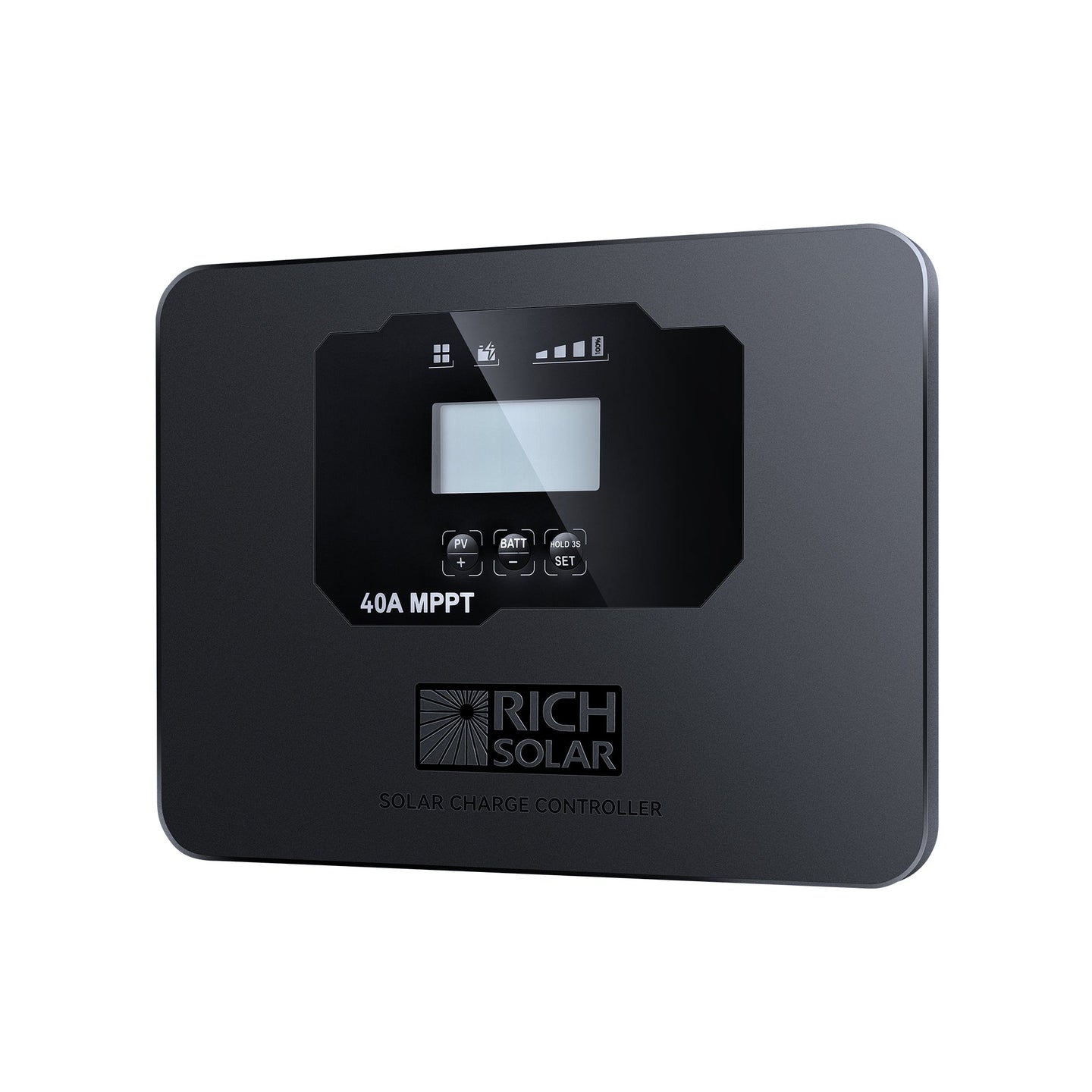

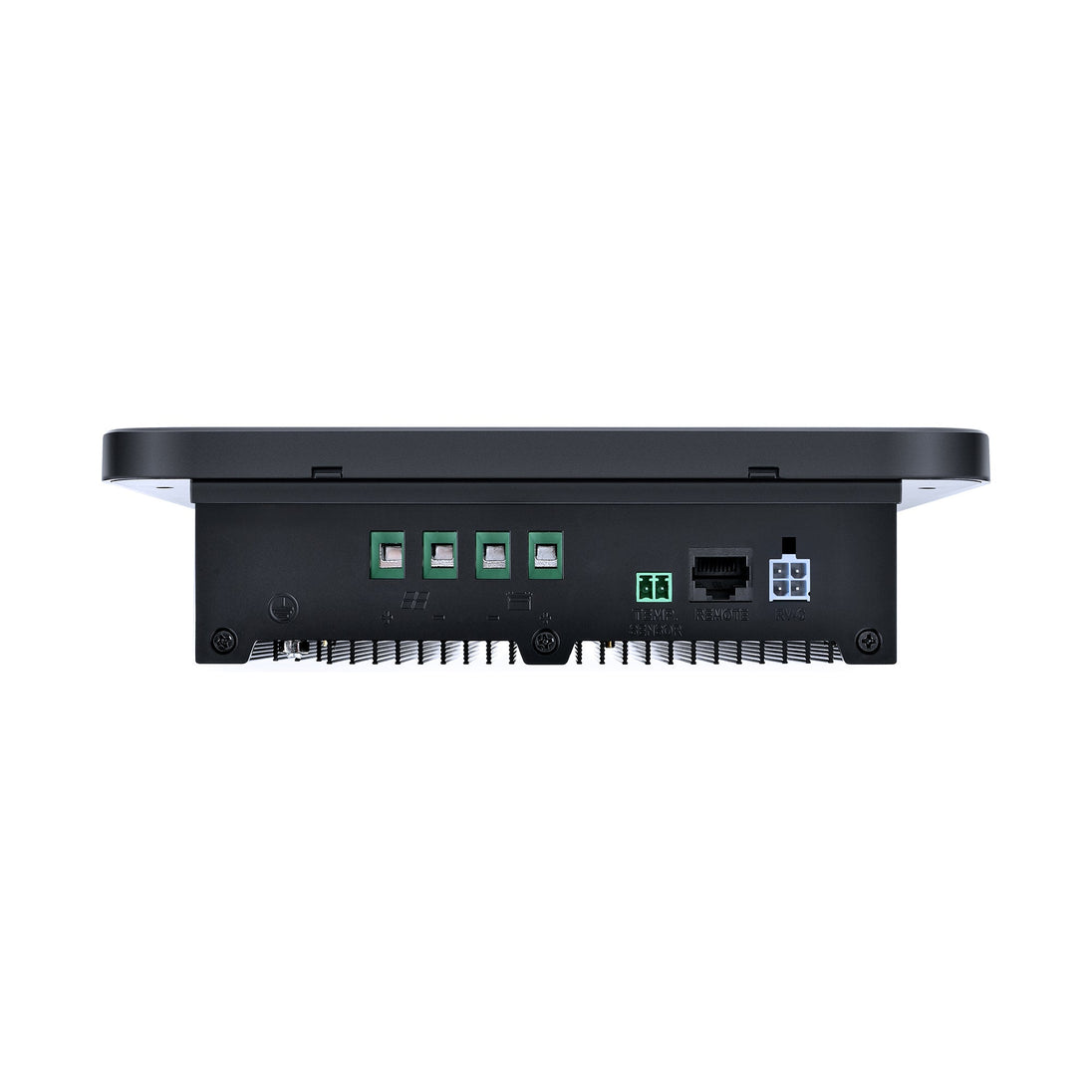

BRAVO PRO 40 | Premium 40A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid

$249.99
$249.99
FREE SHIPPING

Estimated shipping time

We offer free shipping across the United States, with orders processed within 1–2 business days and delivered in about 4–7 business days. Every order comes with tracking and insurance, and our team is here to help if your package is delayed, lost, or arrives damaged. Returns are accepted within 30 days, with no cost for return shipping. Please ensure your shipping address is accurate to avoid delays. Refer to full policy here.

What is your Return Policy?

We accept returns within 30 days of delivery if items are unused, undamaged, and in their original packaging. Return shipping is free, and refunds are processed within 7 days after inspection to your original payment method. Defective, damaged, or incorrect items will be replaced or refunded at no cost, while change-of-mind returns may incur a restocking fee. Some items (custom, perishable, intimate goods, gift cards, software) are non-returnable. Refer to full policy here.

Features

  • PV open circuit voltage up to 100V.
  • The latest Maximum Power Point Tracking (MPPT) algorithm.
  • Unique multiple peaks detected technology for MPPT.
  • MPPT tracking efficiency above 99.5%.
  • Wider MPP operating voltage range.
  • Common negative grounding connection.
  • Suit for most rechargeable batteries, up to 9 battery types preset plus custom setting.
  • Extensive internal electronics in-circuit protection.
  • Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, and thermal protection.
  • Automatically detect 12V or 24V DC system voltages.
  • Unique and concise LED bar to indicate the solar status and battery charging condition.
  • Large and informative display interface to show solar parameters, battery charging parameters, battery type, battery temperature, custom presetting faulty codes, etc.
  • Provides plug-in remote digital display meter (Optional).
  • Provides external battery temperature sensor (Optional).
  • Splash-proof IP43.
  • Rubber mask for connecting terminal’s protection.
  • Conformal coating for internal boards.
  • Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.



Specifications

  • Max. PV Open Circuit Voltage: 100 VDC
  • Max. Normal Input PV Voltage: 92 VDC
  • Max. PV Input Current: 40 AMP
  • Max. PV Short Circuit Current: 45 AMP
  • Max. Conversion Efficiency: 98%
  • Min. Tracking Efficiency: 99.5%
  • Nominal PV Power: 600W@12V/1200W@24V
  • Min. Battery Start Charging Voltage: 5 VDC
  • Soft Start Charging Voltage: 5~10±0.2 VDC
  • Soft Start Charging Current: 20 AMP
  • Max. Bulk Charge: 40 AMP
  • Controller Material: Plastic, PC
  • Mounting: Surface Mounting
  • IP Grade: IP43
  • Net Weight: 1.87 lb
  • Operating Temperature: -13 ~ 122 ℉
  • Storage Temperature: -40 ~ 185 ℉
  • Operating Humidity Range: 0-85% RH
