SunGold Power 16kW 48V Off-Grid Solar Kit – 25.6kWh LiFePO4 Battery + 32 × 415W Panels (SGR-16K25E)

Build a serious off-grid system with the SunGold Power SGR-16K25E. This package pairs two 8kW 48V split-phase inverters (16kW total) with 32×415W monocrystalline panels (13.28kW array) and a 25.6kWh LiFePO4 battery bank (5 × 5.12kWh modules in a server rack). With around 4 peak-sun hours, the array can produce up to ~53kWh/day, enough for heavy household loads like AC units, well pumps, fridges, tools, and office equipment.

Each inverter includes MPPT solar charging, AC charging, generator input support, and Wi-Fi monitoring in a compact, transformer-free design. The system can parallel up to 6 inverters for future growth (single-phase 120V, split-phase 240V, or 208V three-phase). Durable panels and long-life LiFePO4 batteries keep operating costs low and uptime high.

Key Features

• 16kW Split-Phase Output – 2 × 8kW, 48V inverters deliver 120/240V pure sine power

• High-Yield Array – 32 × 415W mono panels (13.28kW) for strong daily production

• Deep Storage – 25.6kWh LiFePO4 (5 × 5.12kWh, rack-mounted) with long cycle life

• All-in-One Control – Built-in MPPTs, AC charger, generator input, and system protections

• Scalable System – Parallel up to 6 inverters; add panels or batteries as needs grow

• Ready to Install – Includes server rack, breakers, PV extension cables, and Z-brackets

Specifications

System Model: SGR-16K25E
AC Output: 16,000W total (2 × 8kW), 120/240V split-phase
DC System Voltage: 48VDC
Solar Array: 32 × 415W = 13.28kW
Battery Storage: 25.6kWh (5 × 51.2V 100Ah LiFePO4, 5.12kWh each)
Estimated Production: Up to ~53kWh/day @ ~4 PSH (site/season dependent)

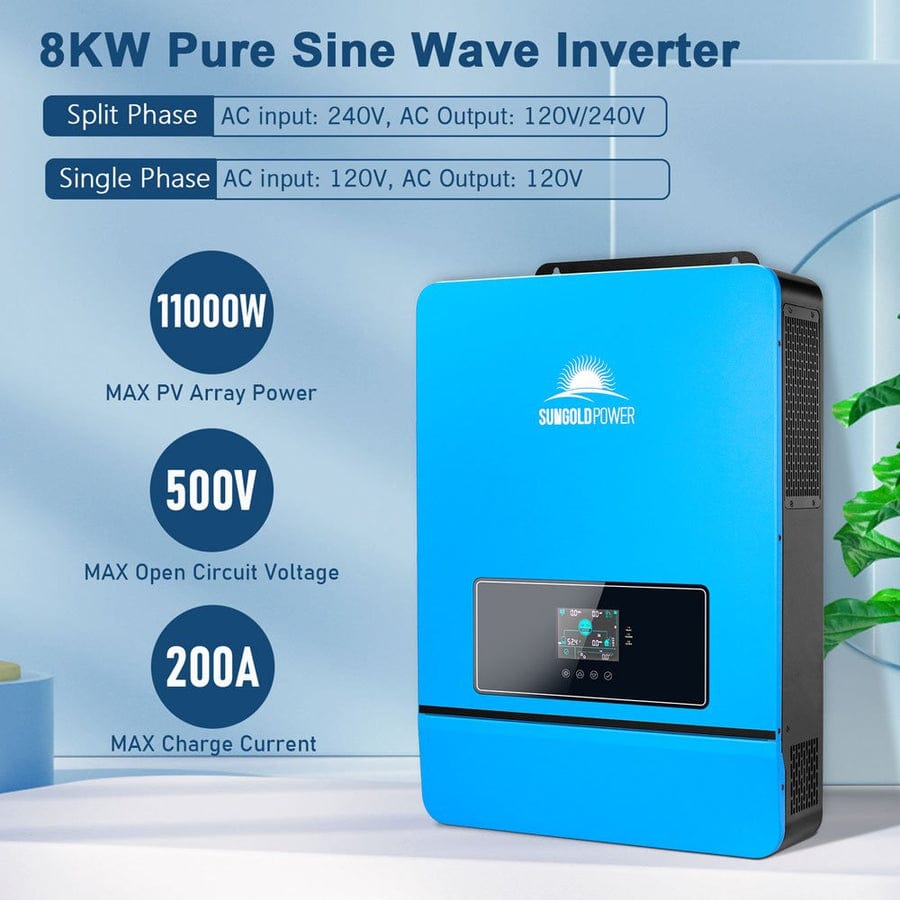

Inverters (per unit – SPH8K48SP): 8kW rated output, pure sine wave, integrated MPPT solar charger, AC charger, generator input, Wi-Fi/app monitoring, parallel up to 6 units (supports 120V single-phase / 120/240V split-phase / 208V 3-phase with 3+ units).

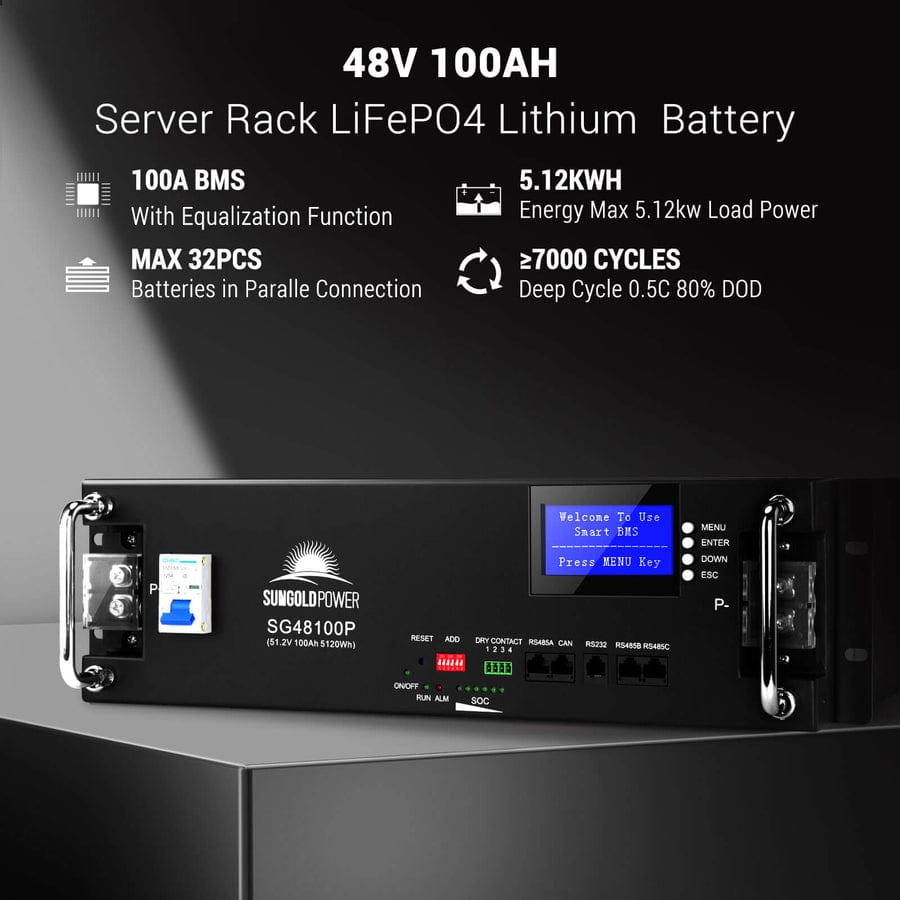

Batteries (per module): 51.2V, 100Ah (5.12kWh), LiFePO4 chemistry, rack-mount form factor.

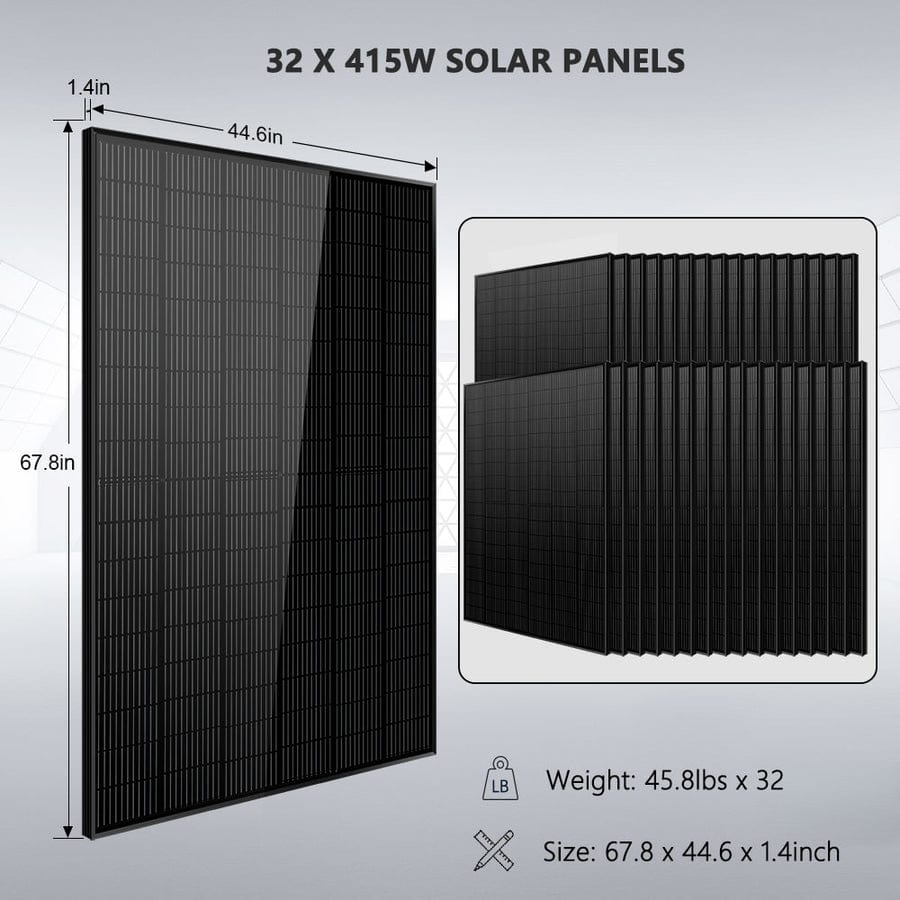

Panels (per module): 415W monocrystalline, aluminum frame, tempered glass (see datasheet for Vmp/Voc, size, and weight).

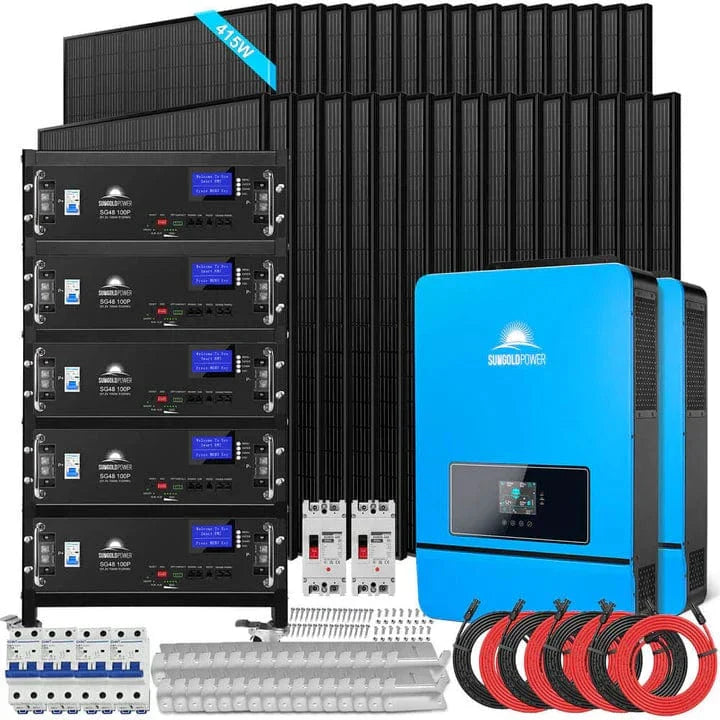

What’s Included

• 2 × 8,000W 48V split-phase solar inverters (parallel-capable)

• 32 × 415W monocrystalline solar panels (13.28kW total)

• 5 × 51.2V 100Ah LiFePO4 rack batteries (25.6kWh total)

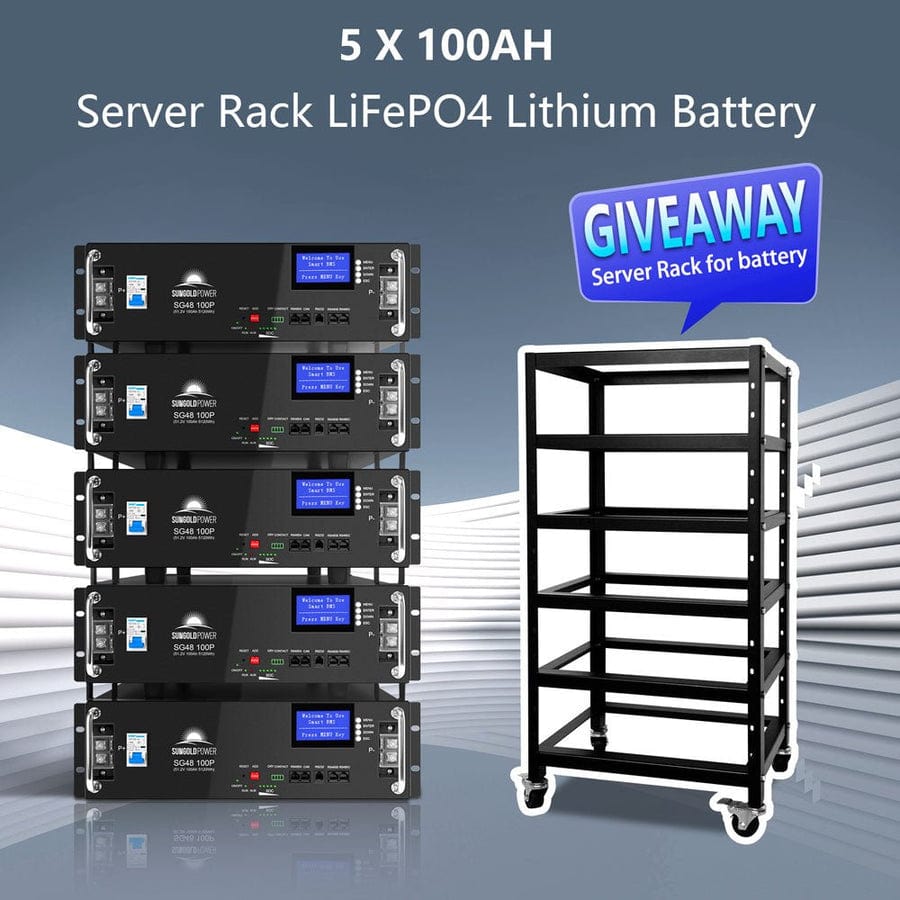

• 1 × server rack for 5 batteries

• 4 × 50 ft PV extension cable sets (to inverter PV input)

• 32 × mounting Z-bracket sets

• 2 × 200A DC breakers

• 4 × 25A PV breakers

• User manuals

Warranty

• Solar Panels: 25-year linear performance warranty + 10-year workmanship

• Batteries: 10-year limited warranty (LiFePO4)

• Inverters: Per SunGold Power policy in product manual

• Returns: 30-day return window per SunGold Power terms (original purchaser; non-transferable)

FAQs

How much energy will I get daily?
With ~4 peak-sun hours, expect ~53kWh/day from the 13.28kW array (location, tilt, and weather will affect output).

Can I expand later?
Yes. You can parallel up to 6 inverters and add more panels and batteries within electrical/code limits.

User Manuals

📑 SunGold Power 8kW Solar Inverter Product Manual (PDF)
📑 SunGold Power LiFePO4 5.12kWh Lithium Battery Product Manual (PDF)
📑 SunGold Power 415W Solar Panel Product Manual (PDF)
