Transform your outdoor water feature into a striking focal point while improving water quality with the Pond Haven Vanguard Hydro-Torque Series Floating Lake Fountain. Designed for estates, parks, golf courses and commercial waterscapes, the Vanguard 2750 (5.0 HP) delivers powerful aeration, dependable operation and stunning nighttime illumination.

Precision-engineered from marine-grade stainless steel and rugged HDPE, the Hydro-Torque fountain combines industry-leading performance with low-maintenance durability. Choose from five distinctive spray patterns—Palmetto, Edisto, Kiawah, Seabrook and Santee—to match the look and aeration needs of your pond. Built for easy installation, the unit ships pre-assembled with a 100' power cord, integrated control box and mooring ropes so you can place it where it looks best and keeps water healthy.

Bright white LED lighting is standard; optional color-changing LED kits with remote put the spotlight on your fountain after dark. With flexible cable lengths, multiple motor sizes (½–5 HP) and a modular, corrosion-resistant design, the Vanguard Hydro-Torque series is the go-to choice for owners and specifiers who want reliable performance and standout aesthetics.

Why choose the Vanguard Hydro-Torque 2750?

  • Powerful 5.0 HP performance for ponds up to ~3 acres
  • Five interchangeable spray nozzles for custom appearance and aeration
  • Integrated timer/control box and standard 100' power cord for easy set up
  • Marine-grade materials and modular design for long life and easy servicing
  • Bright LED illumination (optional color-changing upgrade available)

Key Features

  • 5.0 HP (Vanguard 2750) floating fountain — robust aeration and spray height
  • Five interchangeable spray patterns: Palmetto, Edisto, Kiawah, Seabrook, Santee
  • Ships pre-assembled with 100' power cord (optional 150', 200', 250' available)
  • Standard 9W bright white LEDs (three fixtures); optional 12W color-changing LED kit with remote
  • Integrated power control center with Intermatic timer for scheduled operation

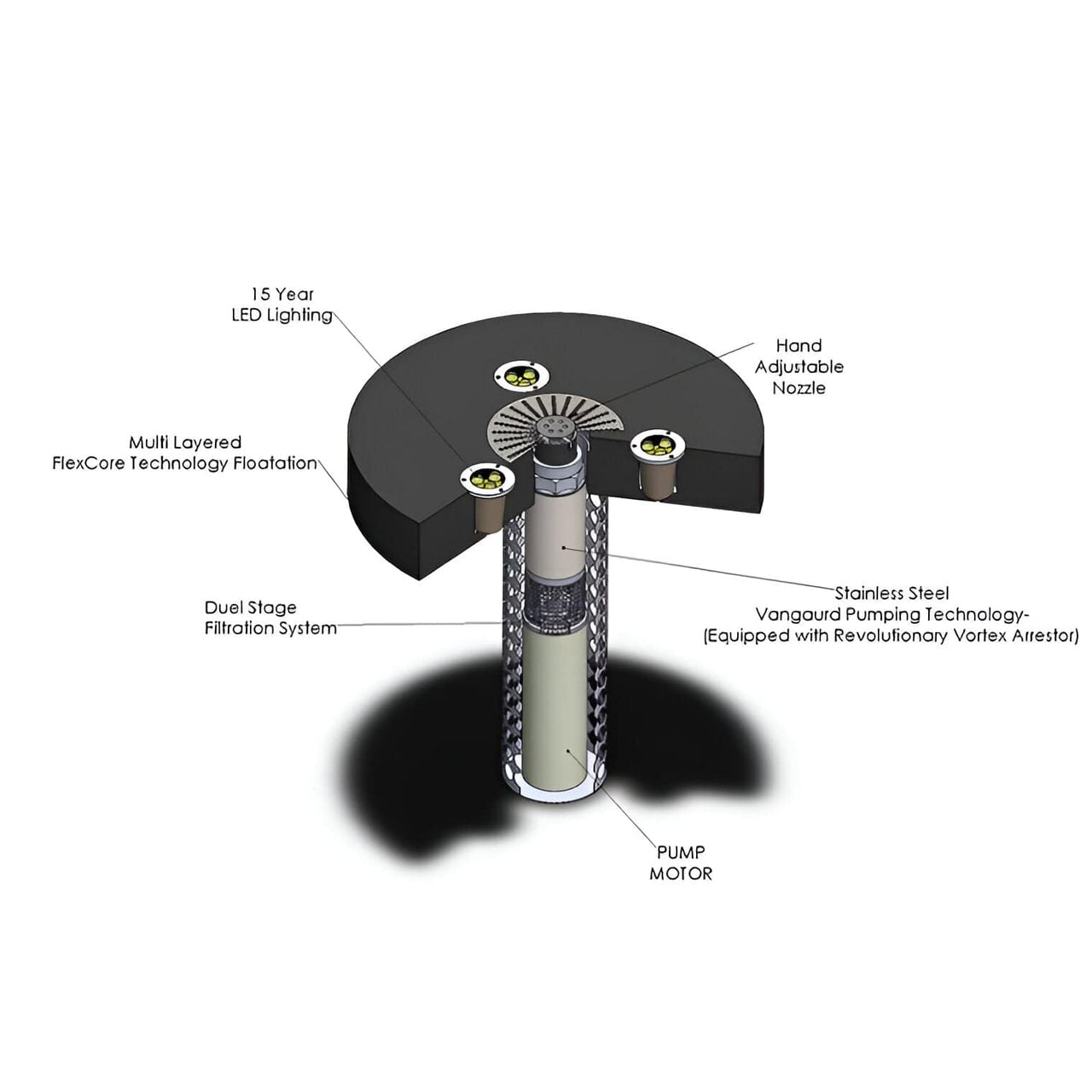

  • Marine-grade stainless steel and HDPE construction — corrosion resistant
  • Mooring ropes included for secure installation
  • Modular design for easy maintenance and nozzle changes
  • Suggested pond coverage: up to 3 acres (model-dependent)
  • Warranties per manufacturer (see Specifications)

Technical Specifications

Attribute Vanguard 2750 (this model)
Model Vanguard 2750 Fountain
Horsepower 5 HP
Voltage 230 V
Amps 26 A
Minimum Operating Depth 48 inches
Spray Patterns Included Palmetto, Kiawah, Edisto, Seabrook, Santee (5 nozzles)
Cable (Power) Length 100' included (optional 150', 200', 250')
Mooring Ropes Included (2 ropes)
Lighting 3 × 9W bright white LEDs included; optional 12W color-changing LEDs w/ remote
Suggested Pond Size Up To 3 Acres (Vanguard 2750)
Construction Marine-grade stainless steel & HDPE (high-density polyethylene)
Warranty 3-year on motor & lights (standard)

 What’s Included

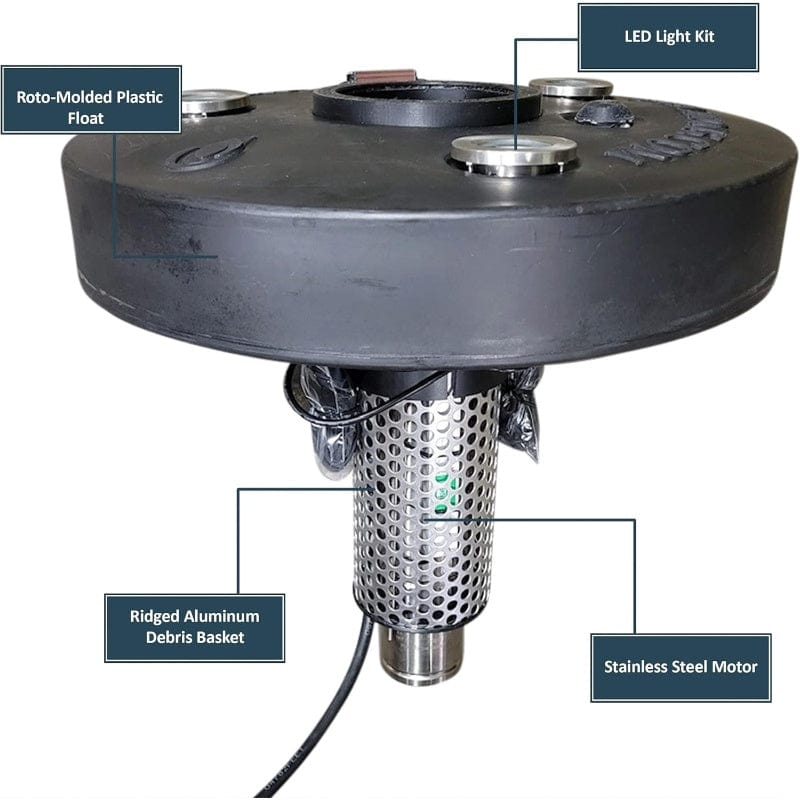

  • Motor assembly (Vanguard 2750 – 5.0 HP)
  • Float platform
  • Five spray pattern nozzles (Palmetto, Edisto, Kiawah, Seabrook, Santee)
  • Three 9W bright white LED lights (optional color-changing kit available)
  • Power control center with Intermatic timer
  • 100' power cable (longer cable lengths optional)
  • Mooring ropes
  • Manufacturer warranty (see note below)
  • Warranty note: Manufacturer literature references both a 5-year limited warranty on certain components and a 3-year warranty on motor and lights. Confirm warranty details with your sales rep or the manufacturer before purchase for exact coverage.

Optional Accessories

  • 12W color-changing LED light kit with remote control
  • Extended power cable — 150', 200', 250'
  • Replacement spray nozzles (individual patterns)
  • Floating fountain anchoring kits (if additional anchoring needed)
  • Protective shipping/transport cover
  • Winterizing kit (where applicable)

Care & maintenance

  • Regular inspection: Every 1–3 months inspect for debris buildup on intake, nozzles, and float.
  • Clean nozzles: Remove and rinse spray nozzles if spray pattern weakens or becomes uneven.
  • Electrical checks: Inspect power cord and control box for wear; ensure connections are dry and secure.
  • Winter care: In freezing climates, remove fountain and store indoors or follow seasonal winterization instructions to avoid ice damage.
  • Annual service: Have bearings, seals and motor checked annually by qualified technician for heavy-use or larger installations.
  • Lighting: Wipe lens covers clean; check LED housing seals and replace any worn gaskets.

Warranty

  • Standard: 3-year warranty on motor and integrated lights (see full warranty terms for exclusions and commercial use limitations).
  • Extended: Optional extended warranties and service plans may be offered through authorized dealers.

Frequently Asked Questions

What motor and voltage does the Vanguard 2750 use?

The Vanguard 2750 uses a 5.0 HP motor and is configured for 230V operation. Please confirm site power availability before installation.

Is the fountain ready to install out of the box?

Yes — the unit ships pre-assembled with float, motor assembly, five spray nozzles, three 9W white LED fixtures, 100' power cable, control box with Intermatic timer and mooring ropes for straightforward setup.

What cable lengths are available?

A 100' power cable is included. Optional cable lengths of 150', 200' and 250' are available — select the required length when ordering.

Can I change the lighting?

Yes — three bright white 9W LEDs come standard. An optional 12W color-changing LED kit with remote control is available for dynamic nighttime effects.

How deep does the pond need to be?

Minimum operating depth depends on model: Vanguard 275 requires ~30" minimum; Vanguard 2750 requires ~48" minimum. Use the model-specific minimum when planning installation.

What maintenance is required?

Monthly visual checks for debris, annual cleaning of LED lenses, monitoring of mooring lines and periodic inspection of the control centre. Follow manufacturer's winterizing guidance in freezing climates.

What warranty is included?

Manufacturer literature lists limited warranty coverage; some components are indicated as 5 years while motor and lights are commonly listed as 3 years. Please confirm the specific warranty terms with your sales representative or consult the manufacturer's warranty documentation for the exact coverage on the model you purchase.
