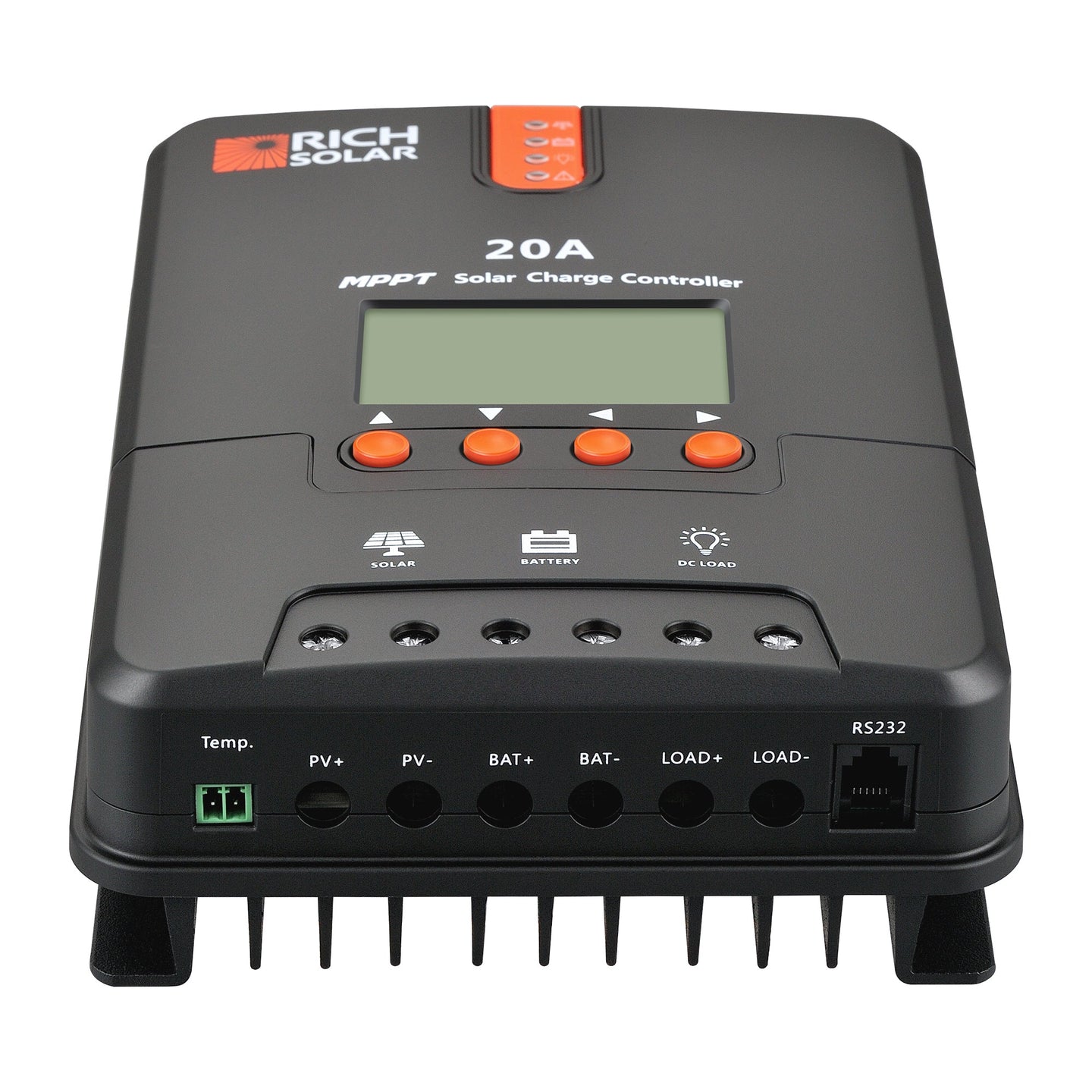

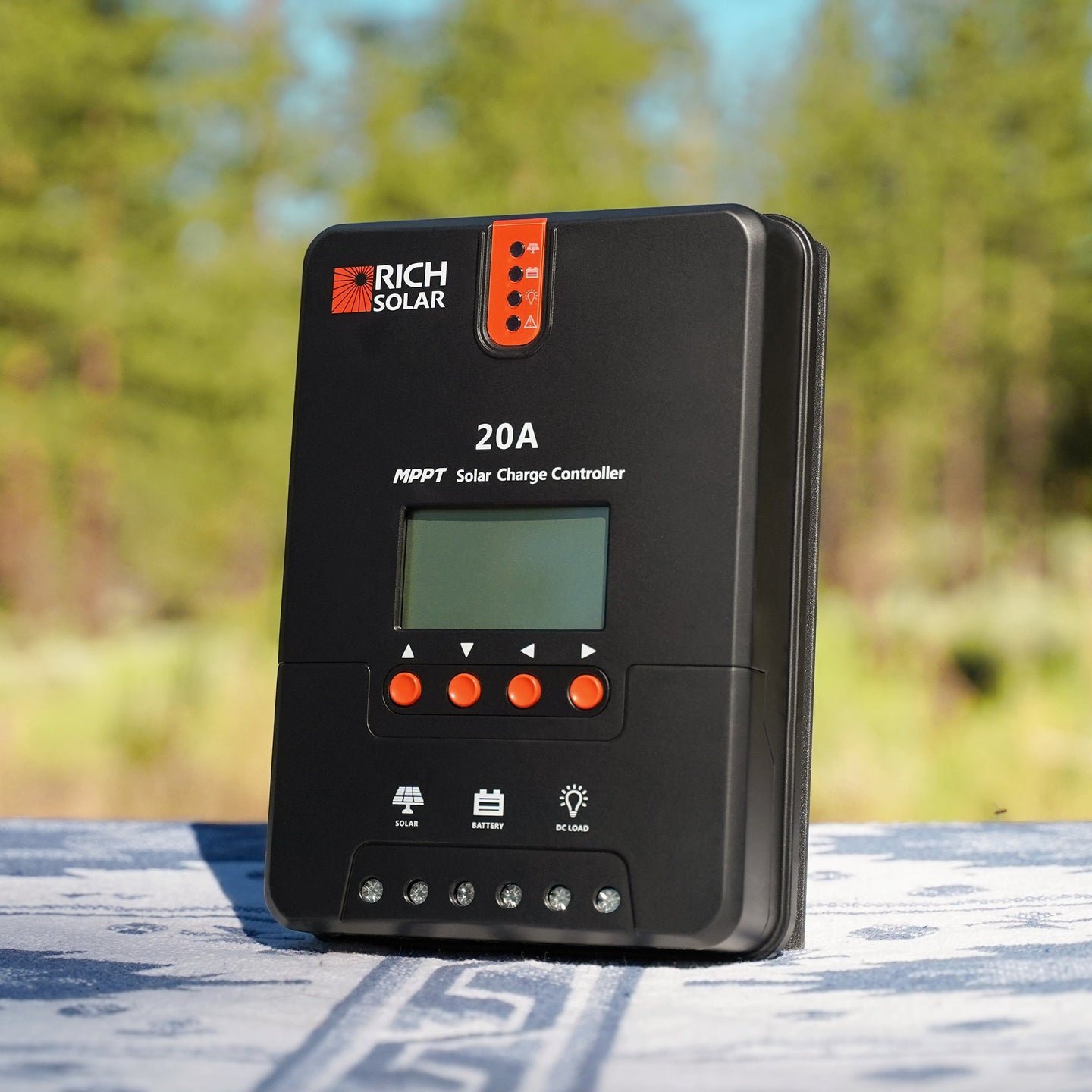

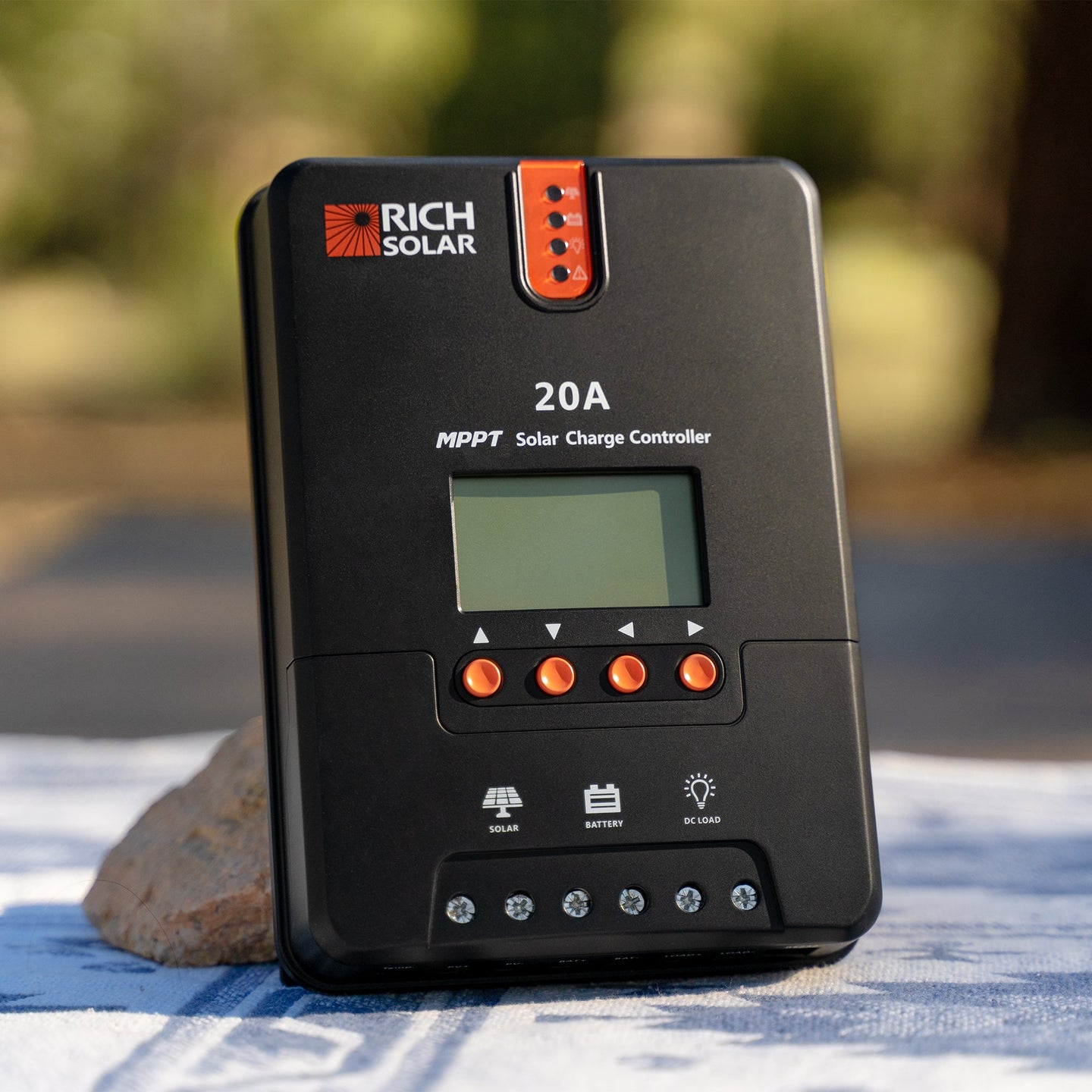

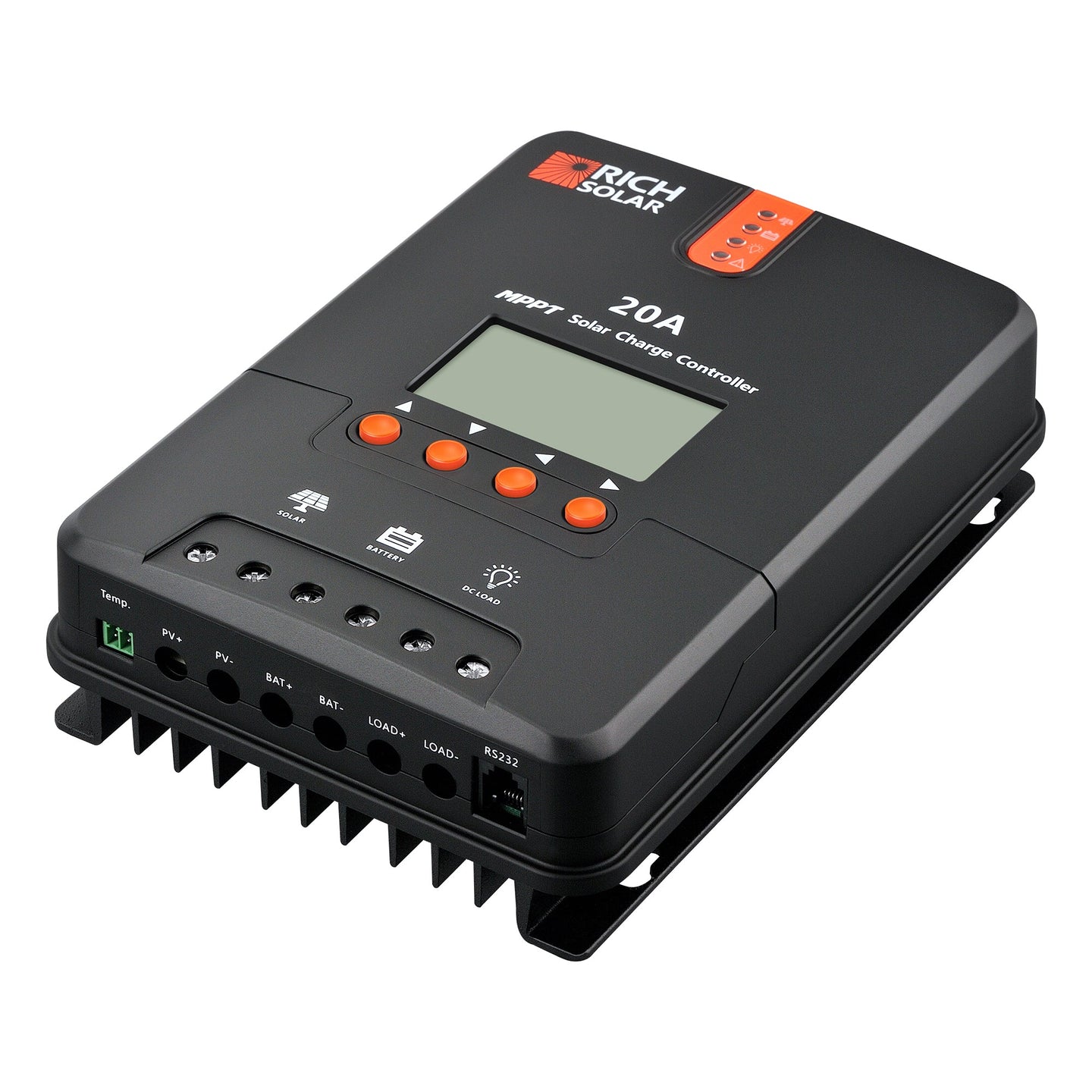

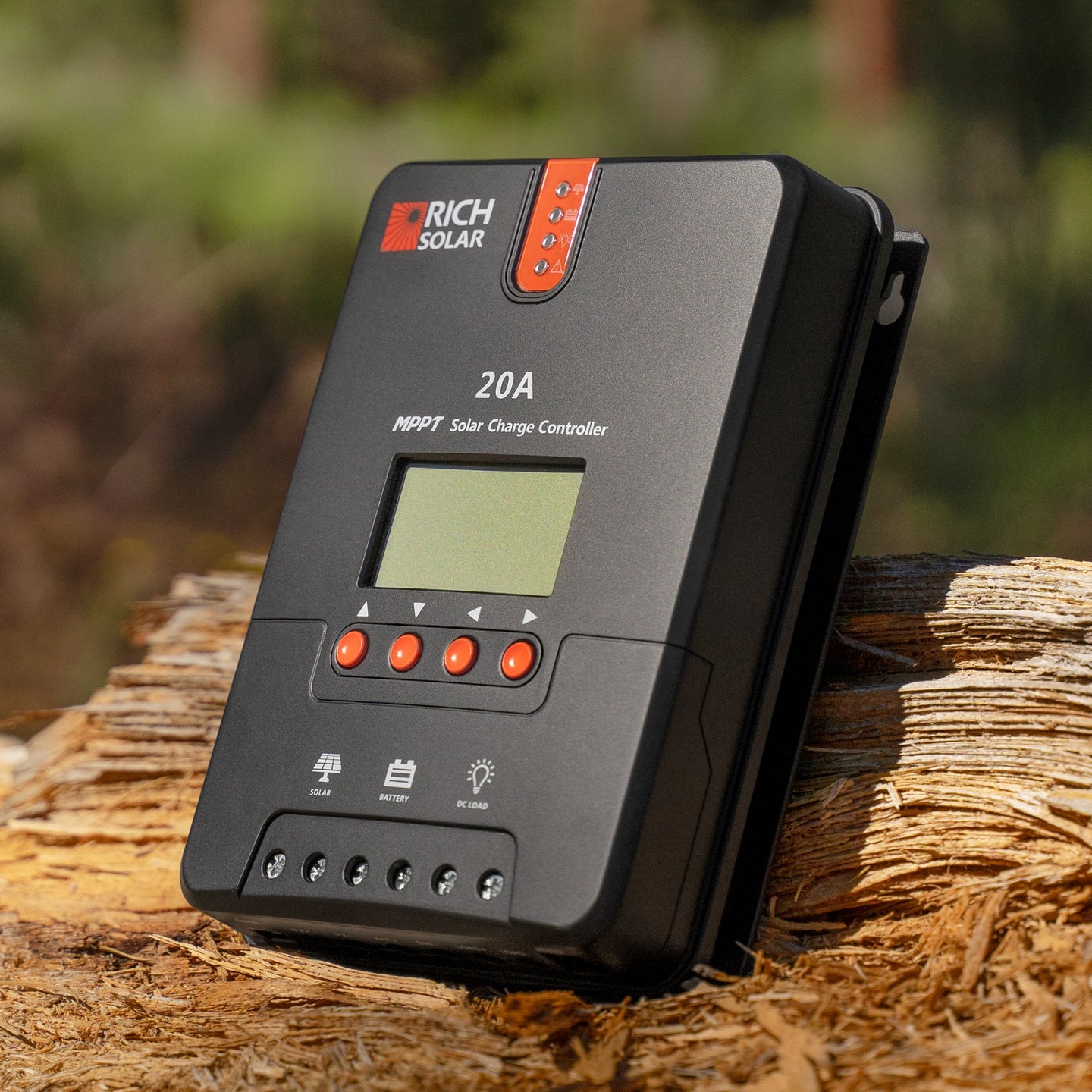

The Rich Solar Bravo 20A MPPT Charge Controller combines advanced solar charging technology with reliable protection features to maximize your off-grid system’s performance. Designed for 12V and 24V systems, this controller ensures efficient power conversion and safe charging for a wide range of battery types.

Features

  • Automatic system recognition – detects 12V or 24V DC voltages
  • Battery compatibility – works with Sealed, Gel, Flooded, and Lithium deep cycle batteries
  • Advanced MPPT technology – up to 99% tracking efficiency and 98% peak conversion efficiency
  • Comprehensive protection – safeguards against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

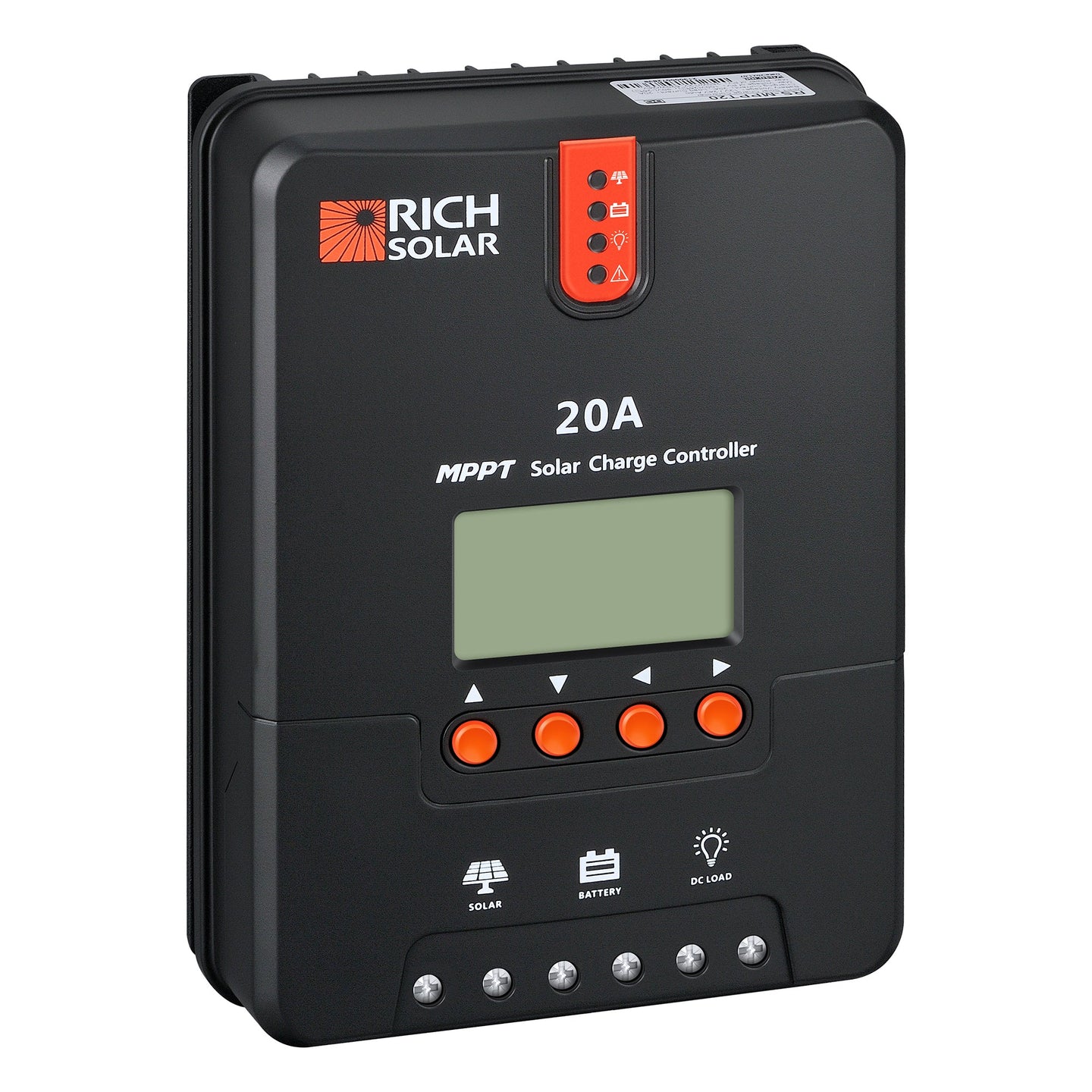

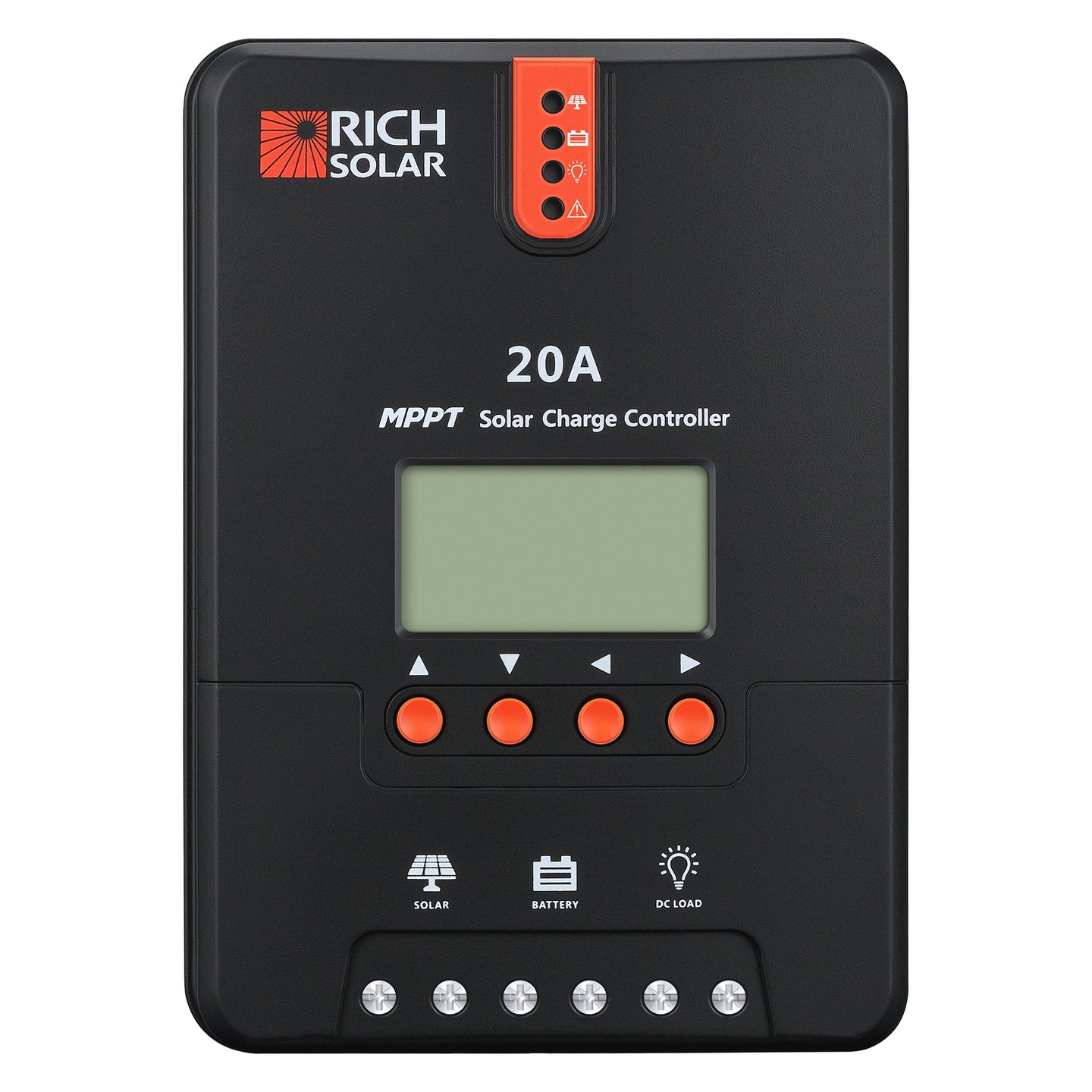

  • User-friendly display – LCD screen with multiple LED indicators for system status, customizable parameters, and error codes
  • Load control & recovery – supports diverse load functions and can recharge over-discharged lithium batteries

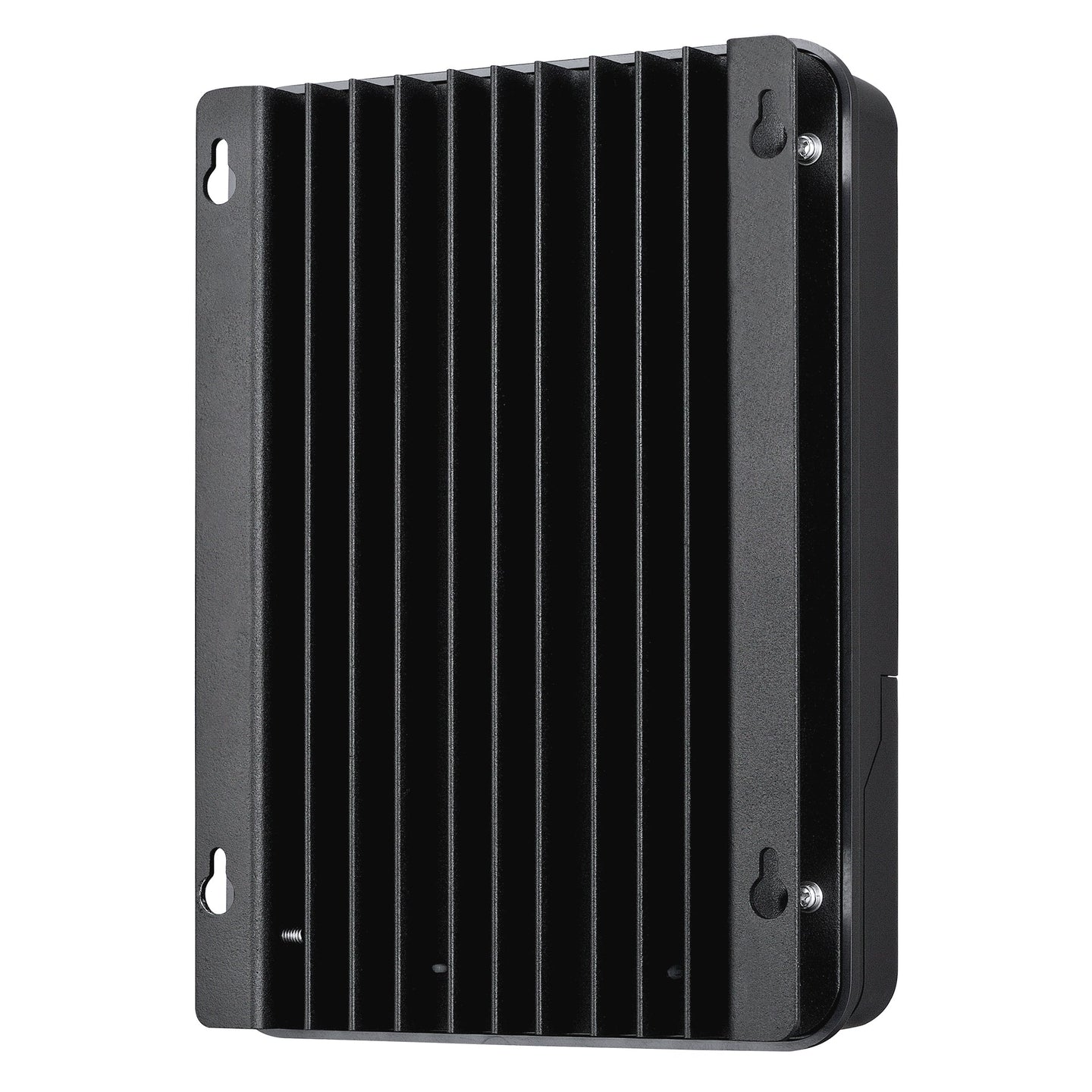

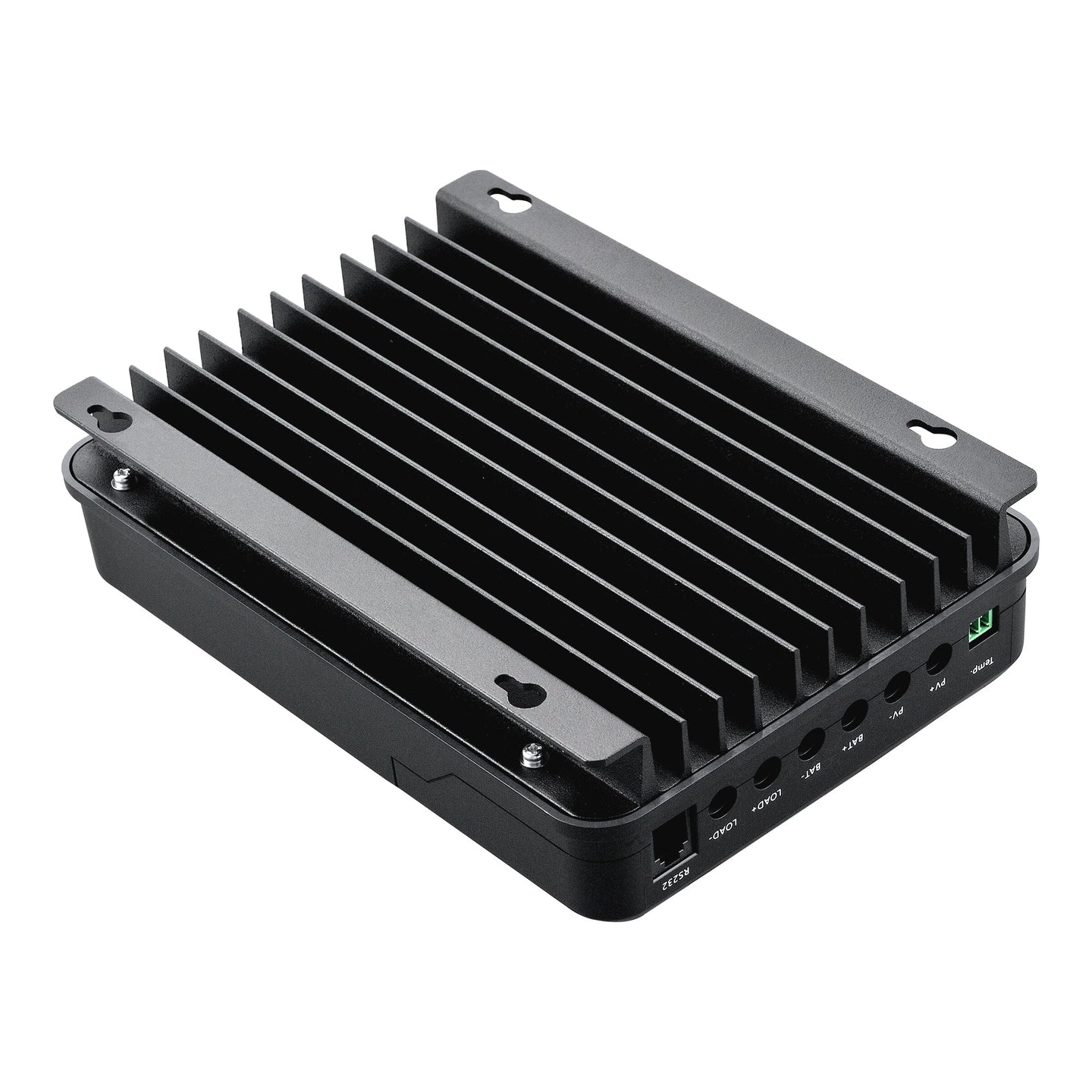

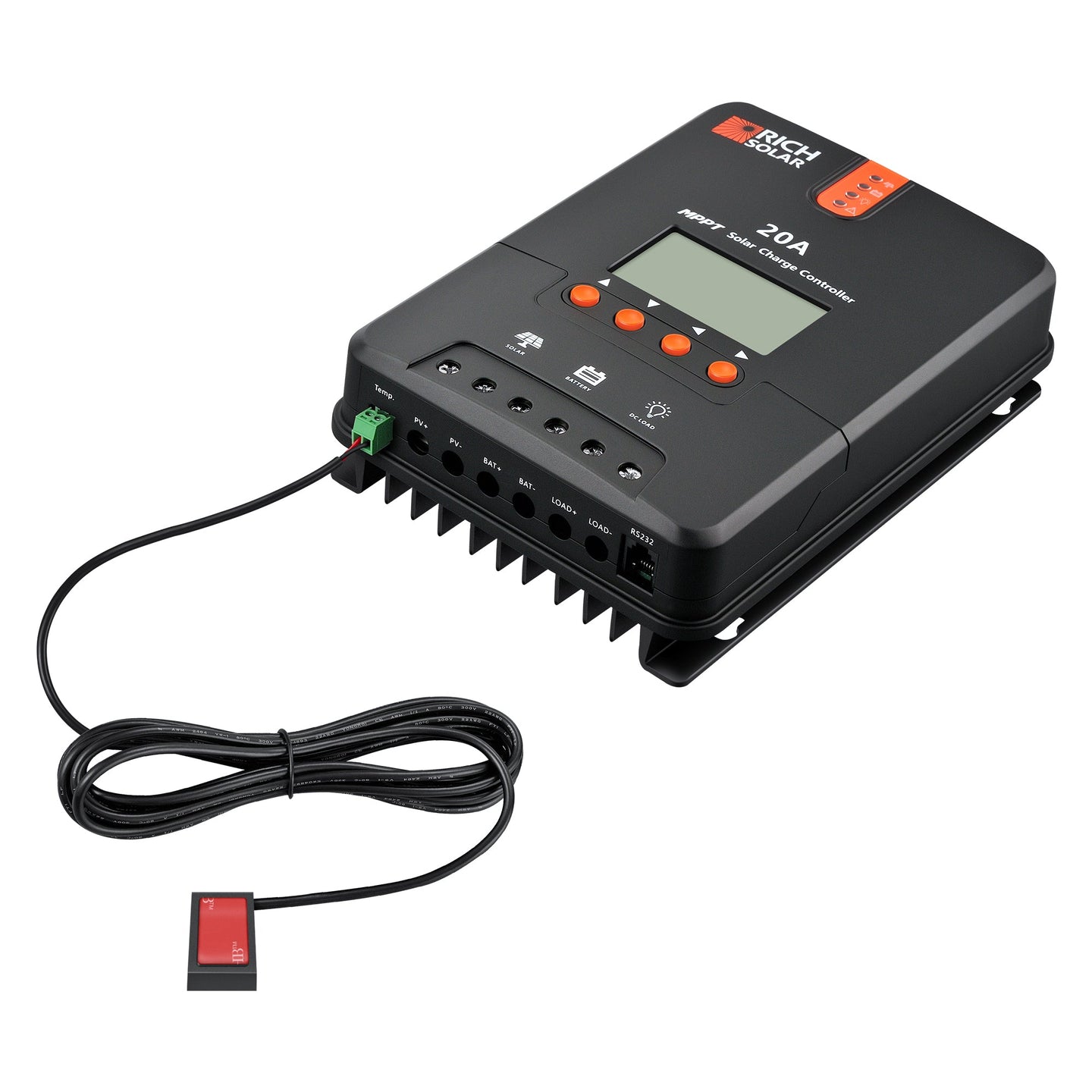

  • Durable build – die-cast aluminum design for efficient heat dissipation

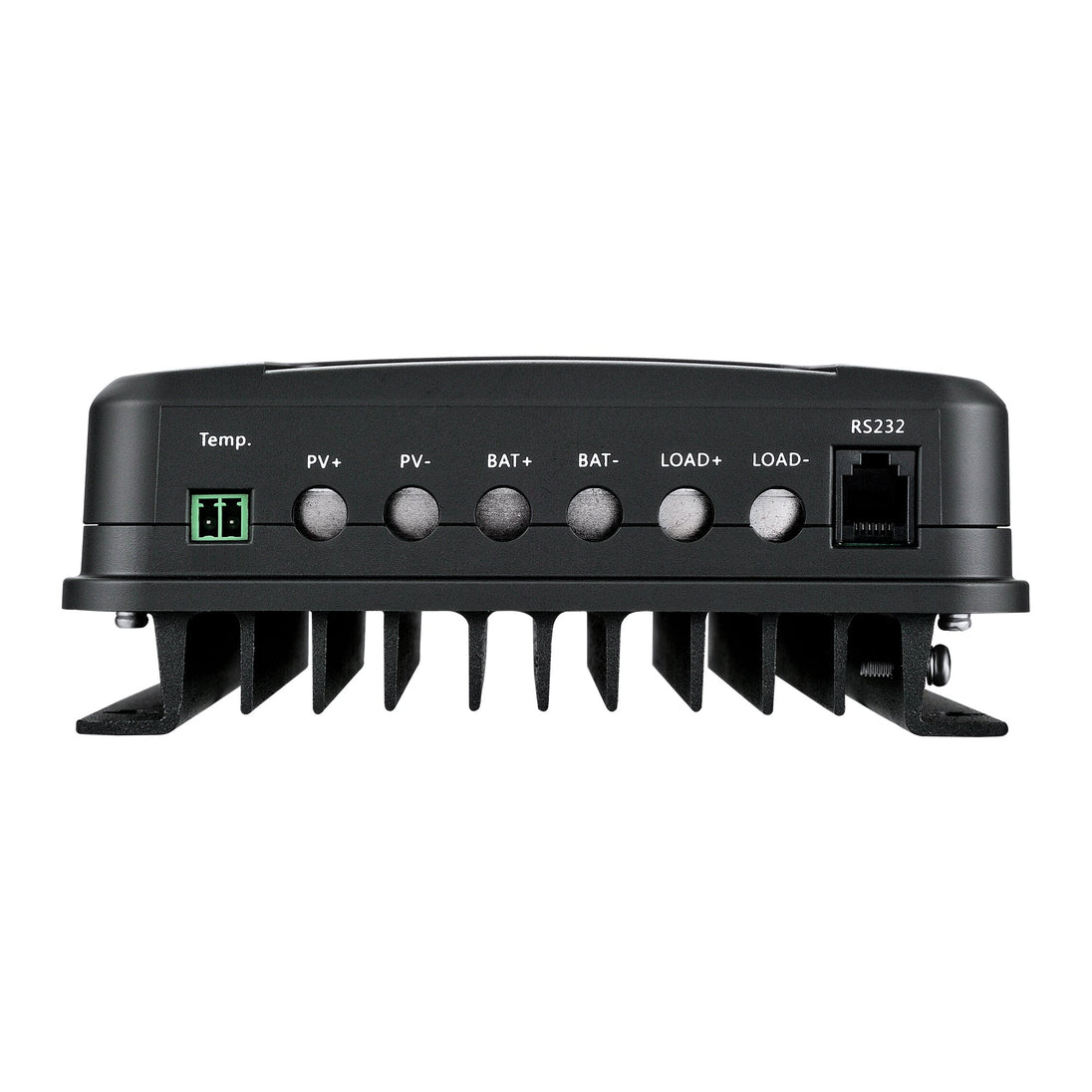

  • Communication-ready – RS232 port compatible with BT-1 Bluetooth module for remote monitoring

Specifications

  • Nominal System Voltage: 12V/24V (Auto Recognition)
  • Rated Battery Current: 20A
  • Rated Load Current: 20A
  • Max PV Input Short Current: 25A
  • Max Battery Voltage: 32V
  • Max Solar Input Voltage: 100 VDC
  • Max PV Input Power: 260W (12V), 520W (24V)
  • Conversion Efficiency: ≤98%
  • MPPT Tracking Efficiency: >99%
  • Discharge Circuit Voltage Drop: ≤0.15 V
  • Operating Temperature: -35℃ to +45℃
  • Protection Degree: IP32
  • Weight: 3.08 lb
  • Dimensions: 8.27 x 5.94 x 2.34 in
