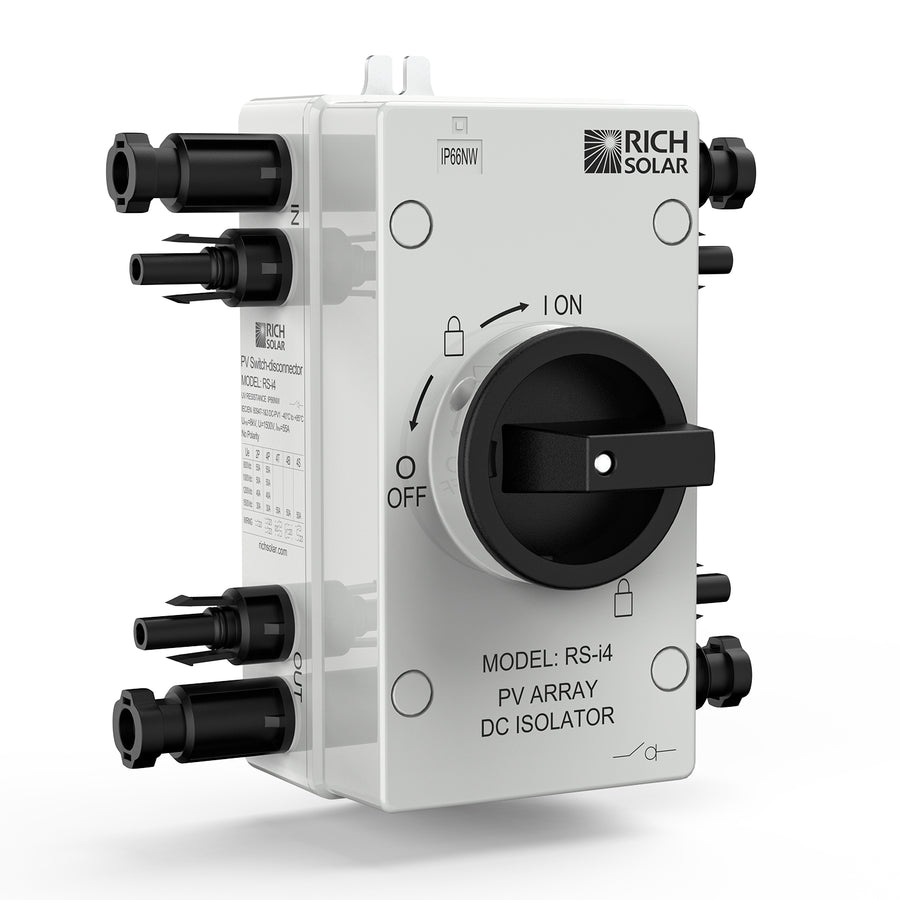

Rich Solar DC Quick Disconnect Switch (1500V, 32A, 4-Pole, 2 Strings)

The Rich Solar Solar PV DC Quick Disconnect Switch is designed for maximum safety and reliability in both on-grid and off-grid solar power systems. Engineered to handle 1500 volts and 32 amps, this 4-pole, 2-string safety switch ensures rapid disconnection of DC power to protect charge controllers, batteries, and inverters.

Built with an IP66 waterproof and non-corrosive housing, it’s ideal for outdoor installation and ensures long-lasting durability in harsh environments. The isolated SAFE-LOCK system with three rotational positions provides enhanced security against tampering, while the arc suppression technology (<3 ms) ensures safe disconnection under load.

Whether you’re installing a residential, commercial, or off-grid solar system, this quick disconnect switch makes your setup safe, compliant, and easy to maintain.

Key Features

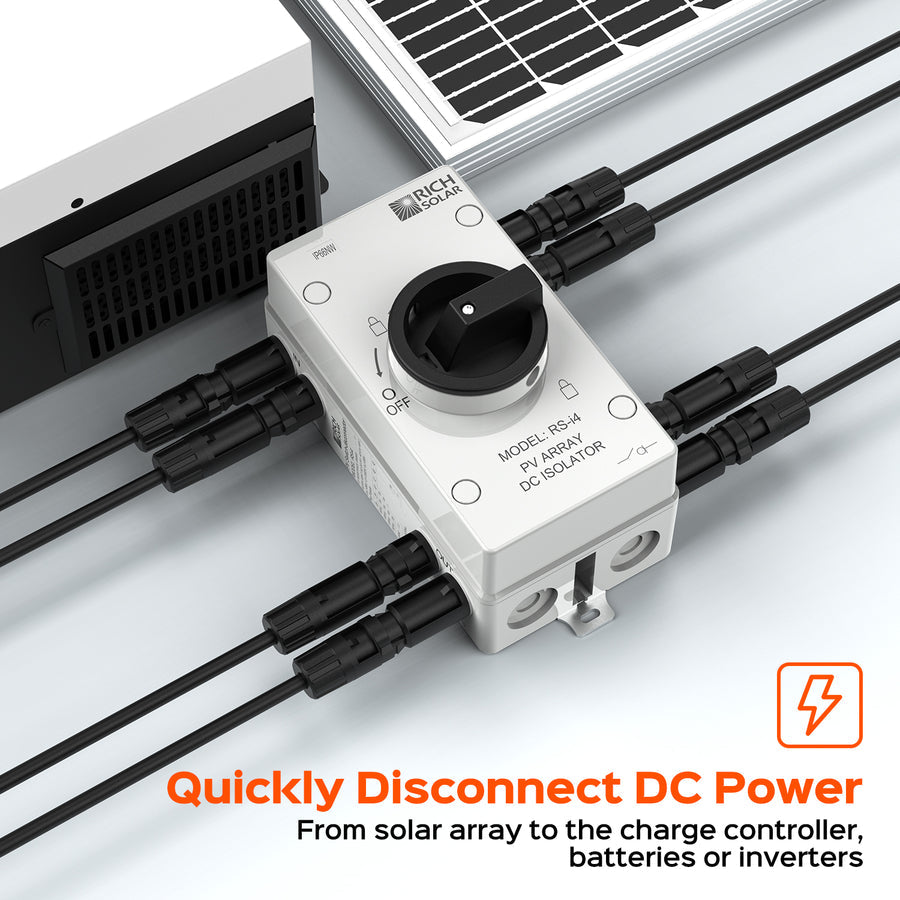

  • Rapidly disconnects DC power from solar arrays to charge controllers, batteries, or inverters

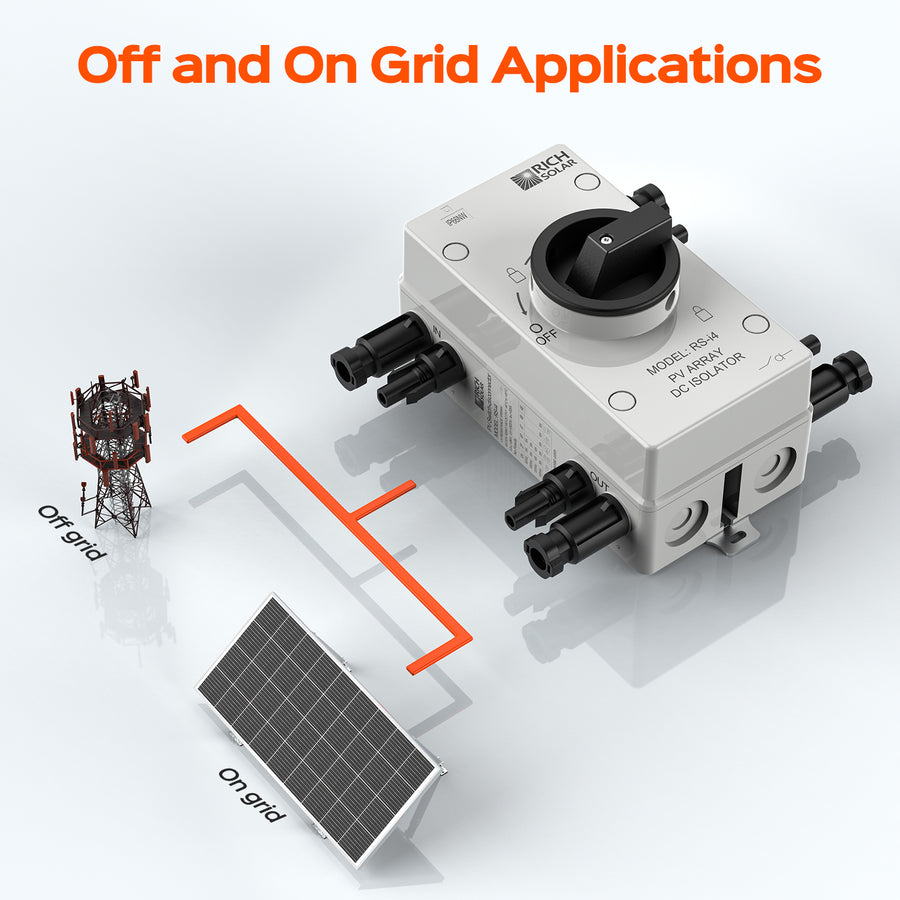

  • Suitable for on-grid and off-grid solar applications
  • Outdoor-rated, waterproof, and non-corrosive (IP66 certified)

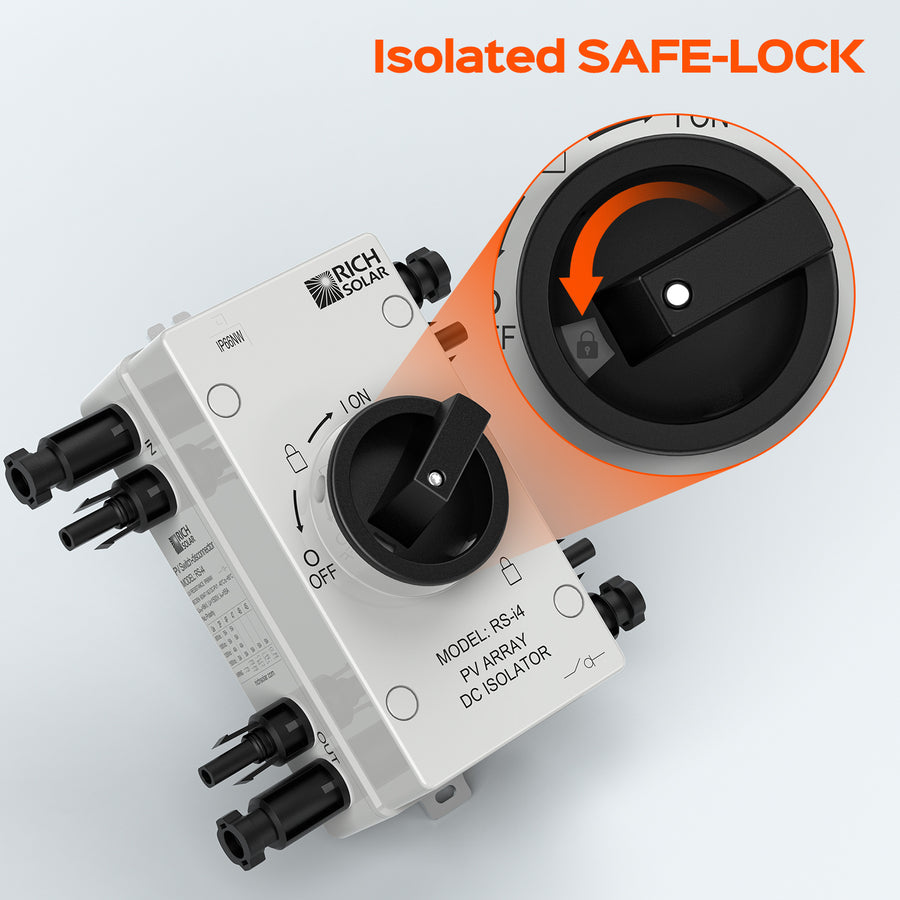

  • Isolated SAFE-LOCK system with three secure rotational positions

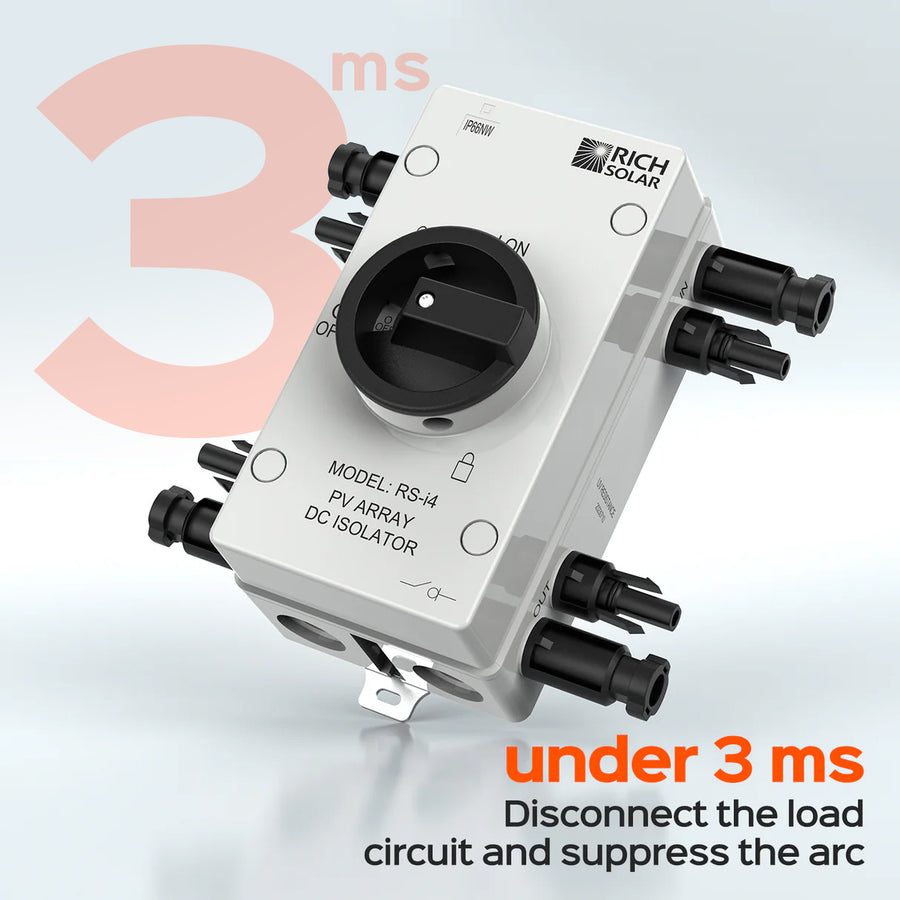

  • Arc suppression ensures safe disconnection in under 3 milliseconds
  • Lockout option for enhanced safety compliance
  • Easy input and output connections for fast installation

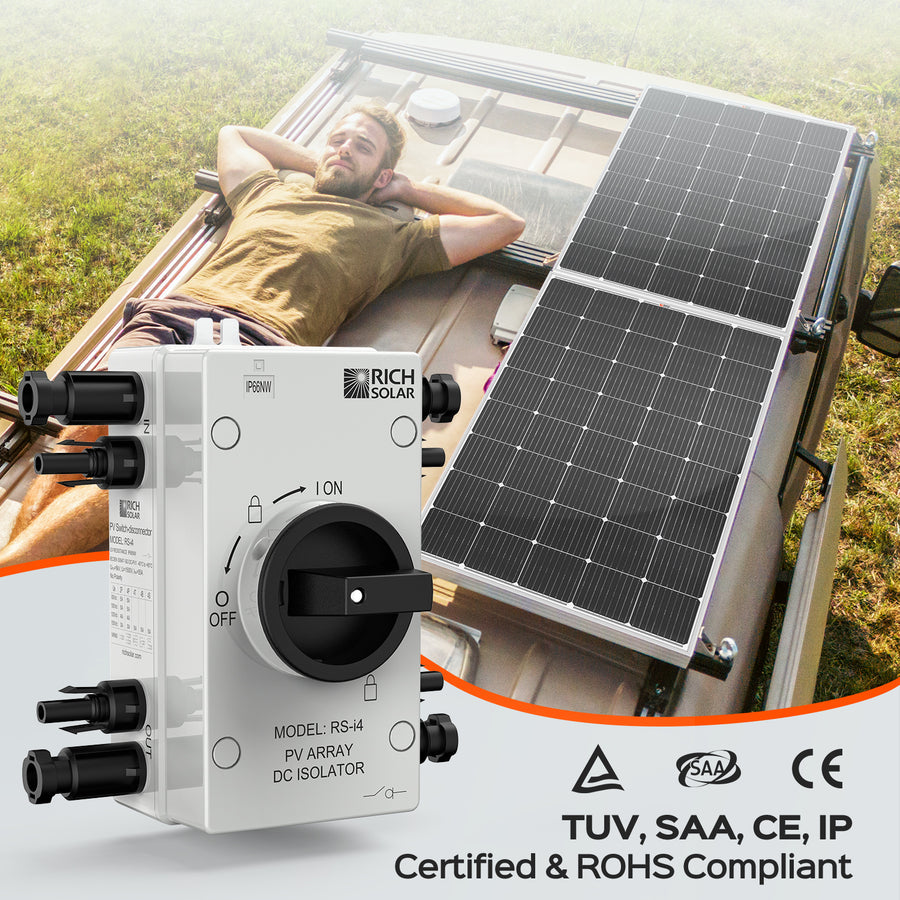

  • Certified to TÜV, SAA, CE, IP, and RoHS standards
  • Backed by a 3-year manufacturer warranty

Specifications

Specification Details
Model / SKU RS-i4
Max. Rated Current 32A
Max. Rated Voltage 1500V
Circuit Type 4-Pole, 2 Strings
Certifications TÜV, SAA, CE, IP Certified, RoHS Compliant
Material Non-Corrosive, Outdoor-Rated
Waterproof Rating IP66NW
Arc Suppression Time < 3ms
Operating Temperature -40°F to +185°F (-40°C to +85°C)

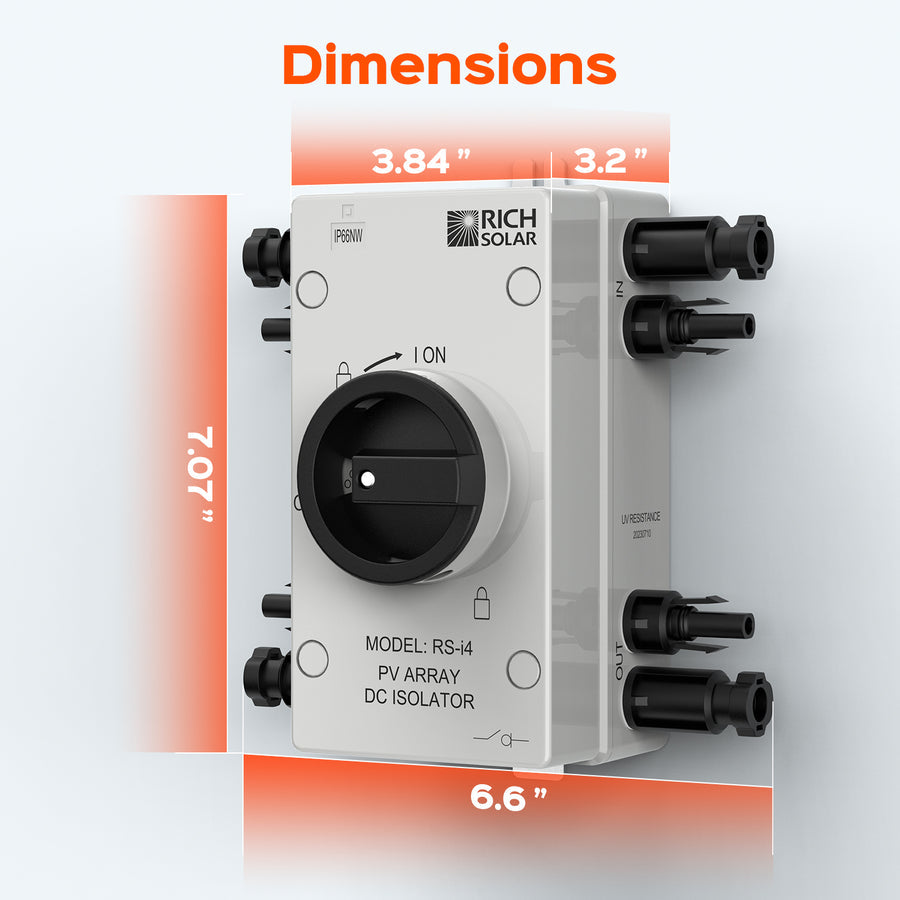

Dimensions (HxWxD) 7.1 × 6.8 × 4.3 in (179.5 × 173.9 × 110 mm)
Net Weight 1.7 lb (0.77 kg)
Warranty 3 Years
