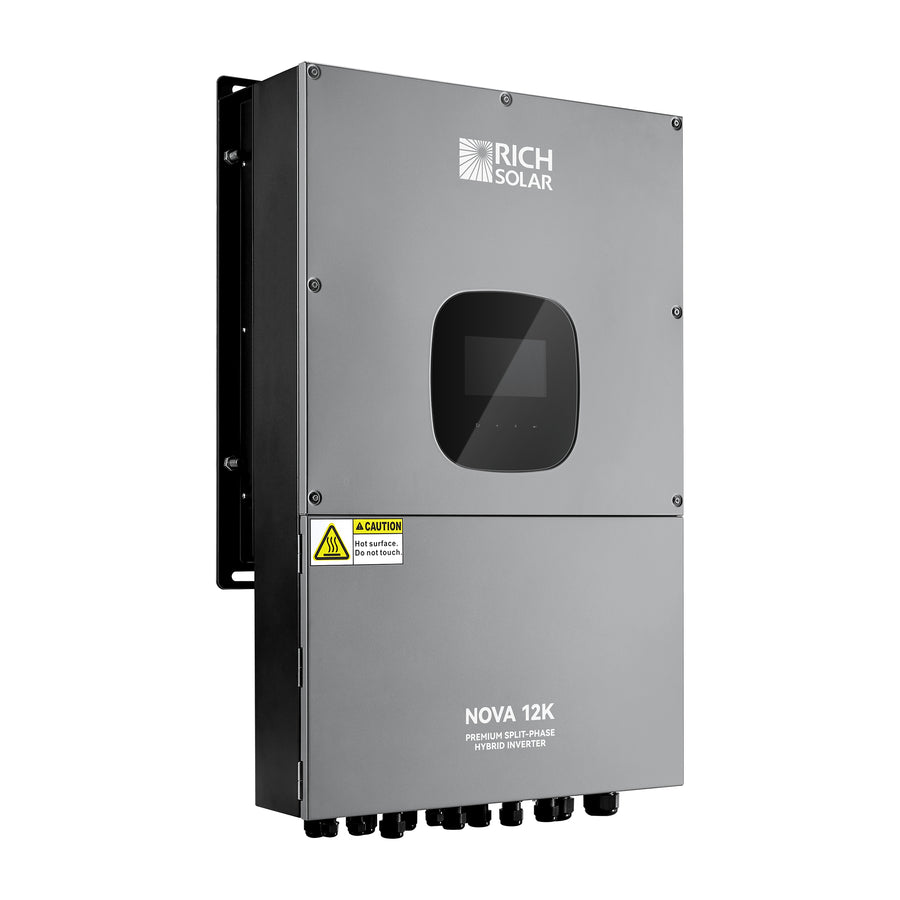

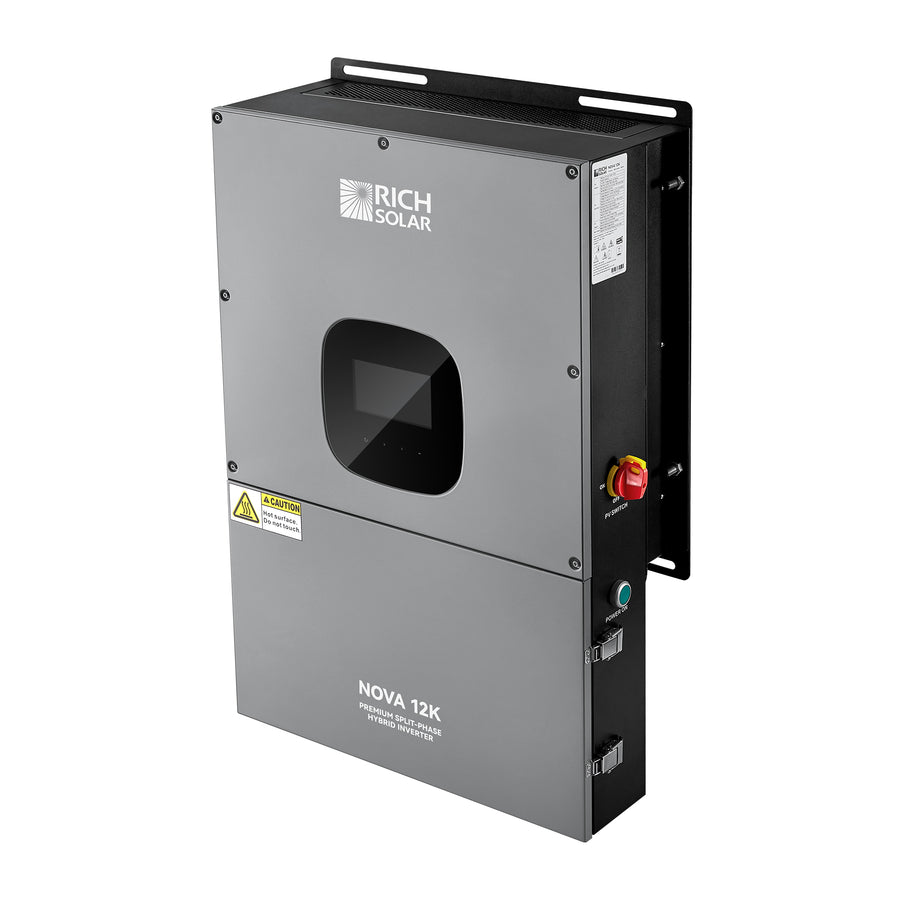

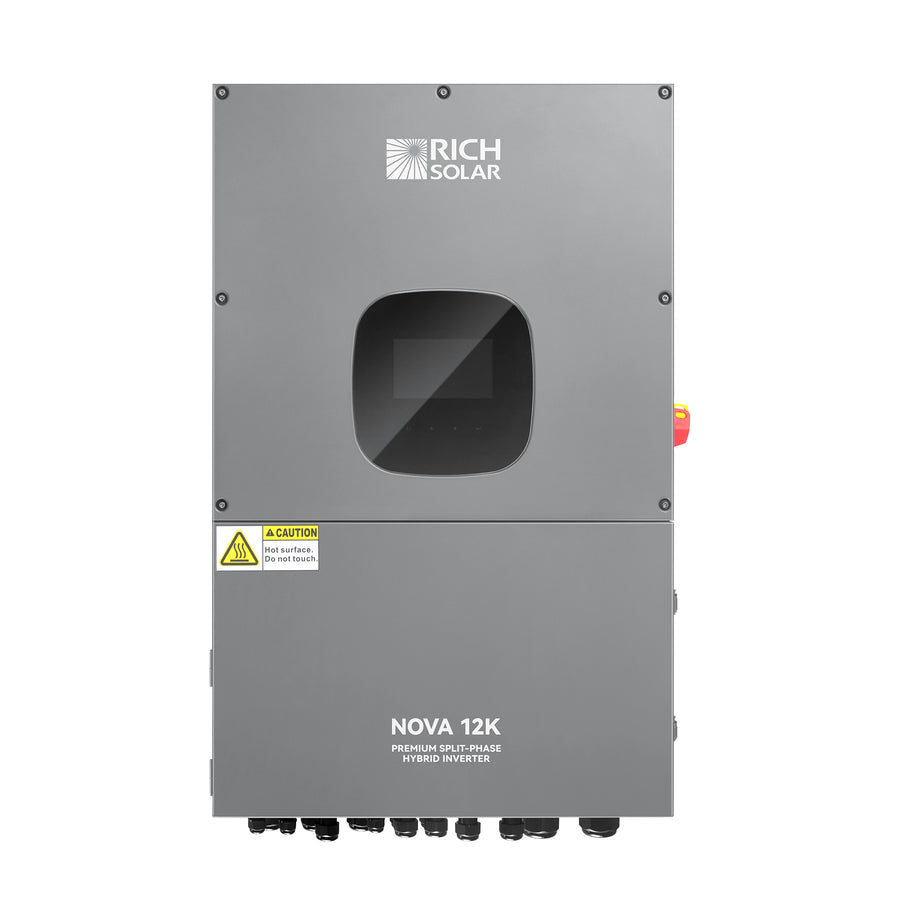

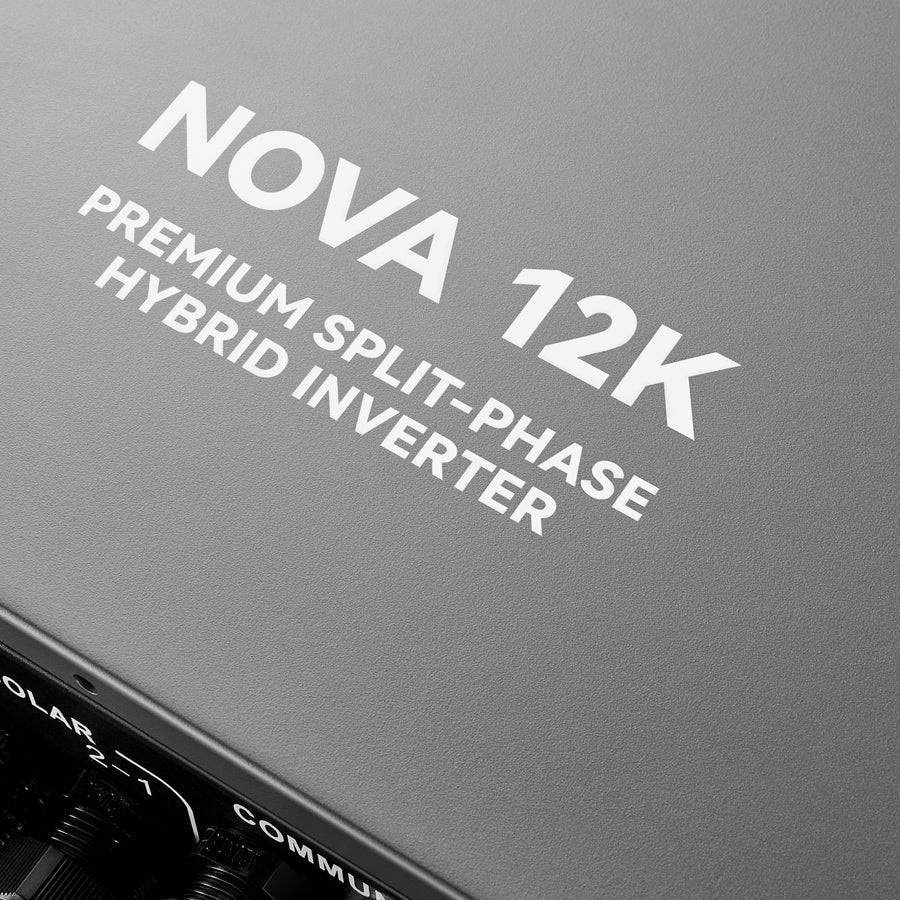

Rich Solar NOVA 12K – Premium 12000W 48V Split-Phase Hybrid Inverter

Engineered for unmatched performance, the Rich Solar NOVA 12K Hybrid Inverter delivers reliable off-grid, grid-tie, and hybrid power for cabins, ADUs, tiny homes, agriculture, and full residential systems. With a massive 12000W PV input and 10000W continuous AC output, this UL-certified inverter ensures dependable power for both small-scale and large-scale solar installations.

Designed with intelligent control, premium efficiency, and advanced safety features, the NOVA 12K offers Wi-Fi monitoring, battery compatibility (lead-acid, lithium, NiCd), and scalable parallel operation up to 6 units. The IP65-rated enclosure makes it suitable for both indoor and outdoor environments, while certifications like UL 1741SA/SB, IEEE 1547, and CSA C22.2 guarantee compliance and safety.

Whether you’re powering a remote cabin, tiny home, agricultural site, or a full residential property, the NOVA 12K provides the ultimate hybrid inverter solution with grid independence, generator support, and long-term durability.

Key Features

  • High Power Output – 12000W PV input, 10000W continuous AC output (120/240V or 120/208V split-phase).
  • Scalable System – Connect up to 6 inverters in parallel for expanded capacity.
  • Hybrid Flexibility – Supports off-grid, grid-tie, and hybrid operation.
  • Generator Ready & AC Coupling – Seamlessly integrates with backup power systems.
  • Smart Monitoring – Built-in Wi-Fi with mobile app for real-time performance tracking.
  • Battery Integration – Compatible with 48V lead-acid, lithium-ion, and NiCd batteries (200A max charge).
  • Premium Efficiency – 91% DC-to-AC efficiency with pure sine wave output.

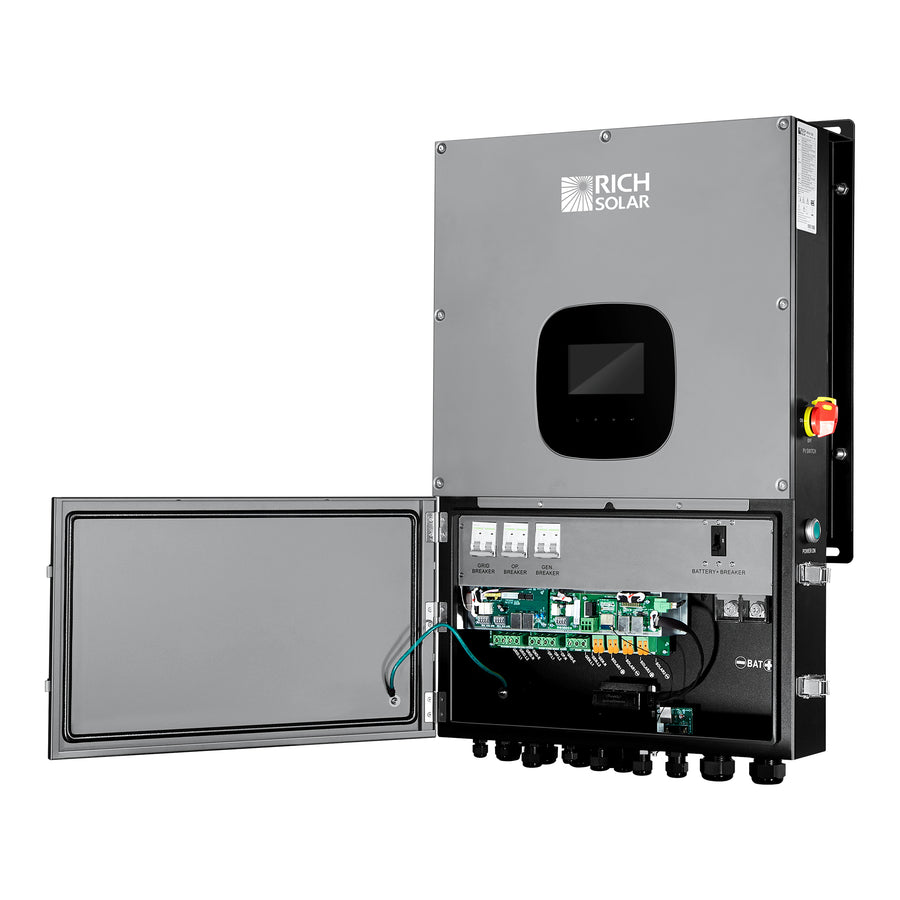

  • Advanced Safety – Integrated breakers, ground fault protection, AFD/RSD compliance, and surge protection.
  • Durable Outdoor Design – IP65-rated for harsh environments, operating from -13°F to 140°F.
  • Certified & Reliable – UL 1741SA/SB, CSA, IEEE 1547, CEC-listed, FCC compliant.

Specifications

Category Specification
Model NOVA 12K
Weight 112 lb / 51 kg

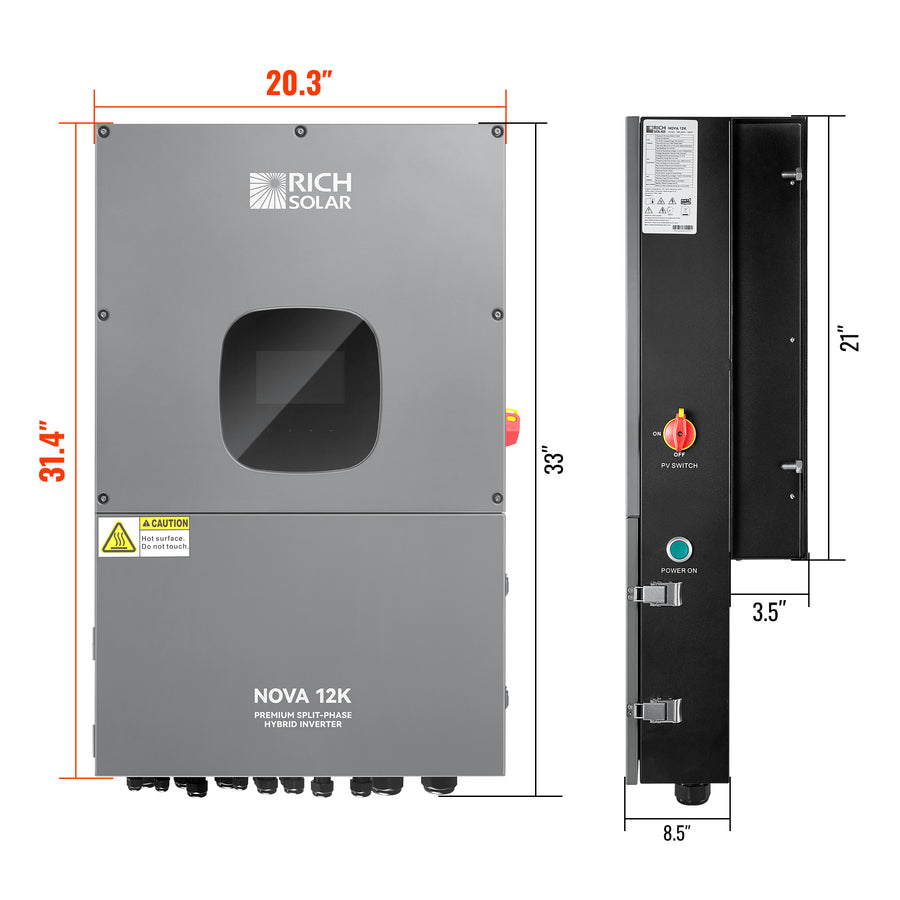

Dimensions 8.5 x 20.3 x 28.1 in (215 x 516 x 714 mm)
Max PV Input Power 12000W
PV Voltage Range 120–550VDC
Startup Voltage 125V
MPPT Inputs Dual (2x 18A, 30A peak)
Rated AC Output Power 10000W
AC Output Voltage 120/208/240V Split-Phase
AC Output Current 41.7A per phase
Power Factor 0.9 lead to 0.9 lag
Battery Voltage 48VDC (40–62V range)
Max Charging Current 200A
Battery Compatibility Lead-acid, Lithium, NiCd
Parallel Capability Up to 6 units
Enclosure Rating IP65 (indoor/outdoor)
Operating Temperature -13°F to 140°F (-25°C to 60°C)
Certifications UL 1741SA/SB, CSA C22.2, IEEE 1547, CEC-listed, FCC Part 15 Class B
Compliance CA Rule 21, HECO Rule 14H
