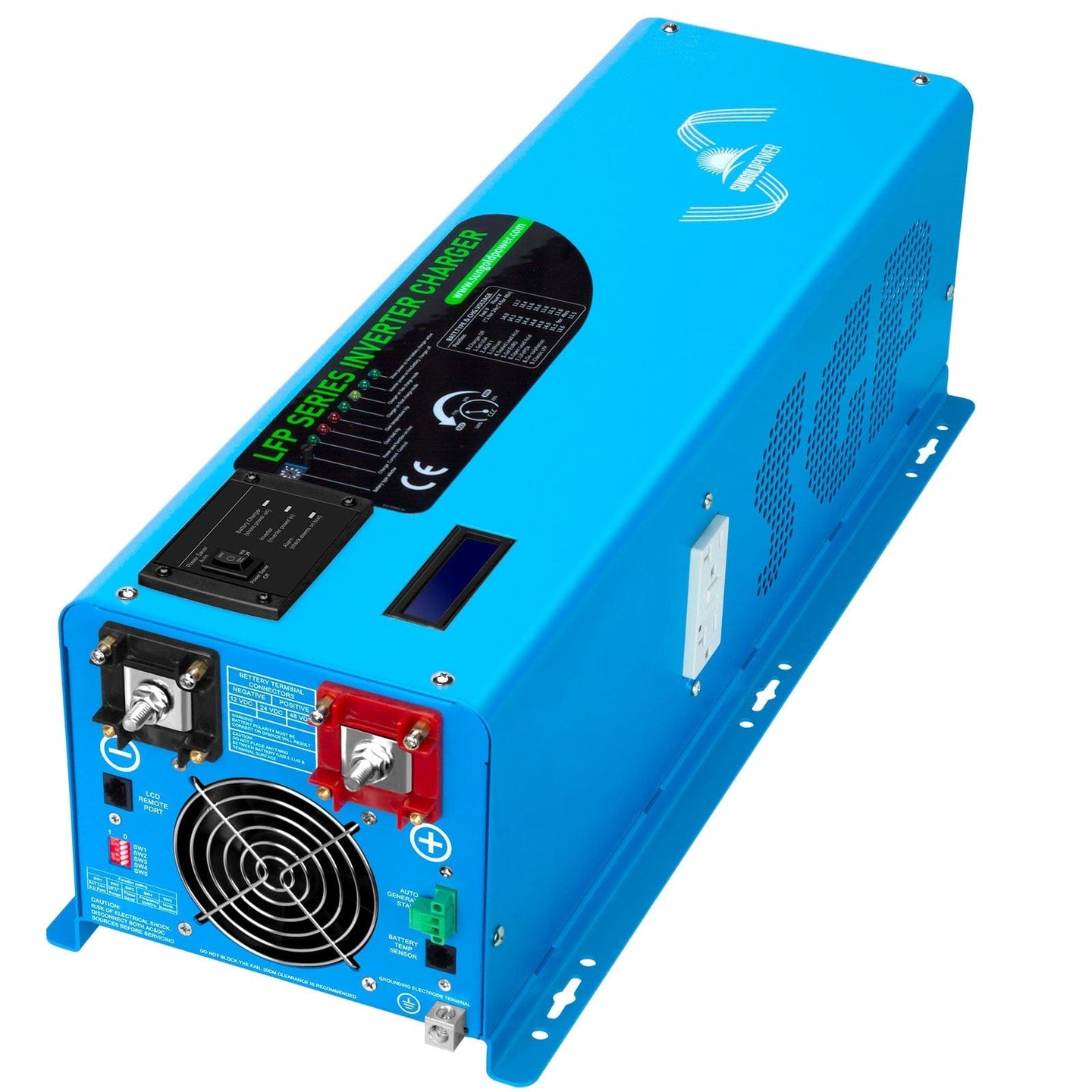

SunGold Power 6000W 24V Split Phase Pure Sine Inverter Charger – Low Frequency, Off-Grid

The SunGold Power 6000W 24V Low Frequency Split Phase Inverter Charger is a heavy-duty off-grid power solution for homes, cabins, RVs, trailers, and small businesses. Designed for 24V battery banks, it delivers split-phase 120/240V AC output, can handle surges up to 18,000W, and includes a built-in 60A AC charger plus an 80A automatic transfer switch.

Like the 48V version, this inverter is strictly off-grid and requires an external solar charge controller if used with solar panels.

Key Features

• Three-in-one unit – inverter, 60A AC charger, and 80A transfer switch

• Split-phase 120/240V output – powers household and light commercial loads

• 6000W continuous / 18,000W surge (20s) – runs appliances & tools, supports 6 HP motors

• AC charger with adjustable current – 0–100% selectable

• 9 battery type settings – compatible with LiFePO₄, lithium, AGM, gel, flooded, and custom

• Multi-stage smart charging (3-step, 60A) – ensures safe battery performance

• LCD display & remote control – easy monitoring and setup

• Automatic Generator Start (AGS) ready

• Low idle consumption – 30W (power saver on), 81W (power saver off)

• Fast transfer time – ~10 ms ensures seamless load transition

Specifications

• Continuous Output Power: 6000W

• Surge Power: 18,000W (20s)

• Battery Voltage: 24V DC

• AC Output: 120V & 240V split phase

• AC Input Voltage: 240V

• Efficiency: >88%

• Charger Current: 60A

• Transfer Time: ~10 ms

• Idle Consumption: 30W (saver on), 81W (saver off)

• Unit Size: 25.6 × 9.1 × 7.5 in

• Weight: 76.7 lbs (85.5 lbs shipping)

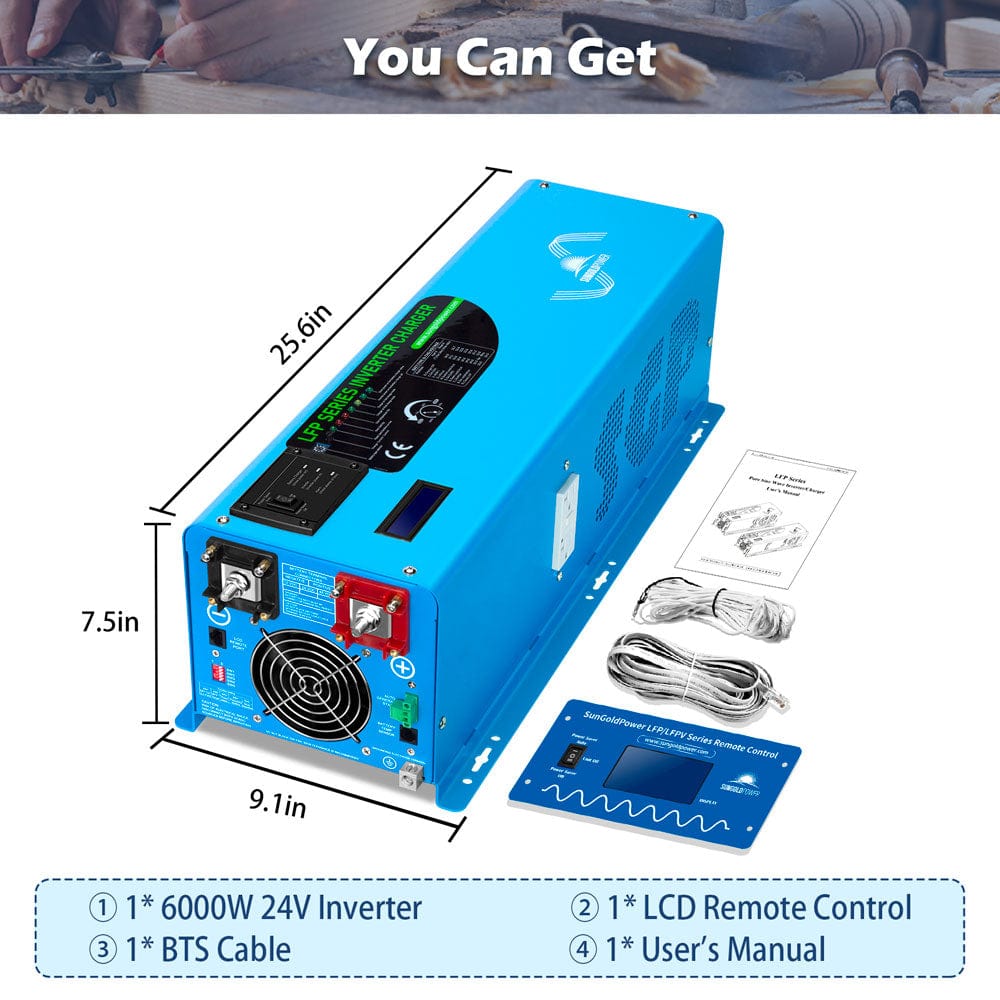

What’s Included

• SunGold Power 6000W 24V Split Phase Inverter Charger

• Remote Control

• Battery Temperature Sensor (BTS) Cable

• English Manual

Warranty

• 12–36 month limited warranty (depending on product line)

• 30-day return policy – Sungold covers shipping if defective, damaged, or incorrect

• Warranty limited to the original purchaser; excludes misuse or unauthorized modification

FAQ

Is this grid-tie capable?
No – it is a pure sine off-grid inverter.

Can multiple units be paralleled?
No – this model does not support parallel connection.

Can solar panels connect directly?
No – you’ll need an external solar charge controller to use with PV.

User Manual

📑 Download the SunGold Power LFP Series Pure Sine Inverter/Charger User Manual (PDF)

⚡ The SunGold Power 6000W 24V Split Phase Inverter Charger is an ideal backbone for 24V off-grid systems, offering reliable AC power, high surge handling, and integrated AC charging in one rugged package.
