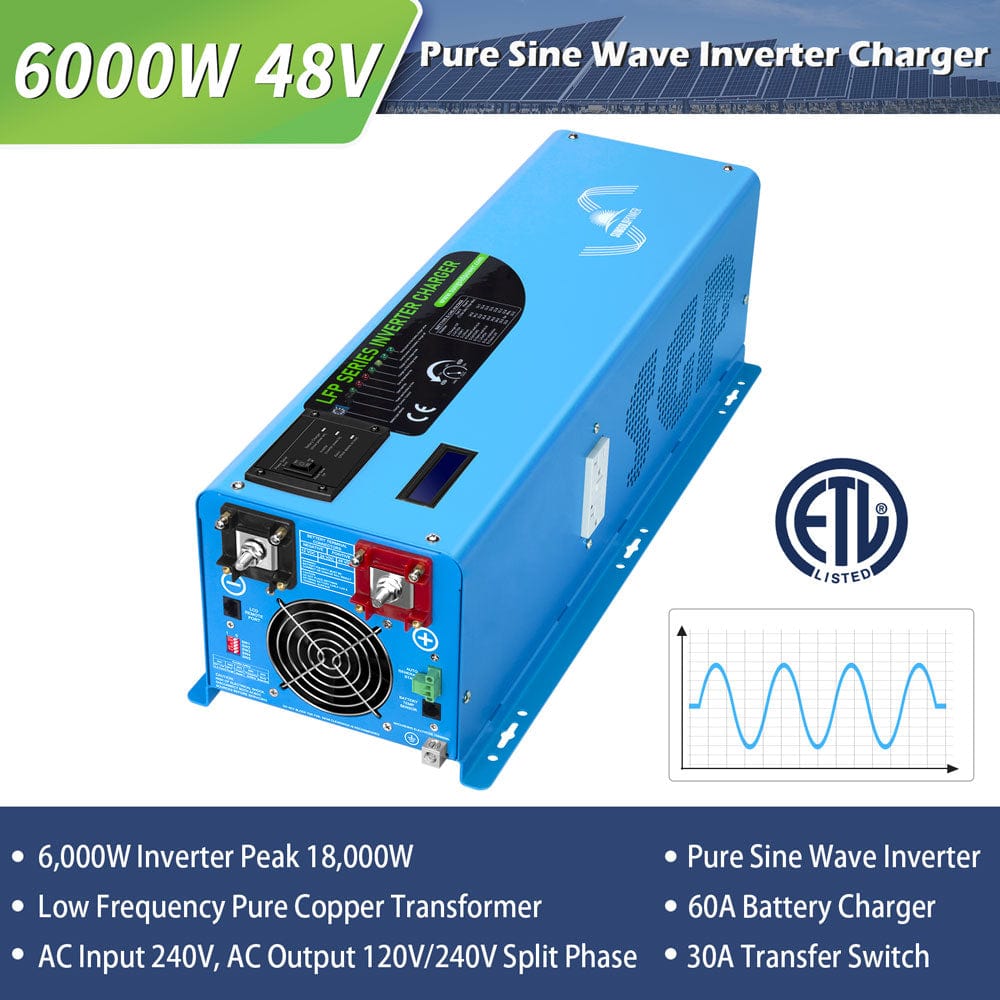

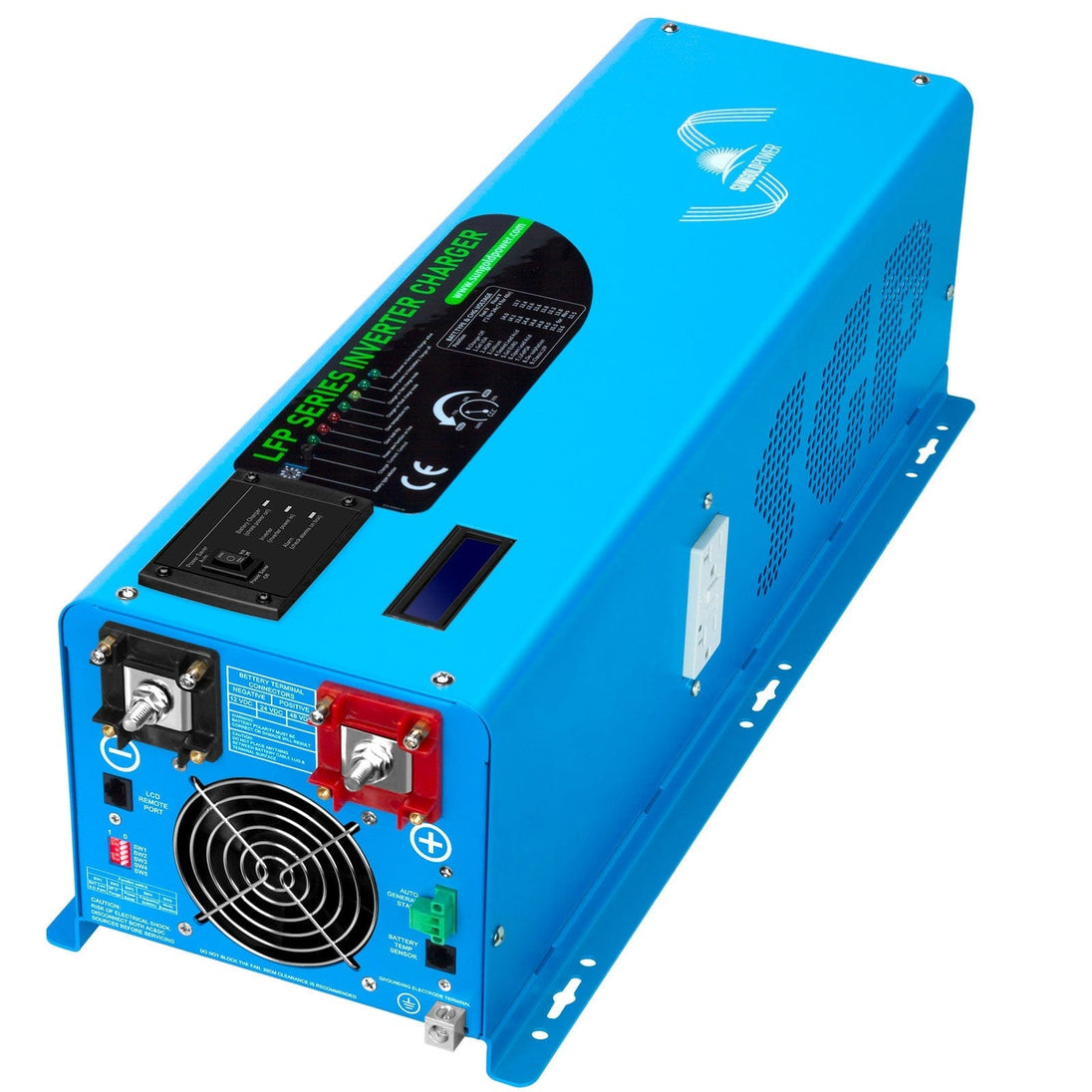

SunGold Power 6000W 48V Split Phase Pure Sine Inverter Charger – Low Frequency, Off-Grid

The SunGold Power 6000W 48V Low Frequency Split Phase Inverter Charger is a robust off-grid solution for powering homes, RVs, trailers, cabins, and small businesses. It delivers split-phase 120/240V AC output, handles heavy surge loads up to 18,000W, and includes a 60A AC charger with an integrated transfer switch for seamless switching between battery and shore/generator power.

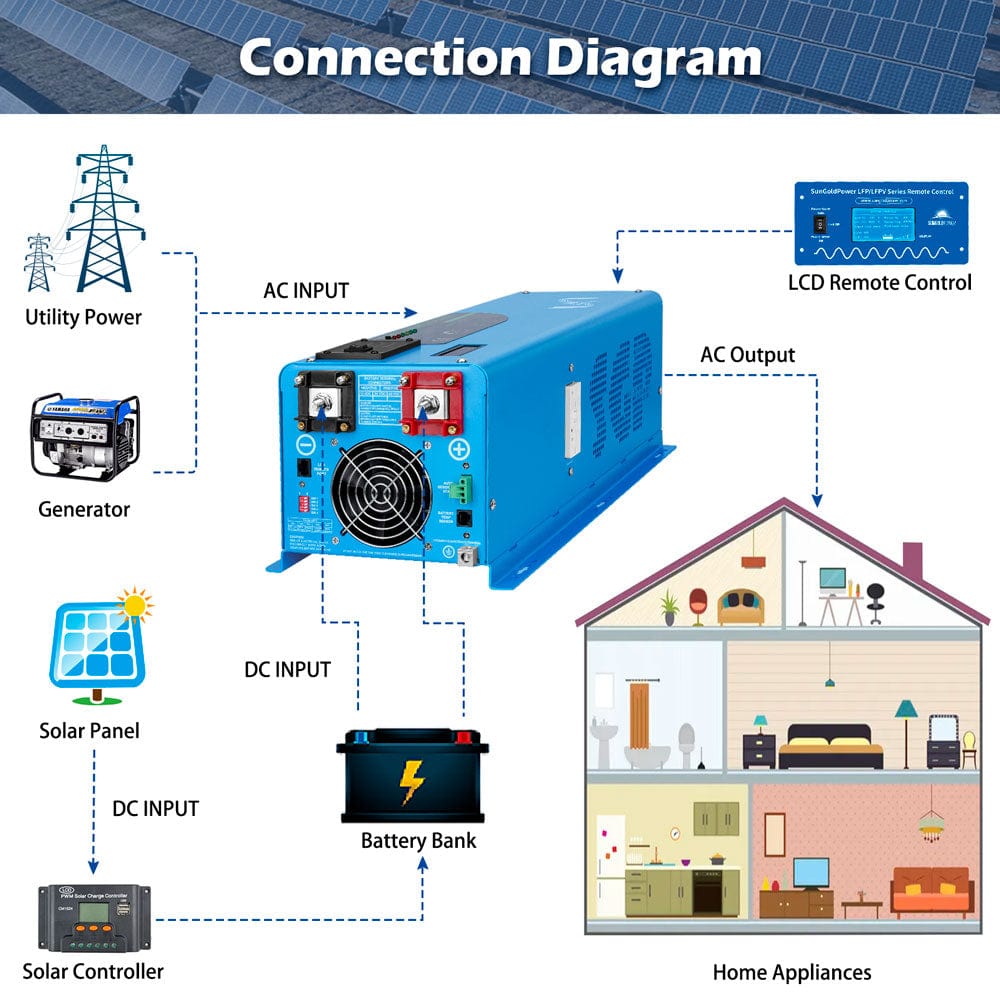

This model is part of SunGold’s LFP Series and requires an external solar charge controller for PV integration.

Key Features

• Three-in-one system – inverter, 60A charger, and 80A transfer switch

• Split-phase 120/240V output – supports residential and light commercial loads

• 6000W continuous / 18,000W surge (20s) – runs large appliances and motors (up to 6 HP)

• AC charger with adjustable current – selectable 0–100% charging rate

• 9 battery type settings – compatible with LiFePO₄, lithium, AGM, gel, flooded, and custom setups

• Multi-stage 4-step smart charging – ensures battery longevity

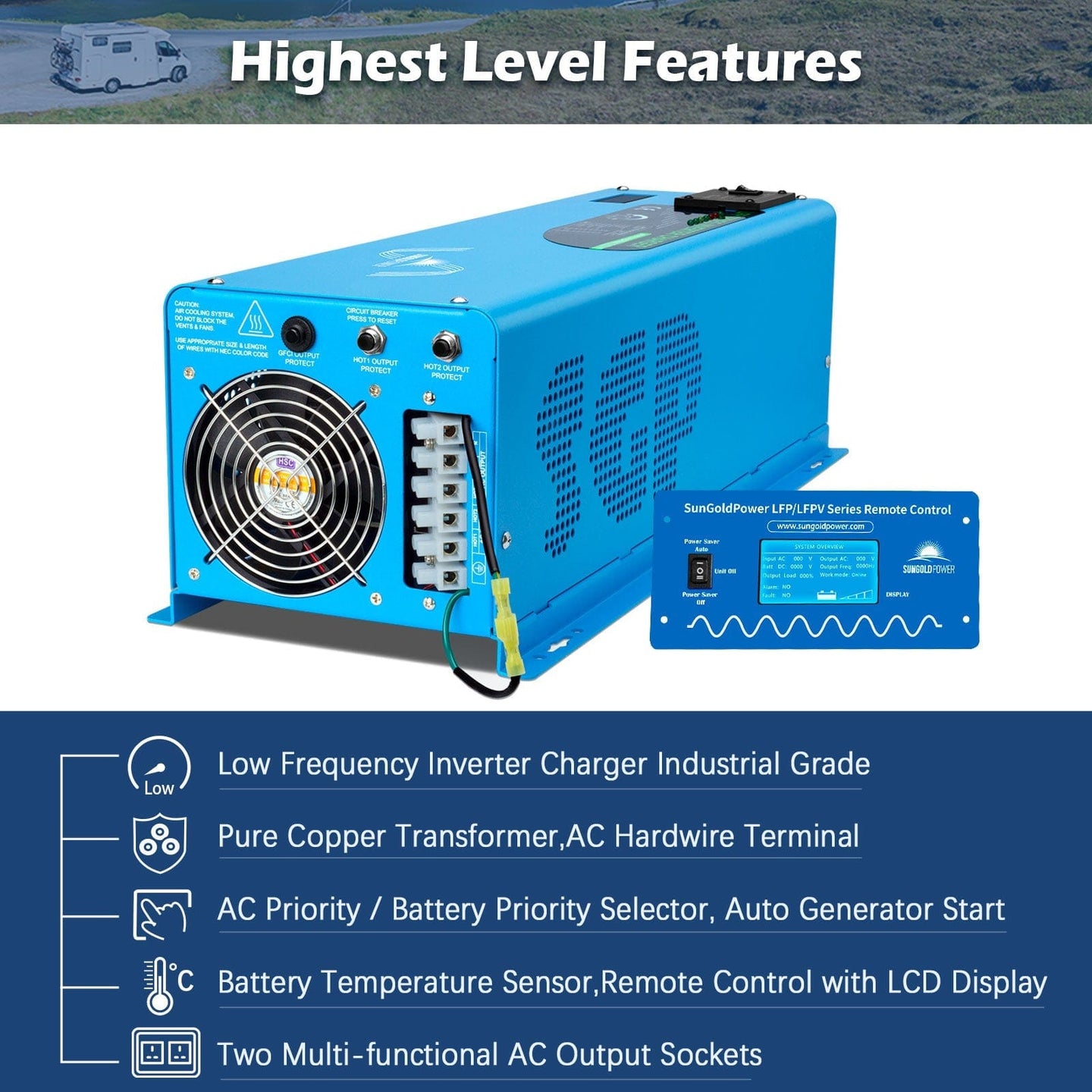

• LCD screen & remote control – monitor and configure easily

• Auto Generator Start (AGS) support

• Low idle consumption – 30W (power saver on), 81W (power saver off)

• Fast transfer time (~10 ms) – protects loads from interruptions

Specifications

• Rated Output Power: 6000W

• Surge Capacity: 18,000W (20s)

• AC Output: 120/240V split phase

• AC Input Voltage: 240V

• Battery Voltage: 48V DC

• Efficiency: >88%

• Charger Rate: 60 ±5A

• Transfer Time: ~10 ms typical

• Idle Consumption: 30W (power saver on) / 81W (power saver off)

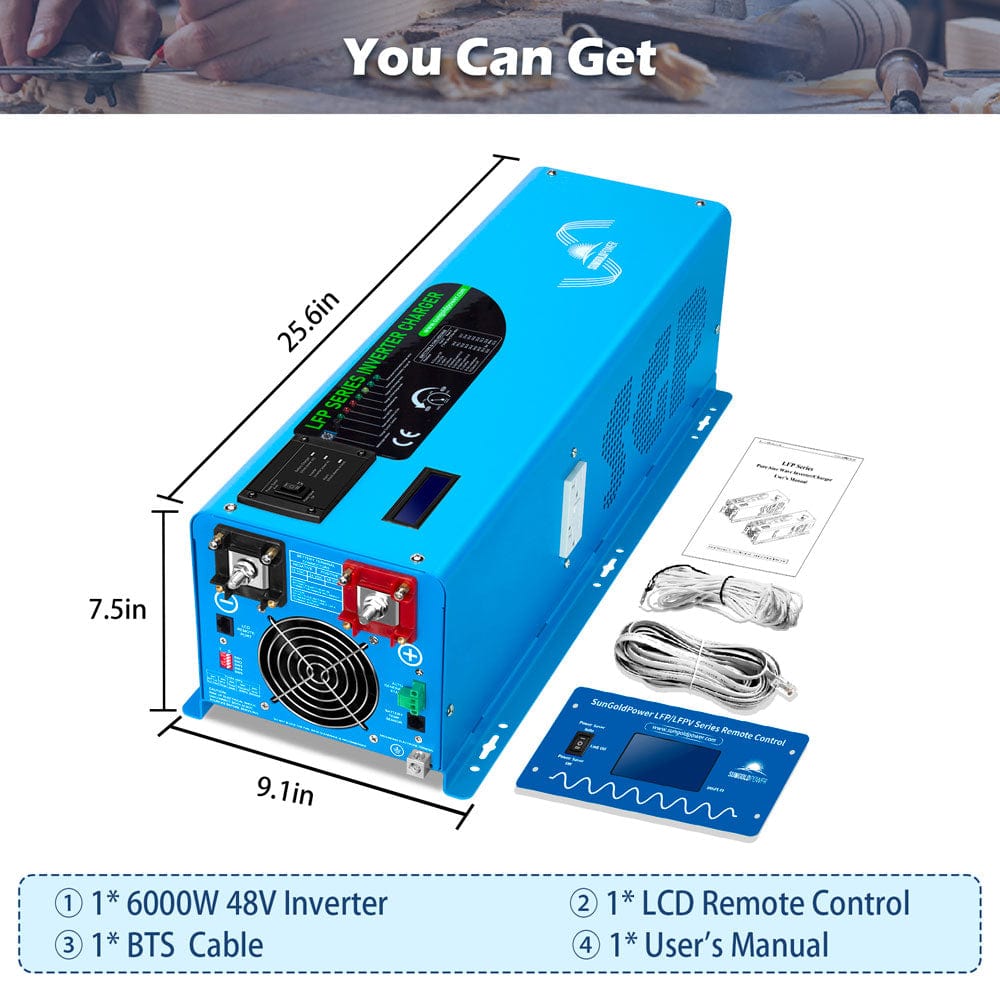

• Unit Size: 25.6 × 9.1 × 7.5 in

• Unit Weight: 76.7 lbs (85.5 lbs shipping)

What’s Included

• SunGold Power 6000W 48V Split Phase Inverter Charger

• Remote Control

• Battery Temperature Sensor (BTS)

• English Manual

Warranty

• 12–36 month limited warranty (depending on product line)

• 30-day return policy – Sungold covers shipping if defective, damaged, or incorrect

• Limited to the original purchaser; excludes misuse, unauthorized modification, or accident damage

FAQ

Is this inverter grid-tie capable?
No – it is designed for off-grid use only.

Can multiple units be paralleled?
No – this model cannot be paralleled.

Can solar panels connect directly?
No – an external solar charge controller is required.

User Manual

📑 Download the SunGold Power LFP Series Pure Sine Wave Inverter/Charger User Manual (PDF)

⚡ The SunGold Power 6000W Split Phase Inverter Charger is a reliable backbone for off-grid energy systems, providing high surge capacity and integrated AC charging in one durable package.
